Item Descriptions:

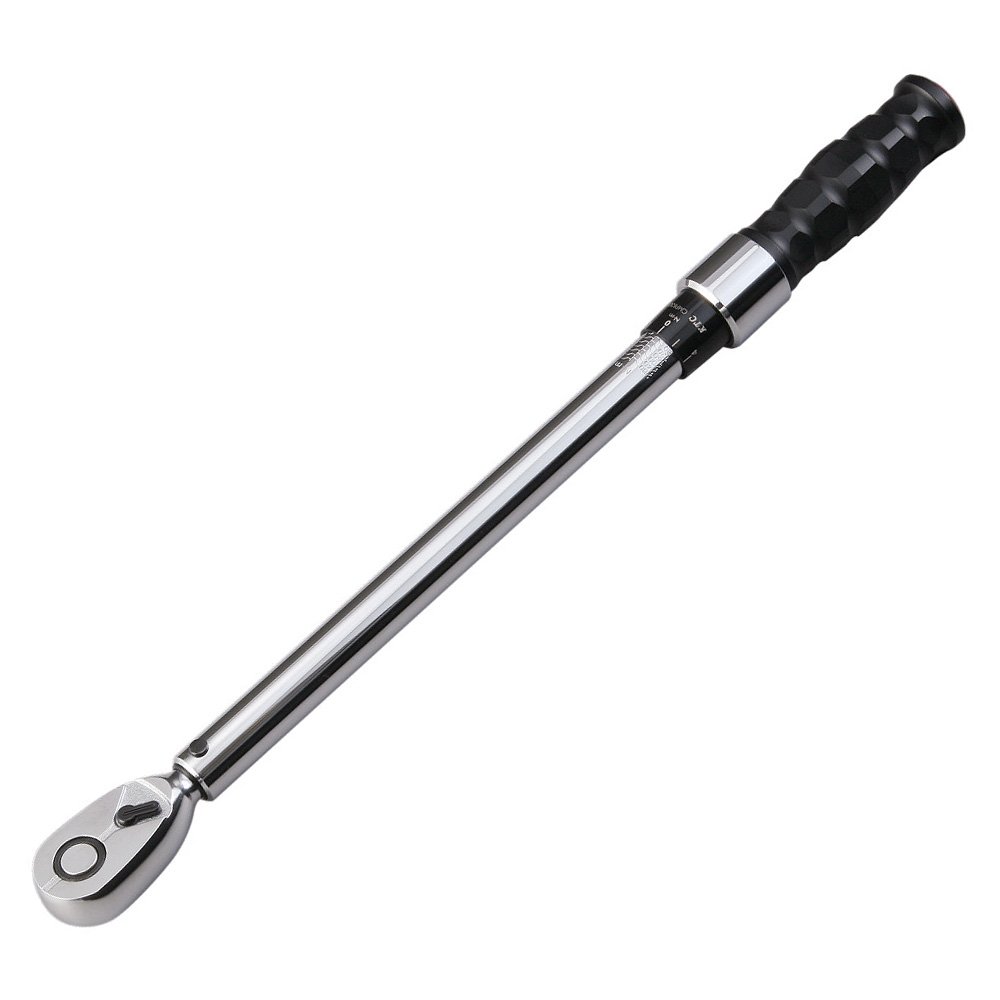

Product introduction
【Features】
● Since the torque value to be measured can be set in advance, it is effective when you work continuously or when you use it when it is difficult to read the scale.
● With the locking mechanism after measurement value setting.
● Measurement work of not only right torque but left torque is also possible.
● The head width is small, it can be used in places that did not enter in the past.
● The number of gears is 36 (angle of feed 10 °) and it is possible to work in small and narrow places.
● Head part Since the sealing ra- diation is increased by the rubber ring of the original part, high precision can be kept with few causes of failure.
【specification】
● Torque adjustment range (N · m): 40 to 200
● Minimum scale (N · m): 2.0
Total length (mm): 475
● Insertion angle (mm): 12.70
● Torque accuracy: ± 3%
● Load direction: right, left
● Torque adjustment type: mechanical type
Head width (mm): 39.5
Head thickness (mm): 18.0
● Country of Origin: Japan
● Weight: 1.2KG
From Amazon
For torque management
Features:
- Manufacturer name: Kyoto Machine Tool (KTC)
- Model: CMPB 2004
Product information:
Shipping Weight: 1700 g
Package Dimensions: 6.81 x 8.41 x 57.81 cm
