Item Descriptions:

Other features

1. Multiplication segmentation

2. Embedded audio meter

3. Camera mode

4. Scan mode (above, below)

5. Zoom (Auto, 4x, 9x, 16x)

6. Anamorphic mode (1.3 times, 2.0 times, 2.0 times MAG)

7. Pixel to pixel

8. Center marker

9. Safe area (70%, 80%, 90%)

10. Marker type (16: 9, 4: 3, 2.35: 1, 1.85: 1)

11. Marker color (red, green, blue, white, black, cyan, purple, yellow)

12. Check field (gray / red / green / blue)

13. Image Flip (H, V, H / V)

14. Image freeze

15. Color temperature adjustment

specification

HDMI support mode: 480i / 480p / 576i / 576p; 720p (60 / 59.94 / 50/30/29/24 / 23.98); 1080i (60 / 59.94 / 50) 1080p (60 / 59.94 / 50/30 / 29.97

/ 25/24/24 fps / 23.98 / 23.98 fps)

Resolution: 1920 x 1200

Dot pitch: 0.07875 (H) x 0.07875 (W) (mm)

Aspect ratio: 16: 10

Brightness: 450 cd / m 2

Contrast: 1200: 1

Viewing angle: 80 ° / 80 ° (L / R) 80 ° / 80 ° (U / D)

Backlight: LED

Input: HDMI, AV

Output: OSD controller

Audio: Speaker, earphone slot

Power consumption: 5 W

Input voltage: 7 V - 24 V

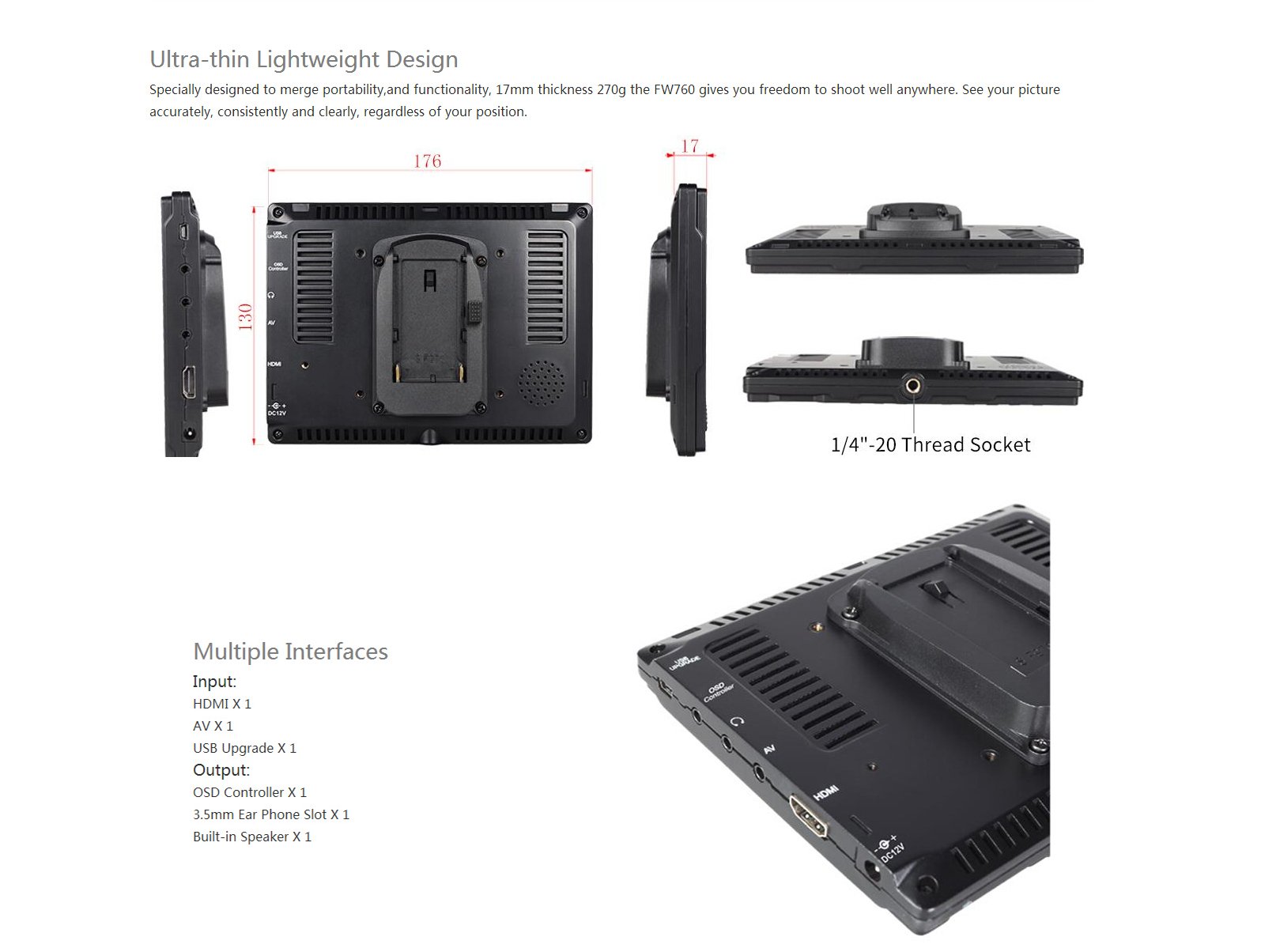

Installation: 1/4 "-20 thread socket (1 bottom side)

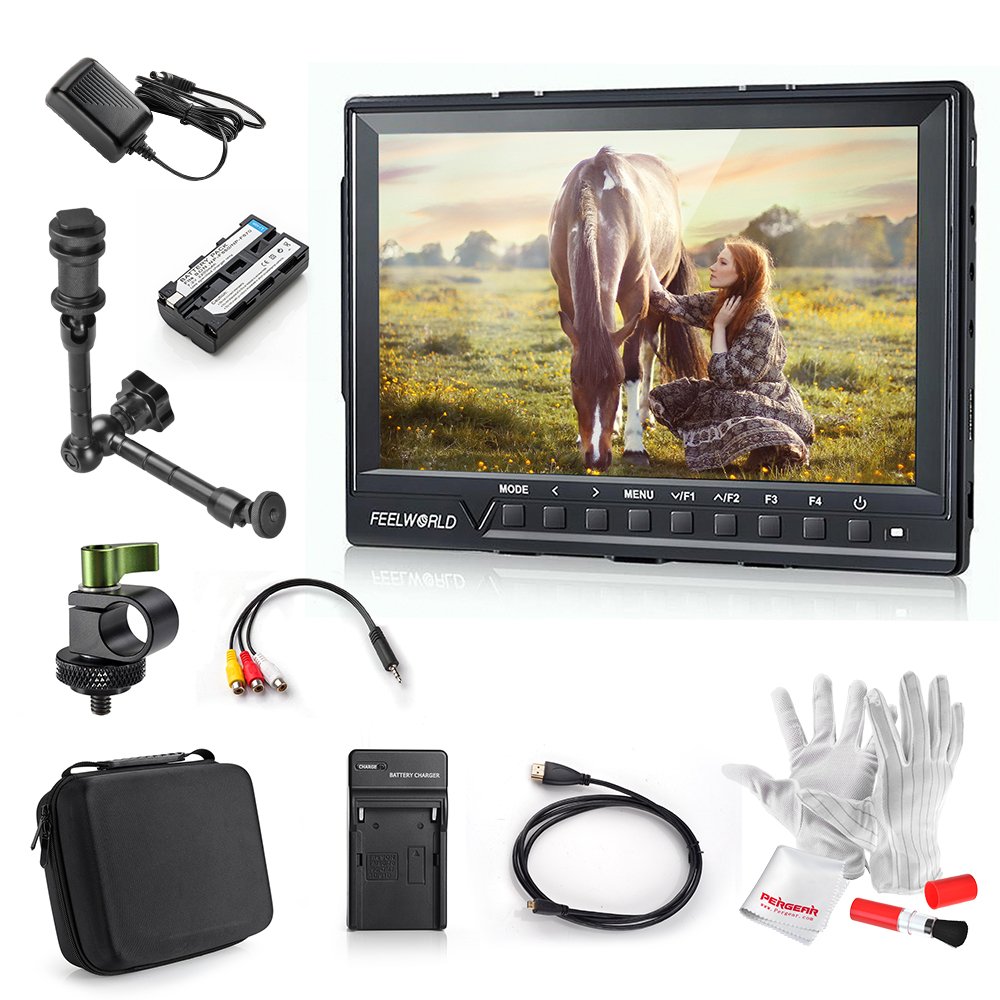

Package:

1 * FW 760 Monitor

1 * mini HDMI cable

1 * Sunshade

1 * Hot shoe mount

1 * F 970 Battey plate

1 * HDMI plug lock

1 * Instruction Manual (English / Chinese)

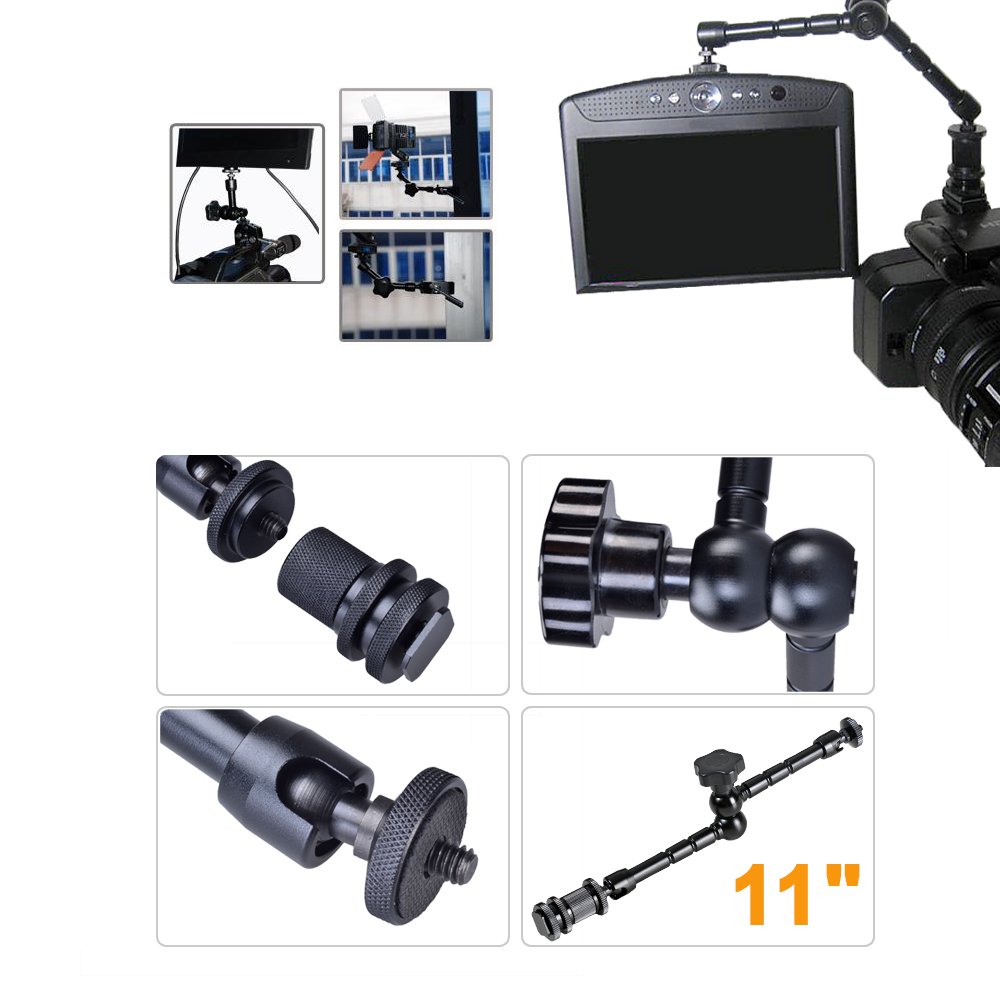

1 * 11 "Magic Arm

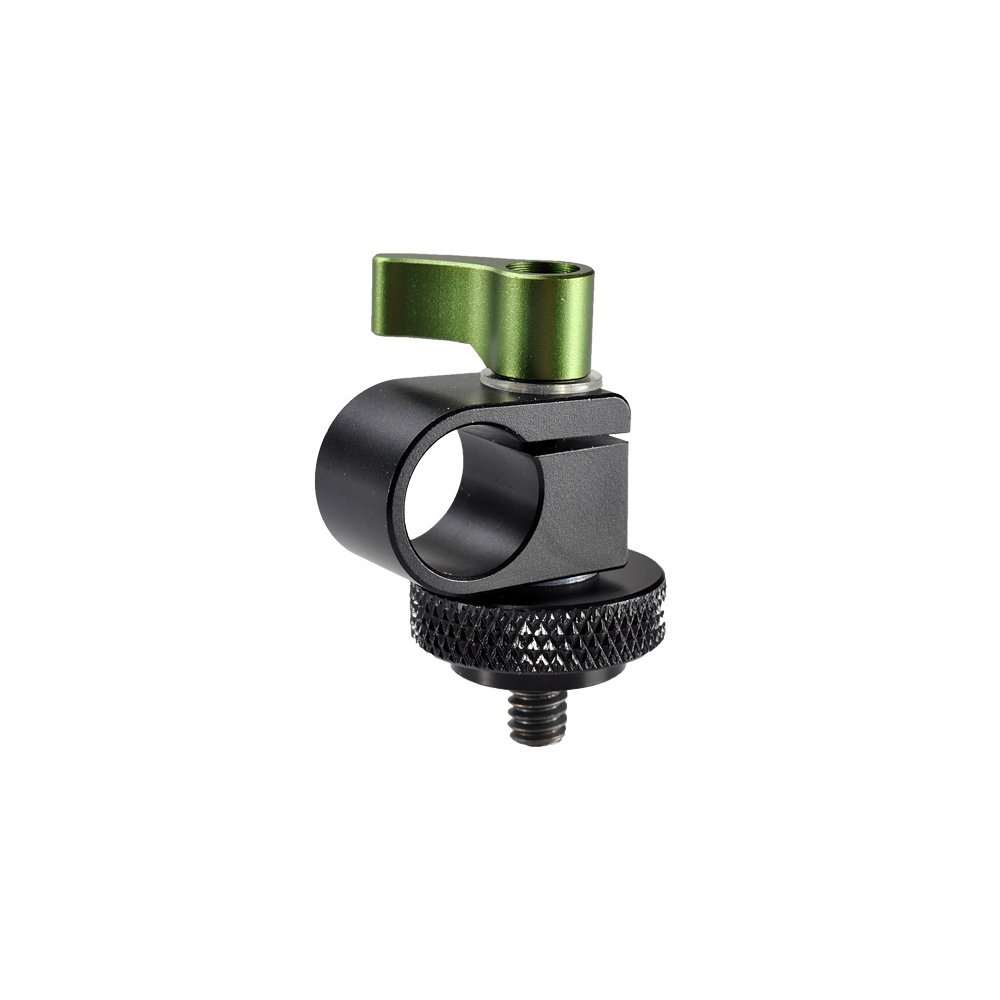

1 * 1/4 "threaded 15 mm rod clamp

1 * Micro HDMI cable

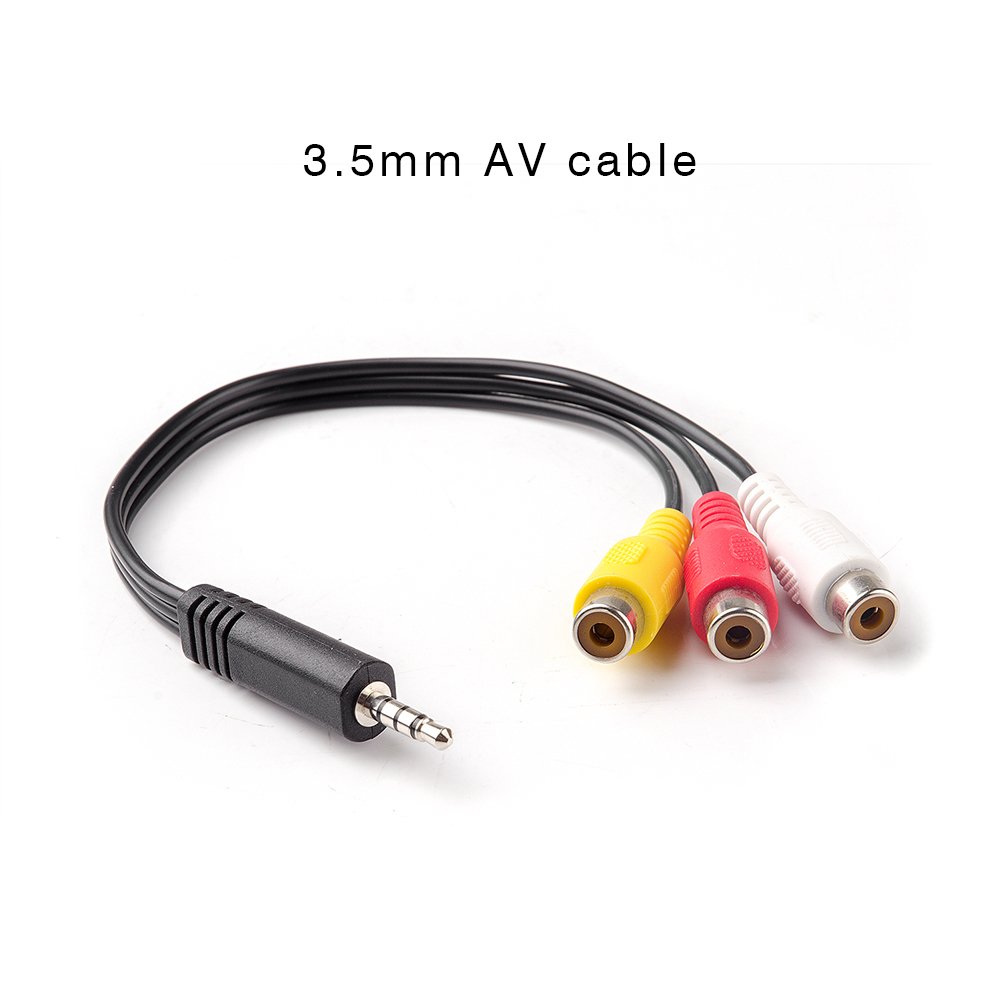

1 * 3.5 mm AV cable

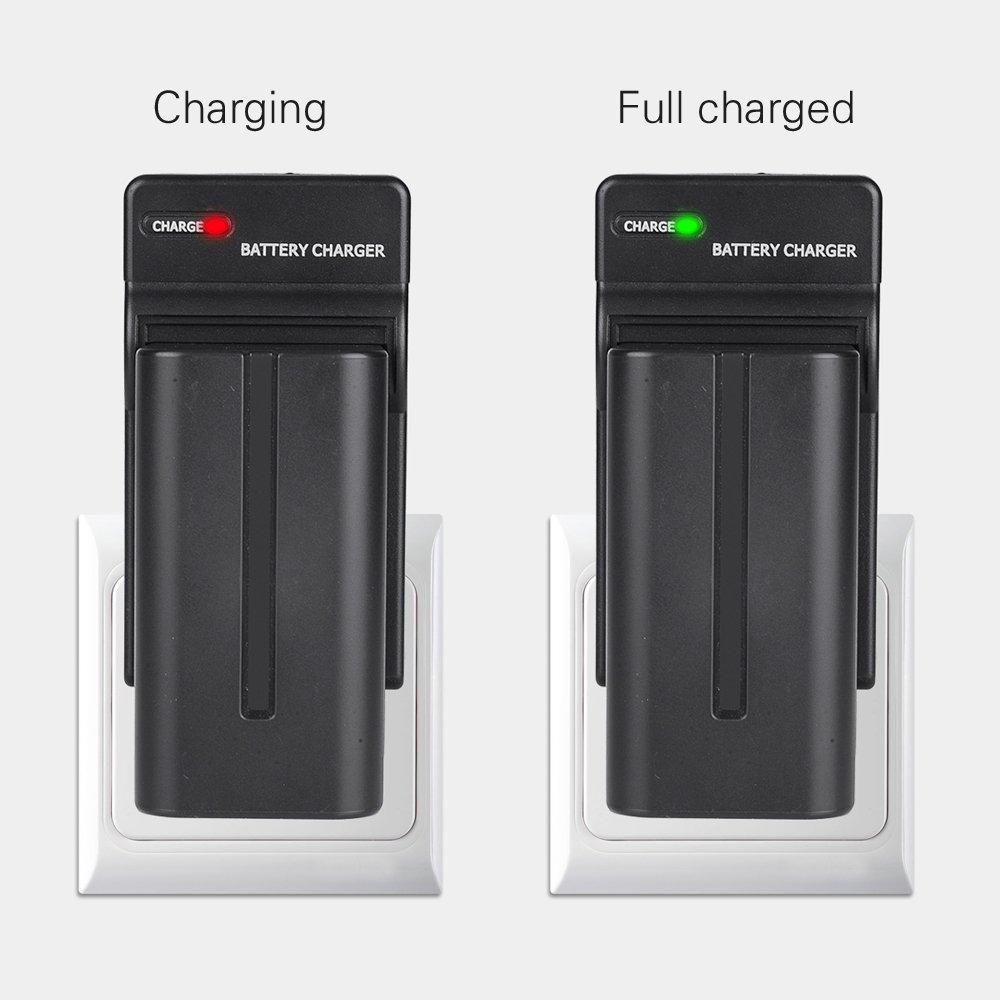

1 * Battery Charger

1 * Battery pack for Sony NP-F550

1 * Power Adapter (with Technical Mark)

1 * Pergear Case Cut Out Sponge Block

1 * Pergear Cleaning Kit

About warranty:

One year after purchase is the warranty period.

If it breaks down, please contact us from the purchase history of Amazon, you can exchange / repair the product at your request by detailed problem.

★ However, it will be out of warranty for breakage, remodeling or breakdown due to your own use.

Features:

• Please enter model number Confirm this is compatible:

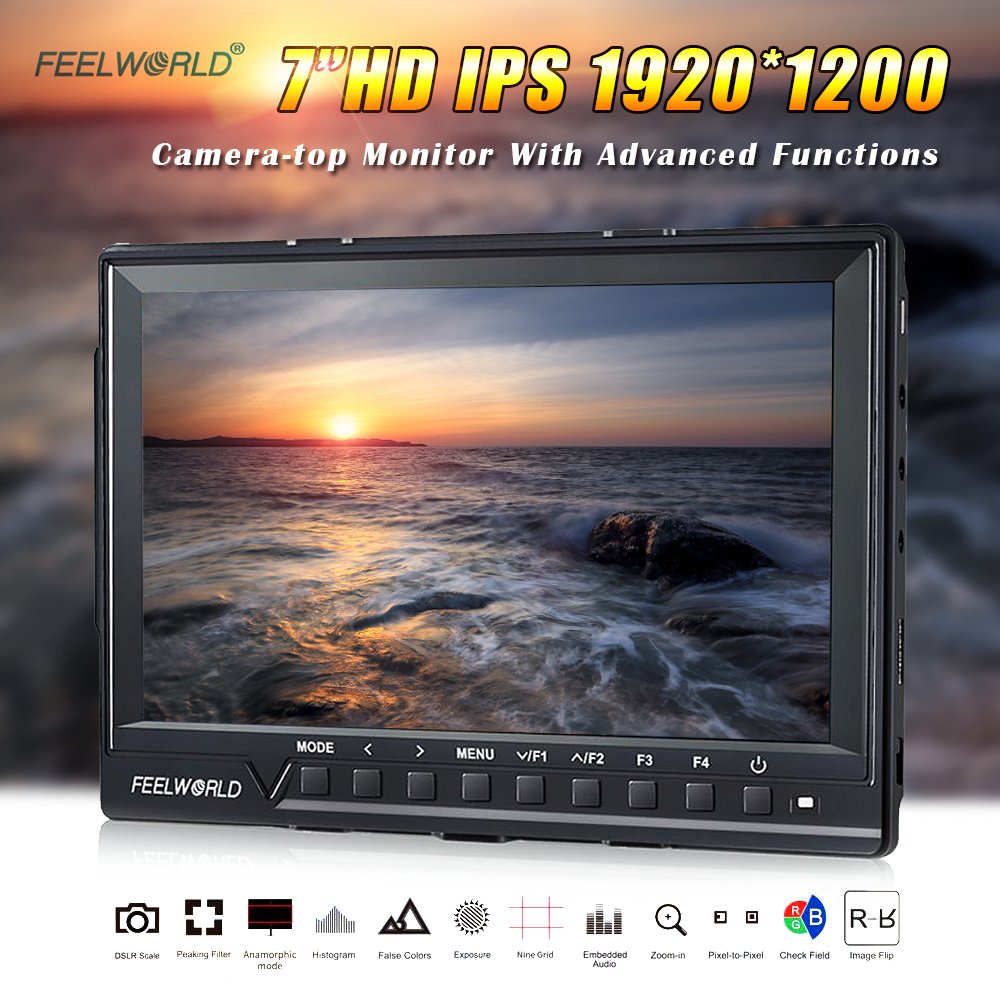

• Full HD 1920 x 1200 high resolution, 323 PPI.
• Sharp image, brings the optimal visual experience to you.
• 160 ° wide viewing angle, 450 knit brightness and 1200: 1 contrast ratio, FW 760 provides richer, brighter and more dynamic color.
• Along with exposure control functions such as histogram, false color, zebra marking etc.
• Even in very bright sunny outdoors, you can capture the real image data.
• Peaking Focus Assist allows you to switch colors between red, yellow, blue and white depending on different tone of interest.
• The peaking focus assist of FW 760 has high / low level, and it is also available when video zoom up.
• Many interfaces such as HDMI / AV / USB upgrade input port, OSD controller / 3.5 mm earphone slot / built-in speaker output interface, HDMI format for HD signal transmission (0.67 "thick and 9.5 ounce)

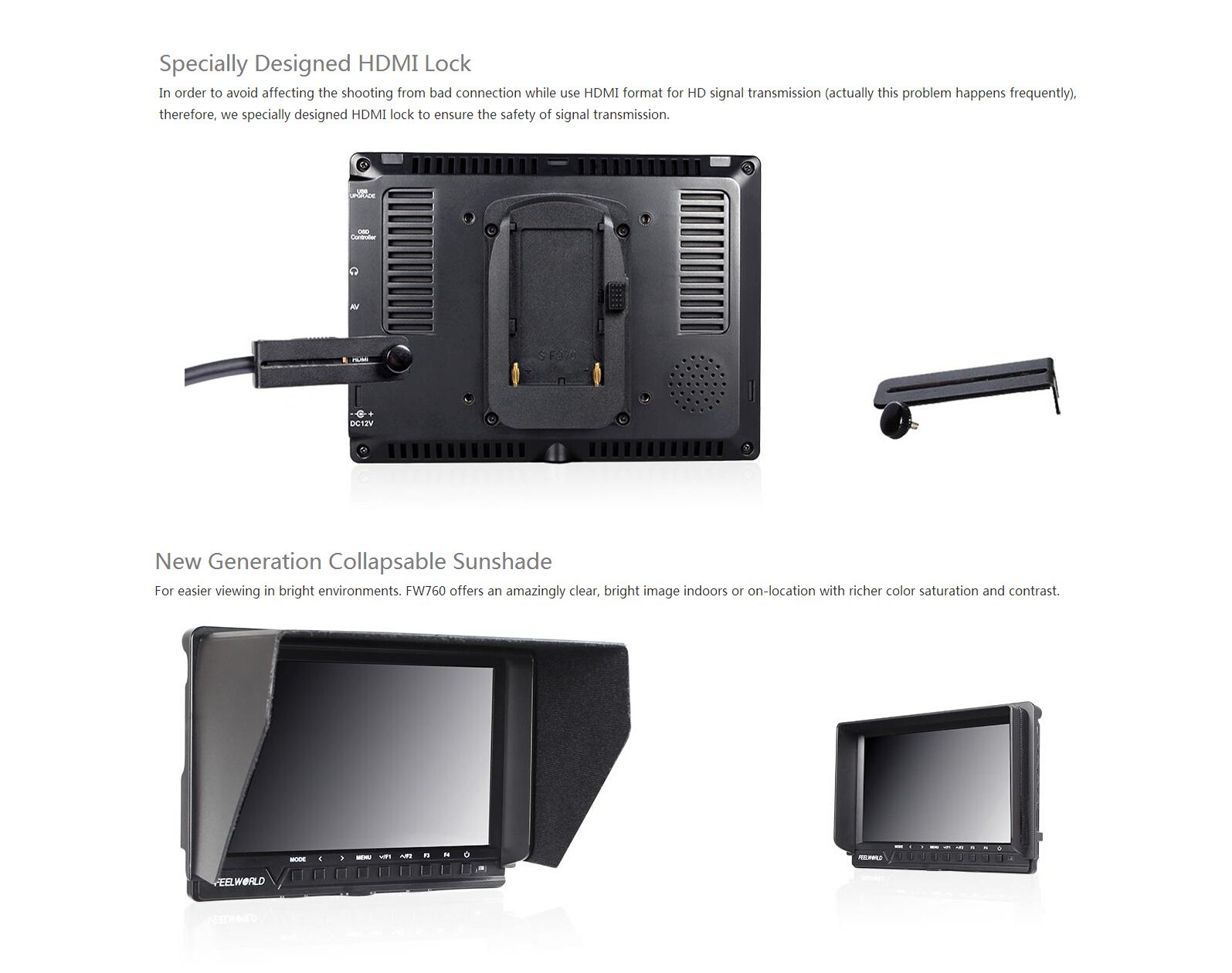

• When used, a specially designed HDMI lock connects the camera properly.

Product information:

Shipping Weight: 2018 g

Package Dimensions: 17.40 x 22.91 x 31.60 cm
