Product Description
Feature:

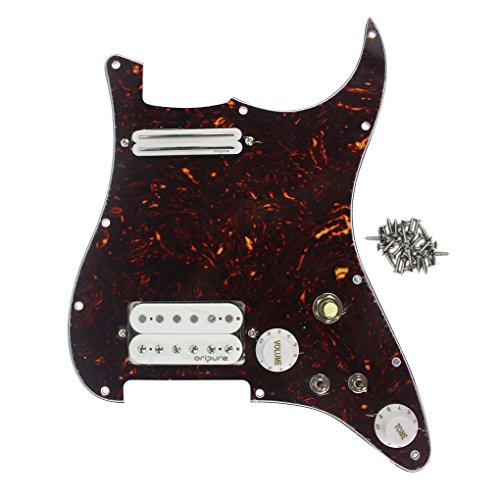

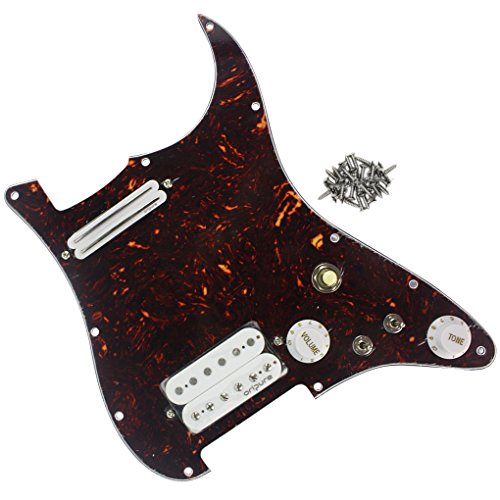

Item: A Set Loaded Prewired SH Guitar Pickguard Screws.
Fit for FD Strat Style Guitar Parts Replacement.
11 holes SH pickguard comes with full set of pickups,switch,knobs and prewired circuit.
2 White Color OriPure Alnico 5 pickups:Neck Dual Rail Humbucker Pickup/ Bridge Double Coil Humbucker Pickup.
Using Korean Alpha 500K big potentiometer,long life,reduce noise.

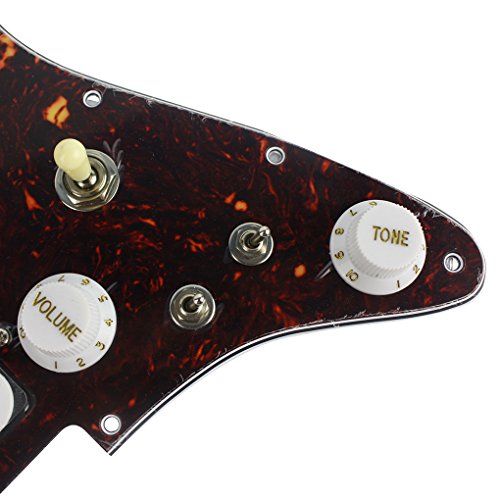

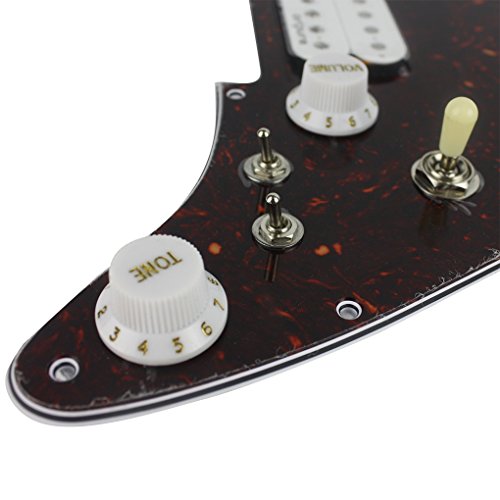

1 volume and 1 tone control knobs white with golden number.
3-way Korean JA pickup selector toggle switch and two 2-way mini switch can better be switched to single.
Using Braided fiber cable connect,better reduce circuit noise.
All you have to do is solder the input jack and your ready to play.

Specification:

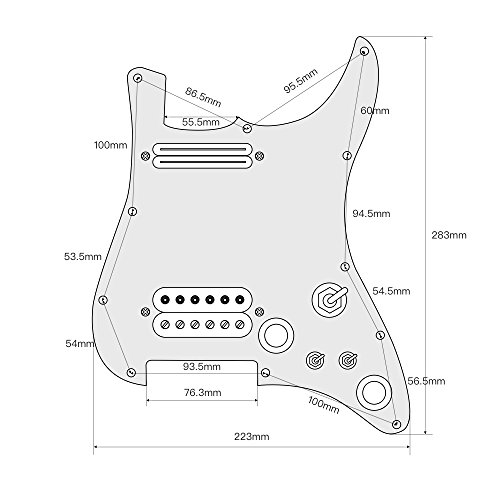

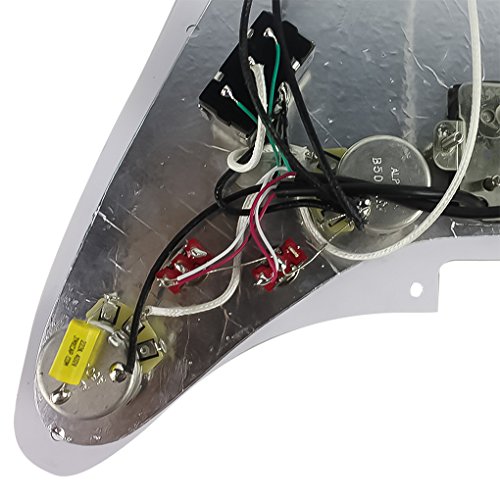

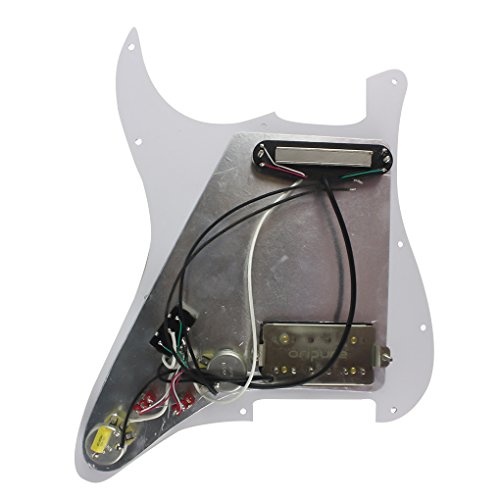

Pickguard:4Ply Brown Tortoise,11 Holes SH Guitar Pickguard,with pure aluminum foil shielded in the back side and protective film on the top.
Neck Position:Dual Rail Pickup,Alnico 5 Magnet,Resistance:10-11k ohm.
Bridge Position:Double Coil Humbucker Pickup,Alnico 5 Magnet,6 Fixed 6
Adjust Pole Pieces,Pole Spacing 52mm,Resistance: 13.6-14k ohm .
KnobPots: 1T1V Knobs,Korean Alpha Pots,A500k Pots for Tone,B500k Pot for Volume.
3-Way Korean JA Pickup Selector Toggle Switch with Cream Cap.
Two 2-Way Mini Switch on-on (2A 250V,5A 120V).
Capacitor:223K 400V.
Note: The aluminum foil shield on backside is not flat; it is with some creases and patches caused during the processing.

Package Includes:

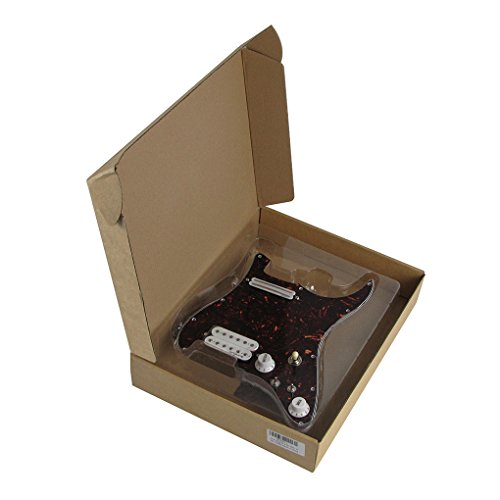

1 * Prewired Pickguard Set
1 * Screws Bag
