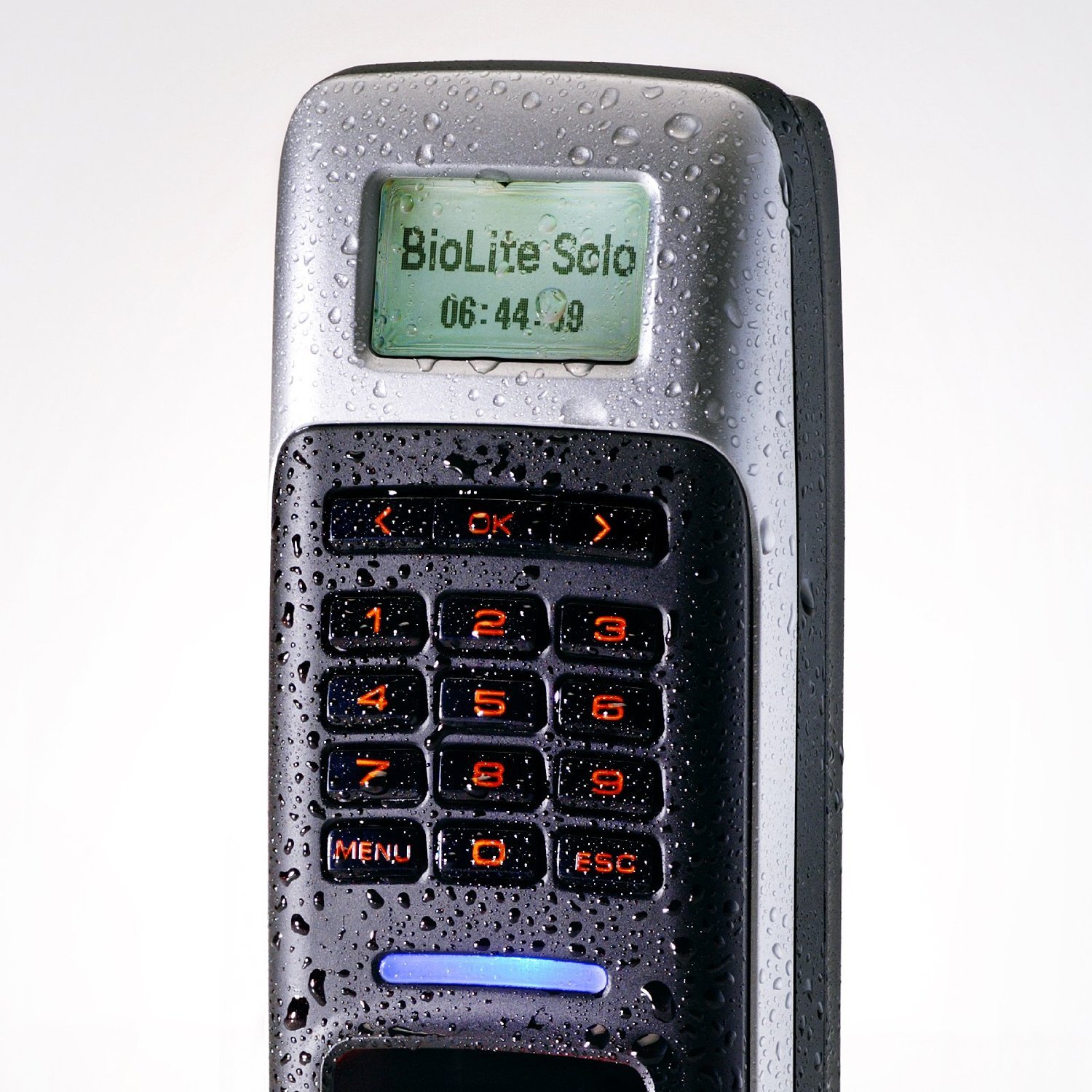

Suprema BioLite Solo

Time Attendance Standalone Outdoor Fingerprinter Waterproof Digital Door Lock

BioLite Solo is powered by World’s best Suprema fingerprint algorithm that has been recognized multiple times by both FVC and NIST MINEX as the best algorithm in the world. The device deliver fast matching speed and rapid responses while providing exceptional low error rate. A powerful DSP of the device is capable of handling large amount of data required for fast and accurate verification while ensuring uninterrupted device operations.

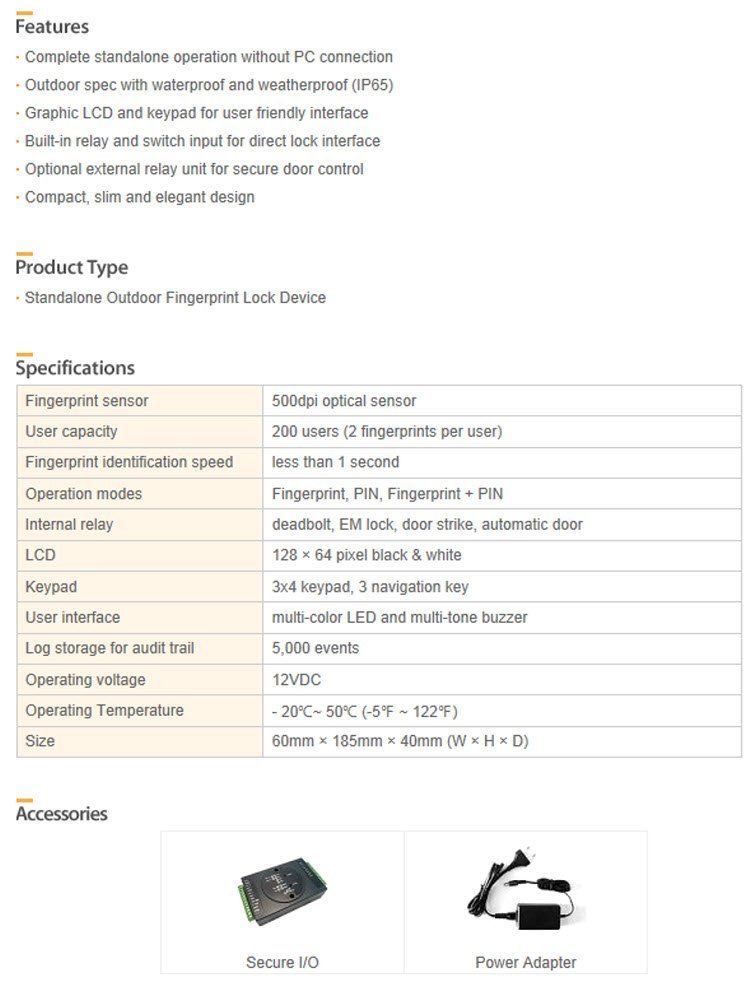

Features

Complete standalone operation without PC connection
Outdoor spec with waterproof and weatherproof (IP65)
Graphic LCD and keypad for user friendly interface
Built-in relay and switch input for direct lock interface

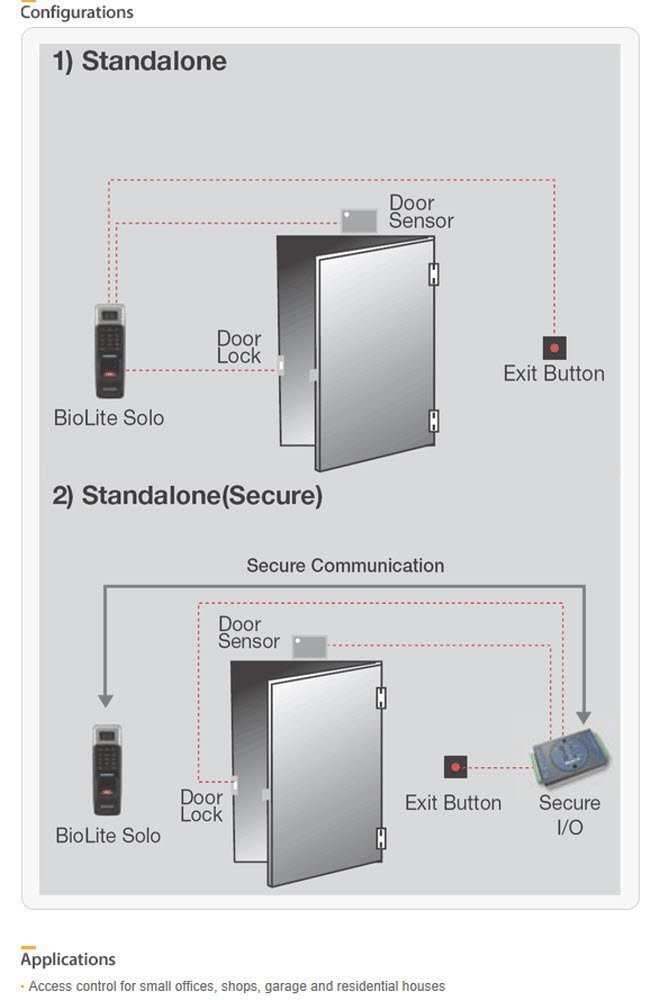

Optional external relay unit for secure door control
Compact, slim and elegant design.

Product Type

Standalone Outdoor Fingerprint Device

Specification

Category	Feature	BioLite Solo	Hardware	CPU	533MHz DSP
Main	Biometric	Fingerprint		Memory	8MB RAM + 4MB Flash
	IP Rating	IP65		LCD	128X64 Graphic LCD(Monochrome)
	RF Option	-		LED Indicator	Multi-Color
	Multi-Controller	-		Sound	Multi-tone buzzer
Capacity	Max User (1:1)	200		Operating Temp.	-20° to 50°C
	Max User (1:N)	200		Tamper	Yes
	Max Template (1:1)	800		Power	12VDC
	Max Template (1:N)	800		PoE	-
	Max Text Log	5,000	Dimensions (W x H x D mm)	60 x 185 x 40
	Max Image Log	-
Interface	WiFi	-
	TCP/IP	-
	RS-485	To Slave Only
	RS-232	-
	Wiegand	-
	TTL Input	2 Inputs
	Relay	1 Relay
	USB	-	Certificates	KCC, CE, FCC
	SD Card Slot	-	Compatibility	BioStar	Yes
