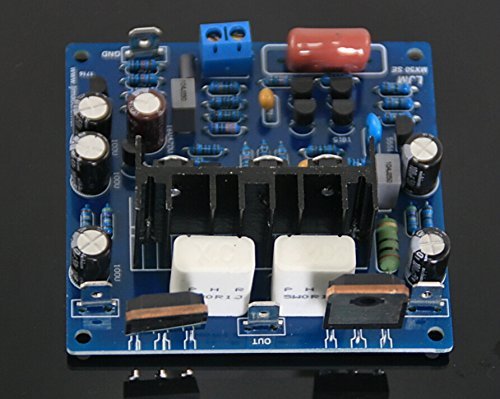

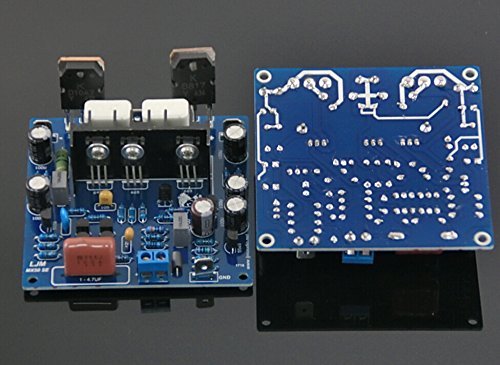

Nobsound® Improved Dual 2.0 channel amplifier board 100W+100W MX50 SE Power amplifier kit
</br></br>
<div style="text-align:left">
<b>[Product Information]</b><br>
<ul>
<li>MX50 SE is the new improvement version based on the fifth edition of MX50 Features： The lower distortion, better control and resolution Single differential input, single-ended voltage amplifier stage, three-stage inverted Darlington output. The output stage uses the original KTB817, KTD1047 PHILIPS KEC transistor, ST, EVOX producing CBB capacitor.KEMET, TDK monolithic capacitors.</li>
<li>Specification: -Supply Voltage: + -15V to + - 45V -Output Power: 100W8R (+ - 42V) -Voltage Gain GAIN: 34times -Input Sensitivity: 1.2V100W RMS 8 Europe -SNR: More than 98DB -Distortion: <0.009 THD 1K HZ 10W -Output Stage quiescent current per channel IQ Approximately 30MA -PCB Dimension: 76mm * 73mm -Installation: 649 669 must be installed on the matching radiator，After installation does not require any adjustment, the quiescent current of each transistor about 30MA.</li>

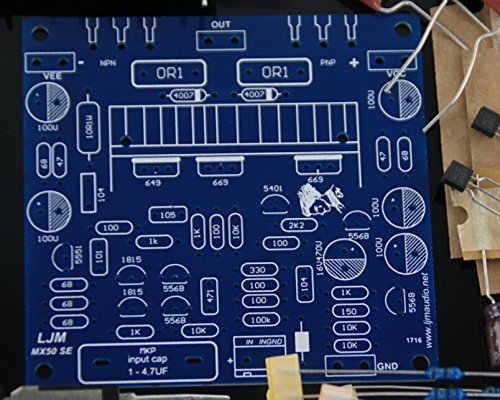

<li>This version does not need to Jump Wire.</li>

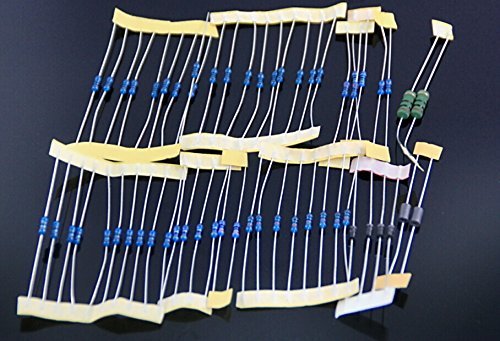

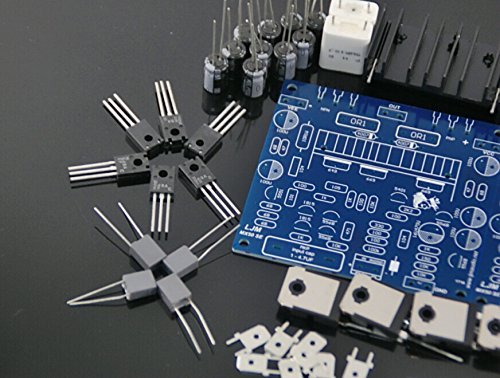

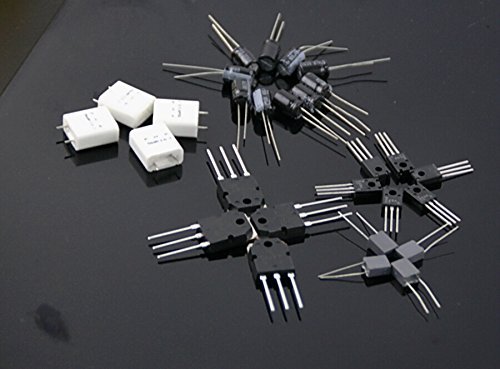

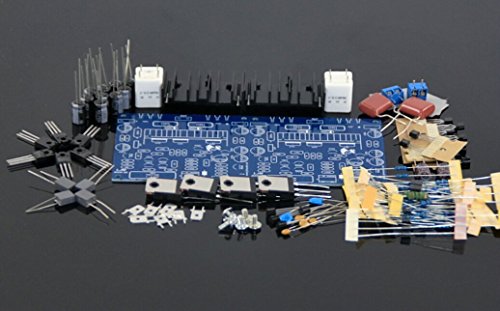

<li>Package includes: Stereo MX50 SE power amp DIY kit X 1 (include 2 channel PCB and components).</li>
<li>This is a DIY kit, you need to solder it by yourself.</li>
</ul>
</div>
</br></br></br></br></br></br></br></br></br></br>

</br></br></br></br></br></br></br></br></br></br>
<img src='http://ecx.images-amazon.com/images/I/51C8Og1EIGL.jpg' noproxy></br>
<img src='http://ecx.images-amazon.com/images/I/51BNOZVOBsL.jpg' noproxy></br>
<img src='http://ecx.images-amazon.com/images/I/51SlsJkkWQL.jpg' noproxy></br>
<img src='http://ecx.images-amazon.com/images/I/51Bu7yLqpZL.jpg' noproxy></br>
<img src='http://ecx.images-amazon.com/images/I/41sEXq0ugDL.jpg' noproxy></br>
<img src='http://ecx.images-amazon.com/images/I/51Mc%2Byo6aGL.jpg' noproxy></br>
<img src='http://ecx.images-amazon.com/images/I/51FSIW3-ZpL.jpg' noproxy></br>
