Item Descriptions:

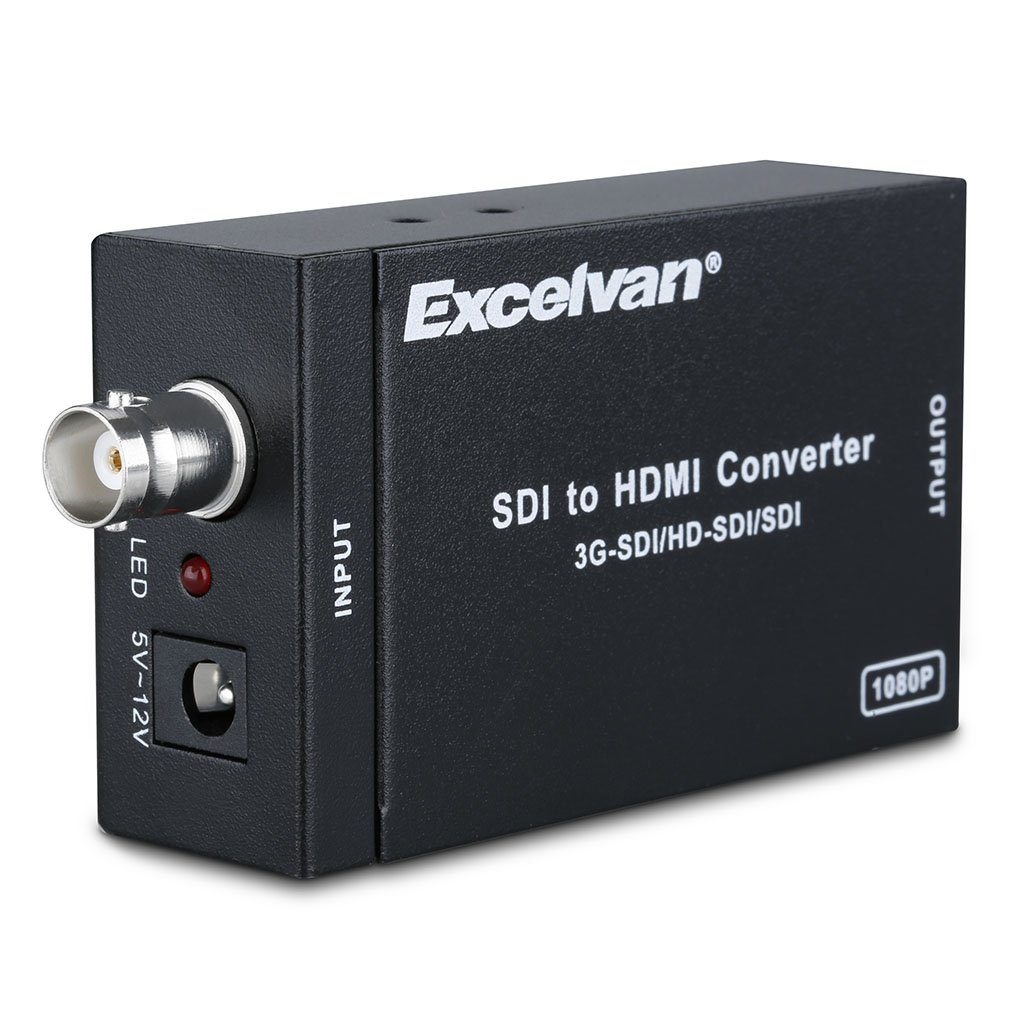

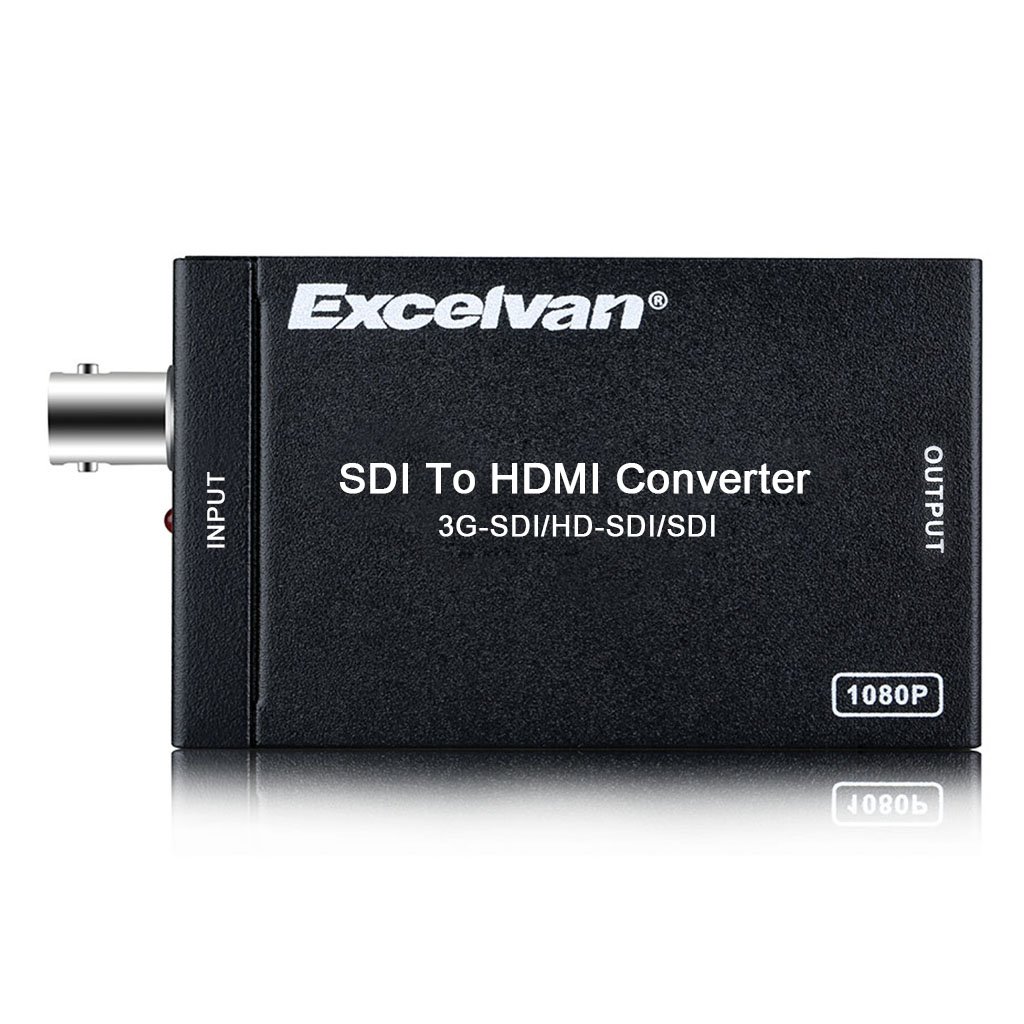

Conversion unit for converting SDI signal to HDMI signal

● Mini SDI - HDMI Converter is a professional trader product that converts SDI signal to HDMI.

● Compact size, easy to use by plugging in the cable, easy to connect only simple design and easy to use.

● SMPTE standard supports 425 M Level A & B, 424 M, 292 M, 259 M - C.

● Signal transfer with high bit rate of 2.970 Gbit / s with extremely low data loss converts SD - SDI, HD - SDI and 3G - SDI signals to HDMI signals and displays them on HDMI / SDI monitor display.

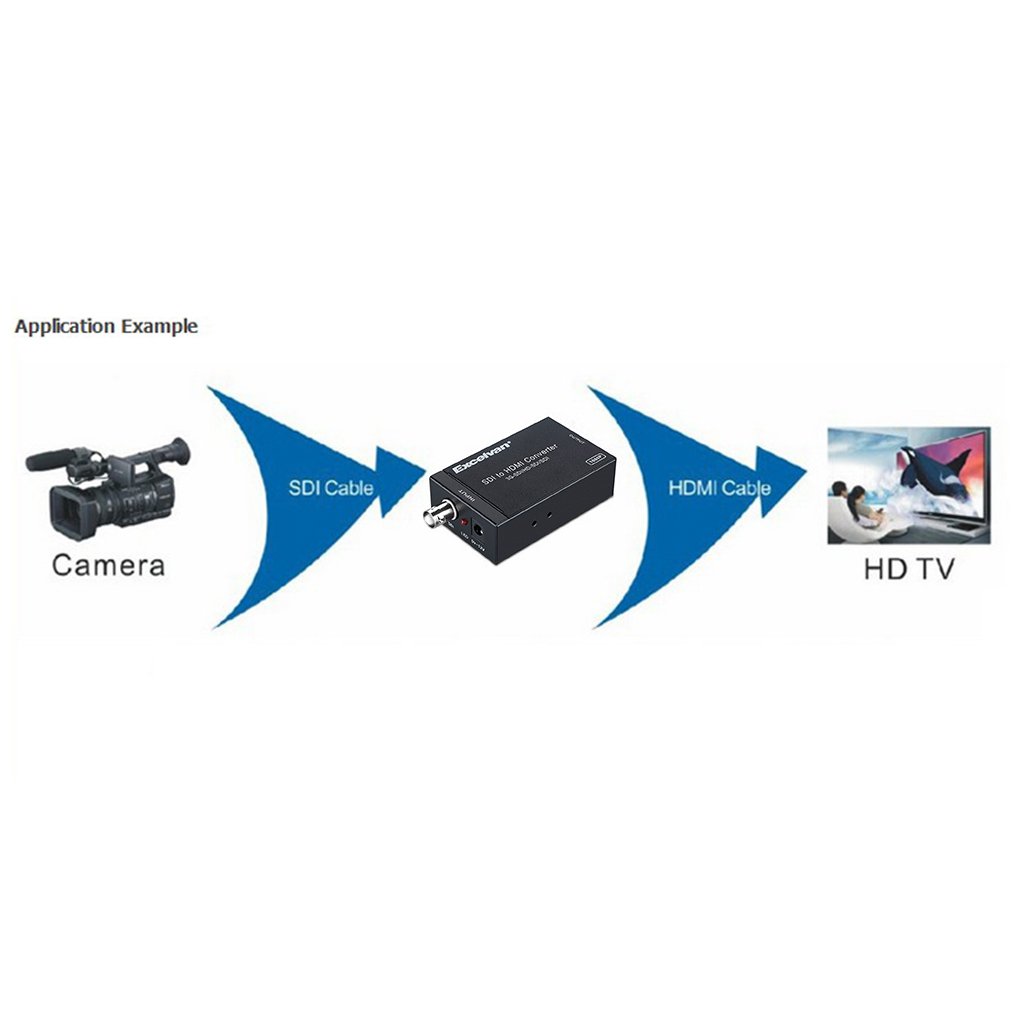

● You can convert an SDI signal output from one device with one SDI output terminal (such as a camera with SDI terminal) to an HDMI signal and display it on a device with HDMI input terminal (HDTV, PC monitor, projector, etc.)

【Product Specifications】

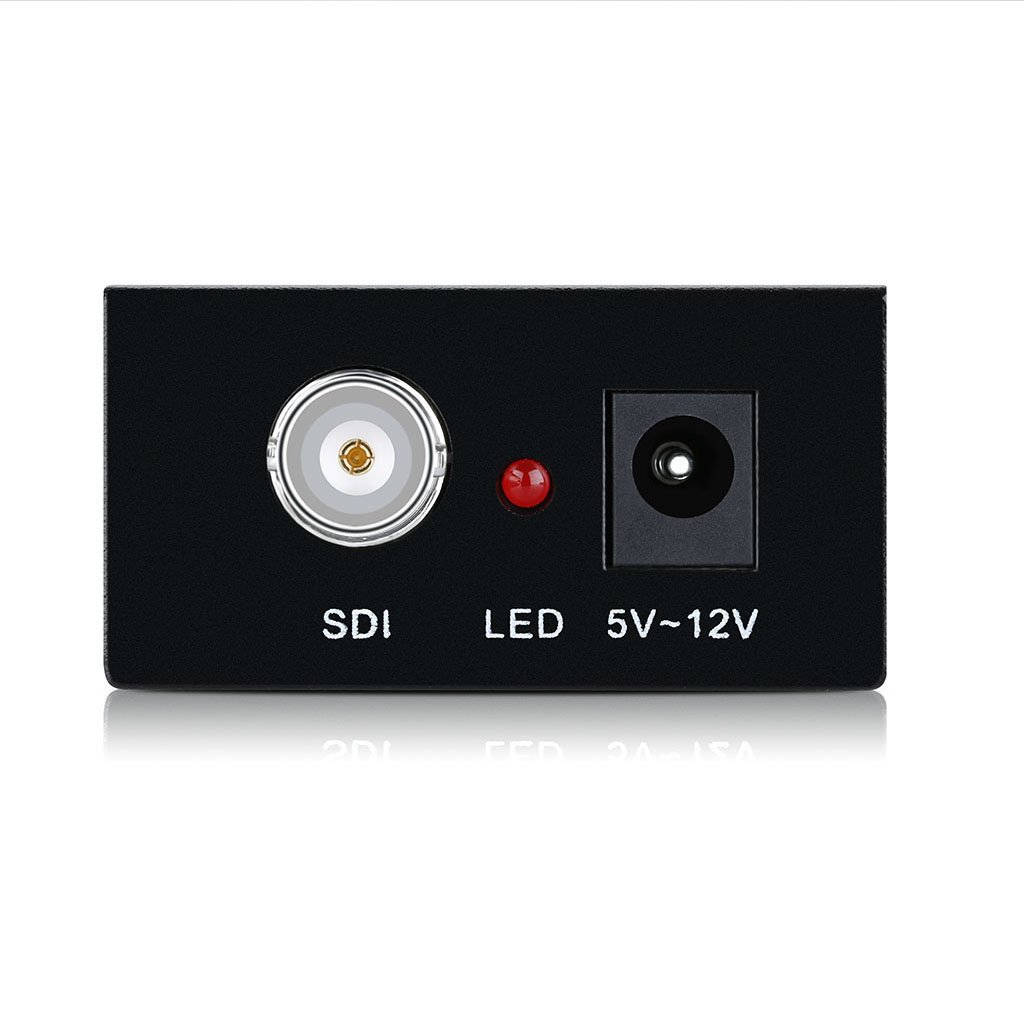

Input terminal

: 1 × BNC (SDI / HD-SDI / 3 G-SDI)

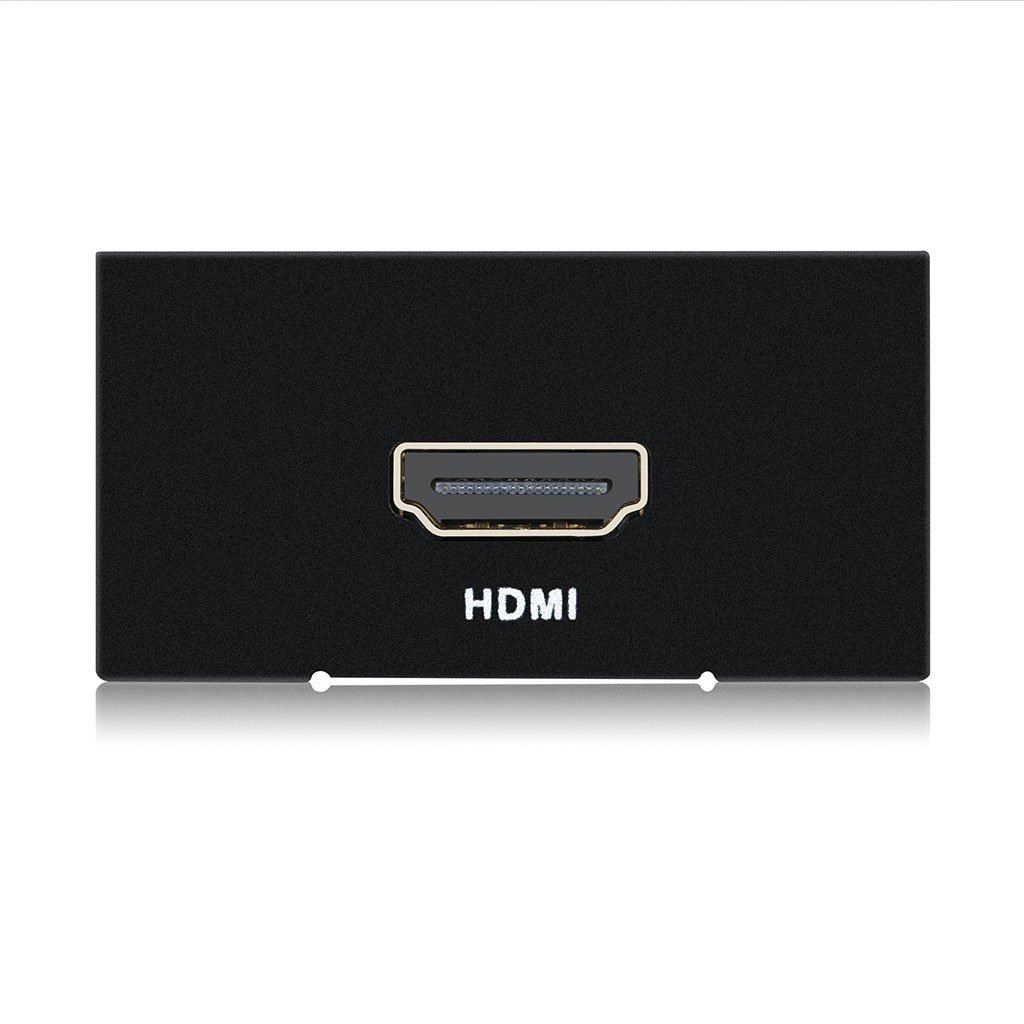

Output terminal

: 1 x HDMI

SDI transmission rate

: 2.970 Gbit / s 2.970 / 1.001 Gbit / s

resolution

: 480i, 576i, 720p @ 50 / 59.94, 60, 1080i@50/59.94/60 [email protected]/24/25/29.97/30/50/59.94/60

Power supply

: DC 5 V - 12 V

Power consumption (maximum)

: 5 W

ESD protection

: ± 8 kV (air gap discharge), ± 4 kV (contact discharge)

weight

: 150 g

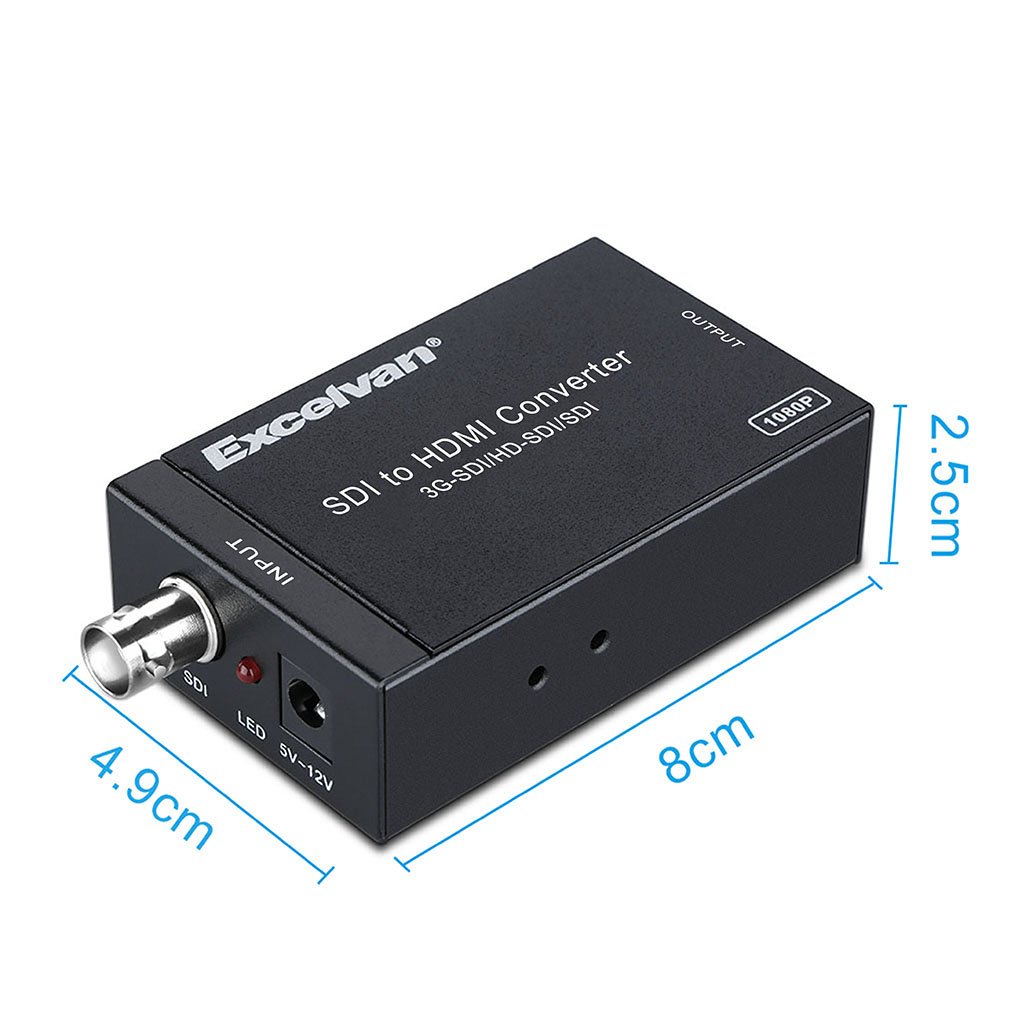

size

: 80 mm x 41 mm x 25 mm

Operating temperature

: 0 ° C to 40 ° C / 32 ° F to 104 ° F

storage temperature

: -20 ° C to 60 ° C / -4 ° F to 140 ° F

Relative humidity

: 20 to 90% RH (noncondensing)

accessories

: Body, instruction manual, DC adapter (DC 5 V 1A)

Please note: Please refrain from exhibition of other stores in this product with store name TokyoStore original goods.

Also, if you buy fakes, bad products in other shops, you can not conform to the specific warranty.

Please note before purchase.

Features:

• Please enter model number Confirm this is compatible:
• This product is SDI to HDMI professional · professional converter.
• It converts the SD - SDI, HD - SDI and 3G - SDI signals to HDMI signals and displays them on the HDMI / SDI monitor display by signal transfer with a very low data loss of 2.970 Gbit / s.
• Supports SMPTE 425M, SMPTE 424M, SMPTE 292M, SMPTE 259M-C.
• The SDI signal output from one device with SDI output terminal (camera with SDI terminal etc) can be converted to HDMI signal and displayed on the device with HDMI input terminal (HDTV, PC monitor, projector etc.).
• Since the SDI loop out terminal is installed, it is possible to output the same SDI signal to other SDI devices.
• HDMI cable and coaxial cable are sold separately.
• You can connect to other units and extend the signal up to 120 m above the long distance.
• It can be installed easily when extending HDMI equipment, and HDTV full high vision signal of resolution 1080P can be extended up to 120M.
• Multiple (layer) connection is possible, and the extension distance can be freely adjusted.
• It converts from SMPTE 425 M level B to 1080 p 50 / 59.94 / 60 4: 2: 2 10 bit level.

Product information:

Shipping Weight: 9 g

Package Dimensions: 5.79 x 16.79 x 22.20 cm
