Item Descriptions:

size:

1 piece (unit price 1200 yen)

"When you are in the dark" you will "light up people" and light up

Built-in two sensors

· Brightness sensor

· Human sensor (PIR sensor)

When the surroundings are dark

Into

Detect human movement

Then it will light.

【Condition for lighting】

1. Darkness of around 10 lux or less (about a cinema break)

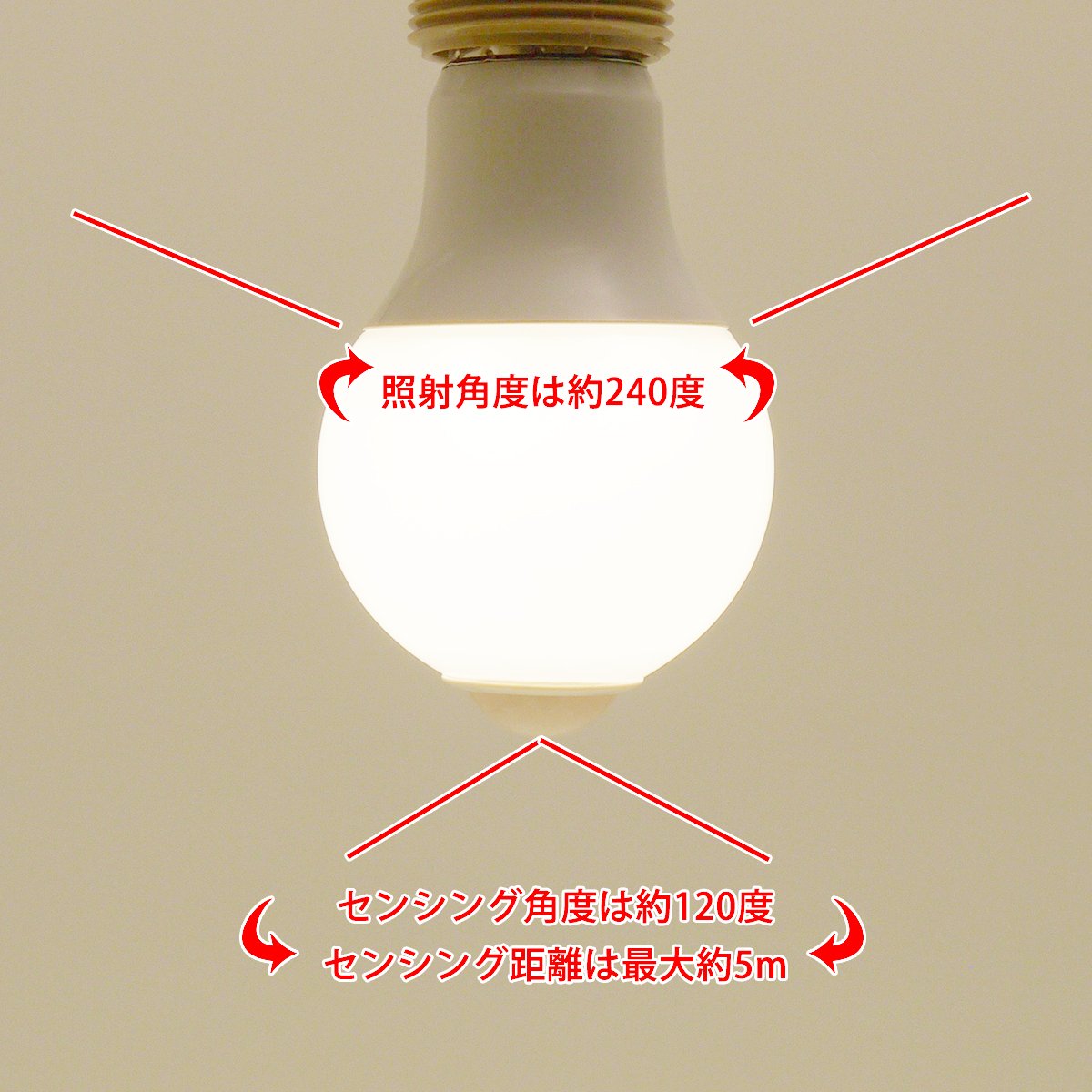

2. People move in the sensor sensing area (see the left figure)

I also sense the movement of "shaking hands".

Rather than slow motion, quick movement is easier to perceive.

For 40 seconds, it turns off unless you detect human movement

After lighting in accordance with the above conditions, it automatically turns off unless you detect human movement for 40 seconds.

If you sense a person's movement again within 40 seconds, it will continue to light for 40 seconds from that point, so it will not disappear if it continues to move within the area.

Even if it goes out due to being stationary for 40 seconds, it will immediately reappear with the action of waving your hand.

White light with a slightly yellowish color temperature of 4000 Kelvin

Light source color,

Slightly yellowish than day white

White color

"is.

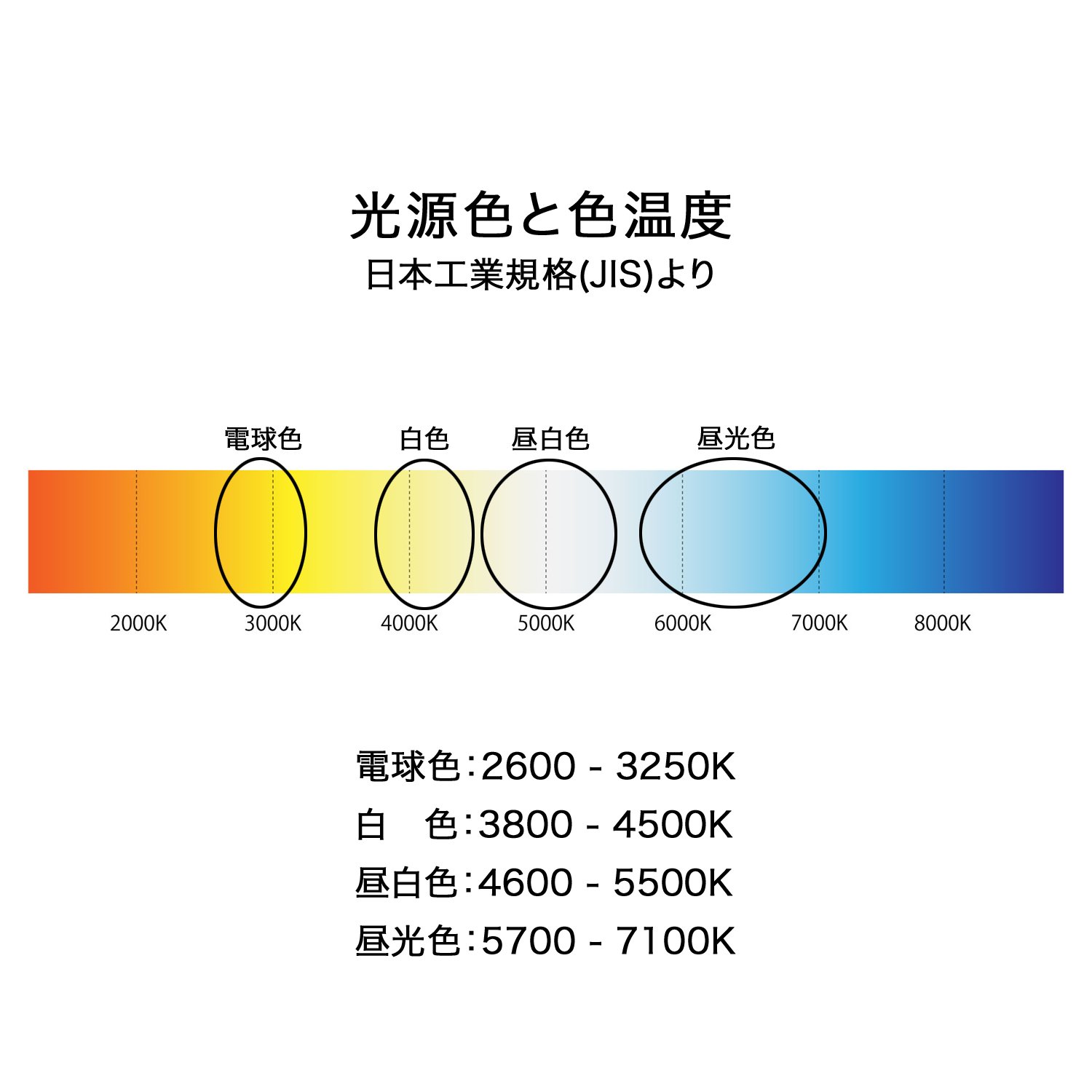

White color is the color temperature around 4000 Kelvin in JIS standard.

It is not "white" in any case.

(See the left figure)

Main Specifications

Spinneret: E 26

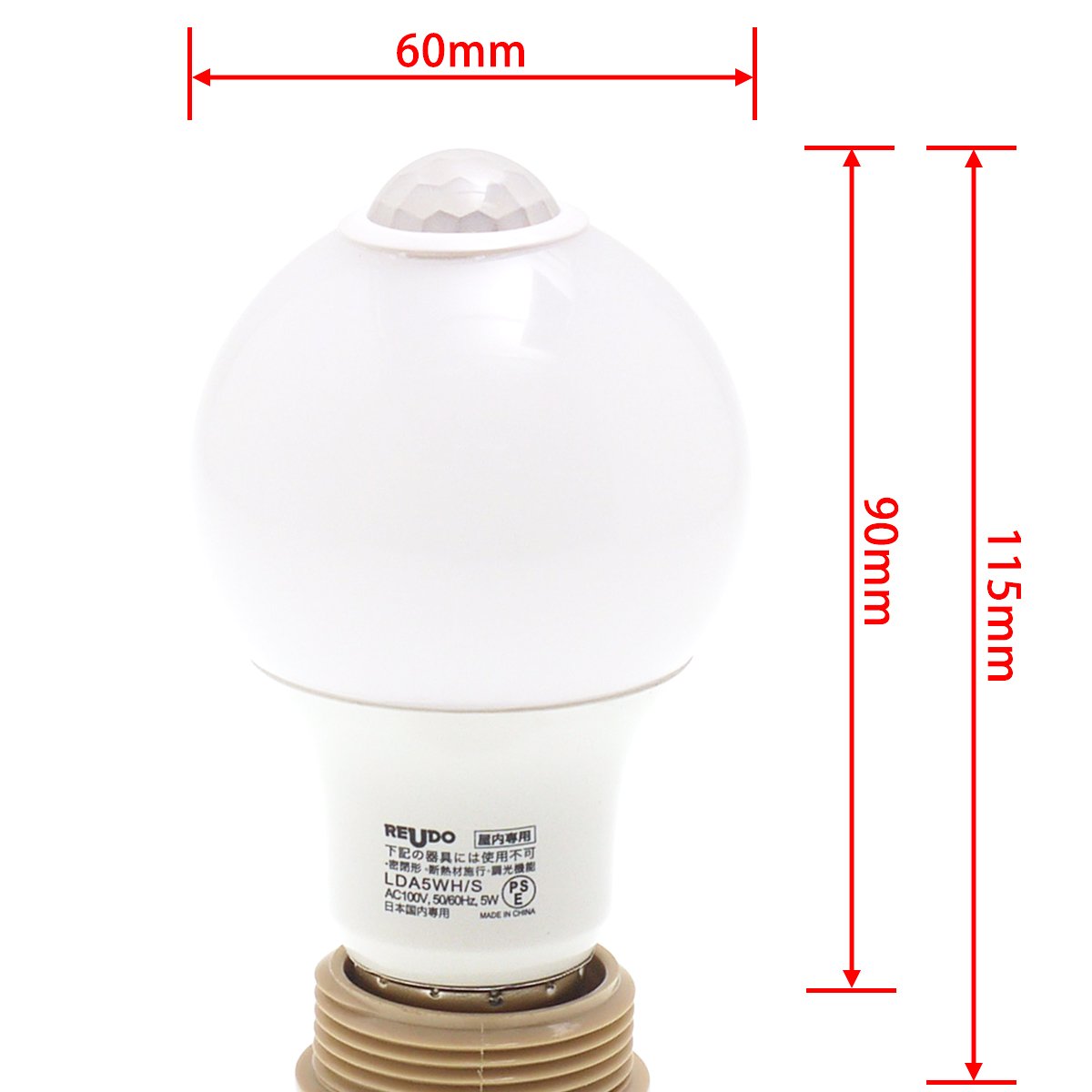

Dimension: diameter 60 mm x total length 117 mm

Weight: Approximately 95 g

Power supply: AC 100 V, 50/60 Hz compatible

Power consumption: 5 W

Total luminous flux: 400 lumens

Distribution angle: 240 ° (wide light distribution type)

Rated life: 25000 H

Operating temperature range: -20 to 40 ° C

PSE: conform

Warranty: 2 years warranty by Ryuudo Co., Ltd.

【Notes】

It can not be used with the following instruments / circuits.

· Equipment with dimming function · Circuit

· Ballasts and equipment with ballast · Circuit

· Induction light · Emergency lighting equipment

.Housed equipment

· Insulation material construction equipment (SB, SGI, SG type display instrument)

Features:

• It feels quite dark The ambient brightness of about 10 lux (the same level as the brightness during breaks in theaters and movie theaters) Under the environment below, it automatically lights up only when human movement is sensed PIR with human sensor
• LED light bulb
• Power consumption 5 W, brightness 400 lumens, color temperature: 4000 K (white) "White" is a gentle hue hanging slightly more yellow than "day white", the irradiation angle is about 240 degrees.
• Assuming that it is used in a relatively narrow place, it is a soft and soft hue to the eyes
• Sensor sensing area, angle: 90 - 120 degrees, distance: 4-6 m.

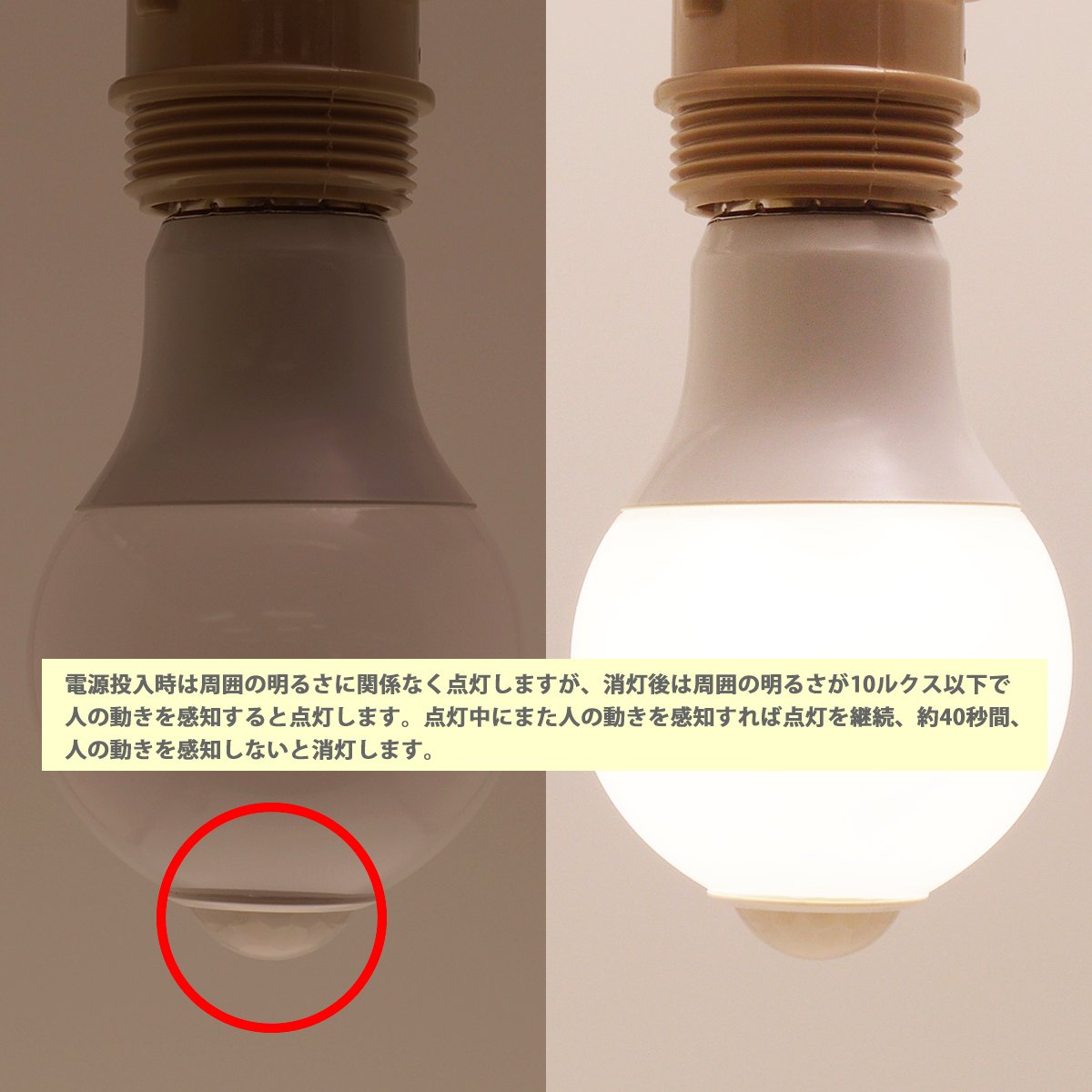

• Illuminates when the power is turned on irrespective of ambient brightness, but it turns on when the ambient brightness is less than 10 lux and the person's motion is sensed after turning off.
• It continues to light up if you sense another person's movement while it is lit, it will go out for about 40 seconds if you do not sense the movement of the person.
• E26 base, diameter 60 mm x total length 115 mm · Weight Approximately 95 g, it is a compact and lightweight body so you can choose the installation location.
• Because the body is made of plastic, there is little risk of splinters scattering even if falling in the event of a disaster
• Long life expectancy unique to LED 25000H.
• Two years warranty by Ryuudo (Japan domestic warranty).
• Conformity check of PSE is carried out.
• 【Caution 1】 It does not correspond to instruments / circuits with dimming function.
• 【Caution 2】 Sensor detection error may light even if there is no person, but our company tolerates mis-lighting up to 2 times in 8 hours as an allowable range in 8 hours.

Product information:

Shipping Weight: 99 g

Package Dimensions: 7.19 x 7.29 x 12.50 cm
