Item Descriptions:

color:

pink

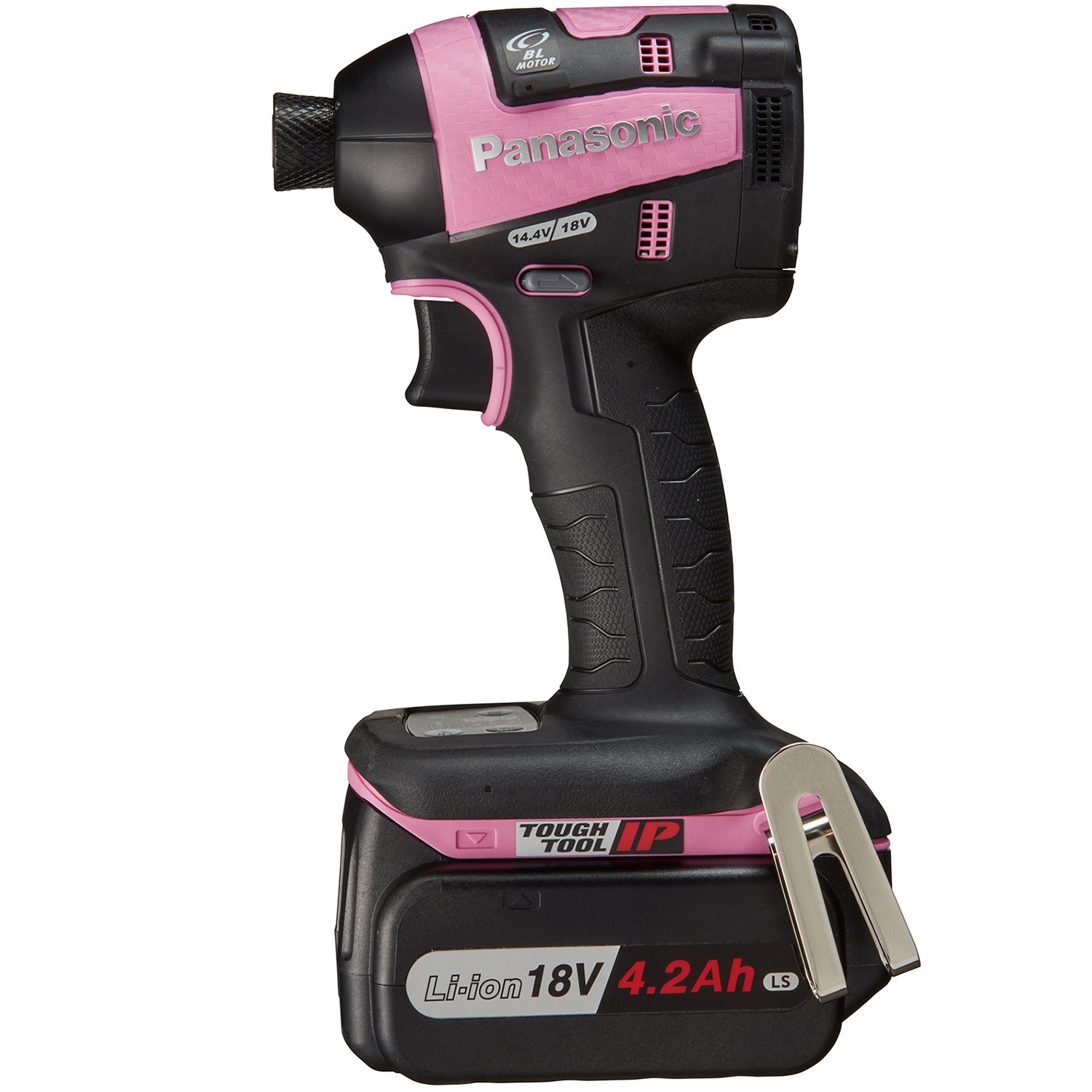

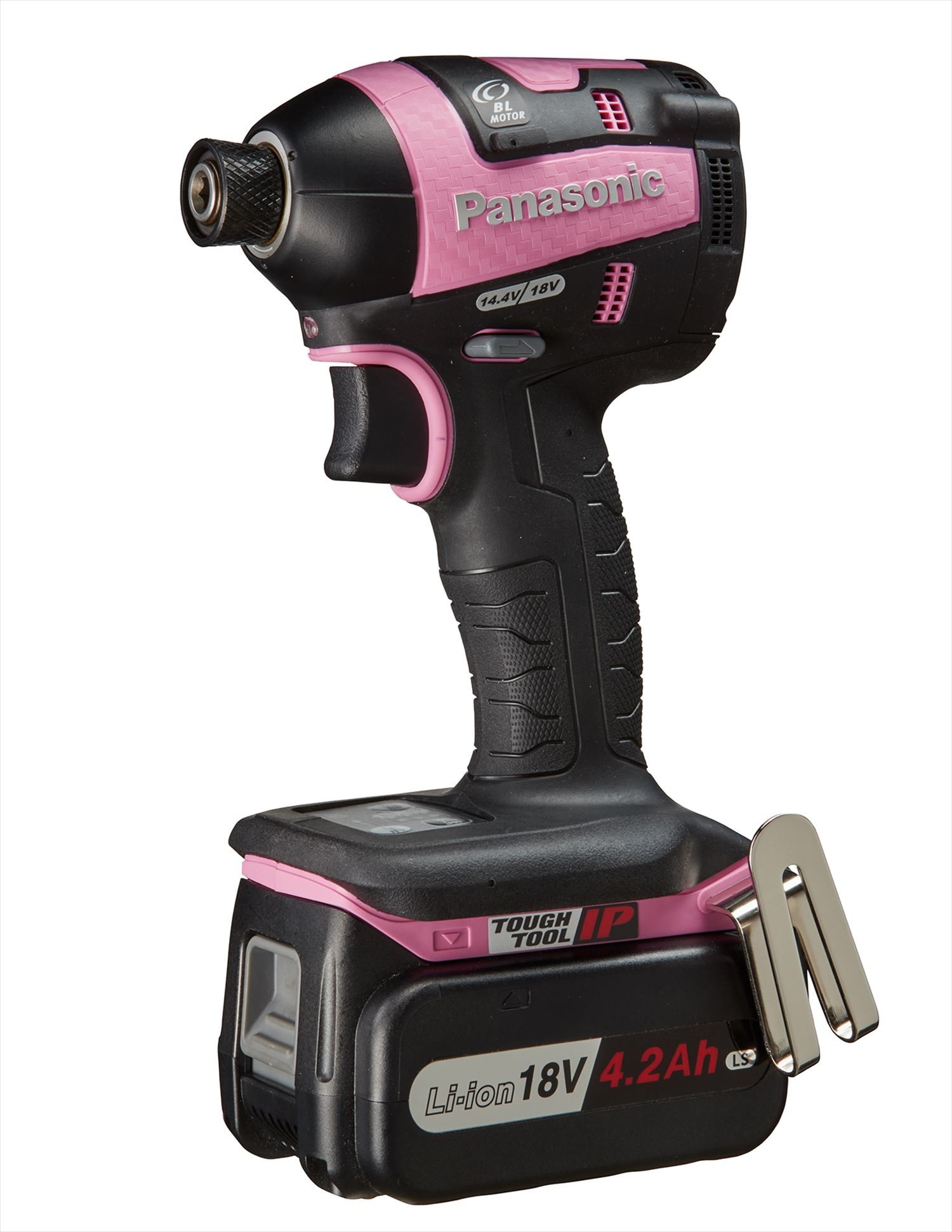

● Realized the shortest 117.8 mm head in the world by developing thin motors.

(* Charge impact driver 14.4 V / 18 V class as of January 5, 2015, surveyed by the manufacturer).

● Small workplaces with long screws can not be tightened straight, and scaffolds that are close in distance to the outside walls are easy to work with and the work is smooth.

● Place the battery 10 mm behind the tip of the head and pay attention to the ease of operation so that the battery will not get in the way even in a narrow place.

● Centered at the center of the grip The center balance design, well balanced in either upwards or sideways, lessening the fatigue of long hours work.

● Counter features, fixed storage facilities, under repair work under the floor.

Assembling / disassembling of the scaffolding, exterior wall sheet construction at the scaffolding and equipment installation etc.

To work in a complicated place with existing facilities / piping etc.

● Even if you tighten a long screw in "strong mode" with one hand, it is difficult to wick the core and reduces the cam out.

From the screw stand to the end of tightening, realize a smooth and comfortable tightening feeling that has never been before.

● Rotation is too fast at the beginning of the switch, and smooth control is realized in which the rotation does not rise suddenly when pulling out.

● "Strong, Medium, Weak" In addition to the three modes, "Tex mode" dedicated to tightening the screws is newly installed.

Tuning suitable for tightening screw threads of short (φ 4 × 15 mm or less) which is difficult to adjust by switch operation reduces the screw head flying.

● Bit holder.

● Reverse handles.

● Elastomer bumper.

● Tread design grip.

● LED light.

● Battery capacity display.

Features:

• Includes: 2 battery packs (18V 4.2 Ah EZ 9 L 51), case (EZ 9646), charger (EZ 0 L 81)
• Chuck: One touch bit lock method (dimension up to step size is 13 mm)
• Maximum tightening torque: 160 N · m
• Rotation speed: strong mode = 0 to 2,500 rpm, medium mode = 0 to 1,450 rpm, weak mode = 0 to 950 rpm, text mode = 0 to 2,500 rpm
• Number of blows: strong mode = 0 to 31, 00 / minute, medium mode = 0 to 29, 00 / minute, weak mode = 0 to 19, 00 / minute, text mode = 0 to 12, 00 times / minute
• Vibration triaxial composite value: 13.2 m / s 2
• Screw tightening capacity (approximate · with full charge): Universal screw · Umematsu (φ4.2 × 75 mm) = about 620, earthquake-resistant metal screw (φ 5.5 × 75 mm) = about 330, earthquake resistance screws (φ 5.5 ×
• 45 mm) = approximately 970, Tex screw · SPC (φ 4 × 13 mm · sheet thickness 1.6 mm) = approximately 930
• Bolt tightening capacity (approx. With full charge): Bolt (M16 × 25 mm · plate thickness 10 mm, ordinary bolt) = about 1,100, bolt (M12 × 25 mm · plate thickness 10 mm, ordinary bolt) = about 2,350, bolt
• × 25 mm · sheet thickness 10 mm, high strength bolt) = about 320 pieces
• Warranty period: 1 year from purchase date
• Country of Origin: China

Product information:

Shipping Weight: 4499 g

Package Dimensions: 10.79 x 35.00 x 37.01 cm
