Product Description
ATTENTION: 1. In this Full Kit the enclosure is NOT included 2. A schematic is NOT included. Color-printed instrurctions and a BOM (bill of materials) are included.

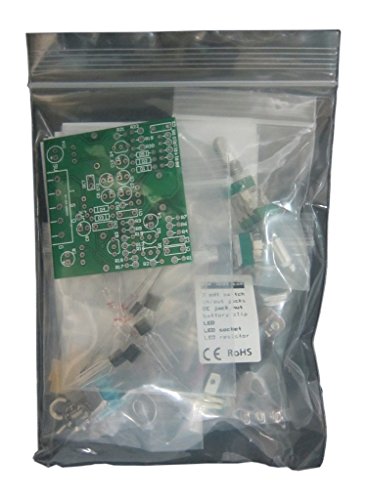

'Full Kit' means all parts and EVERYTHING you need to build this effect are included, transistors, ICs, jacks, potentiometers, PCB, DC jack, 3PDT footswitch... . NOT included are wire, solder, enclosure, knobs.
Build the legandary Tone Machine Fuzz Pedal. This Fuzz sounds good and is pretty easy to build. There is place on the PCB for 3 Potentiometers, Sustain, Tone, Volume and a switch to toggle between octave on/off and a status LED. The PCB Board is double sided, through-contacted. The wiring diagram and the material list are included. The PCB has the usual connections: Ground, IN, OUT, 9V The PCB Kit is verified and working. Fits into a standard 1590B enclosure (not included) Power supply is standard 9V tip negative (not included) difficulty level: average PCB Size: 5 * 5 cm
