Item Descriptions:

1 role 4 roles

This multifunctional metal detector capable of locating metal (copper, aluminum or iron pipe, etc.), wood (in the wall), AC power supply, hollow position detection, purposely to purchase four other detectors

There is no need.

Four measurement modes

Metal, wood and AC power supply each have a mode of detection.

And, if "DEEP" mode switches, we can measure whether the wall is hollow.

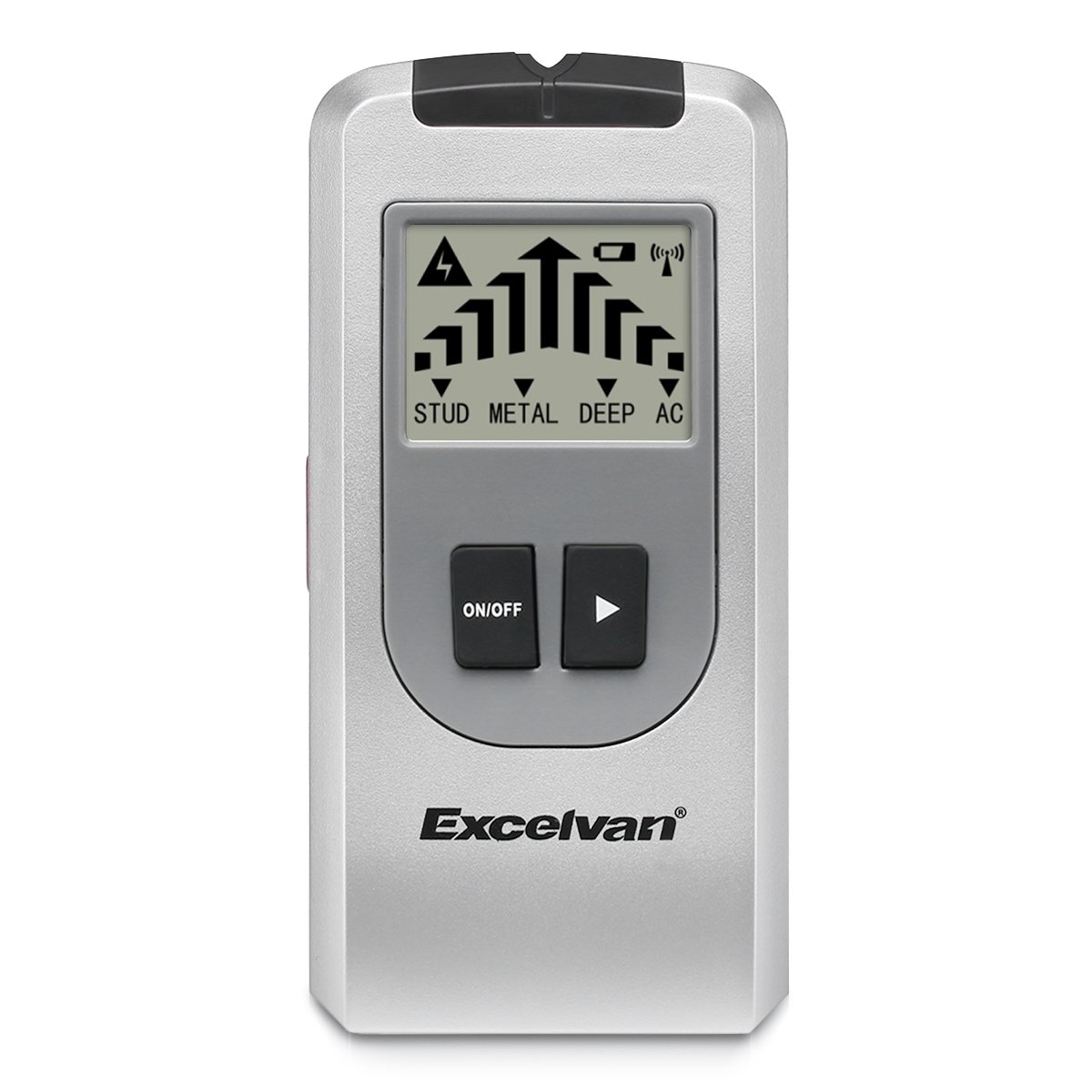

LCD display

Large liquid crystal display is adopted, measurement condition is easy to see.

A series of arrows will appear when you react to the object, and if you move closer to the object, more arrows will appear!

At the same time, we will also sound a buzzer called "BB".

With automatic power off function

If you do not use it after about 1 minute, it will switch off automatically, so it is possible to prolong battery life.

please note:

In AC detection mode, you can detect lines with depths of 100-240 V, 50/60 Hz, and 50 mm max.

Please press and hold "PUSH" button when detecting stud, metal, void or AC electric wire.

Product Specifications

Response: Metal / wood / AC power supply location detection

Model number: AOK-6038

Four detection modes (detectable depth):

Metal (METAL): 30 mm (1.18 inches)

Wood (STUD): 19 mm (0.75 inch)

AC power (AC): 50 mm (1.97 inches)

Hollow (DEEP): 38 mm (1.50 inches)

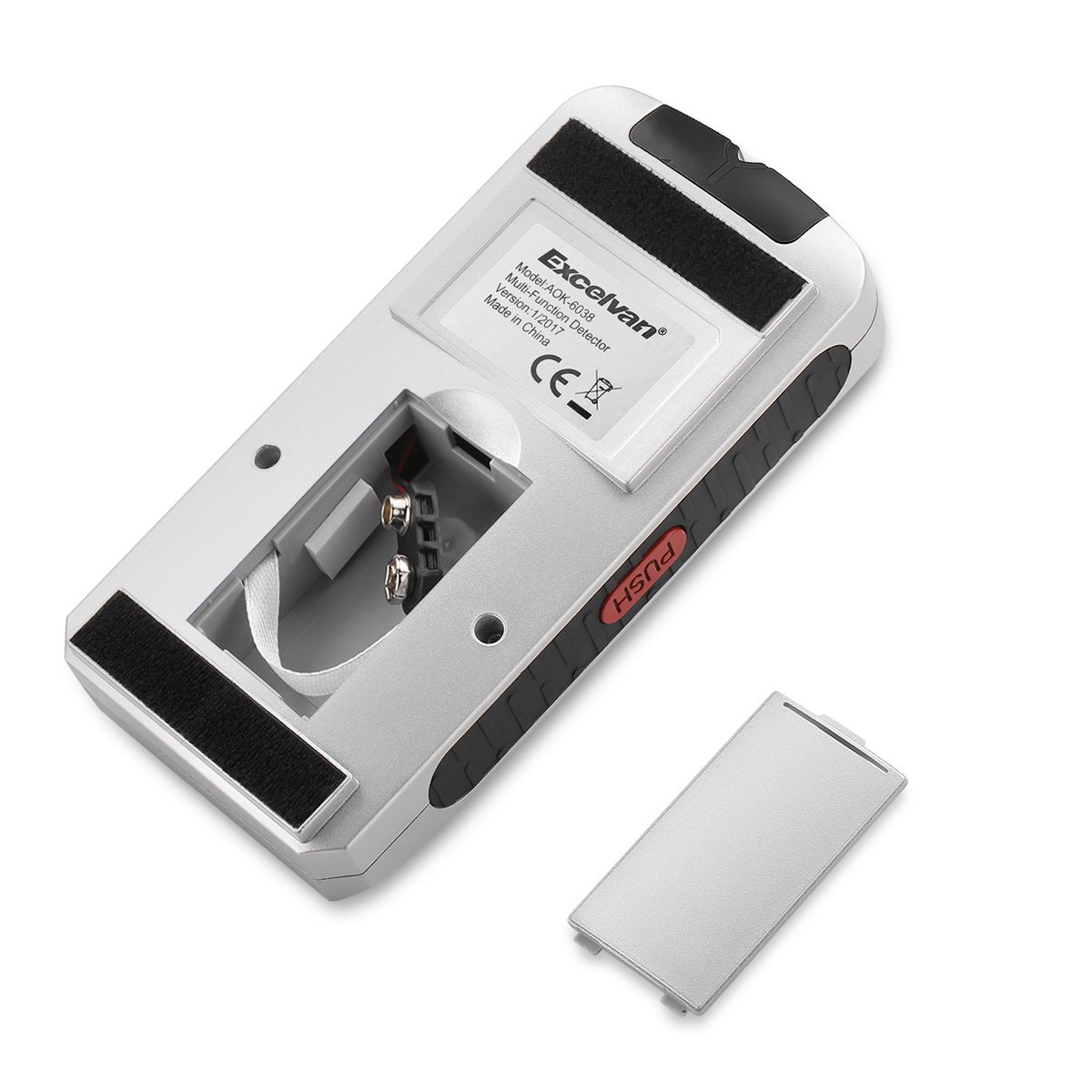

Battery used: 1 # * 9 V square battery (* Batteries sold separately.)

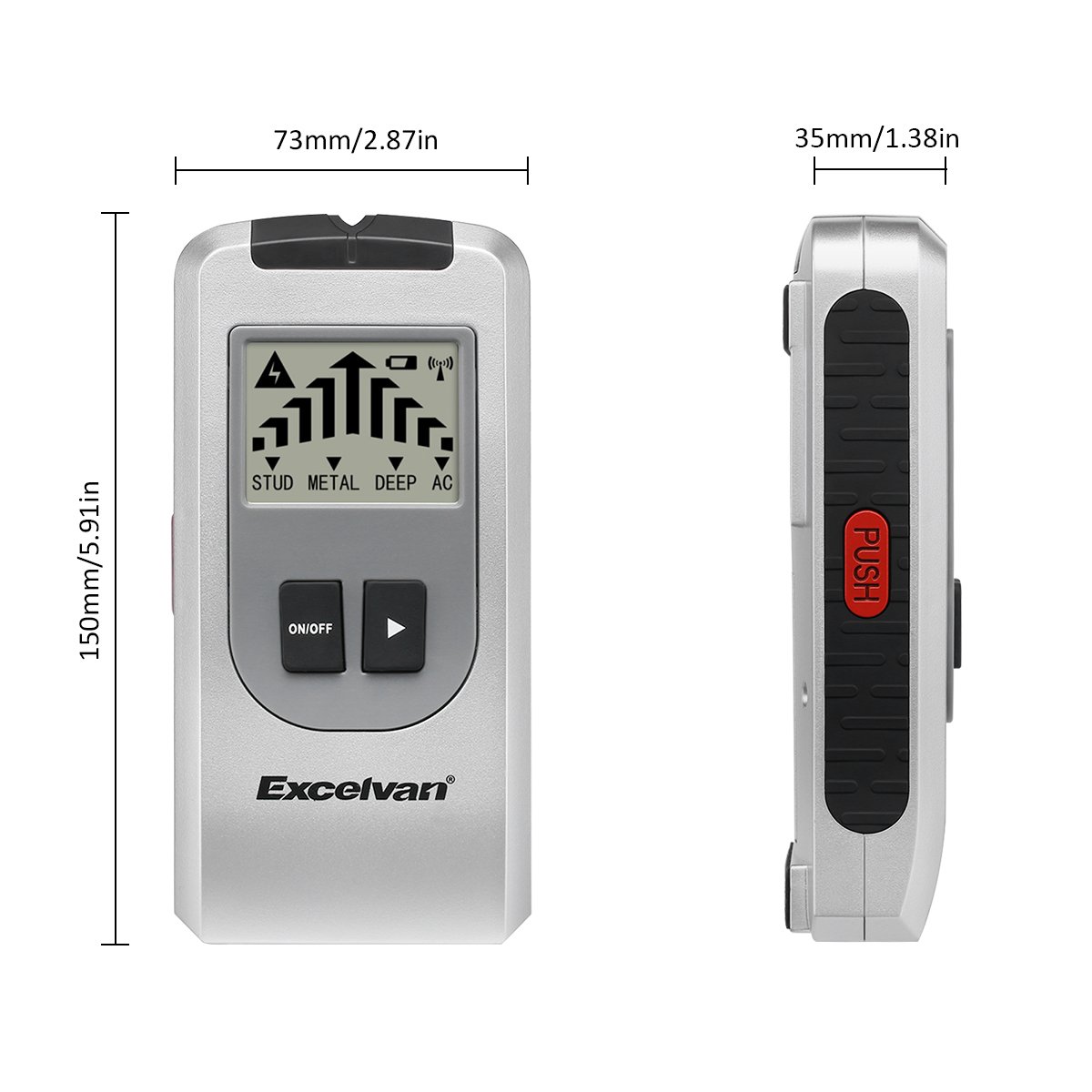

Body size: 73 * 150 * 35 mm

LCD size: 43 * 33 mm

Weight: 155 g

Package Contents

1xExcelvan multi metal detector

1 x Manual

Those who wish to have the PDF manual of Japanese, please contact the exhibitor "TokyoStore".

Thank you.

Features:

• "4-in-1 multi-function": multi detector that integrates fourth place as metal detection, wood detection, AC power detection, and hollow detection.
• Corresponds to the location search of metals and their fallen objects, studs (timber of reed walls and rebar), current lines and so on.
• Depth of Metal Detection (METAL): 30 mm Depth of Detection of Wood (STUD): 19 mm Depth of AC Power Detection (AC): 50 mm Hollow Depth (DEEP): 38 mm
• "Detection results are obvious": Large LCD display is adopted.
• "Ease of use": When metals, wood and AC power are detected, a series of arrows will appear on the LCD display and the sound of the bbbie will also come out.
• The measurement result is easy to understand.
• "Convenient to carry": It is a bulky, compact handy type, convenient for carrying, easy to measure even in narrow places.
• (If you would like to have Japanese PDF manual, please contact the exhibitor "TokyoStore")

Product information:

Shipping Weight: 222 g

Package Dimensions: 7.19 x 10.79 x 24.69 cm
