1 Yearu0026nbsp;Local (Singapore) manufacturer warrantyu0026nbsp;
more
- 1 year local manufacturer warranty
- For TV Size: 32''-55'' (VESA Standard Required)
- Profile: 60-600 mm
- Type:Wall Bracket Swivel Double Arm
- -12°~ + 5° Tilting, + 70°~ - 70° swivel,+ 3°~ -3° level adjustment,
- VESA Standard: 200u0026nbsp;x 200, u0026nbsp;300 x 300, 400 x 200,400 X 400
- Max Weight Support: 40 Kgs
Product details of Titan SGB-490 Wall Bracket Swivel Double Arm. Fits most 32" - 55" LED, LCD, Plasma and Curved .Includes Onsite Installation on Concrete ceiling upto 2 m Height and commissioning of TV.

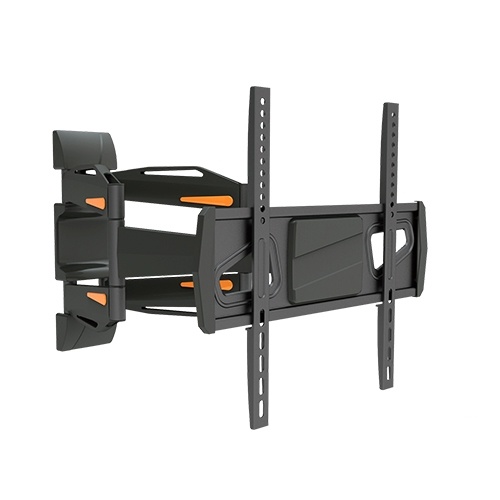

Above Image shows the u0026nbsp;actual bracket.

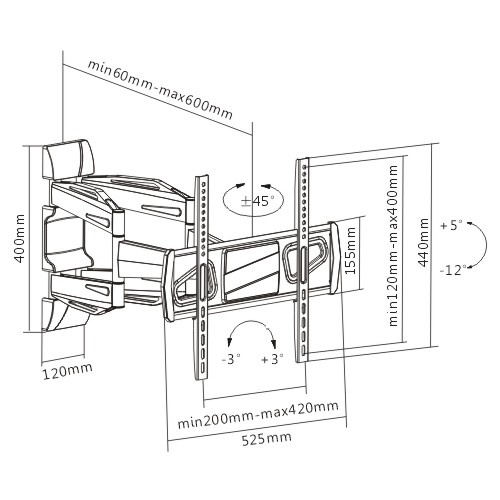

Above Image shows the skeletal dimensions of u0026nbsp;actual bracket.
Brief Description
Elegant swivel TV wall mount
Model no: SGB-490
For TV Size: 32''-55'' (VESA Standard Required)
Profile: 60-600 mm
Type:Wall Bracket Swivel Double Arm
-12°~ + 5° Tilting, + 70°~ - 70° swivel,+ 3°~ -3° level adjustment,
VESA Standard: 200u0026nbsp;x 200, u0026nbsp;300 x 300, 400 x 200,400 X 400
Max Weight Support: 40 Kgs
INSTALLATION:
- Installation will only be Performed on a Solid Concrete Wall
- Cosmetic Touch up eg: Casing up power cable using PVC casing, is not included
- Electrical Touch up eg: Relocation or shifting or extension of power point or any electrical work is not included
- For the Purpose of Commissioning of TV a power point must be available within 80 cm of the intended place of installation
Caution
- Usage with products heavier than the rated weights indicated may result in instability causing possible injury.
- Mounts must be attached as specified in assembly instructions as improper installation may result in damage or serious personal injury.
- Safety gear and proper tools must be used. This product should only be installed by qualified professionals.
- This product is designed to be installed only on solid concrete walls or brick walls. Installation not allowed on plasters, false walls and hollow walls.
- Make sure that the supporting surface will safely support the combined weight of the equipment and all attached hardware and components.
- Use the accessories provided and DO NOT OVER TIGHTEN mounting screws. DO NOT USE YOUR OWN PERSONAL SCREWS. DO NOT ATTEMPT TO INSTALL THIS BRACKET ON YOUR OWN.
- This product contains small item which may be a choking hazard. Keep them away from children and prone ones.
- This product is intended for indoor non commercial use only. Using this product otherwise could lead to product failure and personal injury.
- After installation, check that the bracket is secure and safe to use. At regular intervals, (at least every 3 months), check that the bracket is secured to your concrete wall as how it was installed and that it is secure and safe.
Point To Note
The bracket is a universal type and hence does not understand the needs of your TV. It is your duty to ensure that your TV is as per the VESA Standard recommended by us, which in this case is: 200u0026nbsp;x 200, u0026nbsp;300 x 300, 400 x 200,400 X 400
New Vision Electronics Pte Ltd will not be responsible for any bodily damage, financial damage,u0026nbsp;incidents or injuries arising from the improper use of this product.
* Description of "Fits Most 32''-55" TV refers to TV's with VESA Standard as recommended by us, which in this case is:u0026nbsp;
200u0026nbsp;x 200, u0026nbsp;300 x 300, 400 x 200,400 X 400
. As long as your TV's VESA Standard is at one of this dimensions, you are good to go.
What is VESA Standard?
VESA (Video Electronics Standards Association) is a professional organization made up of a group of video electronics industry professionals, their purpose is to review proposals and develop standards to promote uniformity in the video electronics industry. Established in 1989, VESA works to develop industry-wide interface standards for a large variety of products including Flat Panel TVs and monitors.
VESA has developed a set of standards for the manufacturing of flat screen televisions and PC monitors. Most manufacturers comply with this standard by adhering to an industry wide �hole pattern� on the back of their displays for mounting purposes. A typical VESA hole pattern for flat panel displays can be one of the following sizes:
- 75 mm x 75 mm (75 mm = 2.95 inches)
- 100 mm x 100 mm (100mm = 3.94 inches)
- 200 mm x 200 mm (200 mm = 7.87 inches)
- 400 mm x 400 mm (400 mm = 15.7 inches)
HAPPY SHOPPING !!!!
View more
Specifications of Titan SGB-490 Wall Bracket Swivel Double Arm. Fits most 32" - 55" LED, LCD, Plasma and Curved .Includes Onsite Installation on Concrete ceiling upto 2 m Height and commissioning of TV.
What's in the box:
- 1 Xu0026nbsp;Titan SGB-490 u0026nbsp;Wall Bracket Swivel Double Arm
General Features:
SKU
TI979ELAA4OA64SGAMZ-9076843
Model
SGB-490
Weight
2
Wall Mount Features
Full Motion
Warranty period
1 Year
Warranty type
Local (Singapore) manufacturer warranty
