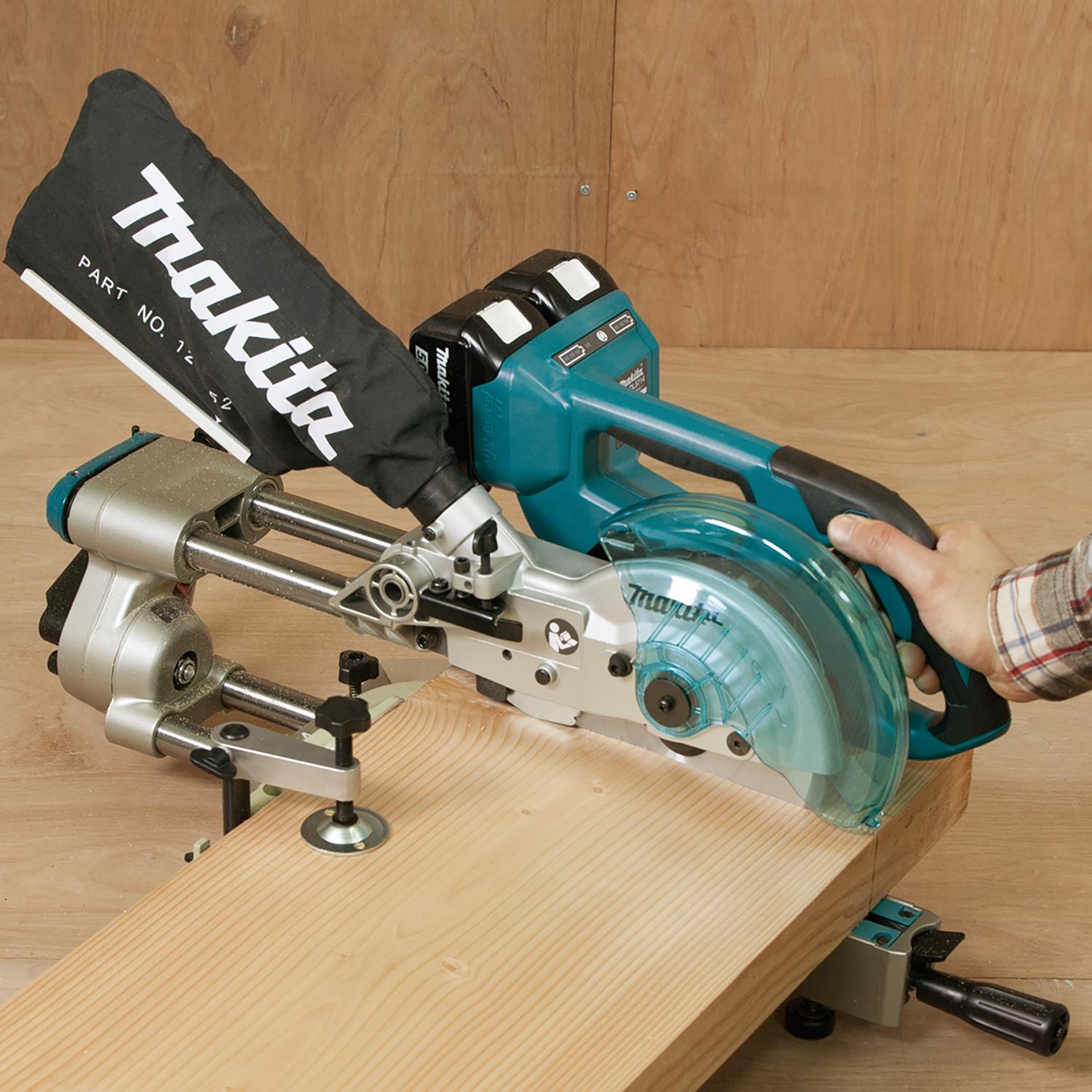

DLS714Z Slide Compound Mitre Saw 36V Cordless LTX 190mm

The DLS714 Mitre Saw is powered with (2 x 18V) batteries giving the equivalent power of a 36 Volt machine. This coupled with the DC Brushless Motor enables the DLS714 to cut with the power of a corded slide compound mitre saw. The compact and lightweight machine has a double sliding mechanism which requires a smaller working space and makes it more easily transported.

Product Features
- BL Brushless Motor - provides higher power and longer run time that normal brushed motors
-
36V (18Vx2) Technology - powered by two 18V Li-ion batteries, increases the power enabling faster cutting speed
-
Automatic Torque Drive - automatically increases torque when cutting through harder materials or knots in timber to maintain
  the speed of the cut
-
Soft start - minimises start up shock and ensures the tool starts smoothly
-
Electric brake - stops the blade quickly, allowing the user to efficiently resume operation
-
Double sliding mechanism - vibration free, precise and exact cutting


Product Specifications

  • Blade Diameter: 190mm
  • Bore Diameter: 20mm
  • No Load Speed: 5700rpm
  • Bevel Range: 45º Left - 5º Right
  • Mitre Range: 47º Left - 57º Right
  • Bevel Angle:
  • Mitre Angle: 0° 45° (left) 5° (right)
  • 0° 52 x 300mm 40 x 300mm 40 x 300mm
  • 45° (left/right) 52 x 212mm 40 x 212mm
  • 57° (right) 52 x 163mm
  • Max Cutting Capacity: 52mm x 300mm
  • Net Weight: 13.5kg
