Item Descriptions:

size:

10 to 42 type single arm

【Characteristic】

【Characteristic】

1. Bracket: It is possible to adjust the angle to ± 45 degrees left and right up to 12 degrees downward.

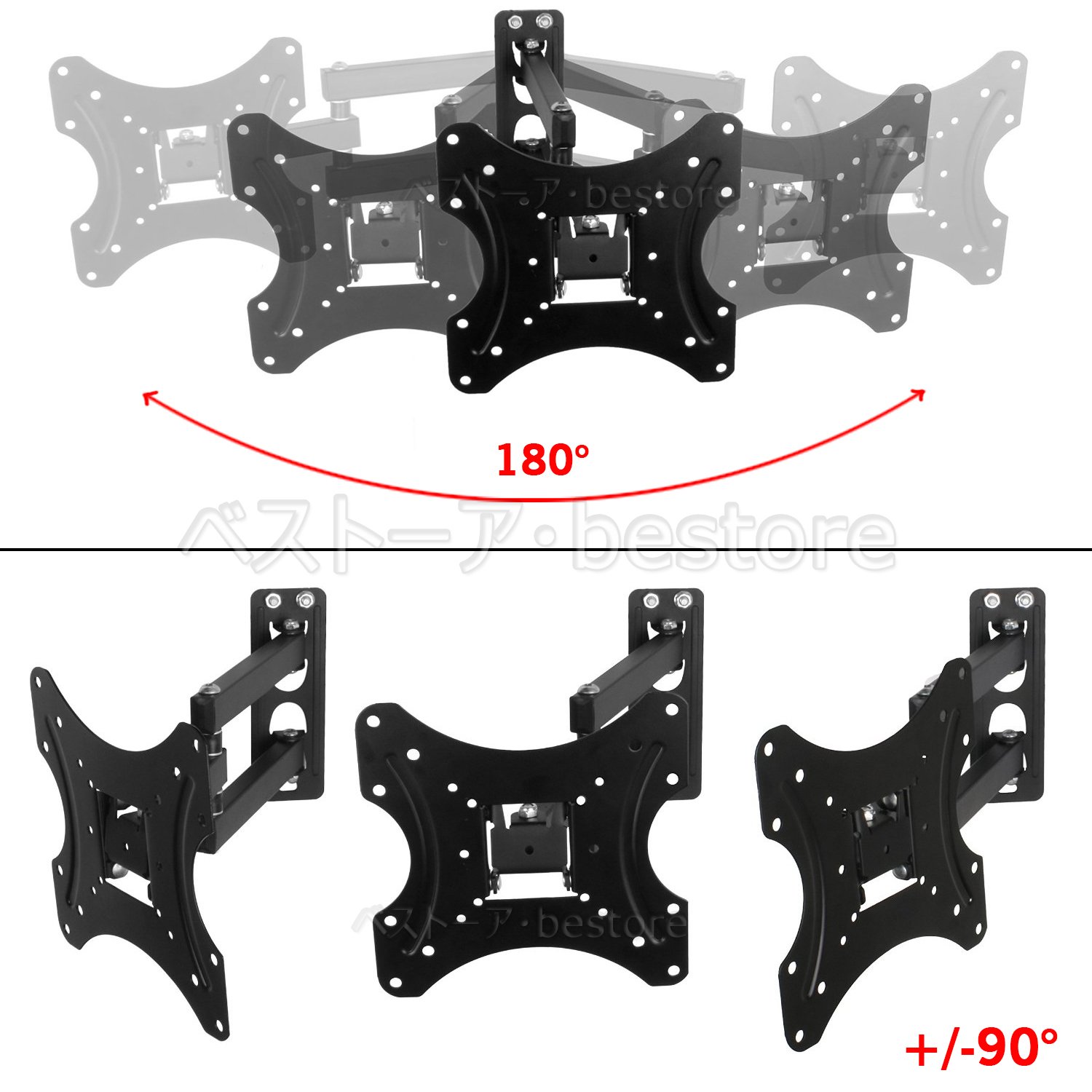

2. Arm: Up to ± 180 degrees to the left and right, the longest extension distance is 39.5 cm.

3. Hold the arm to achieve a thinness of 3.5 cm.

Wiring can be stored neatly.

4. Complex motion can be realized for three joints and it can be adjusted to your preferred viewing angle.

5. It is possible to install between pillars.

(Width: within 7 cm)

You can achieve affordable cost performance.

[Product specifications]

[Product specifications]

It is VESA standard correspondence of finished like genuine metal fittings.

75 mm x 75 mm, 100 mm x 100 mm, 200 x 100 mm, 200 x 200 mm.

Load capacity: 20 kg

Body Weight: 1 kg

Material: cold rolled steel

Color: Black

Correspondence guide size: 1 0 type to 42 type

* There is no corresponding brand limit.

We will correspond to the brand and the brand.

Sharp AQUOS, Panasonic, ORION, OEN, TOSHIBA, BenQ, Pioneer and so on.

Good quality

This product acquired ISO9001.TUV / GS.UL certificate.

Thicker than 2 mm thick

Stainless steel

It is hard to be rusted with the material.

* Since this item ships from Amazon, it can be shipped within 24 hours.

When you receive the item, please check first that all the parts are complete.

Please contact us if any necessary parts were missing.

[Be careful before installing]

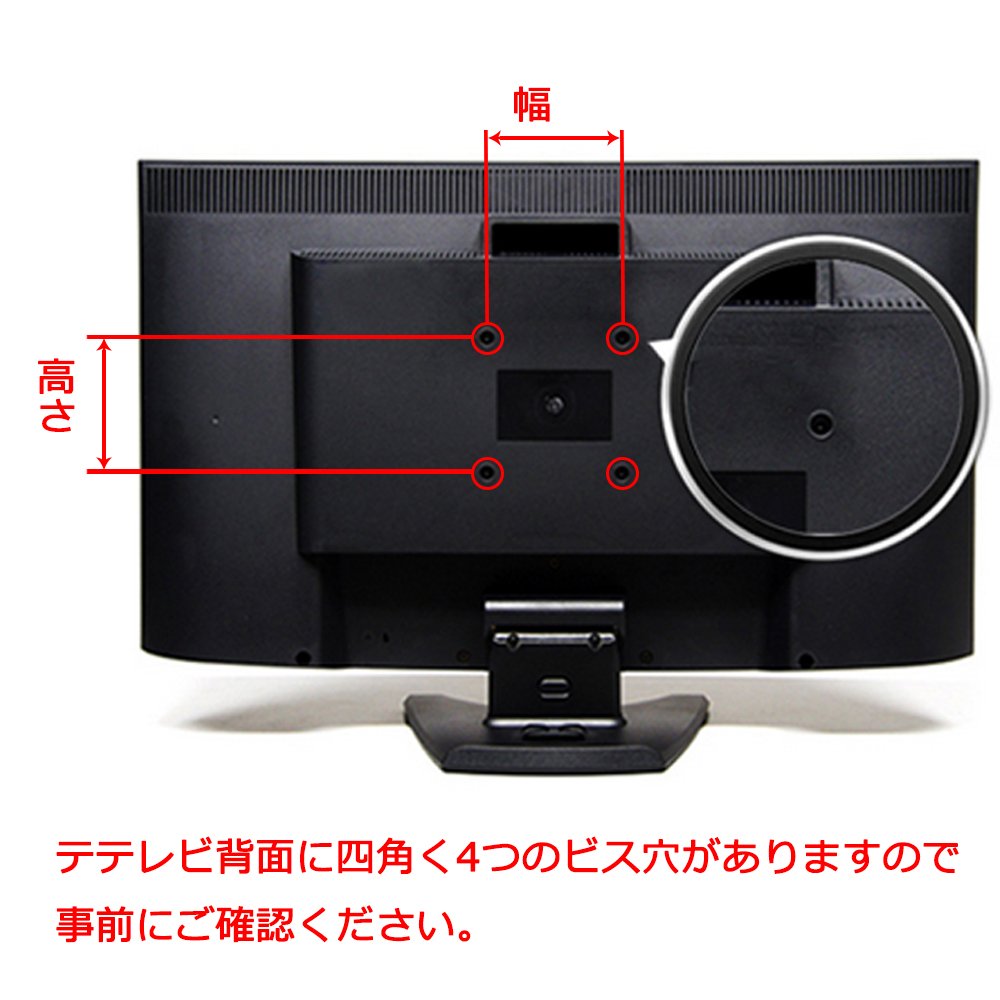

- There are four rectangular screw holes on the back of the TV, so please check in advance.

In case

- Screws are included, but if the screws do not fit, please purchase separately appropriate one.

In case

- Please contact us if any necessary parts are missing.

- Installation method varies depending on the wall.

In case

- Before installing, please compare the maximum load capacity of the product with the weight of the TV.

Depending on the weight of the TV, the arm may be slightly bent forward.

- When installing, be sure to do with two or more people.

We recommend that you ask a specialist to ask.

Installation method

Installation method

1. Decide where to install the wall bracket and make sure that the wall to be installed has sufficient strength.

2. Mounting the wall hanging bracket to the wall

① Mark the bracket on the wall with three screw hole positions.

② Using a drill, please drill a hole of 10 mm in diameter and 50 mm in depth on the wall.

③ Drive the plug of white plastic (B of the included item) into the hole.

In case

④ Please fix the bracket to the wall using the screw (A of the included item) and the M6 ​​washer (C of the included item).

3. Attach the bracket to the TV

※ Please be sure to connect with TV with two or more people.

① Tighten securely with 4 screws of the included TV mounting bracket (E of the supplied item) and spacers (C / D of the supplied item) to the screw position on the back of the TV.

※ The mounting position of the brackets will vary depending on the model of the TV.

* TV mounting screws vary depending on the TV model.

(M4 x 16 mm screw · M 5 x 16 mm screw · Three types of M6 x 16 mm screws are included.) If screws do not fit, please purchase separately appropriate one.

4. Adjust to the angle of your choice at the end

When adjusting this angle, please be sure to tighten the tool securely using this tool.

※ This product can be adjusted up to -12 °.

Depending on the weight of the TV and the angle you lowered, the arm may be slightly lowered, so please be forewarned.

Features:

• Please enter model number Confirm this is compatible:
• [Corresponding size estimation] It corresponds to 10 to 42 type LCD · LED · liquid crystal TV correspondence.

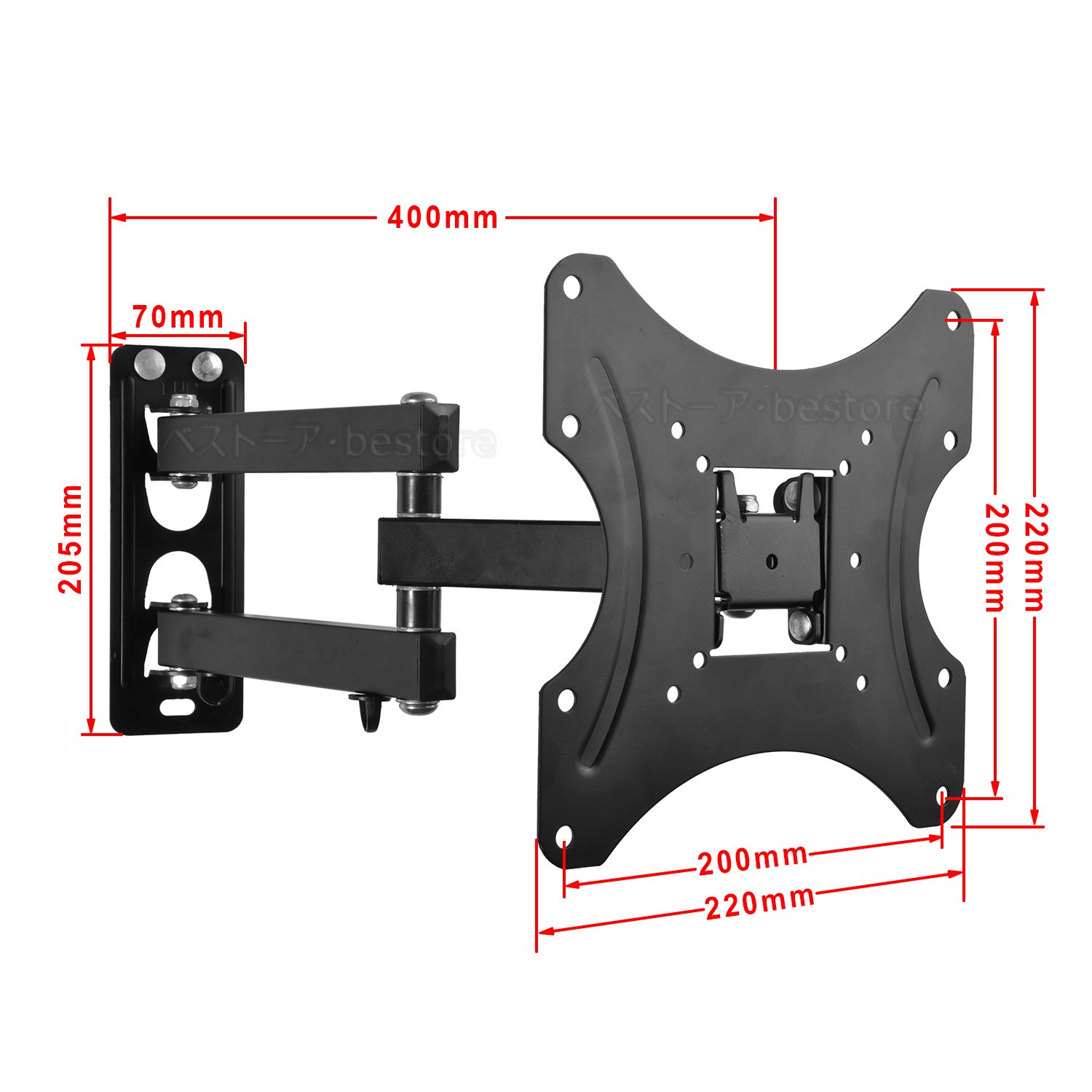

• The distance between the screw holes on the back is 75 mm x 75 mm, 100 mm x 100 mm, 200 x 100 mm, 200 x 200 mm (compliant with the VESA standard).
• [Range of motion] Bracket: The downward angle is 15 degrees, and the left and right are 45 degrees.

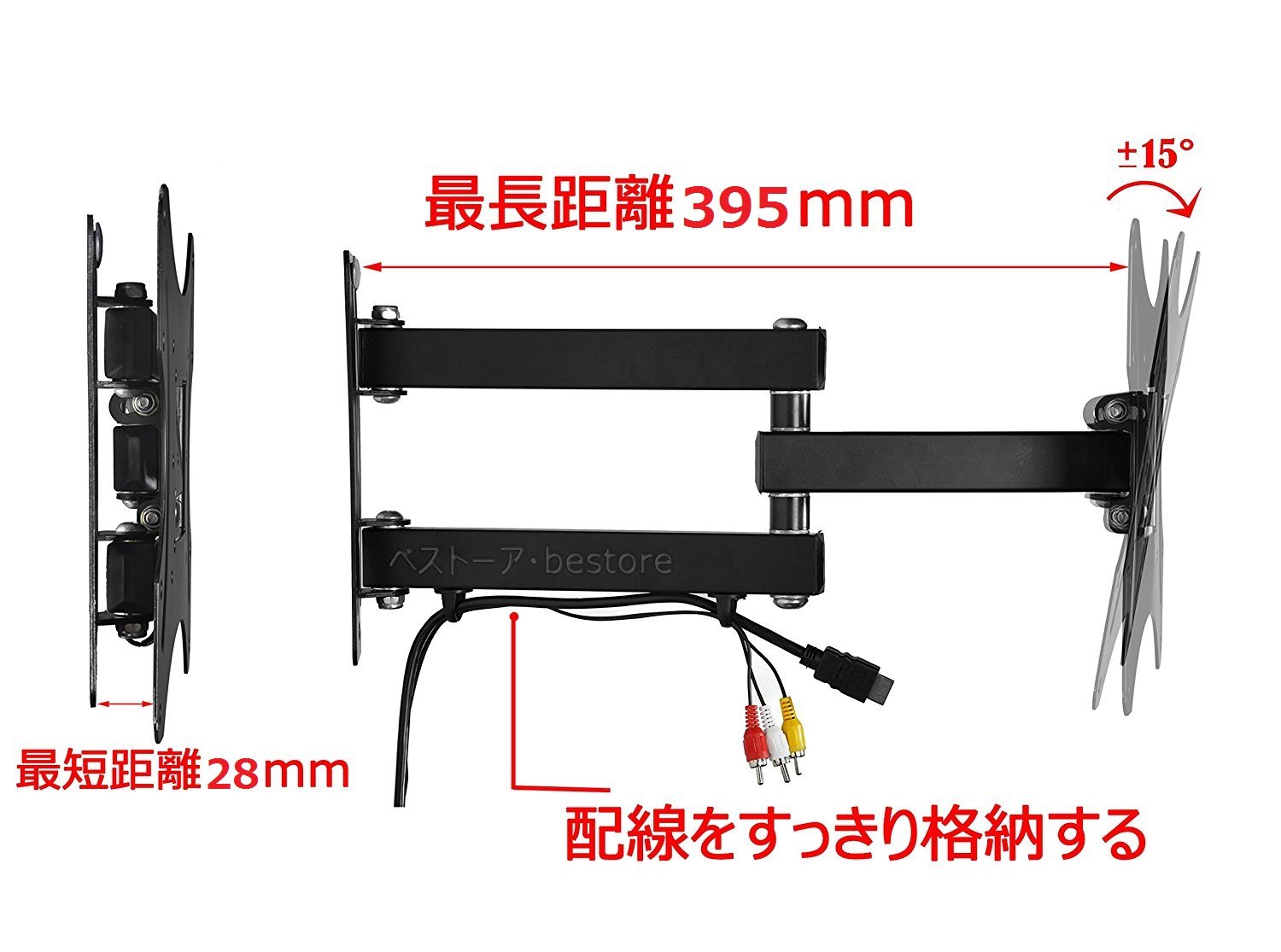

• Arm: The left and right are 180 degrees and the extension distance is 28 mm to 395 mm.
• * Adjustable angle to be easy to see.
• 【Maximum withstand load】 It is attached to television up to 30 kg.
• The weight of the main unit is 1 kg.
• * It is easy to install because it is light.
• 【Style】 Arm type, retractable type.
• It can be installed between pillars and save space.
• [Contents of goods] Bracket body | Various screw set | Installation instructions

Product information:

Shipping Weight: 1950 g

Package Dimensions: 4.80 x 24.21 x 31.90 cm
