Item Descriptions:
Installation procedure
Installation procedure
① Insert the latch from the side of the door and tighten with the screw.
Please pay attention to the orientation of the latch!
② Insert the handball with the digital button into the hole and thread the cable through the hole in the middle.
Please be careful not to invert the numbers.
③ Attach the grip ball in the indoor direction to the door and tighten with the attached screw.
④ Install a total of 4 AAA batteries on both sides in the battery box.
⑤ Connect to the connection terminal of the cable terminal and the battery box and push the reset button once.
⑥ Align the screw holes and tighten the lid.
⑦ Secure the grip ball firmly with the screw.

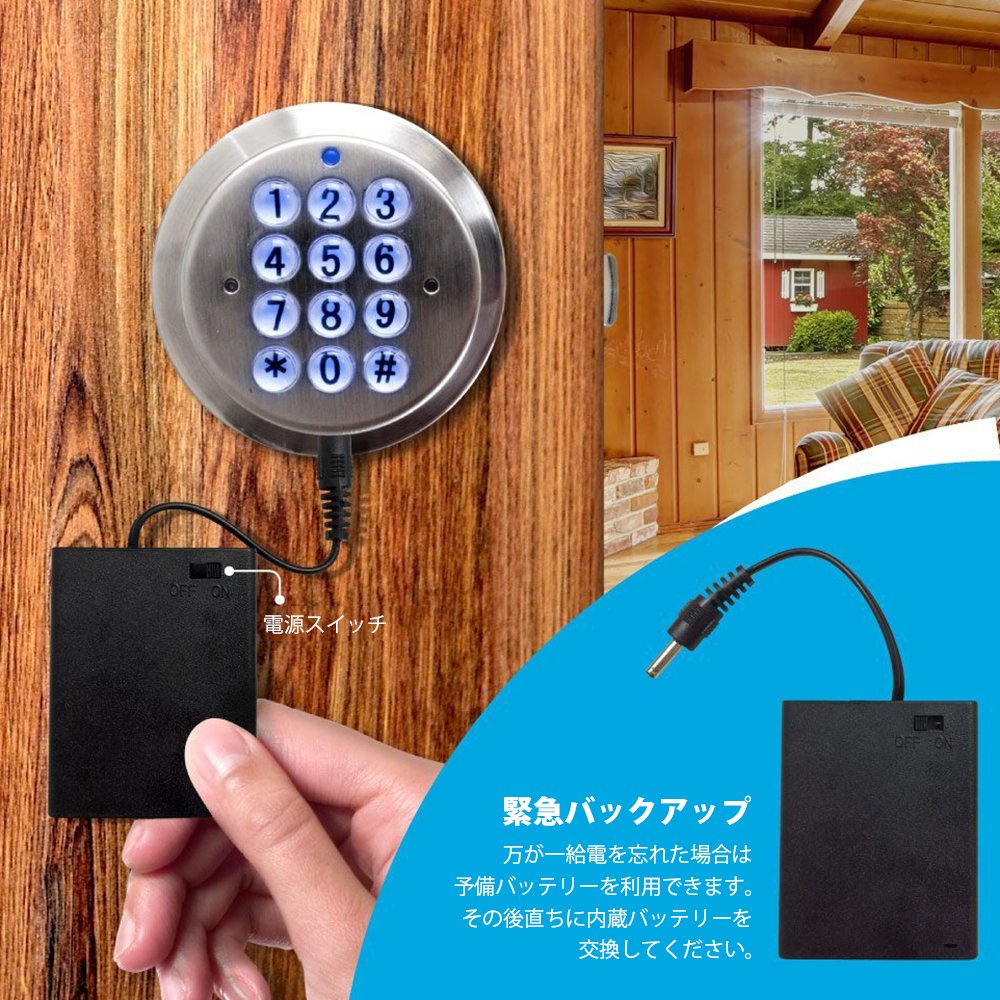

⑧ When the battery power is insufficient, please use the spare external power supply.
Product Specifications

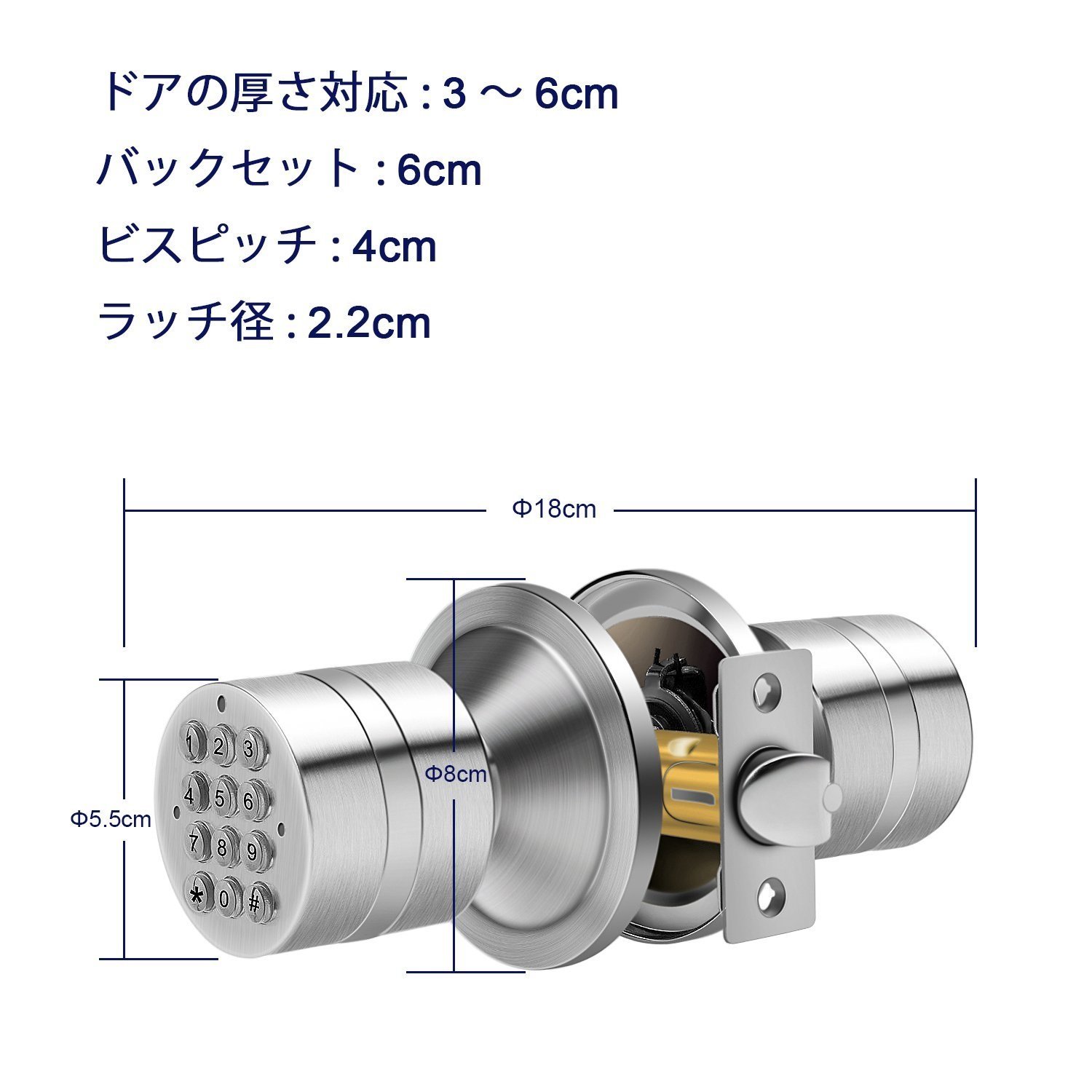

Size: 18 × 11 × 8 cm
Material: zinc alloy
Door thickness correspondence: 3 to 6 cm
Back set: 6 cm
Bispitch: 4 cm
Latch diameter: 2.2 cm
Waterproof compliant: IP65

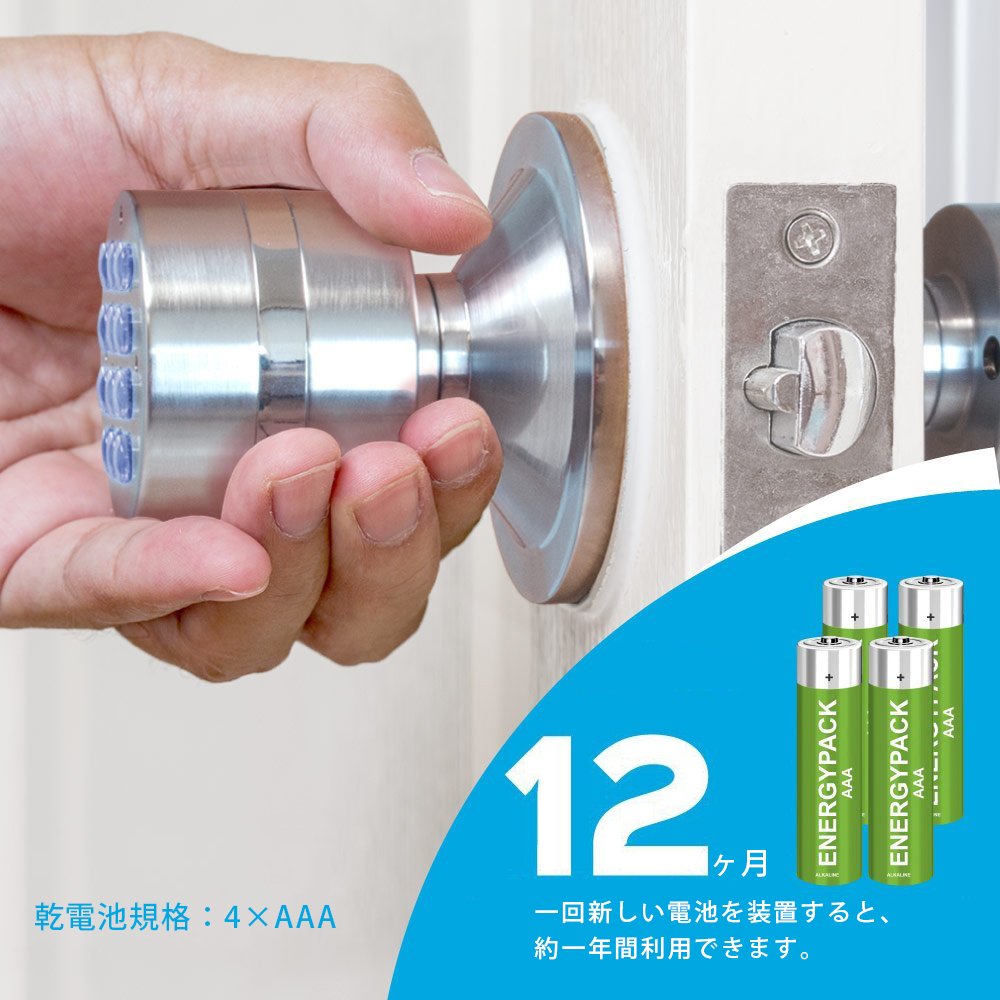

Battery standard: AAA × 4 (sold separately)
Alarm when battery power is low.
Features:
- This product is multifunctional digital door lock.

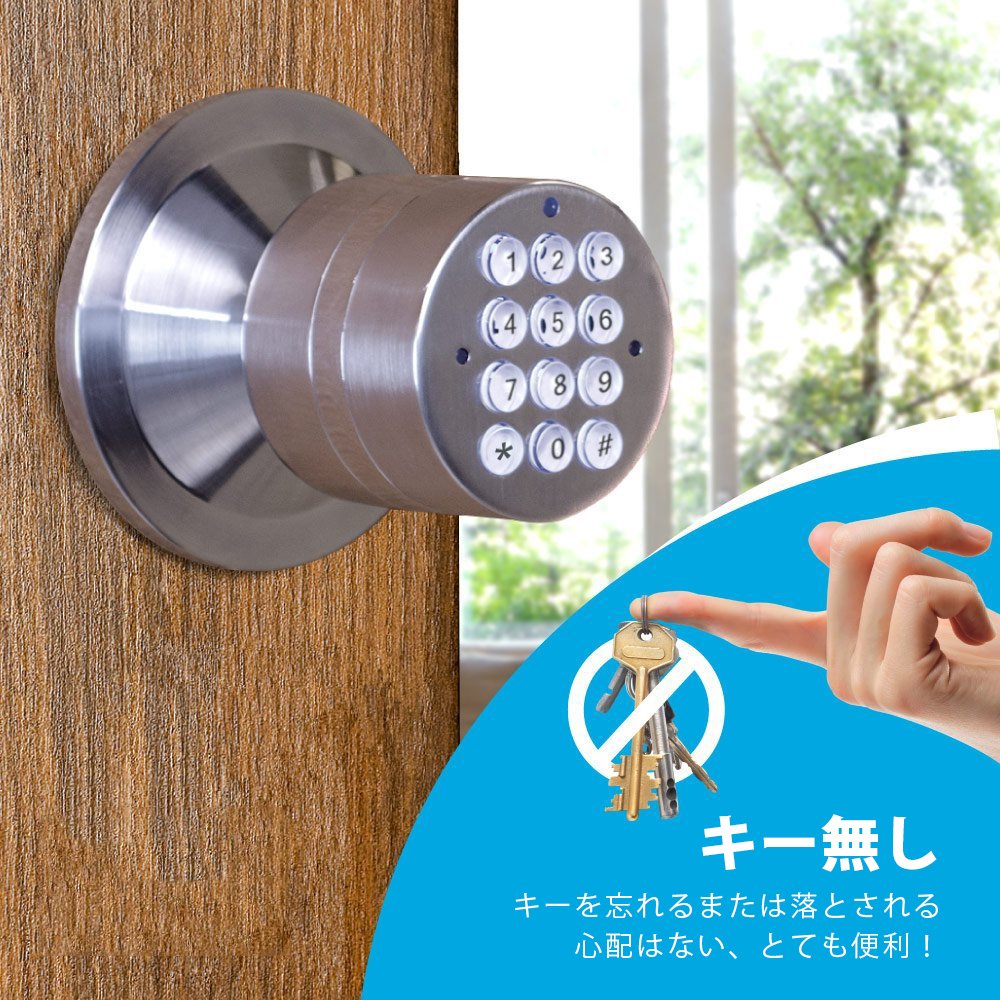

- I do not need a key, so I do not have to worry about forgetting or getting dropped.
- Three types of master code, user code and unlock code can be set.
- Up to 8 user codes can be set.
- You can easily add, change, or delete code.
- With anti-theft function, you do not need to worry when you enter your password.
- In order to ensure security, we lock in automatically from the outside in 3 seconds into the room.
- With Japanese instruction manual, it is easy to understand.
- According to the instructions, you can operate easily.
Product information:
Shipping Weight: 1202 g
Package Dimensions: 9.60 x 14.20 x 22.20 cm
