Item Descriptions:

size:

Light bulb color: 1 piece

Dimensions of the corresponding downlight

E 26 base

The light bulb (incandescent light bulb, LED light bulb, bulb type fluorescent tube) is attached down light which corresponds to the following size.

【See the left figure】

(Diameter of embedded hole): 100 ~ 125 mm

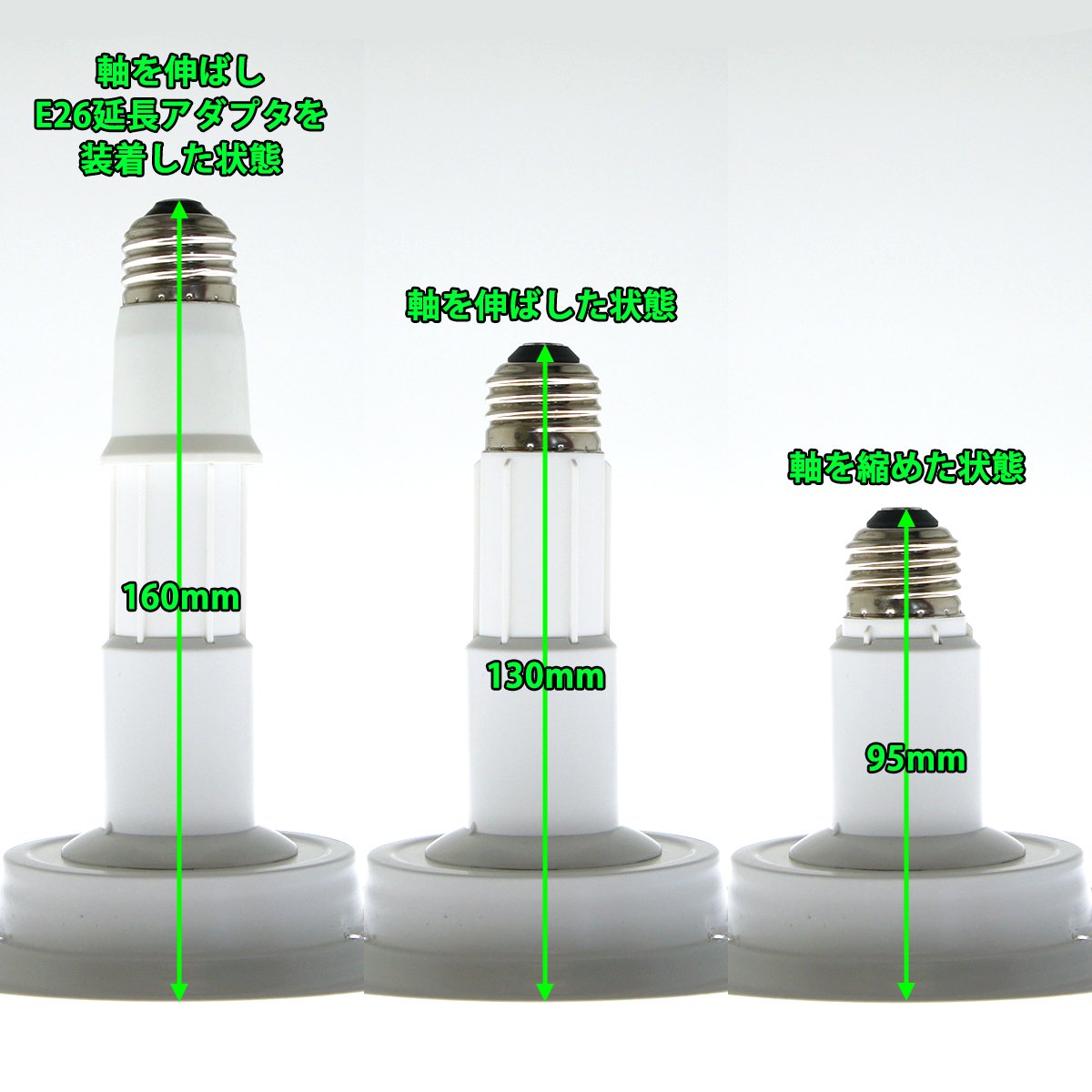

(Depth of downlight): 95 to 160 mm

Depth = length from the ceiling surface to the E26 socket bottom electrode in the back light down

Mounting procedure

1.

Pull the axis and stretch.

2.

If you do not reach the E26 socket even if the axis is extended to the longest, please attach the attached E26 extension adapter.

3.

Turn it clockwise and securely attach the cap to the E26 socket.

4.

Push up the circumference and align it with the ceiling surface.

【please note】

■ Downlights with E17 socket,

Base adapter for E17-E26

It is possible to install using.

■ Using a fluorescent tube or a mercury lamp, downlights should be connected directly to the stabilizer / inverter (fluorescent lamp) or ballast (mercury lamp), converted to E26 using the base conversion adapter

It is possible to install.

When you do construction work, please be sure to be done by a qualified electrician.

■ Equipment not supported · Environment ※ Please do not use in the following equipment / environment.

· Insulation material construction equipment, outdoor sign lighting fixtures etc. High-temperature equipment

· Circuit with dimming function

· Human switch · Circuit with delay switch

· Places with high humidity such as bathrooms and environment where water drops hit

Features:

• Flat and beautiful ceiling with uneven ceiling covered with holes.

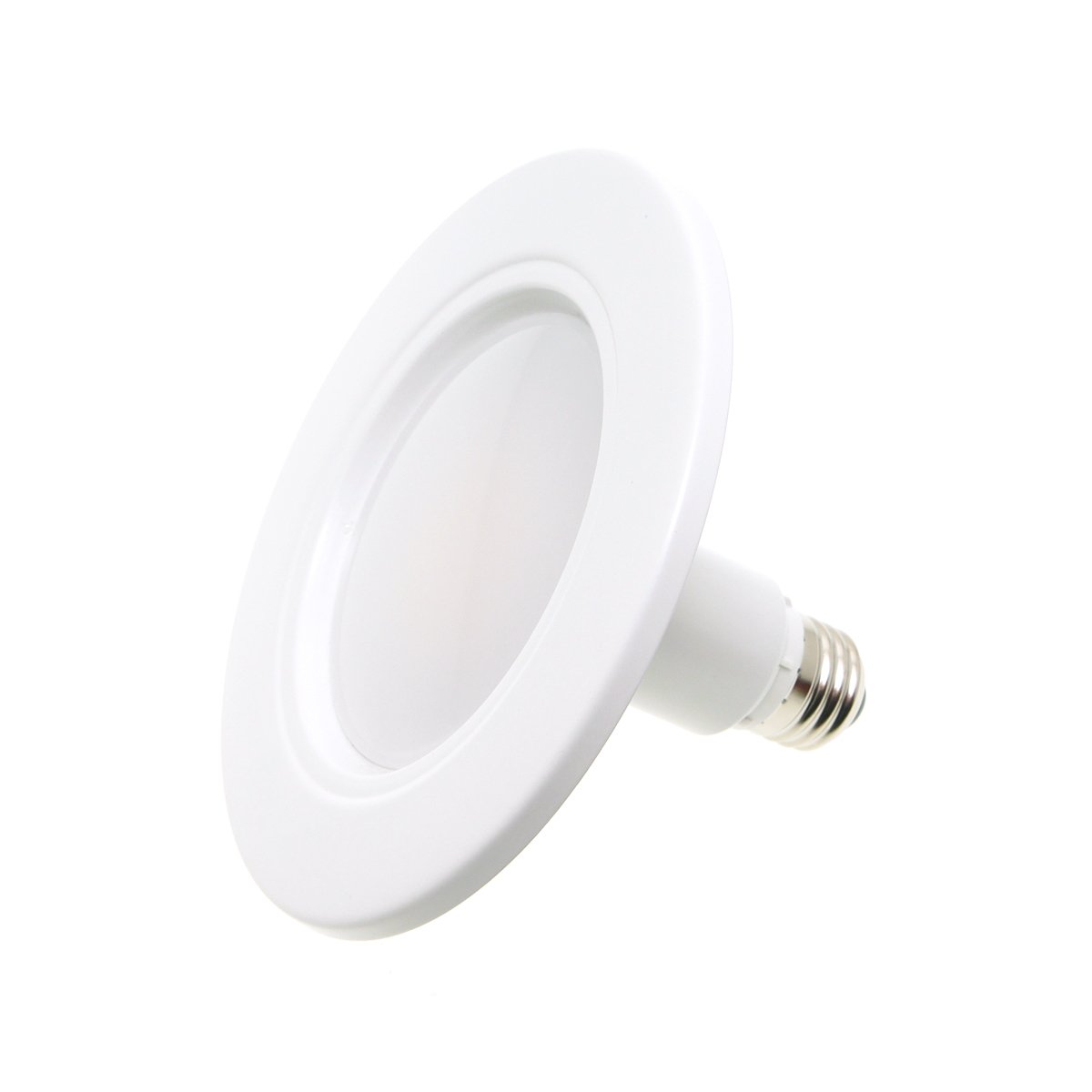

• E26 LED light designed exclusively for downlight using a lamp bulb.
• The light emitting surface is flat and the shaft part is telescopic type.

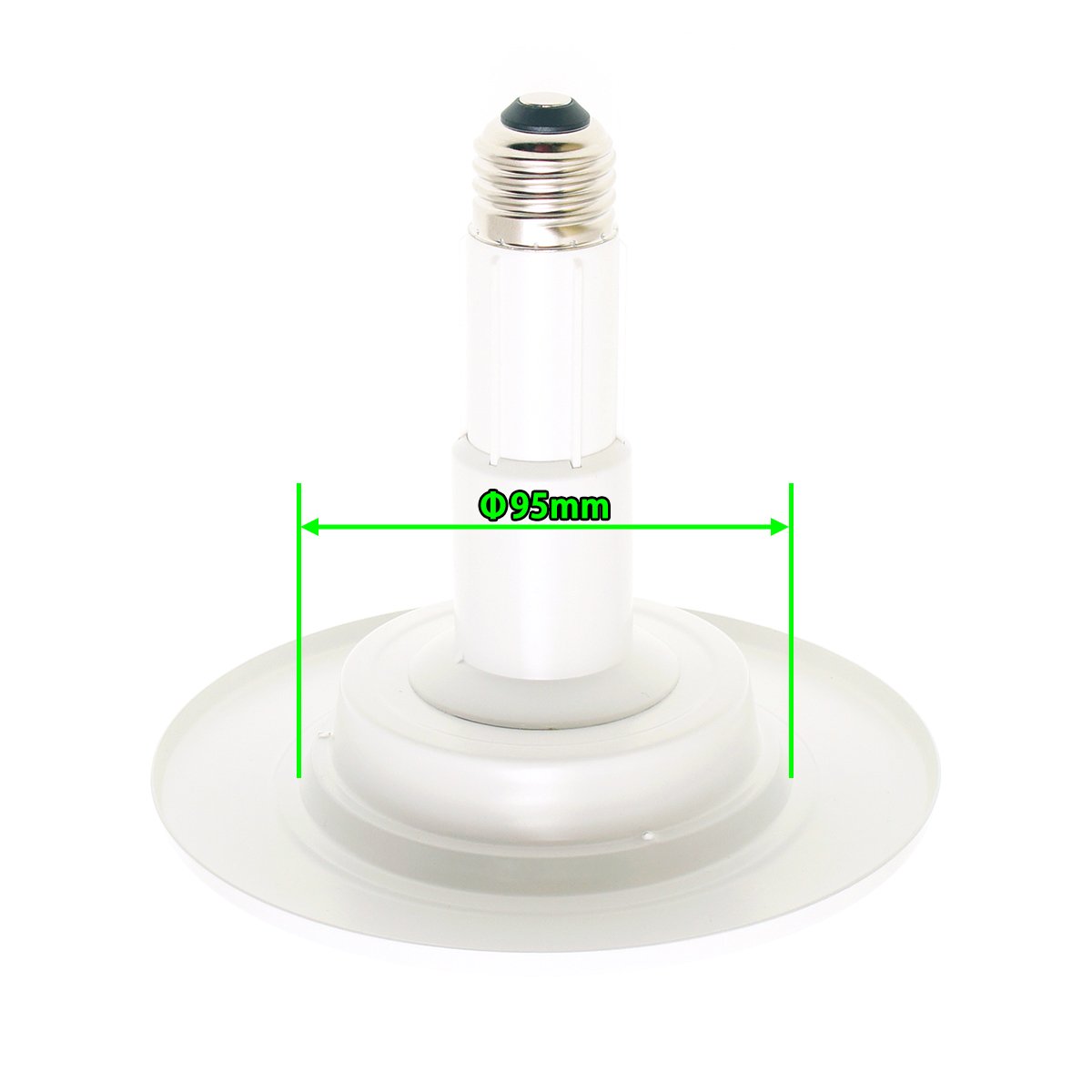

• Corresponds to downlight for E26 base lamp for bulb hole φ100 - 125 mm.

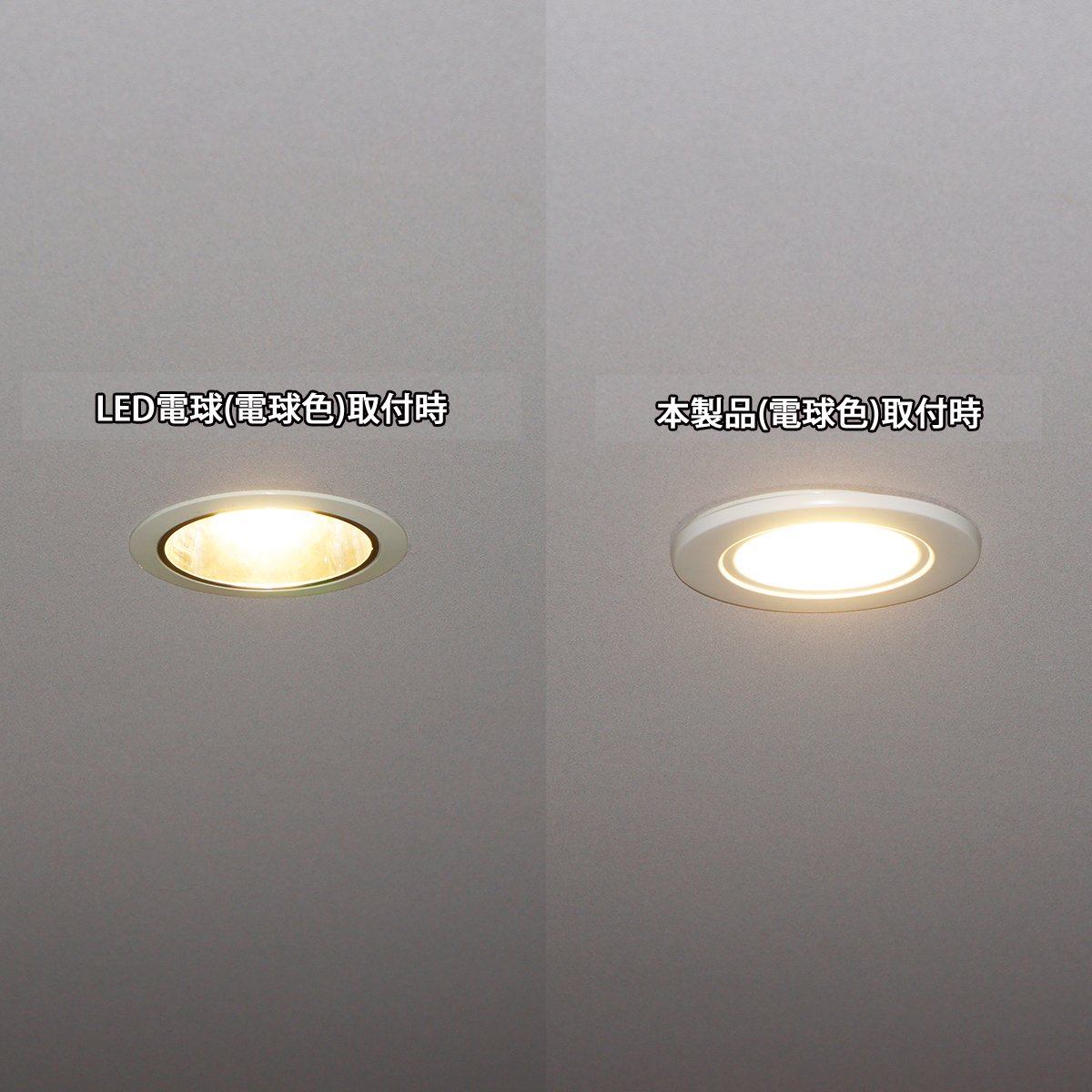

• Adjusting the length of the shaft according to the depth of the embedding hole makes it perfectly fitted to the ceiling surface and it looks like an integrated LED downlight.

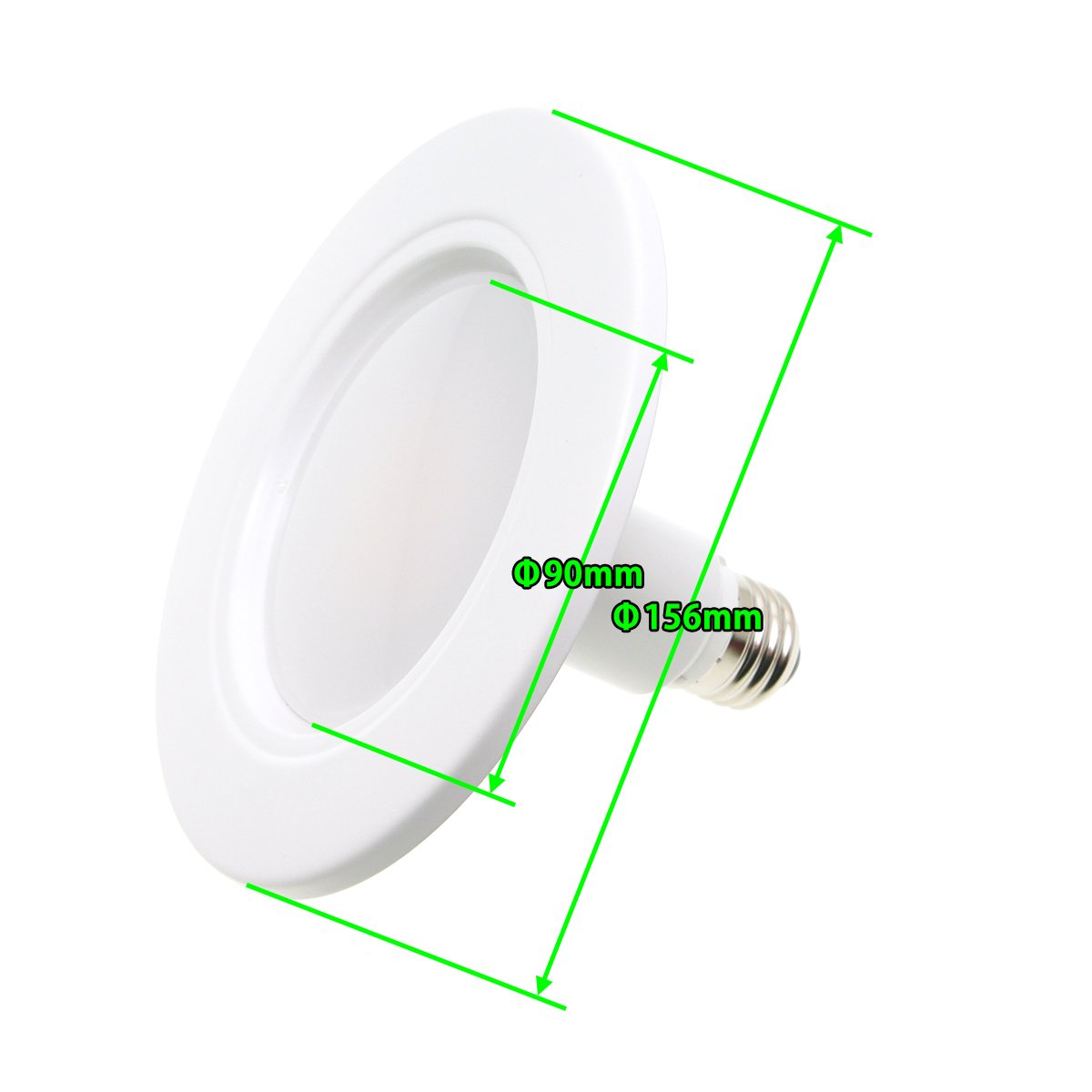

• Light emitting surface OD: φ156 mm (light emitting part: φ 90 mm), corresponding downlight depth (distance from the ceiling surface to the inner bottom of the E 26 socket): 95 mm - 130 mm (telescopic, if using the attached E 26 extension adapter up to 160 mm
• Corresponding power supply: AC 100-200 V, 50/60 Hz, power consumption: 9 W, light distribution angle: 110 °, color rendering performance (Ra) is equivalent to 100 light bulbs equivalent to 100 light bulbs (total luminous flux 800 lm), bulb color (color temperature 3000 K)
• : 85, Weight: 110 g, Color: White
• Notes: It can not be used for insulation material construction equipment.
• It can not be used for circuits with dimming function.
• Indoor use (non waterproof), design life: 25000 hours, warranty period: 1 year

Product information:

Shipping Weight: 213 g

Package Dimensions: 11.20 x 16.00 x 16.31 cm
