LEDENET 4-zone Touch Screen LED RGBWW Strip RF 5CH Controller Wireless Remote Control 5 Channels RGB+W+WW LED Strip Tape Lighting (RGB+W+WW Controller)

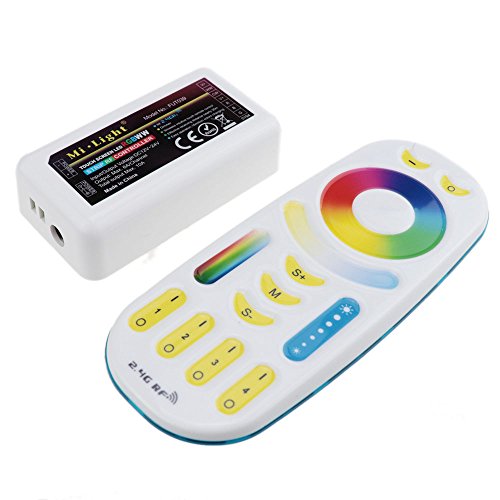

RGB+W+WW Controller

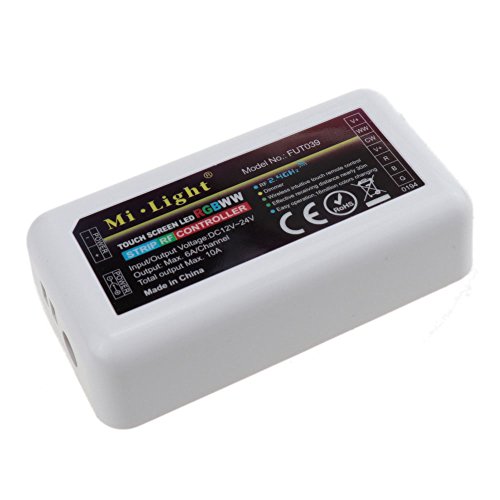

RGB+W+WW Receiver

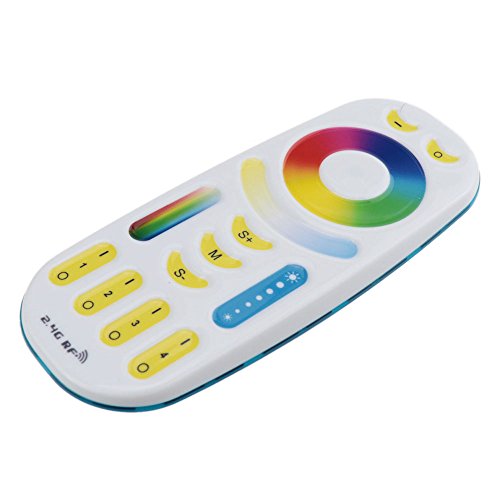

RGB+W+WW Remote

Product Description

Technical Data
Working voltage: 12V-24V DC
Output Current: 6A/Channel, total output Max is 10A.
Output connection: common anode.
Control distance: 30m

Link
First power off, then power on, within 3 seconds touch any of the Zone-ON button 3 times shortly, the link is done when you see the light blinks 3 times with green color, otherwise try again later.

Unlink
First power off, then power on, within 3 seconds touch the linked Zone-ON button or the Master-ON button 5 times shortly, the unlinks is done when you see the light blinks 10 times with red color, otherwise try again later.

9 Modes List
M1: Fire mode.
M2: Several colors gradual changing.
M3: Different Kelvin changing.
M4: RGB with color temperature gradual changing.
M5: Seven colors flash.
M6: Random colors flash.
M7: Red gradual changing + flash.
M8: Green gradual changing + flash.
M9: Blue gradual changing + flash.
Note: The colors can be dimming under any mode, the speed of any mode can be adjustable.

Package Included:
1pc * RGB+W+WW receiver
1pc * RGBWW Remote

Feature

It is 4-zones 5CH LED controller, and suitable for 5 channel RGB+W+WW 5 colors LED strip lighting (ASIN: B06XCGKM3Z, B06XC9D7P8).
Input/Output voltage: DC 12V-24V. Output current: 6A/channel, total output max is 10A.
Effective receiving distance is 30 meters. If you want to control more RGB+W+WW strips, you can add 5ch receiver (ASIN: B06XCCGSCR )
16 million colors to choose, dimming, color changing, saturation control and color temperature adjustable by remote.
It is compatible with the Wifi contorller (ASIN: B07333QK1R)
Brand : LEDENET
MPN(PartNumber) : LEDENET-CON-FUT039kit
Package Dimensions(LxWxH) : 22x16x3cm ; 0 g
