Product Description

Product Description :
This is a powerful 3.5'' HMI, which is member of Nextion family. Features include: a 2.4" TFT 320 x 240 resistive touch screen display, 4M Flash, 2KByte RAM, 65k colors.

Features:
480 x 320 Resolution
RGB 65K true to life colors
TFT Screen with integrated 4-wire Resistive Touch Panel
Easy 4 pin interface to any TTL Serial Host
16M Flash memory for User Application Code and Data
On board micro-SD card for firmware upgrade
Visual Area:73.44mm(L)×48.96mm(W)
Adjustable Brightness:0~180 nit, the interval of adjustment is 1%
Recommended power supply 5V500mA DC
Document link: https://www.youtube.com/results?search_query=Nextion+HMI

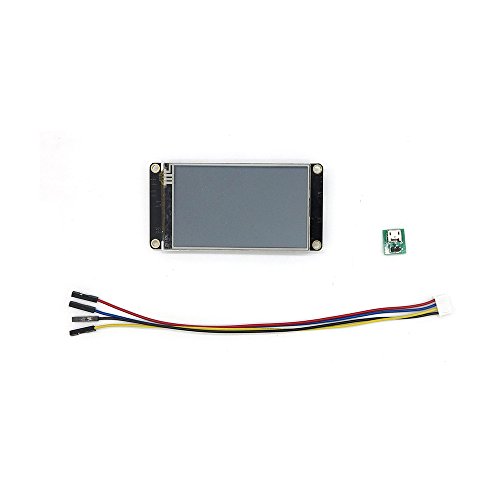

Package Included:
1 X 3.5'' UART HMI LCD Module
1 X 4P Cable
1 X UB to 2pin connector

Feature

The Nextion Enhanced versions are more powerful.
Compare to the basic Nextion displays, the new ones have added some new functions: support built-in RTC, support save data to Flash, support GPIO, larger flash capacity and faster CPU.
Nextion includes hardware part (a series of TFT boards) and software part (the Nextion editor).
The Nextion TFT board uses only one serial port to communicate. It lets you avoid the hassle of wiring.
The enhanced Nextion series has 7 size covers from generic 2.4'' to 7.0''.
Brand : WIshioT
MPN(PartNumber) : FZ1753E
EAN : 0702795764265
Product Dimensions(LxWxH) : 10x8x5cm ; 91 g
Package Dimensions(LxWxH) : 13x8x4cm ; 91 g
