Studio : audio-technica

Publisher : audio-technica

Platform : Not Machine Specific

Binding : Electronics

Product Description

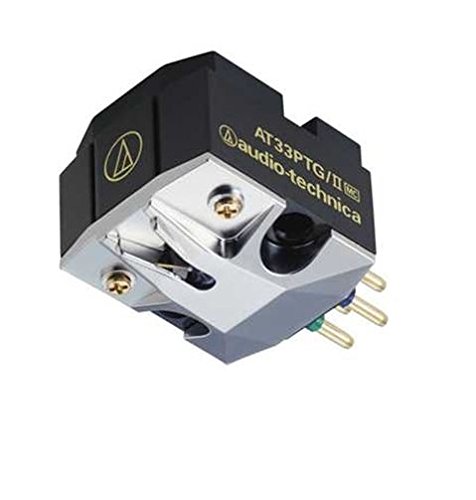

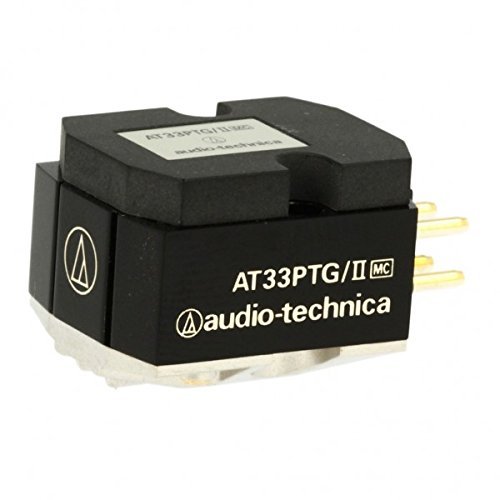

High rigidly body was designed aluminum alloy based rigid resin and anti-parasitic resonance | Type: MC type | Playback Frequency Range: 15-50,000Hz | Output Voltage: 0.3mV (1kHz and 5cm/sec.) | Channel Separation: 30dB (1kHz) | Output Balance: 0.5dB (1kHz) | Stylus Pressure: 1.8 - 2.2g (2.0g standard) | Coil Impedance: 10?¶ (1kHz) | Direct Current Resistance: 10?¶ | Load Resistance: >100?¶ (amplifier connection) | Coil Inductance: 22?EH (1kHz) | Static Compliance: 40 x 10-6cm/dyne | Dynanmic Compliance: 10 x 10-6cm/dyne (100Hz) | Needle Tip Form: Micro linear (ML) | Cantilever: Pure boron taper | Vertical Tacking Angle: 23? | Dimensions: H16 x W16.6 x D26.5 (mm) | Weight: 6.9g
