Item Descriptions:

color:

With power supply

how to use

This product is designed to operate using a general purpose driver.

Normally, it recognizes only by connecting, so you do not need a separate driver.

* Caution When connecting the USB hub to the PC, please connect without attaching anything other than the AC adapter to the USB hub.

If you connect the USB device to the computer with the connected device connected, the installation of the driver may fail.

⇒If you failed to recognize, please try disconnecting it once and then reconnecting with just the USB hub again.

Usage notice

1. This product is a USB 3.0 hub, but USB 3.0 is fully compatible with USB 2.0 / 1.1, so even if the hub supports USB 3.0, you can connect USB 3.0

If there is no socket (USB2.0 socket in the PC body), transfer speed will only operate at USB 2.0 speed.

It is recognized by USB 2.0.

So, is the USB port of your personal computer like USB 3.0?

Is it USB 2.0?

First of all, please check.

2. Product operation must be connected to usb equipment.

In the case of working for a long time, I think there is absolutely fever.

Also, depending on the environment of use, the heat dissipation effect is different.

The heat dissipation effect is not good, if the product is operated at high temperature for a long time, the temperature may be too high and the product may be damaged.

Please be careful.

Always Q & A

Q: 【USB hub】 The connected USB device does not work.

A: If the USB hub itself is not correctly recognized, or there is a problem of recognition of the personal computer itself

Power shortage from the personal computer, etc. is considered.

Please note: In case of insufficient supply from the PC, the connected USB device will not operate.

Therefore, can you confirm whether the AC adapter is connected properly, recognize and operate stably?

Q: Please check the recognition with the USB hub alone

A: When connecting to a PC with the USB device connected, it may be recognized as "unknown device".

First of all, connect the USB hub alone to the computer and check the recognition.

Remove the USB device and connect the PC and the USB hub one to one

Please connect and check the recognition of only the hub.

Also, please try to connect the PC and the USB device one to one without going through the hub.

If it still does not recognize, it means that there is a problem on the personal computer side or USB device side.

Q: It was recognized by USB2.0.

A: Since USB 3.0 is fully compatible with USB 2.0 / 1.1,

Even if the hub supports USB 3.0, transfer speed will only operate at USB 2.0 speed if there is no USB 3.0 plug in the PC body.

There is a possibility that it is recognized as USB 2.0.

Is the USB port of your personal computer like USB 3.0?

Is it USB 2.0?

First of all, please check.

Q: When USB hub can not be used

A:

· Plug in another USB 3.0 port of the personal computer

· Plug the USB 3.0 hub into another computer

· If you have another USB 3.0 hub, compare it with that one

USB device does not operate even if you try all, another USB hub works, but if only our USB hub can not be used etc, there is a possibility that the main part of the product has caused a problem.

Sorry to trouble you, but please contact us.

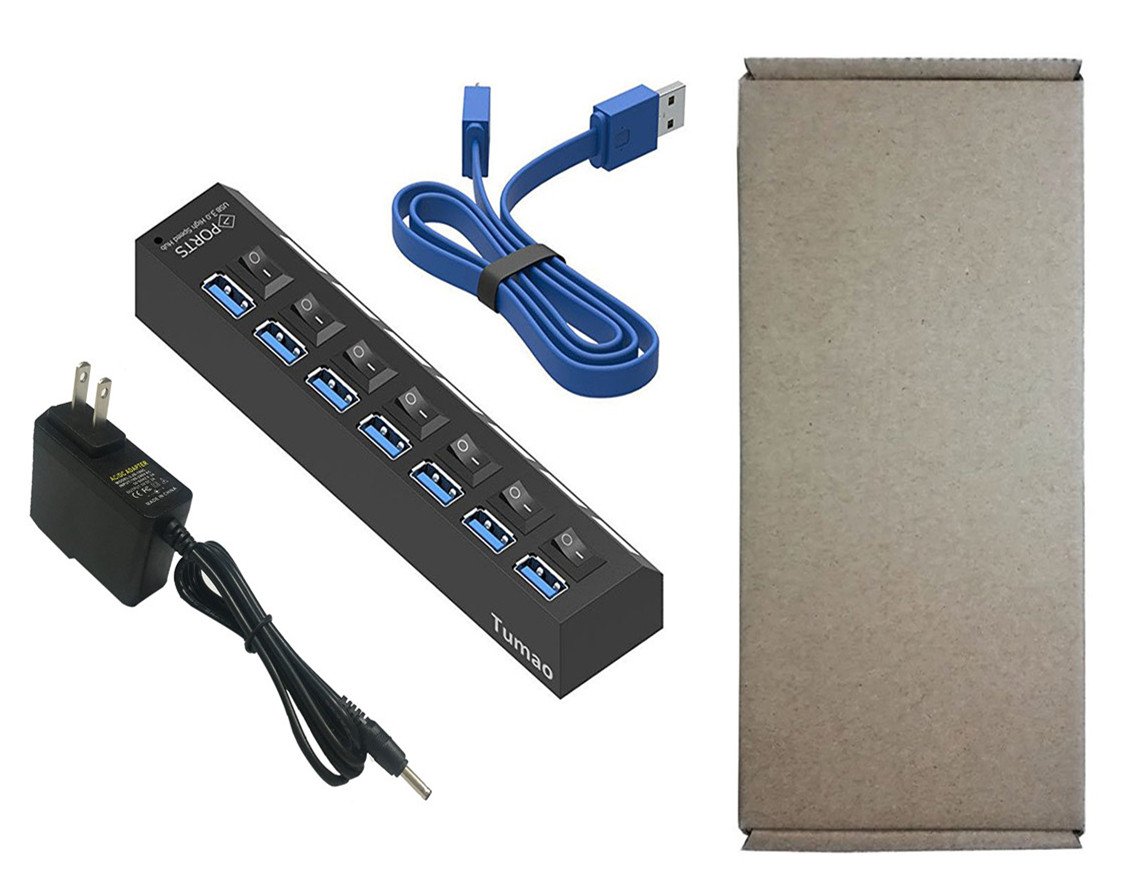

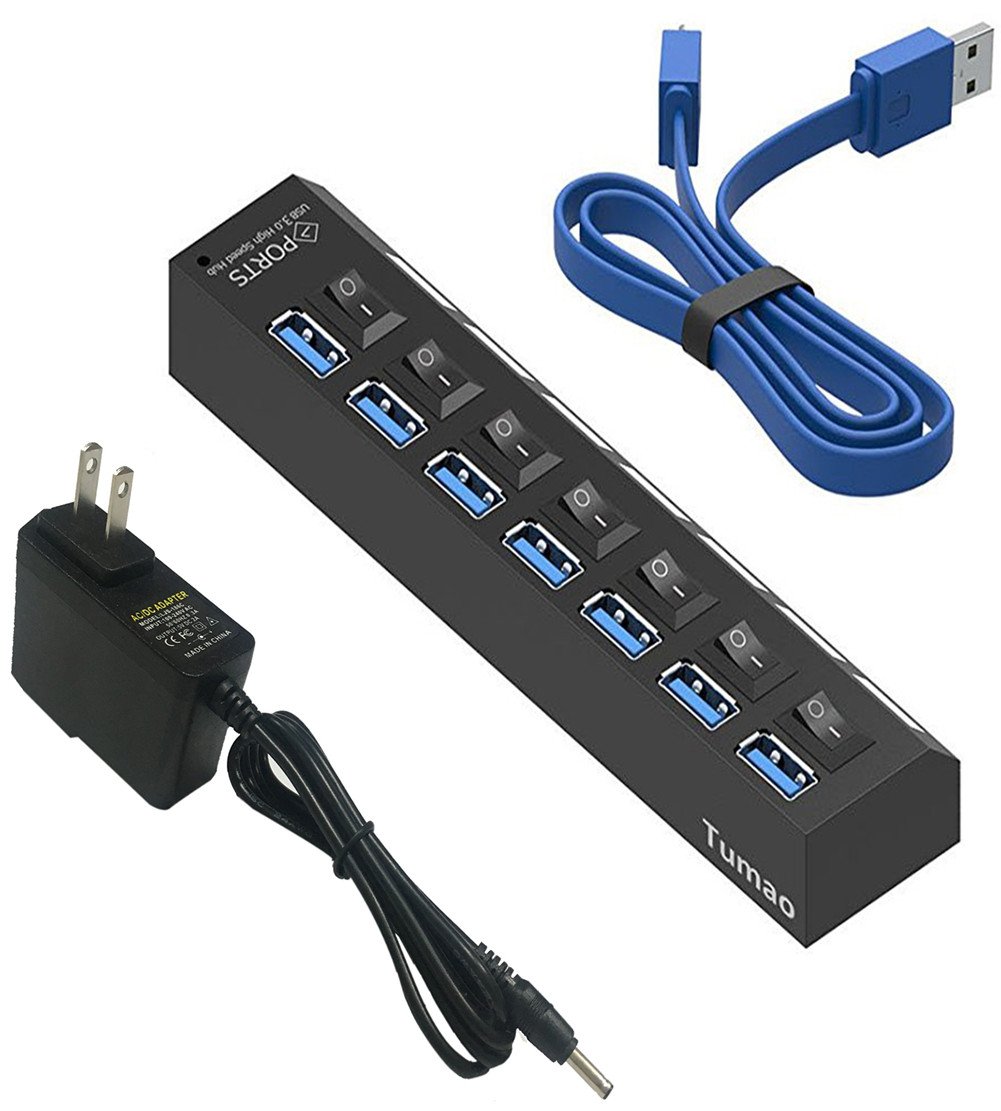

Package Contents: USB 3.0 Cable + USB 3.0 7 Port + Power (5.0 V / 2A), 6 Months Warranty

AC adapter (power supply)

INPUT (power input): 100-240 V 50/60 Hz 0.1 A

OUTPUT (power output): 5.0 V / 2 A (2000 mA)

Power supply

This product comes with 5V / 2A power supply.

The supplied current is shared by the HUB itself and the USB device connected to it.

It is better to keep the operating current of the connected USB device within 2 A (2000 mA) total.

Even if a USB device that needs more current than this is connected, it will not operate properly due to insufficient current.

Therefore, whether the AC adapter is connected properly and whether it operates stably or not,

Could you confirm it?

If only specific devices do not work, please consider connecting directly to the USB port of the personal computer.

This product withstands the maximum current of 3.5A.

Please use the supplied power supply to protect the connected equipment.

Can not use optional ac adapter.

The power supply plug may not squeeze to the base of the hub body.

There is no security risk.

Please use it with confidence.

Depending on the circumstances of the personal computer, if the product can not be used with compatibility, we correspond to the exchange.

Features:

• Please enter model number Confirm this is compatible:
• Dual use: It is a USB hub that supports both self power and bus power.
• If you want to connect a device with a large product electric power, you can supply stable power by using the supplied AC adapter.
• If you want to carry it or want to use it in a place without a receptacle, you can easily add a USB port without using the AC adapter.
• It is possible to use it according to various scenes.

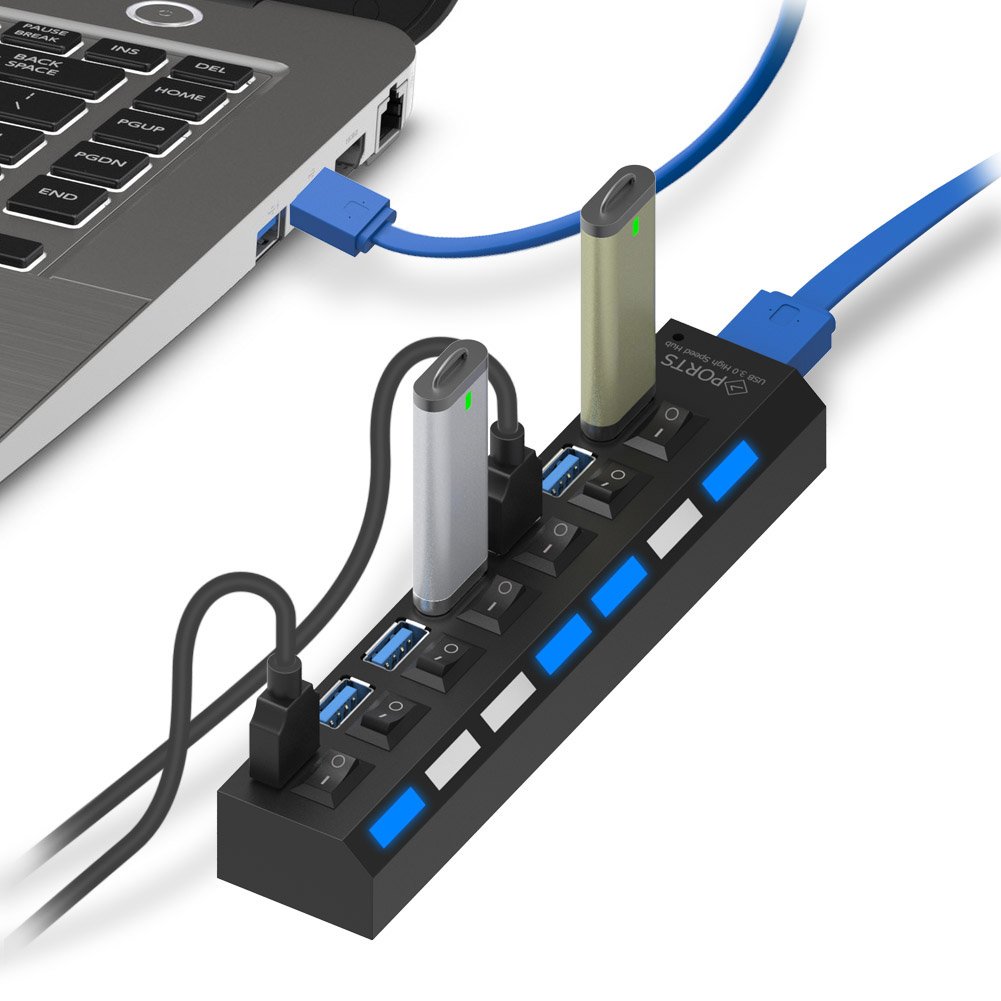

• Examples of connected devices: mouse, USB memory, keyboard, game pad, external hard disk, printer, scanner, CD / DVD drive, mobile charging.
• Normally, the charging current from the USB port on the personal computer side is 500 mA maximum, when the power connection is used, the maximum operating current is 1000 mA.
• Operating current Reference: Smartphone (iphone) Charge: 5 V / 1A (When charging current is less than 1 A, low speed charging).
• Digital camera: about 300-500 mA.
• USB memory, U disk, mouse, keyboard: about 100 mA.
• Mobile hard disk, HDD external hard disk: about 700-2000 mA.
• If you exceed the maximum operating current to connect, it may not be able to recognize.
• When connecting a mobile hard disk, HDD external hard disk, etc. 1 unit is better.
• This product withstands the maximum current of 3.5A.
• Please use the supplied power supply to protect the connected equipment.
• Can not use optional ac adapter.

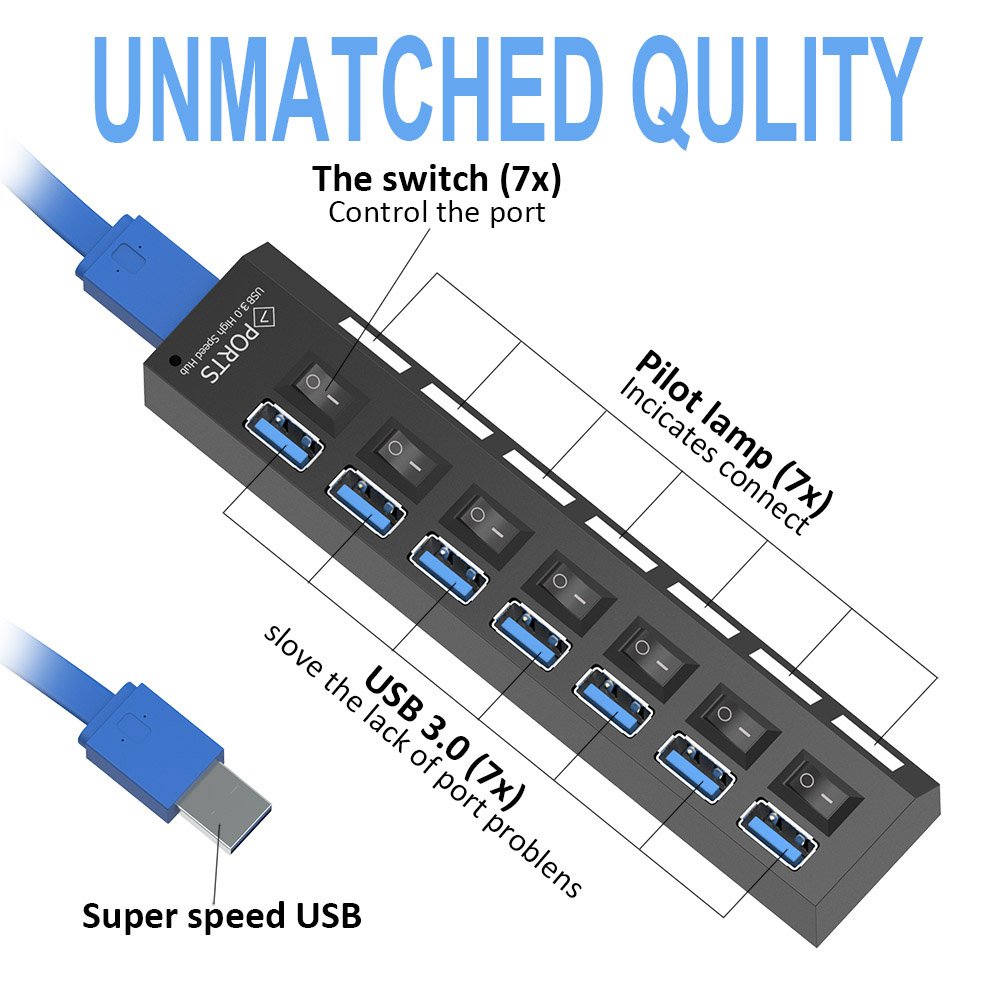

• With independent switch: Switch x LED display.
• For simultaneous stable power supply to multiple USB devices, built-in current protection setting, effectively protected connected equipment and HUB itself can be protected.
• Enhanced durability, reliability, security and stability.
• Package Contents: USB 3.0 Cable + Body USB 3.0 7 Port + Power, 6 months warranty.
• Please note: Recently, many merchants use the merchandise page of our shop.
• It is different from all our shop items.
• This product is sold only Tumaotec.
• Products will be shipped by Amazon.co.jp.
• If by any chance Amazon's inventory is sold out, Tumaotec will be sold and shipped.
• Please confirm "Tumaotec sale" before purchase.

Product information:

Shipping Weight: 181 g

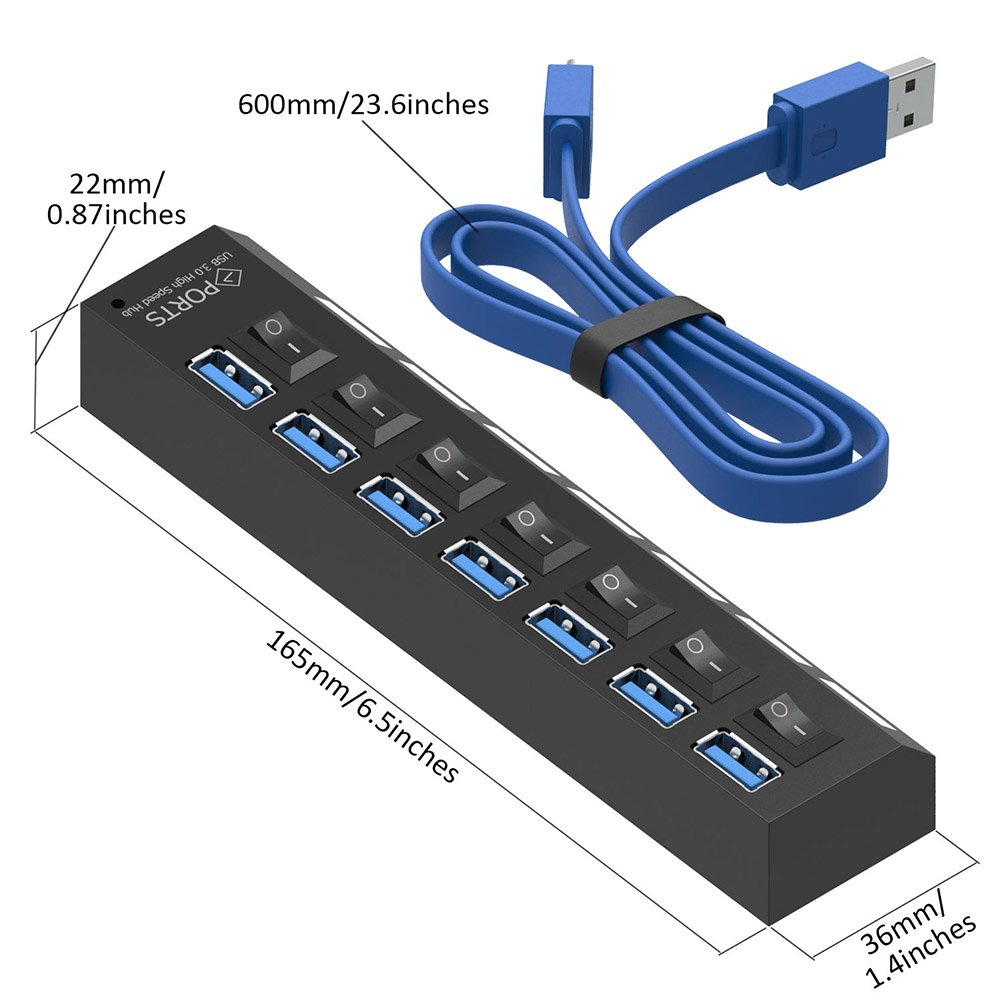

Package Dimensions: 7.11 x 15.39 x 20.70 cm
