Item Descriptions:

<Specification>

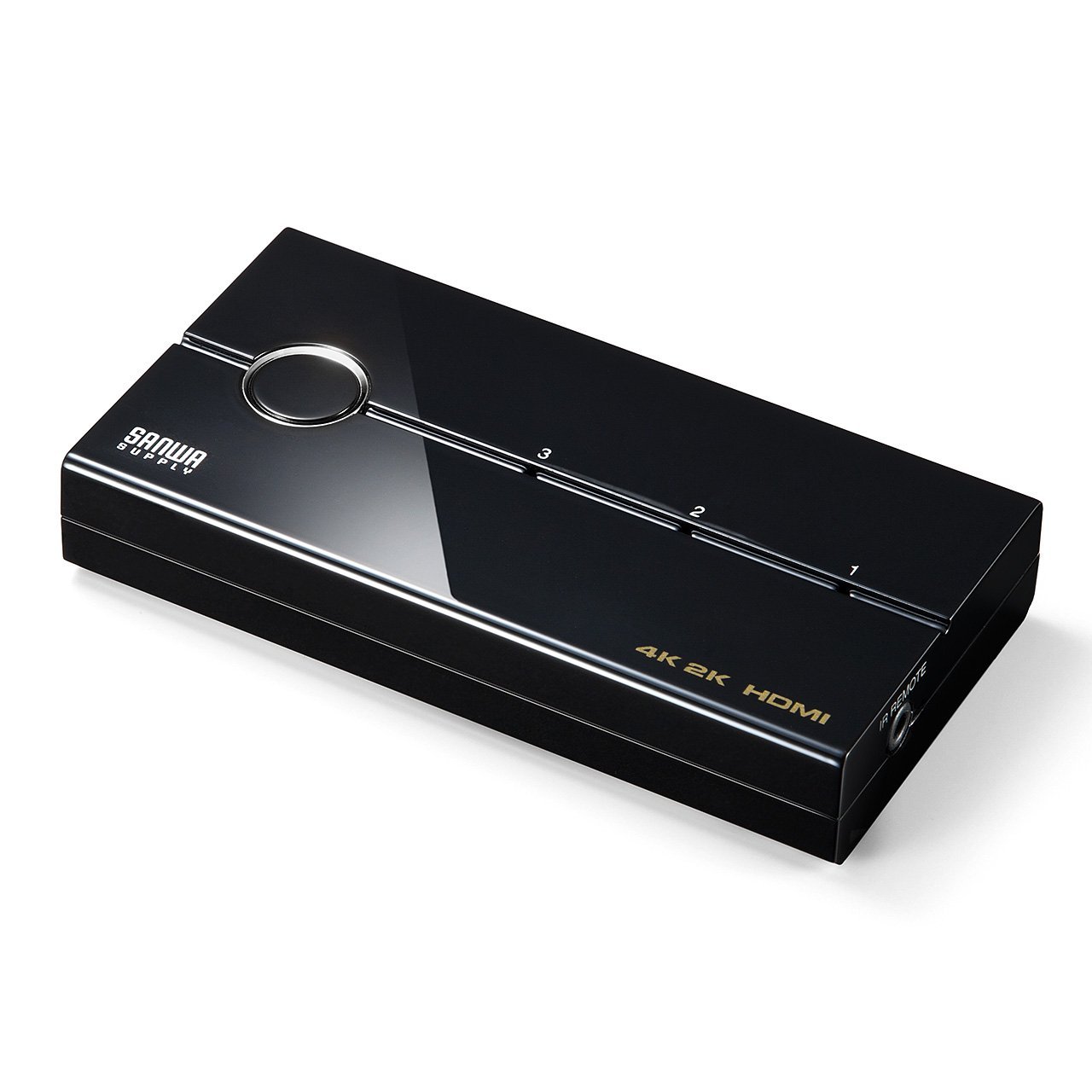

■ Size: W115 × D60 × H 21.4 mm / about 80 g

■ Material: ABS resin

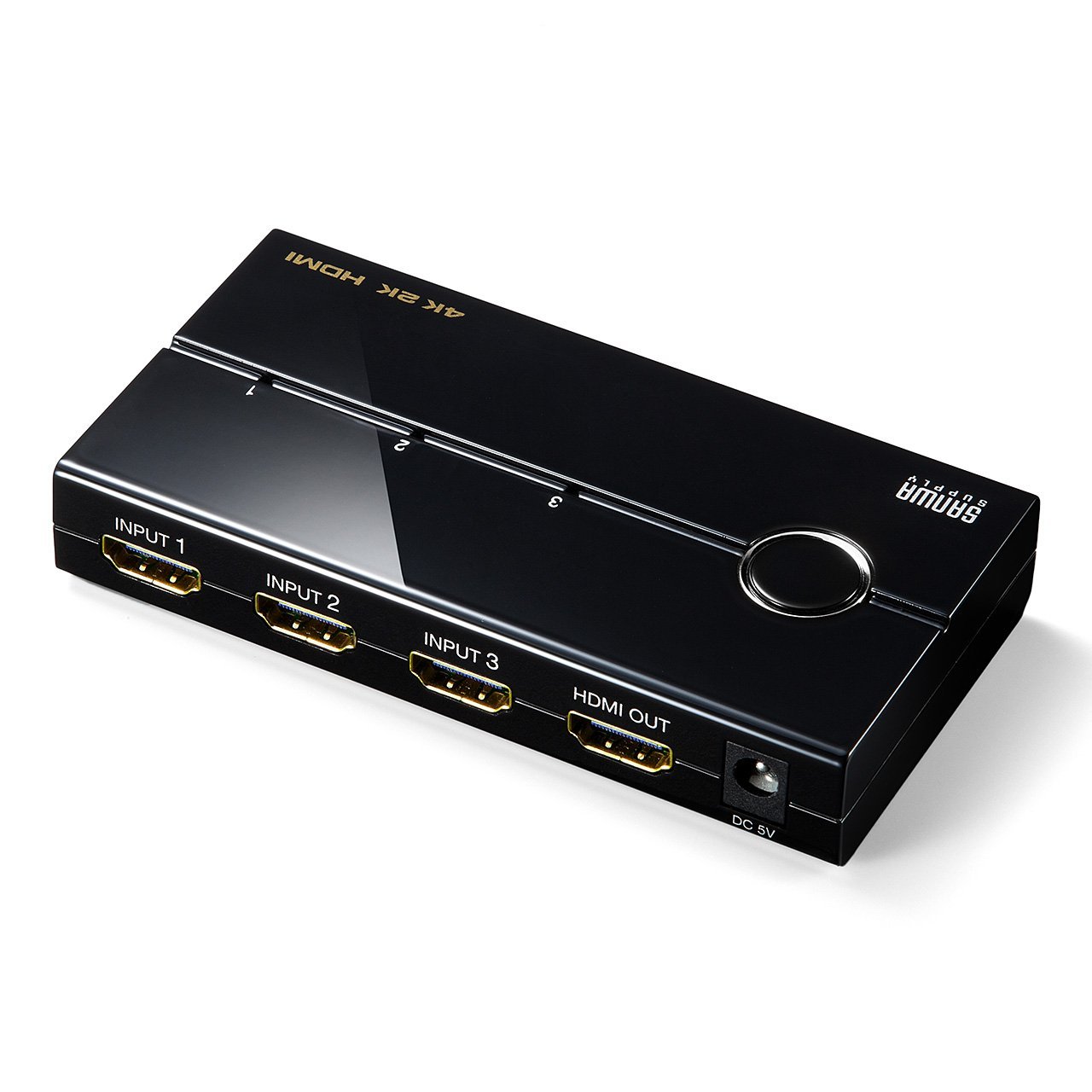

■ Interface:

For input / HDMI type A (19 PIN) female × 3

For output / HDMI type A (19 PIN) female × 1

■ Switching method: main body switching button, remote control

Switching content: HDMI input / 3, HDMI output / 1

Maximum resolution: 4 K 2 K (4096 × 2160)

Main Resolution:

4096 x 2160/30 Hz (4: 4: 4), 3840 x 2160/30 Hz (4: 4: 4)

3840 x 2160/30 Hz (4: 2: 2), 1920 x 1200/60 Hz, 1920 x 1080/60 Hz

* Not compatible with refresh rate 60 Hz drive at 4 K 2 K resolution output

■ Data rate (maximum): 3.0 Gbit / s

■ Pixel clock: 300 MHz (maximum)

Input DDC signal: 5 V

■ HDCP: Supports HDCP 1.4

■ Inter-device control (CEC): correspondence

* It does not guarantee the operation on all devices

■ Power consumption: 1.2 W

■ Environmental conditions (without condensation):

Operating temperature / 0 to 50 ° C

Storage temperature / -20 to 60 ° C

Operating humidity / 80% or less

Storage humidity / 80% or less

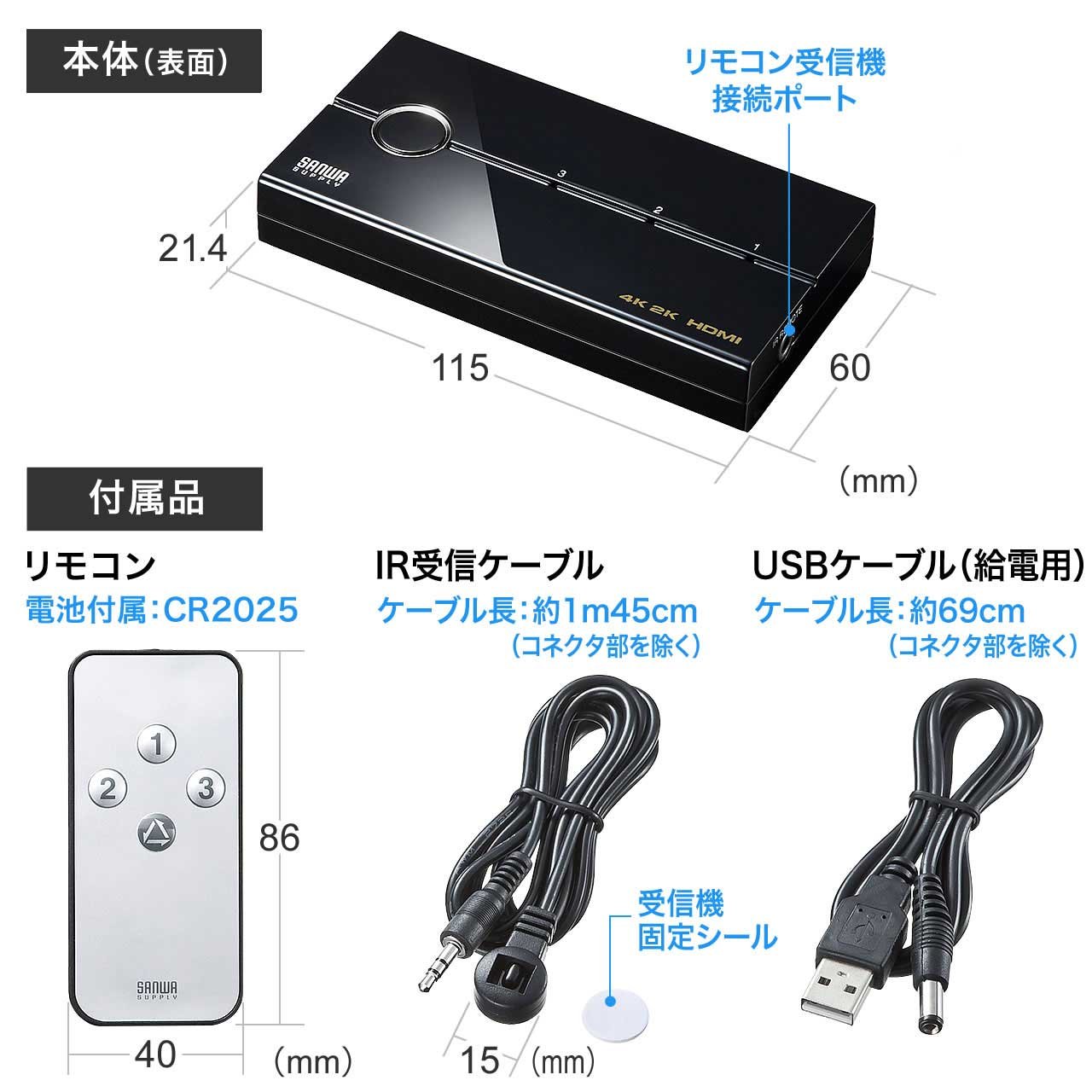

■ Accessory: Remote control (battery included / CR2025) × 1, IR reception cable (cable length about 1.45 m) × 1, USB cable (power supply / cable length · approx 69 cm) × 1

■ Producing country: China ■ Instruction Manual: Yes

■ Warranty period: 6 months from date of purchase

<Supported model>

■ Compatible equipment:

Video equipment with HDMI output terminal as standard equipment · Game console for home use · Personal computer

Regarding PS4 compliance released in 2016 ※,

Compact and lightweight models released on 2016/9/15 and PlayStation® 4 Pro released on November 10, 1016 are not supported because they are undergoing operation verification.

■ Supported output equipment:

TV / PC display, projector etc. equipped with HDMI input terminal as standard

* Not compatible with refresh rate 60 Hz drive at 4 K 2 K resolution output

* It does not guarantee the operation on all devices

Recommended cable length:

HDMI equipment ~ Switch to / 3 to 5 m

Switch to display ~ 3 to 5 m

【please note】

* When switching at 4K 2 K resolution, please use the 4 K 2 K compatible HDMI cable.

※ HDMI cable, USB-AC adapter are not included.

Please prepare separately if necessary.

* The total distance that can be extended with 4K 2 K resolution varies greatly depending on the performance and connection environment of the HDMI device and display.

* Be sure to turn off the power when connecting or disconnecting the HDMI device (plugging / unplugging the cable).

There is a risk of recognition failure, poor output setting, or damage to the equipment.

* Depending on the HDMI device, it may be necessary to recognize the display at startup.

In that case, it is necessary to start the HDMI device after switching the port.

Features:

• Please enter model number Confirm this is compatible:

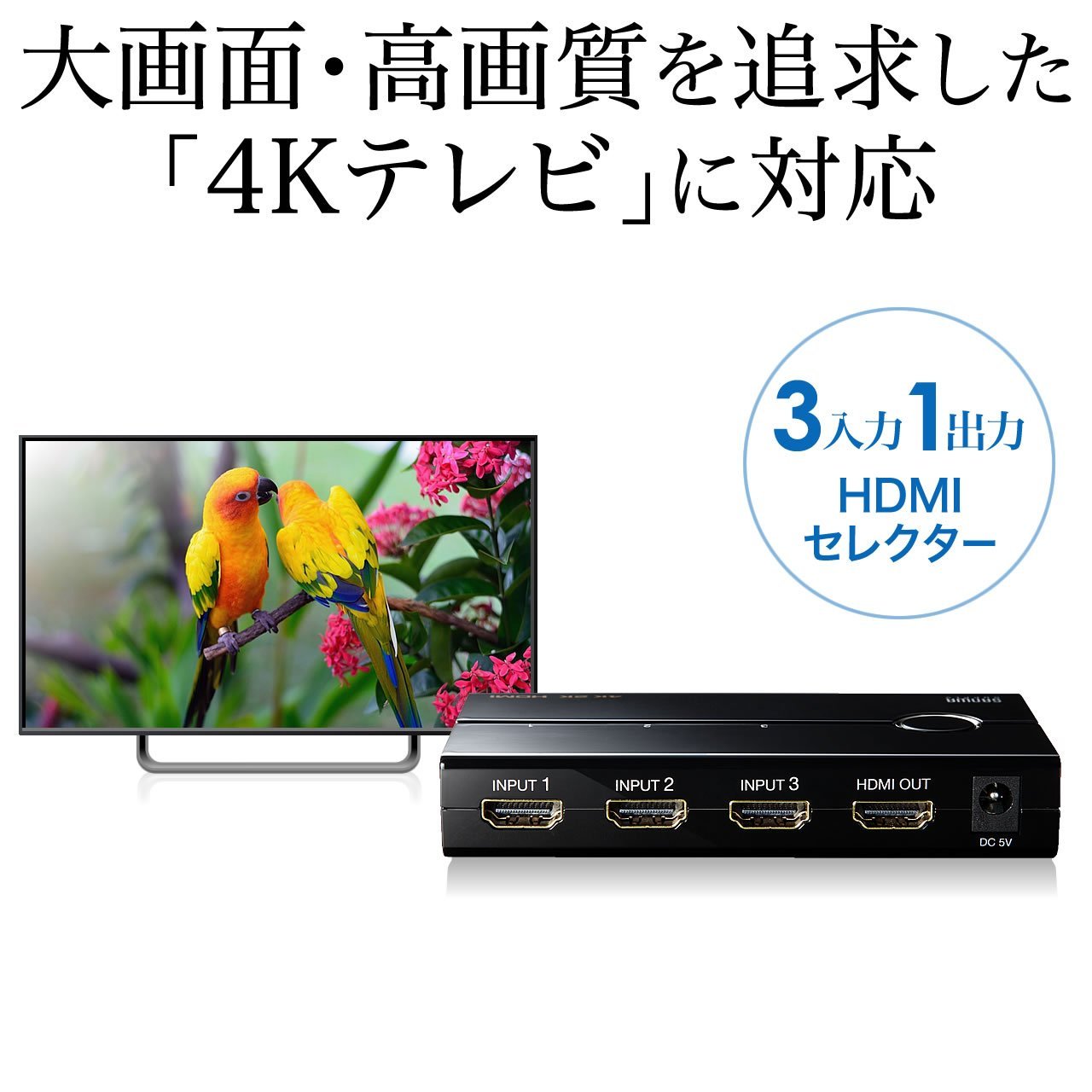

• It is an HDMI selector compatible with 4K TV (* 3,840 × 2, corresponding to 160's 4K / 30p signal).
• You can connect and play multiple devices while keeping beautiful images from high-performance playback equipment.
• Three devices can be shared when there are not enough HDMI ports on the TV or when you want to use more than one device with one port.
• It corresponds to Dolby True HD and DTS HD Master Audio.
• You can use it immediately by connecting an output device such as a TV with the playback device with the HDMI cable.

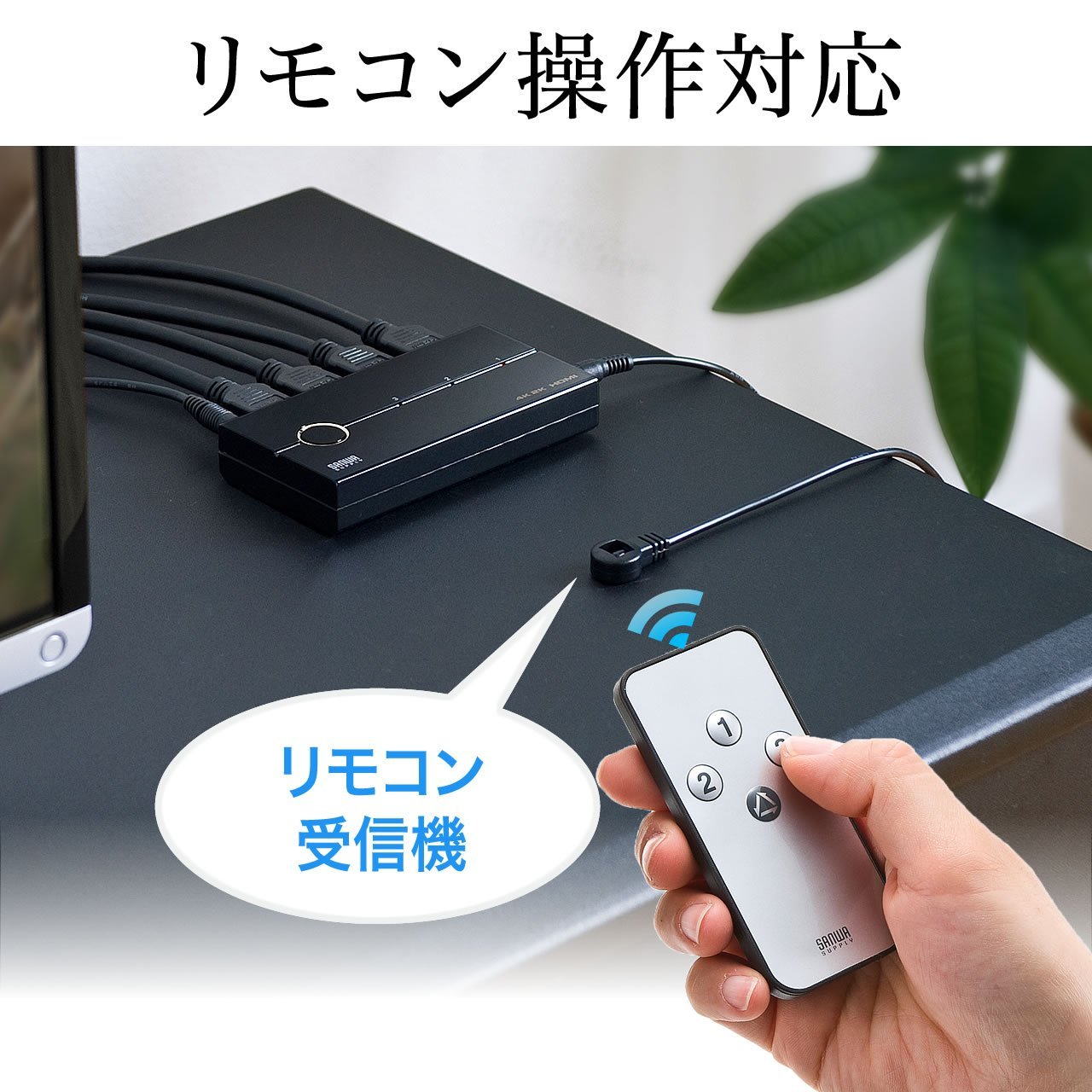

• It is with a remote control that can be switched even if it is far from the main unit.
• Since it has a remote control receiver, remote control operation is possible even if the main unit is installed on the back of the TV.
• Since you can hide the cable on the back, you can use it with the TV surroundings refreshed.

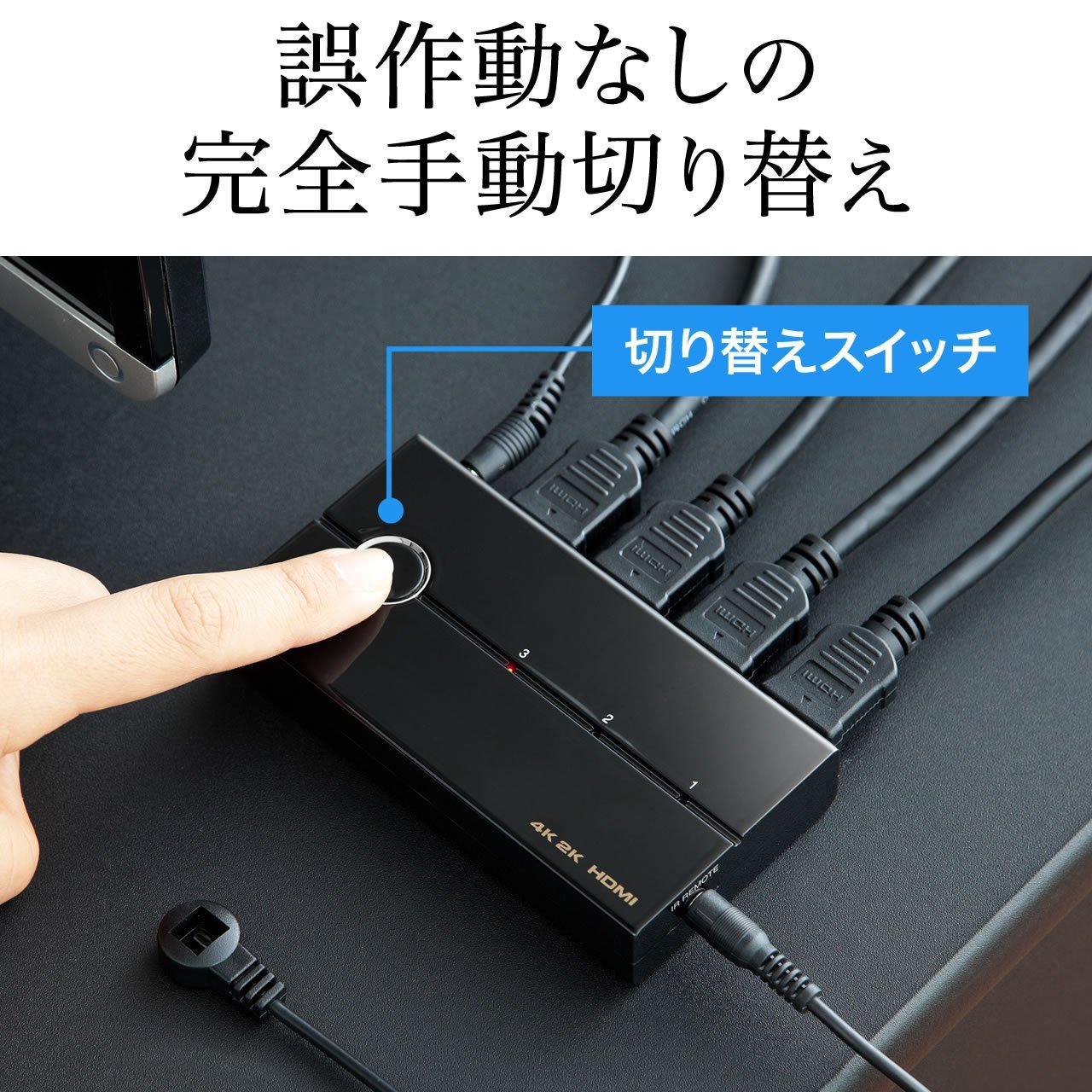

• There is no automatic switching function by turning on / off the power supply of the device, switching is a fully manual switching specification that selects the playback device with only the remote control switch of the main unit.
• There is no malfunction, it can be used with confidence.

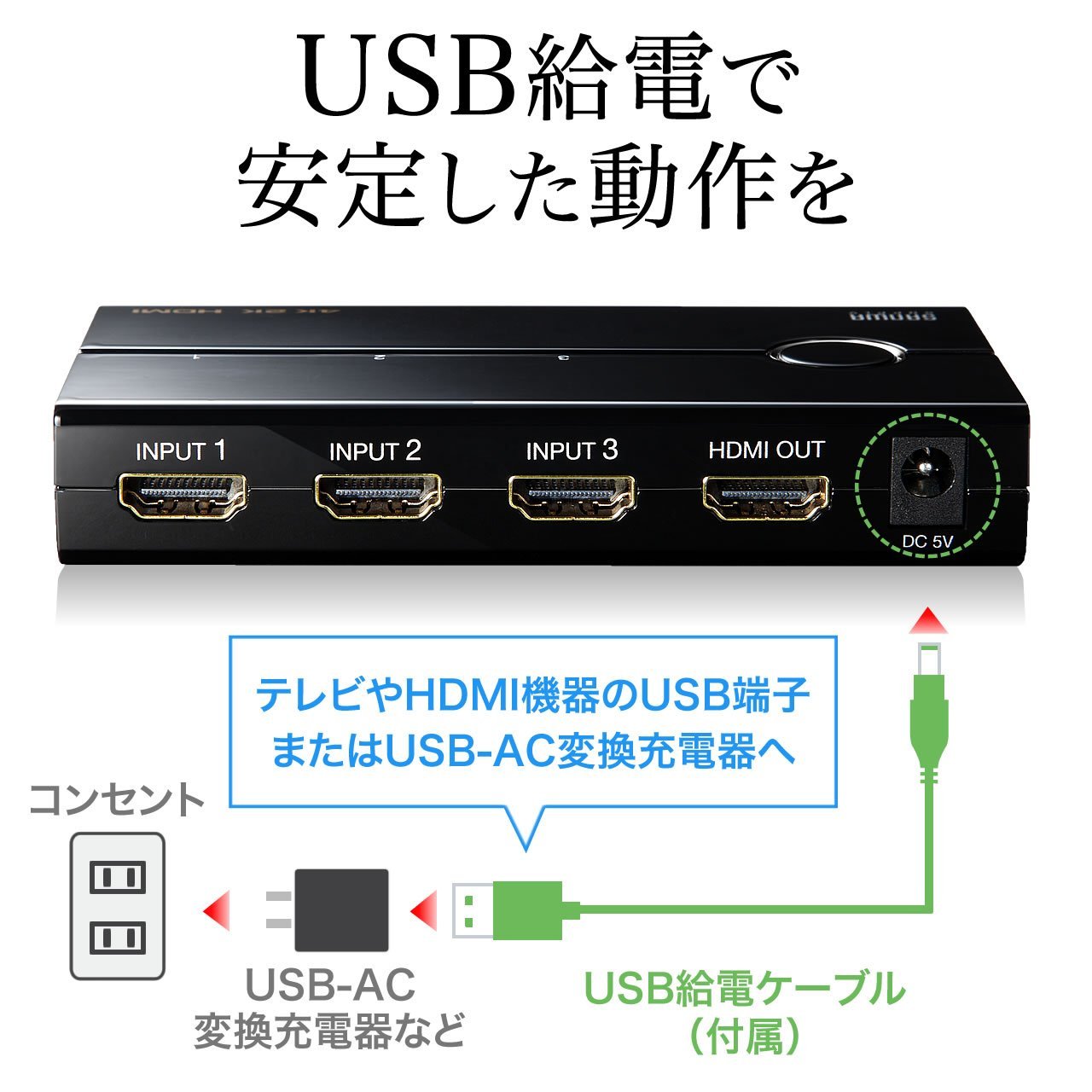

• With the USB power supply cable, you can avoid video disturbance and interruptions due to lack of power supply by USB power supply.
• It is also compatible with bus power drive by supplying power from HDMI equipment. (For more stable operation ※ connection and use of USB feeder cable is recommended).
• It is a compact size that does not get in the way.

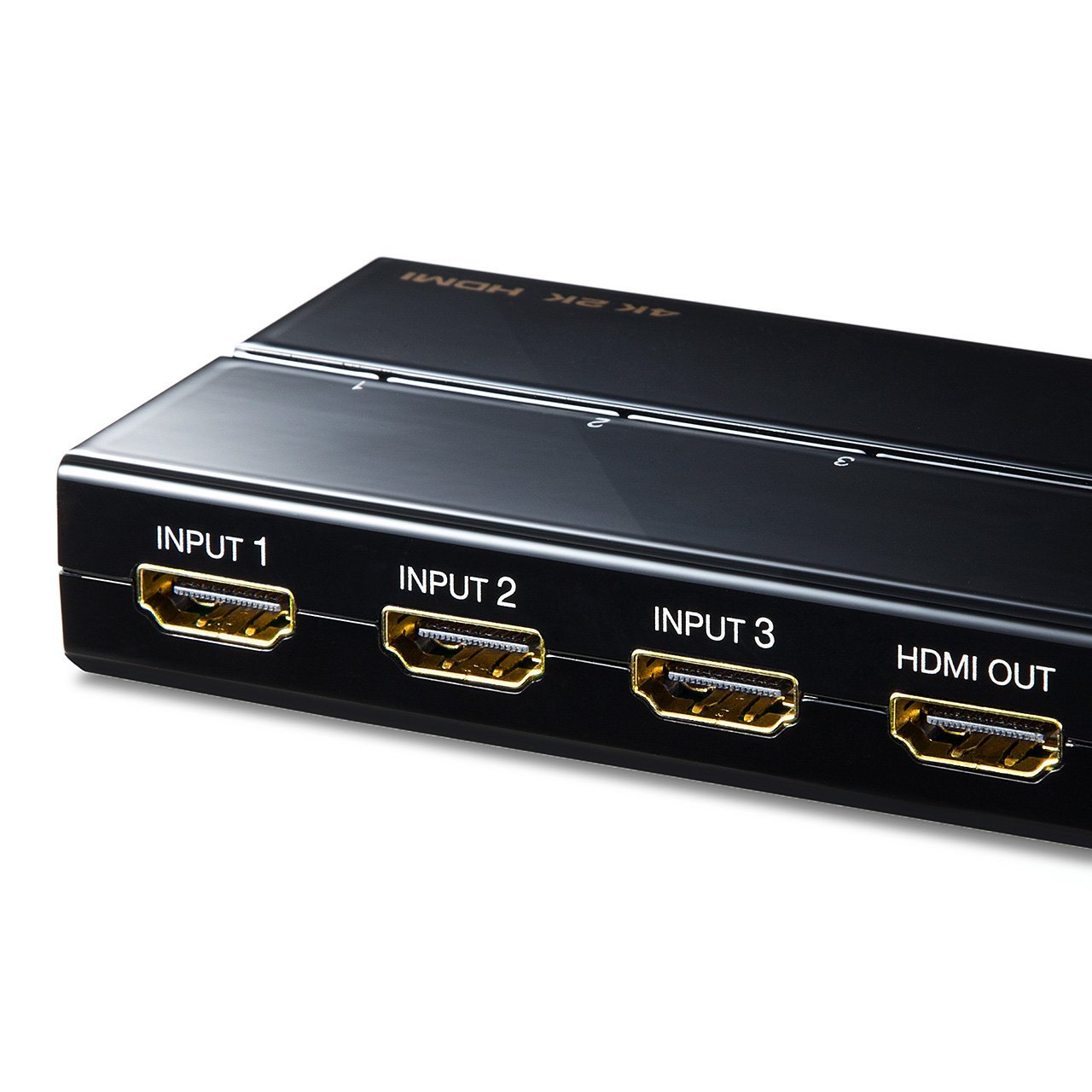

• Since the input terminal and the output terminal are on the same side, wiring can be done neatly without jumping out the cable in front.
• On the back side, a rubber material's slip is attached (※ The body is pulled by the cable depending on wiring because it is very lightweight, it may float.)

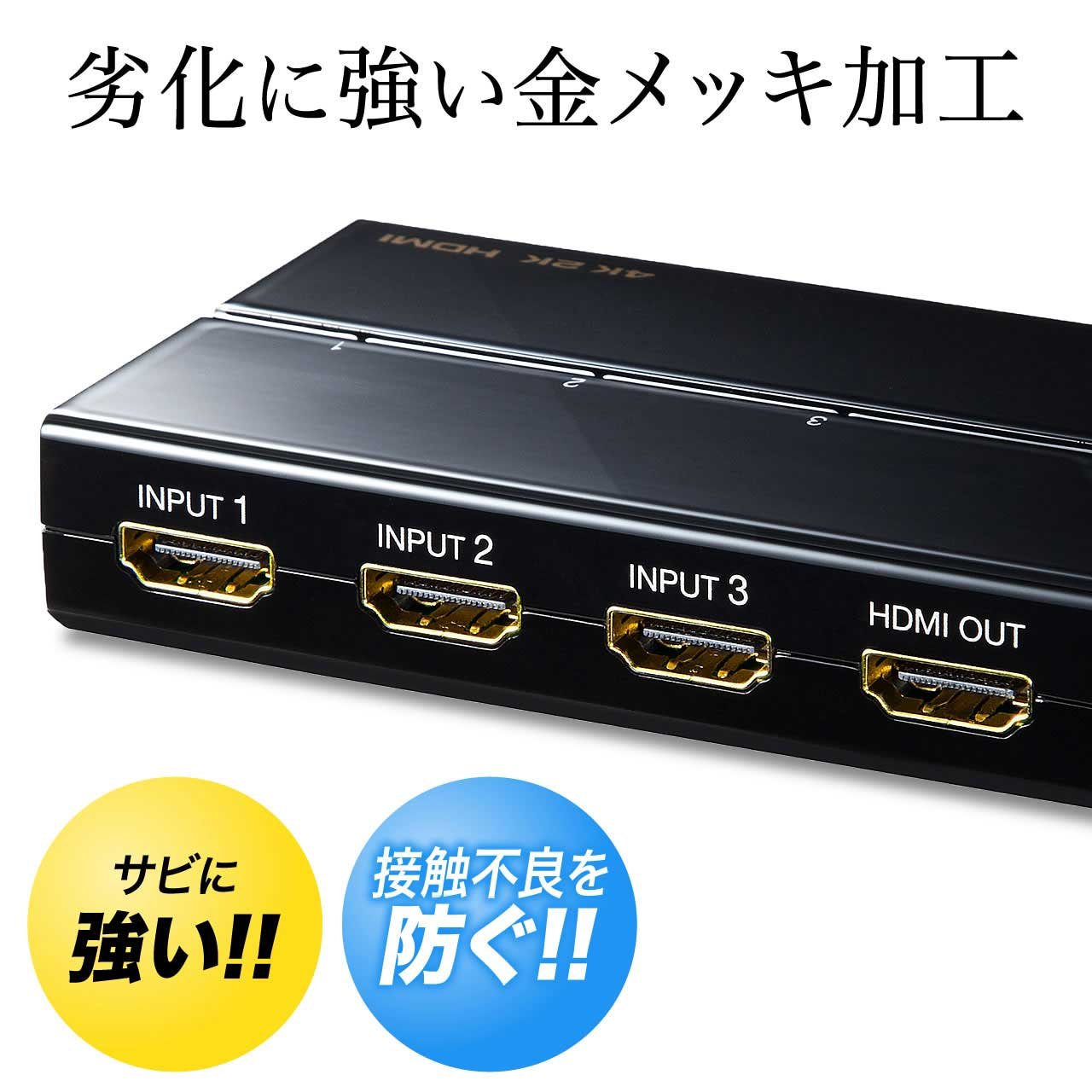

• All HDMI ports are plated with gold, they are strong against rust and prevent poor contact.

Product information:

Shipping Weight: 249 g

Package Dimensions: 11.10 x 16.10 x 21.49 cm
