Product Description
1.0 Introduction

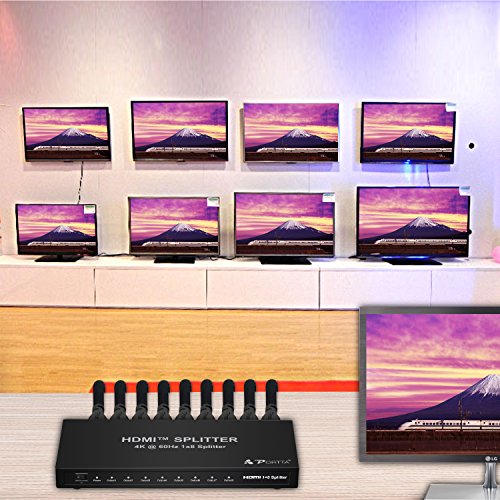

The HDMITM 4K splitter 1x8 lets you share eight HDMITM displays or projectors with an HDMITM-enabled audio / video source device. With support for Ultra HD (4K@60Hz) the HDMITM splitter ensures astonishing picture quality, four times the resolution of HD 1080p@60 Hz. The 4K splitter is also backward compatible with previous HDMITM revisions, supporting 1080p / 720p HDMITM video resolution devices. Even if you don't require 4K video today, the HDMITM 4K Splitter 1x8 ensures you'll be ready to take advantage of tomorrow's display technology.


2.0 Specification

Input Signal : HDMI Signal
Output Signal : HDMI Signal
Vertical Frequency Range : 50/60Hz
Video Amplifier Bandwidth: 6.0Gbps/600MHz per channel
Interlaced(5060Hz) : 480i,576i,1080i
Progressive(5060Hz) : 480p,576p,720p,1080p,4K
Operating Temperature : 0℃ to 70℃
Storage Humidity : 5% to 90% RH (no condensation)
Power Supply : 12V DC @2A
Power Consumption (Max) : 12W
Splitter Unit Cert : FCC, CE, RoHS
Power Supply Cert : CE, FCC, RoHS
Power Adapter Standard : US, EU, UK, AUS Standard etc.

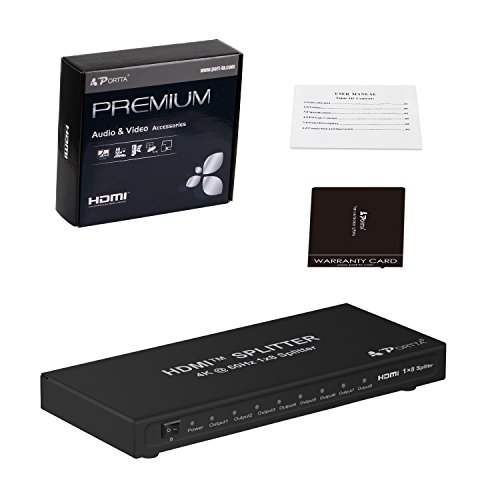

3.0 Package Content

1) Main Unit
2) 12V DC Power Supply
3) User Manual
