Item Descriptions:

Color:

Chargeboard (black)

Non-contact charging

[Wireless Charging] Since there is no need to connect and disconnect the connector, you can charge comfortably without burdening the insertion port.

Contactless charging can be performed by feeding power from a USB cable.

【Low calorific value】 Due to the separate design of PCBA and Coil, the temperature rise value at the time of charging is significantly lower than the 11th reference value of QI 1.2 and can be suppressed to 4 degrees or less.

There is no worry that the failure rate will be greatly accelerated by heat and the life will be shortened.

[Caution] Wireless charging can not be used with the charge board alone if your device can not support Qi.

Please use with receiver.

Lightweight and lightweight

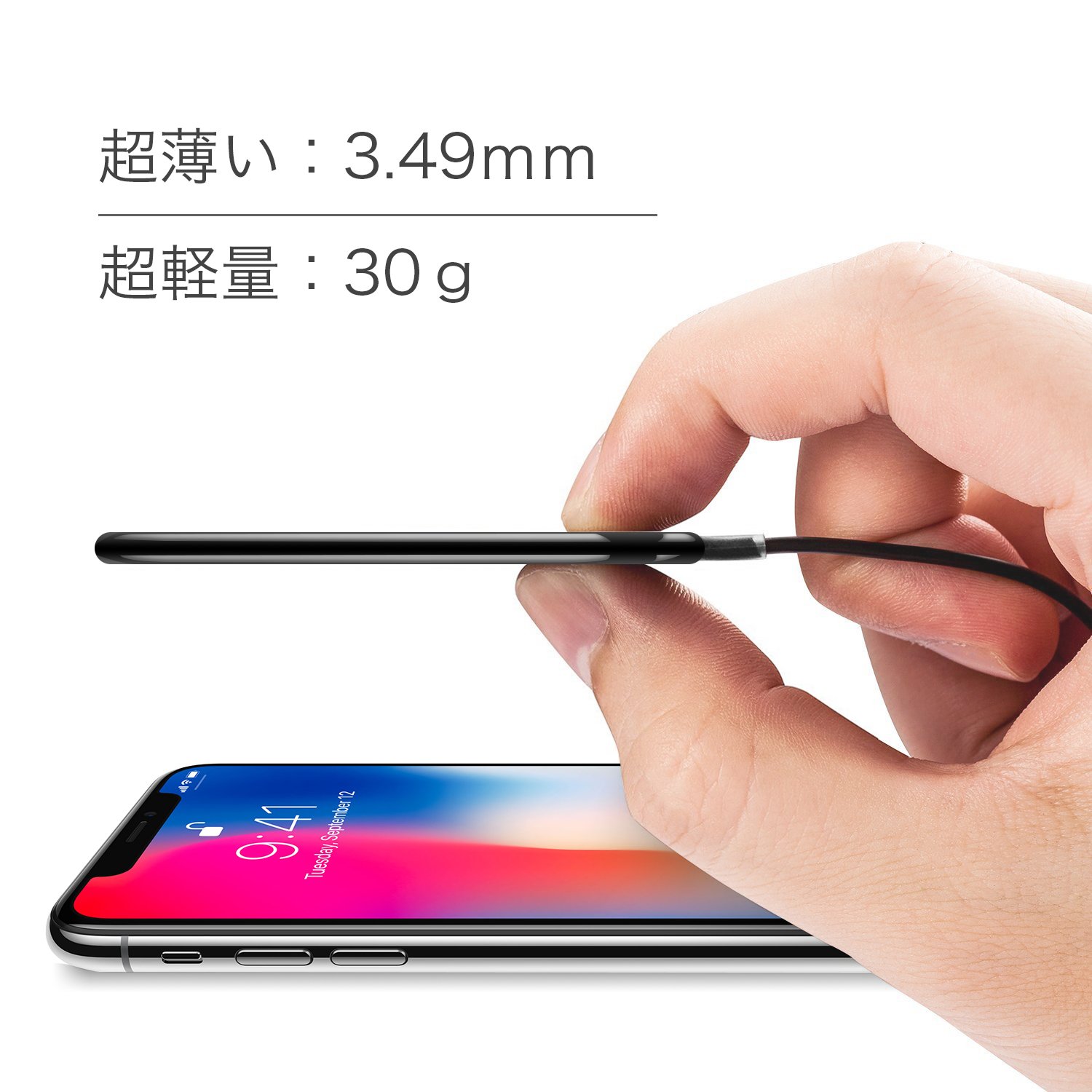

【Light weight and light thinness】 It is 3.49 mm ultra-thin type with 30 g (1/3 of conventional product), high performance but lightweight, comfortable even on the go.

【Waterproof and dustproof】 High level of waterproof and dustproof IP67 Acquisition, dust does not enter the inside, so it will not be harmful if immersed in water at specified pressure and time.

【Impact resistance】 It can be charged even if it is dropped from a height of 20 m by experiment, it has drop resistance performance and impact resistance performance.

Product standard

Input voltage / current: DC 5 V 2A or DC 9 V 1.67 A

Output voltage / current: DC 5 V 1A (Max. 5 V 1.2 A) DC 9 V 1A (Max. 9 V 1.1 A)

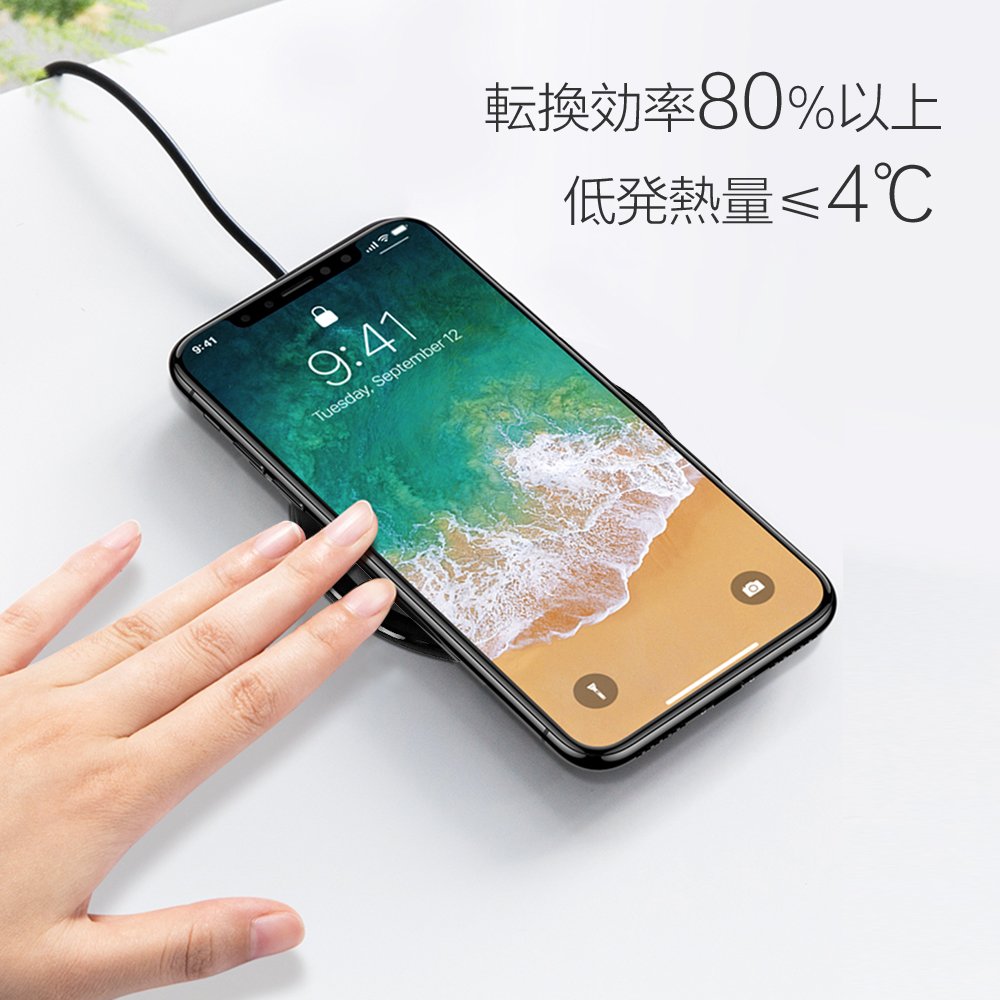

Charging effectiveness: 75% -80% (70% -73% of conventional products)

Size: Approximately 69 mm × 69 mm × Thickness 3.49 mm

Body weight: 30 g (1/3 weight of conventional product

Transmission distance: ≤ 8 mm

Standard charging Wirless: Qi

Waterproof / dustproof standard: IP 67

Temperature rise value: <4 ° C (QI 1.2 standard: 11 ° C)

Authentication: FCC, CE, RoHS, Qi 1.2.2

Color: Black White

Caution:

Wireless charging can not be used with a charge board alone if your device can not support Qi.

Please use with receiver.

This product has acquired international QI certification.

According to the standard of QI certification, in order to protect the mobile phone, if the current or voltage is too low, the automatic power will be turned off.

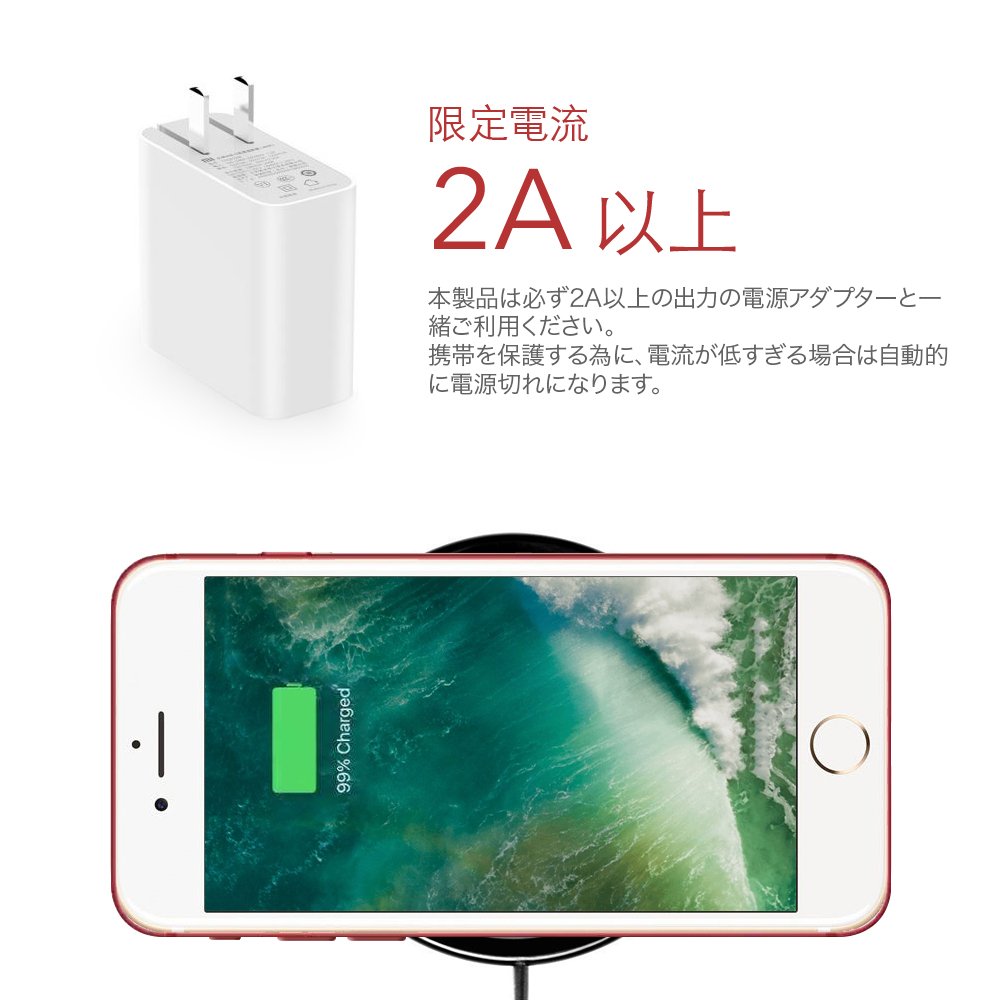

Be sure to use this product together with the power adapter with output of 1.5 A or more, or with the QC 2.0, QC 3.0 standard power supply adapter.

Compatible models

A model that can be charged directly

iPhone: iPhone X / 8/8 plus

SAMSUNG: Galaxy Galaxy S8 / S8 Plus / Note 5 / note 8 / Galaxy S6 / S6 Edge / S6 Edge Plus / S7 / S7 Edge

Nexus: Google Nexus 4/5/6/7 (2013)

LG: LG Optimus Vu 2 / G 2 / G 3

Nokia: Nokia Lumia 920/1020/928/1520

Motorola: Moto Z, Moto 360 Smart Watch, Moto Droid Maxx, Droid Mini

Model requiring Qi receiver installation

iPhone: iPhone 7 / 7Plus / 6s / 6s Plus / 6 / 6Plus / 5C / 5S / 4 / 4S

SAMSUNG: Galaxy Note 4 / Note 3 / Note 2 / S5 / S4 / S3

LG: LG G4 / LG V 10 and other Android devices

Nokia: Nokia 720/820

etc

Features:

• Please enter model number Confirm this is compatible:
• 【Light weight and light thin】 It is 3.49 mm ultra-thin type with 30 g (1/3 of previous product), high performance but lightweight, simple but well refined design, home use, office use, business trip and traveling are also very convenient to carry
• 【Low calorific value】 Due to the separate design of PCBA and Coil, the temperature rise value at the time of charging is significantly lower than the 11th reference value of QI 1.2 and can be suppressed to 4 degrees or less.
• There is no worry that the failure rate will be greatly accelerated by heat and the life will be shortened.
• 【Wireless Fast Charge】 9 V Qi correspondence 1.4 times faster than traditional wireless charger, no need for cable, fast charge only by placing, compatible with Quick Charge 2.0, can charge 80% faster QC 2.0 compatible equipment

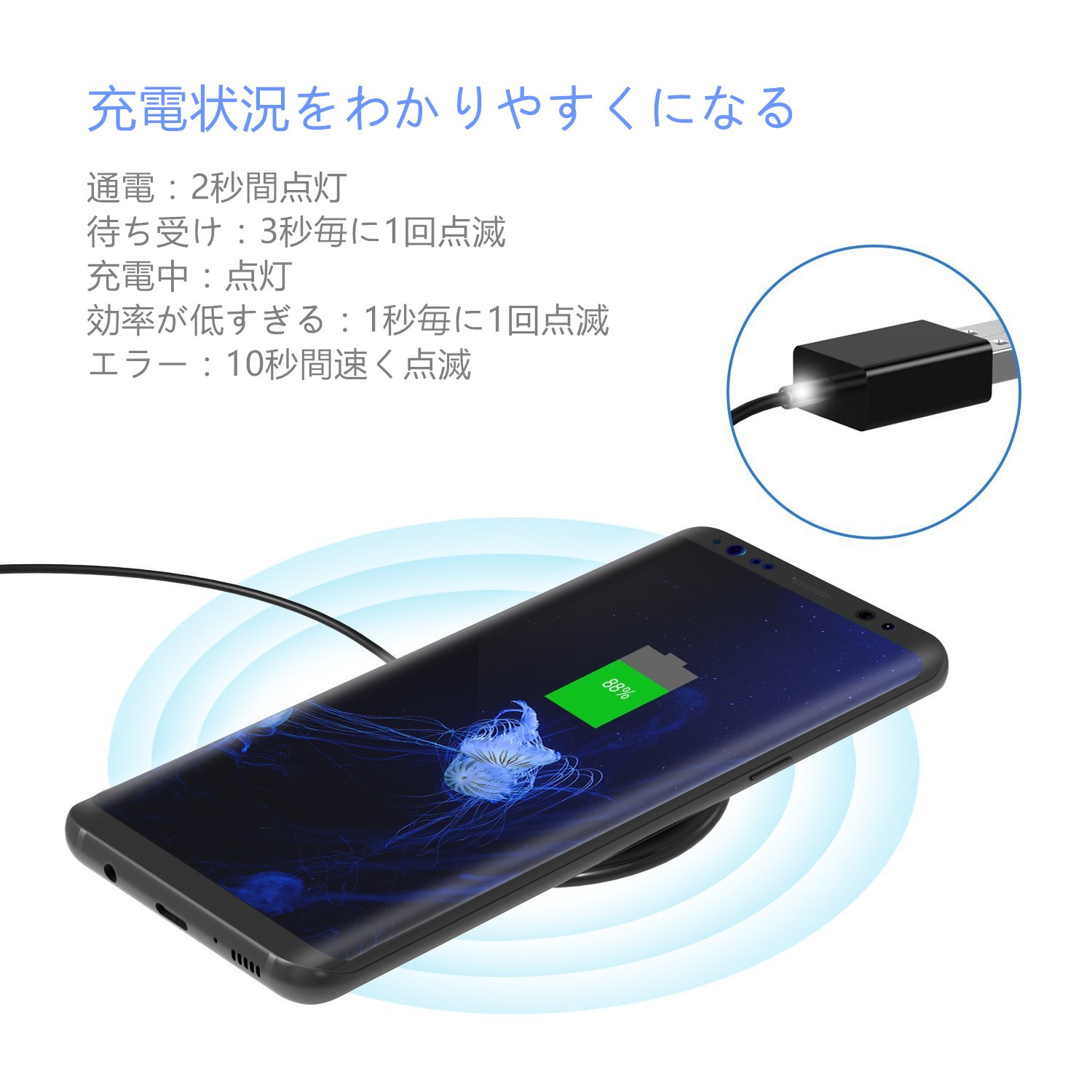

• [LED light indication] It becomes easy to understand the charging situation through the LED light in the USB connector part.
• Electrification: lights for 2 seconds.
• Standby: It flashes once every 3 seconds.
• Charging: lit.
• When the efficiency is too low: It flashes once every one second.
• Error: Blinking fast for 10 seconds.
• [Protective function] Short circuit, overvoltage, overdischarge, heating, overcurrent, low voltage etc effectively prevented.

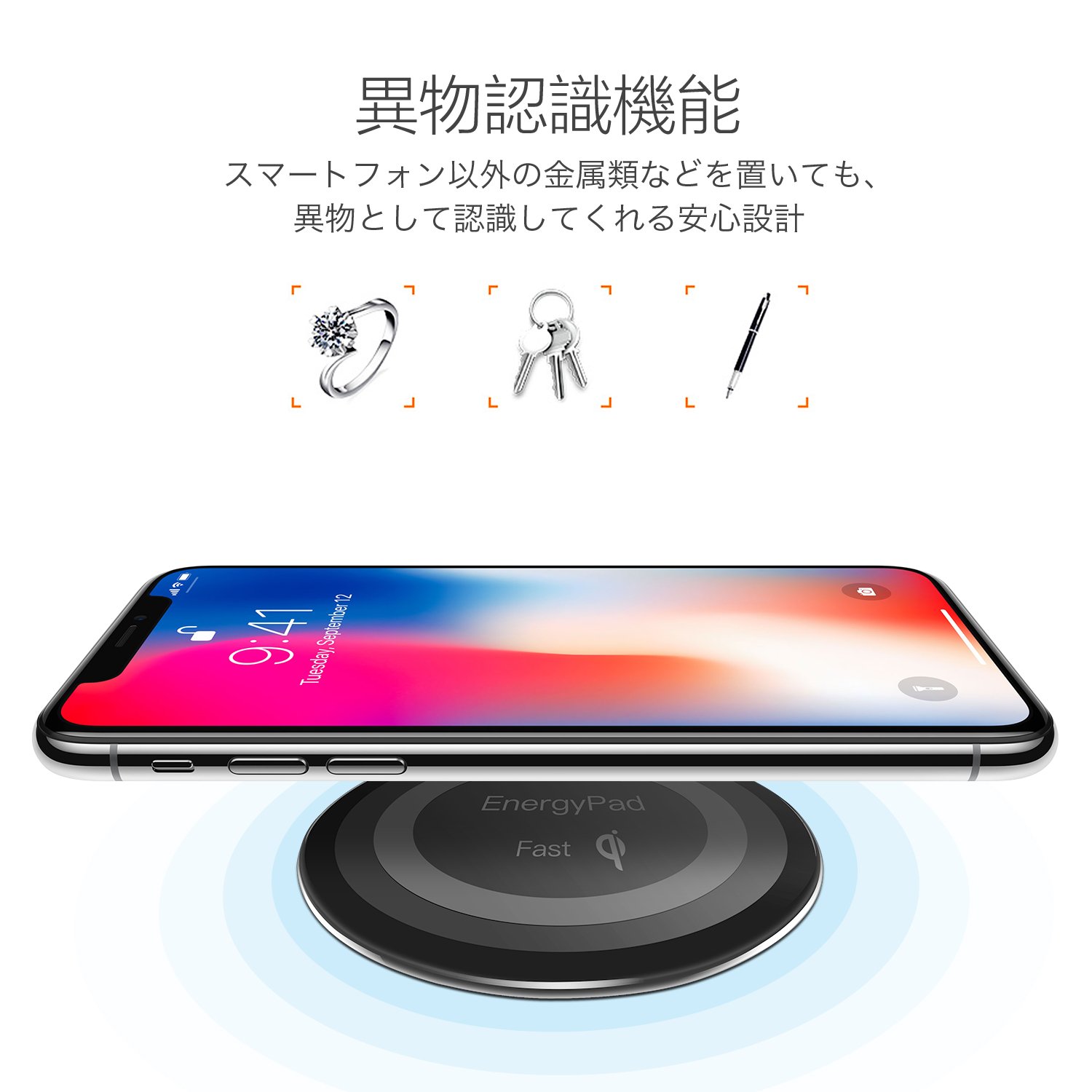

• Also, even if placing metals other than smart phones, it is a safe design that will recognize as foreign matter.

Product information:

Shipping Weight: 40 g

Package Dimensions: 1.70 x 8.79 x 11.20 cm
