Item Descriptions:

color:

Black (crescent moon)

please note:

Power supply case condition:

One flash shows the remaining 25% of the remaining battery.

Two flashes show 50%.

Three flashes show 75%.

Four flashes show 100%.

basic operation

Binaural operation:

When the headset is started for the first time, long press the L side (main headset) until it blinks, then "R" headphones flash

Press and hold for a while.

These two headphones are interconnected at this point, R indicates blue lighting, L is after reconnection

You will be connected, you can connect to your mobile phone with this.

Pairing operation:

Open Bluetooth, search for the latest Bluetooth device, connect if you find "HLY_ 08".

Shutdown operation:

Press and hold the key until the red light turns on.

Both the left and right earphones are shut down.

Single operation:

Please search for "HLY_ 08" and connect until the red blue light flashes (note 2: "L" for 2 seconds "R" for 6 seconds).

Technical specifications:

1. Bluetooth version: V 4.1 + EDR

2. Bluetooth solution: ATS28XX

3. Frequency range: 2.4 GHz - 2.480 GHZ

4. Charging port: Micro USB (mini 5 pin)

5. Output power: 0.09 W

6. Output unit: Φ 8 mm speaker

7. TWS headset charging time: <40 minutes

Charging time of charging cabinet: <2 hours

9. Transmission distance: <10 m

10. Charge current: 1A

11. Input voltage: 4.8-5.5V

12. Talking time: up to 2.5 hours at 75 DB

13. TWS headset battery: lithium polymer battery 40 mAh x 2

Battery for rechargeable battery: lithium polymer battery 1500 mAh

15. TWS headset size: 26 * 16 * 25 (mm)

16. Size of charge box: 60 * 60 * 30 (mm)

Features:

• Please enter model number Confirm this is compatible:

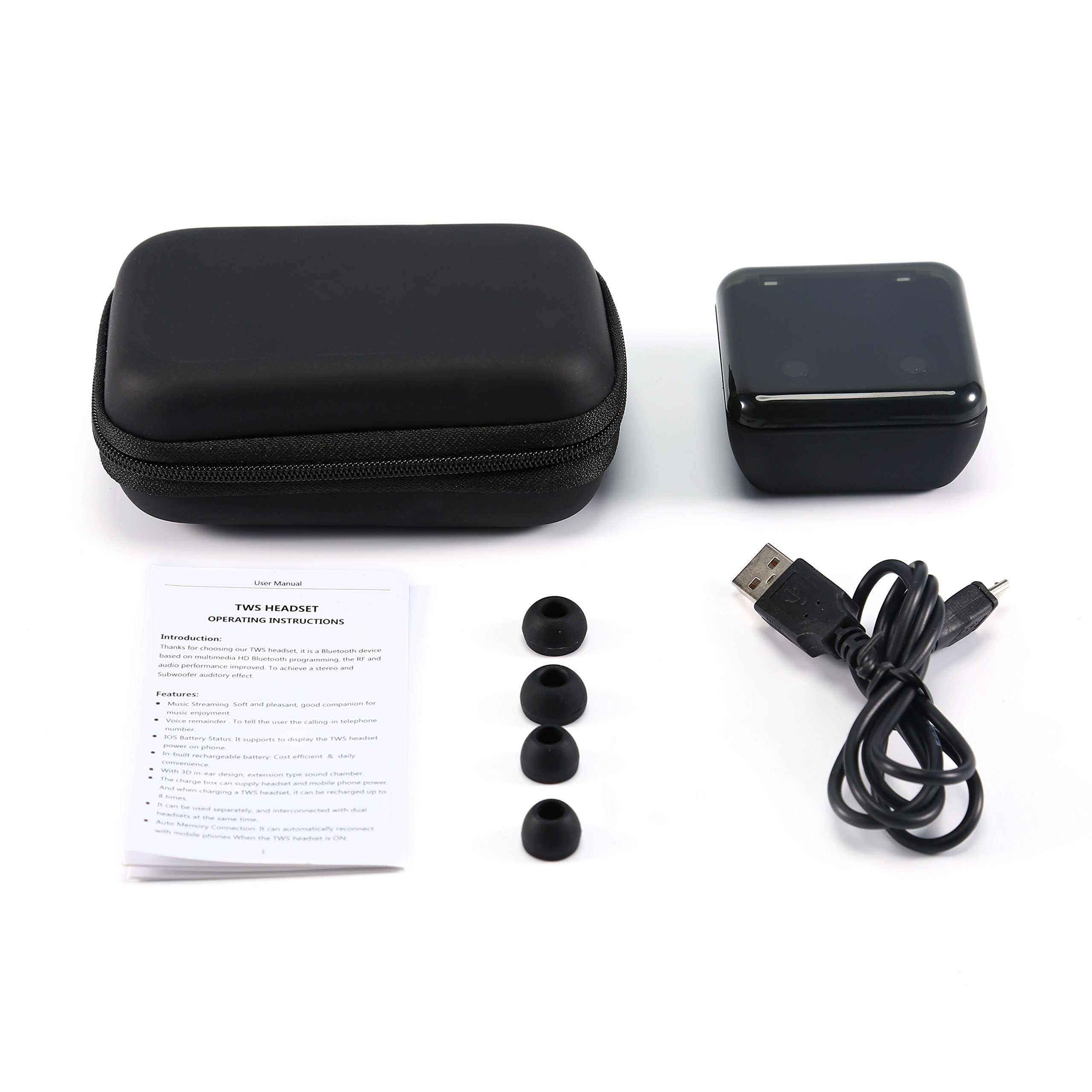

• [With charging box & adaptation model] Even if you go out with a rechargeable storage box, it is easy to hold, even if you do not have a battery, you can charge it immediately.
• Moreover, with outstanding compatibility, it is possible to compatible with all types that can correspond to Bluetooth.

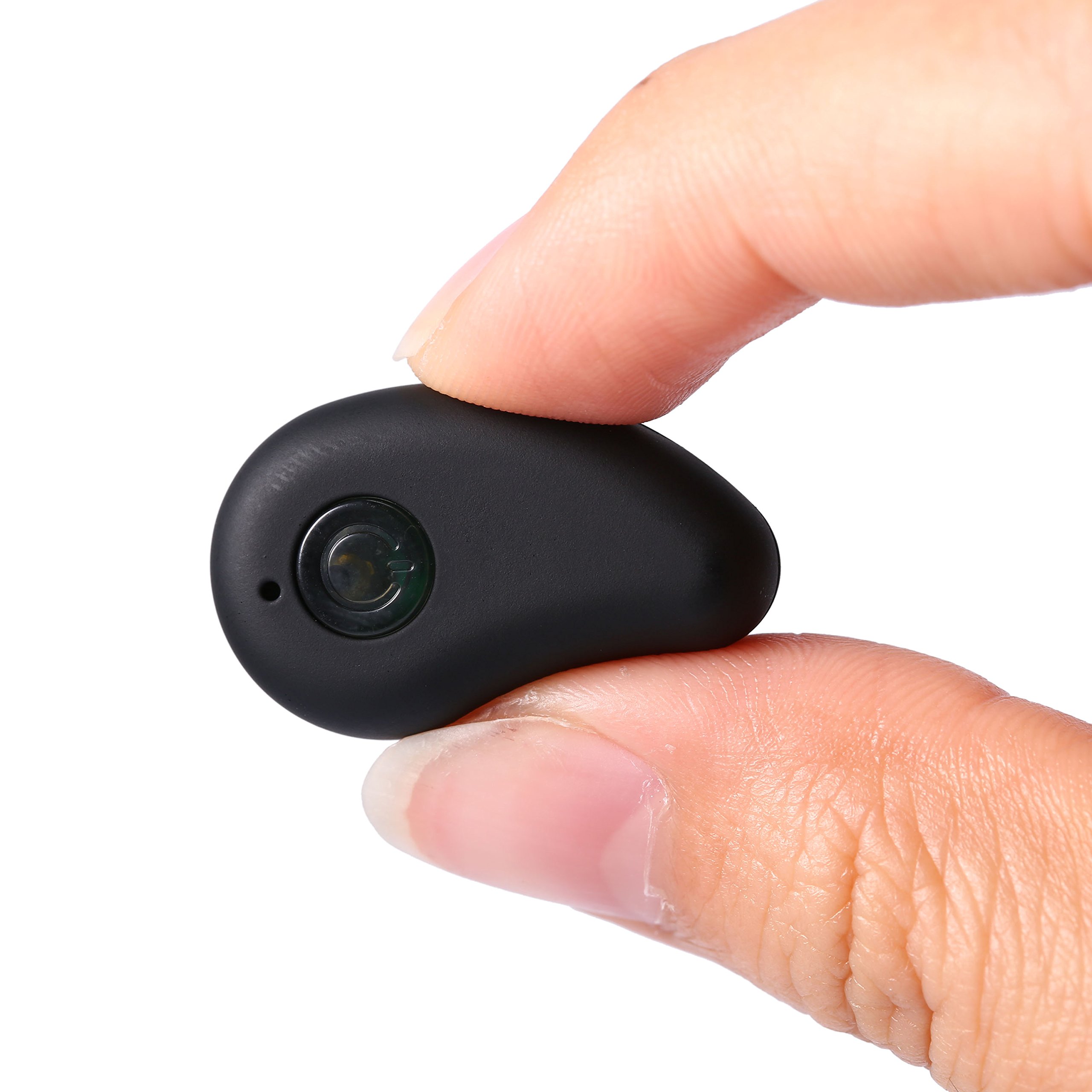

• 【One Button】 Simple and simple operation One button headset design, multi-function is focused on one button.
• It is possible to realize all operations such as music play / pause, call start / end / rejection / redial with that one button.
• One button can be conveniently operated with one hand.
• 【Comfortable · Compact · Lightweight】 Weight 4g (one side), ergonomic, firm design, ear shape is very easy to match, hard to fall, comfortable even for a long time wearing, forget to wear it
• It can be used in various scenes such as best comfort, training, drive, walking, desk work, working, commuting, school attendance, DVD viewing, telephone conference.
• It is also recommended as a gift as it is a solid packaging and the best quality.
• [Automatic memory connection] When the TWS headset is on, you can reconnect automatically with the mobile phone.

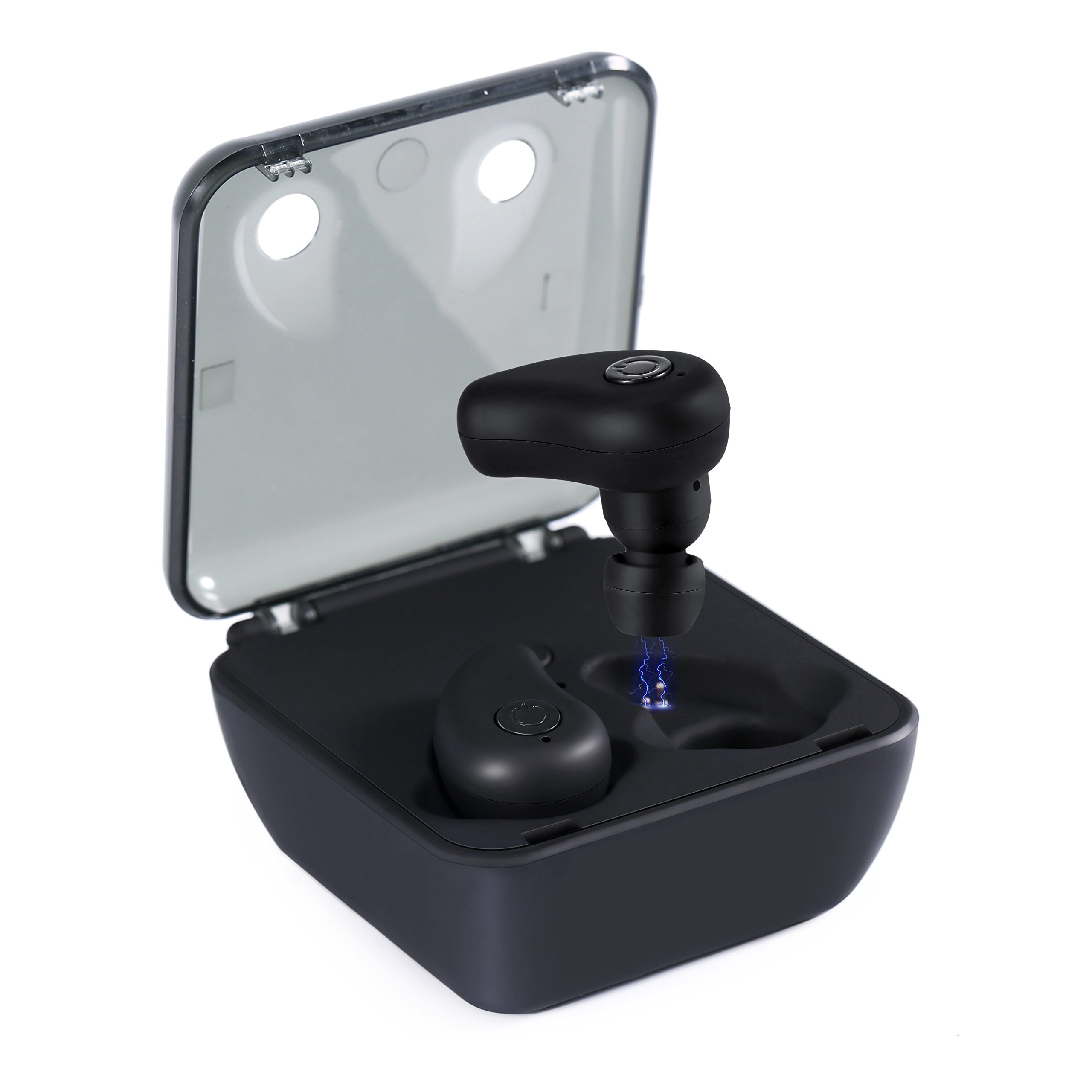

• 【Large capacity battery case】 Solve the electricity shortage of the earphone, the charging box can supply power for the headset and mobile phone.
• Also, charging the TWS headset, you can charge up to 8 times.
• Earphones charge for 40 minutes Both ears listenable time Approximately 2 hours.
• Case capacity tone full state Binaurs Music listening time Approximately 15 hours.

Product information:

Shipping Weight: 68 g

Package Dimensions: 4.19 x 9.60 x 13.59 cm
