Item Descriptions:

Product introduction

Use it for practice and learning, condensing the function of commitment.

SD / CD recorder that can perform high-quality recording with easy operation.

From Amazon

Easy to record / play with easy-to-understand special buttons

CD / 2u is an SD / CD recorder that can easily perform high-quality recording / playback with easy operation.

For recording and playback, the dedicated buttons are arranged in an easy-to-understand manner and can be operated with a sense of radio casement.

In addition, by adopting the illuminated buttons, the operation status can be understood at a glance.

Recording can be selected freely from SD / SDHC card and CD-R / CD-RW.

If you use the 16 GB SDHC card, you can record for a total of about 25 hours for a long time, so you can use it according to your scene.

For example, when practicing a musical instrument or recording a concert, you can record it on an SD card and copy only the favorite song to CD, you can create an original CD on the spot.

Built-in high-quality microphone and speaker that can be easily recorded

CD - 2u has stereo condenser microphone and stereo speaker built in.

High sound quality recording / playback can be performed only with the main body.

The stereo condenser microphone that introduced the technology cultivated in the field recorder's R series can be recorded without any extra feeling with a high-quality sound.

Furthermore, the microphone is placed at the position where the width of the human's left and right ears is calculated.

Just point the CD-2u to the sound you want to record, you can record with natural sound localization and clear sound regardless of the instruments or places you record.

Speakers installed at the top of the main unit can be played balancedly from low to high frequencies while being compact.

Since it is possible to immediately check the recorded sound, it is possible to efficiently perform an ensemble of an instrument or practice of a language.

It corresponds to reproduction of WAV data recorded on SD card as well as audio CD, and it is convenient for checking the performance which becomes the model example.

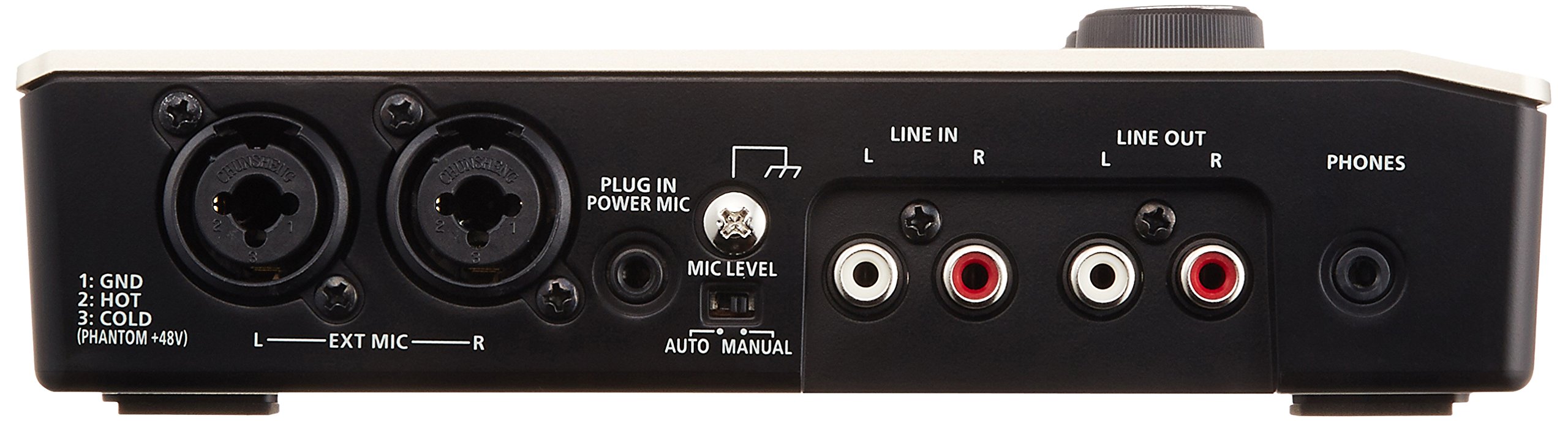

Equipped with a wealth of input / output terminals that can be used regardless of equipment

CD-2u has a variety of input / output terminals that can connect various instruments.

Two lines of microphone input adopt XLR / TRS combo · jack.

It is possible to use the optimum microphone according to the instrument and the scene.

It also supports phantom power supply and can also challenge even higher quality sound recording by using condenser microphone.

In addition, it is equipped with microphone input compatible with plug-in power, RCA type line input terminal and various input terminals.

Electronic musical instruments such as electronic pianos and keyboards, cassettes, audio players, etc., you can not select devices to connect.

Also, it has convenient line output and output terminals such as headphone jacks when playing with external speakers and audio equipment.

It corresponds to various scenes.

Powerful support for practice and learning with versatile playback function

Musical instrument playing, language learning, even dance practice.

Practice repeatedly and practice many times is a shortcut to progress.

CD-2u has many functions that support such exercises efficiently.

By using the speed change function for practicing fast-tempo songs and difficult phrases and language learning, it is possible to change only the playback speed between 50% and 200% without changing the pitch of the original performance.

By playing slowly, you can check fine phrases that you could not catch at normal tempo firmly.

With the newly designed algorithm, even when the tempo is greatly changed, the change to the original sound can be kept to a minimum, so that fine performance nuances can be confirmed firmly.

Since the sound is never interrupted even during tempo change, you can instantly set the desired tempo while listening to the sound.

You can also practice rhythm and keep if you use the metronome function that can also input the tempo tap.

Of course, A-B repeat function essential for repeat practice is also equipped.

Repeat start / end timing setting is easy only by pressing the main unit button at the same timing while listening to the sound.

Combined with the speed change function, you can efficiently perform iterative practice of ear copy and language.

Center cancellation function which can also create karaoke

When you can play, let's record it according to the CD and check it.

By using the center cancellation function of CD - 2u, it is possible to create simple karaoke by making the sound localized at the center inconspicuous.

Practical practice can be done by recording a mix of karaoke and performances and listening to your own performance objectively.

Conversely, the center focus which emphasizes the sound localized in the center and can be played can also be used for checking the solo part.

Key change function is convenient for practicing music that does not fit your key with voice and karaoke etc.

Since you can control the pitch of playback in semitone increments without changing the speed, you can set it as an easy-to-sing key, as well as adapt to applications such as changing the key of accompaniment for Alto sax and using it for flute practice.

Easy guide "Easy guide" even those who are not familiar with operations

The CD-2u has an "easy guide" function that allows you to use functions for the first time and those who are not familiar with operations immediately.

From the basic usage such as level setting and recording, playback, CD creation, just operate the operation that tends to become complicated such as recording while playing backing or karaoke according to the screen instructions.

Even without having to open the manual, you can use the abundant functions of CD - 2u immediately.

Also easy to understand, Japanese sheet included.

The menu is also Japanese so it can be operated smoothly.

Easy Guide Menu List

1.

recording

Recording of songs and instruments on SD memory cards and CD-R / RW discs.

2.

Erase

Erase songs recorded on SD memory cards and CD-RW discs.

3.

CD creation

Write songs from the SD memory card to the CD-R / RW disc, and create music CDs.

Four.

CD backup

Make a backup of the original music CD created with CD - 2u.

Five.

karaoke

Recording songs while playing songs and recording them on an SD memory card.

6.

Mix recording

While playing the performance recorded on the SD memory card, play another song and play again

Recording on SD memory card.

7.

rehearsal

By setting the rehearsal performance, it is automatically set to the optimum input level.

Lightweight & compact body also comes with a dedicated remote control

CD-2u adopts a lightweight, compact and stylish body design.

Put it in the vacant space of the bag and feel free to carry it.

Even in a case where you can not secure an installation place at the time of recording, you can also use it by installing it on a music stand etc.

When recording / playing to SD card, it is also possible to drive with AA batteries.

It is economical because it can also use Ni-MH rechargeable battery * in addition to alkaline dry batteries.

* It does not correspond to the charge on the main body.

Also comes with a dedicated remote control.

From the remote control, you can perform various operations such as playing and recording, volume adjustment, setting of metronome and repeat, center cancellation, so even if you place the CD-2u at a remote place, you need to stand up every time you operate

there is no.

SD-2 dedicated model "SD-2u" also lineup

Also a simple SD card model "SD-2u" lineup.

SD-2u adopts a glossy elegant pearl / white body.

All functions of CD - 2u are available except for non - CD drive installation.

Recommended for those who use recording / playing, practice functions as the main.

Side panel

Recorder section

Number of tracks

2 tracks (stereo)

Sampling frequency

44.1 kHz

Signal processing

AD / DA conversion = 24 bits

Recording mode

SD / SDHC memory card (WAV (44.1 kHz, 16 bits)), CD-R, CD-RW (audio CD)

Storage media

SD memory card (512 MB to 2 GB), SDHC memory card (4 GB to 16 GB), CD-R, CD-RW

Recording time (Unit: minutes)

CD-R or CD-RW disc: 650 MB = 74, 700 MB = 80 SD Memory card, SDHC memory card: 512 MB = 47, 1 GB = 94, 2 GB = 189, 4 GB = 377, 8 GB = 755, 16 GB = 1511 * Recording

Time may change depending on card specification etc. as a guide.

* When there are two or more recorded files, the total recording time becomes smaller than this.

※ The maximum recording time per song is 74 minutes.

Number of recorded songs

99 songs (SD / SDHC memory card, CD-R, CD-RW)

Output

Audio input

The built-in microphone (stereo), the EXT MIC (L, R) terminal (XLR type (balanced / phantom power DC 48 V, 8 mA Max), TRS standard type (balanced / unbalanced)), PLUG IN POWER MIC terminal (stereo mini

· Type), LINE IN (L, R) terminal (RCA pin type)

Audio output

Built-in speaker (stereo), LINE OUT (L, R) terminal (RCA pin type), PHONES terminal (stereo mini type)

Frequency characteristic

20 Hz to 20 kHz (+ 0 dB / -2 dB)

Specified input level (variable)

The PLUG IN POWER MIC terminal (-51 to -13 dBu), the LINE IN (L, R) terminal (-2 to 4 to 8 dBu (XLR type, common to TRS standard type)

-4 dBu)

Specified output level

LINE OUT (L, R) terminal = -4 dBu

Input impedance

The EXT MIC (L, R) terminal = 8 kΩ (common to XLR type and TRS standard type), PLUG IN POWER MIC terminal = 10 kΩ, LINE IN (L, R) terminal = 9 kΩ

Output impedance

LINE OUT (L, R) terminal = 1 kΩ, PHONES terminal = 32 Ω

Other

display

16 characters 2 lines (LCD with backlight)

Power supply

AC adapter, alkaline battery (AA type) × 6, rechargeable nickel hydride battery (AA type) × 6

Current consumption

1000 mA

Life of battery during continuous use

Alkaline battery = about 5.5 hours, rechargeable Ni-MH battery = about 6 hours * It depends on usage condition and battery, SD memory card type.

* It does not correspond to the charge on the main body.

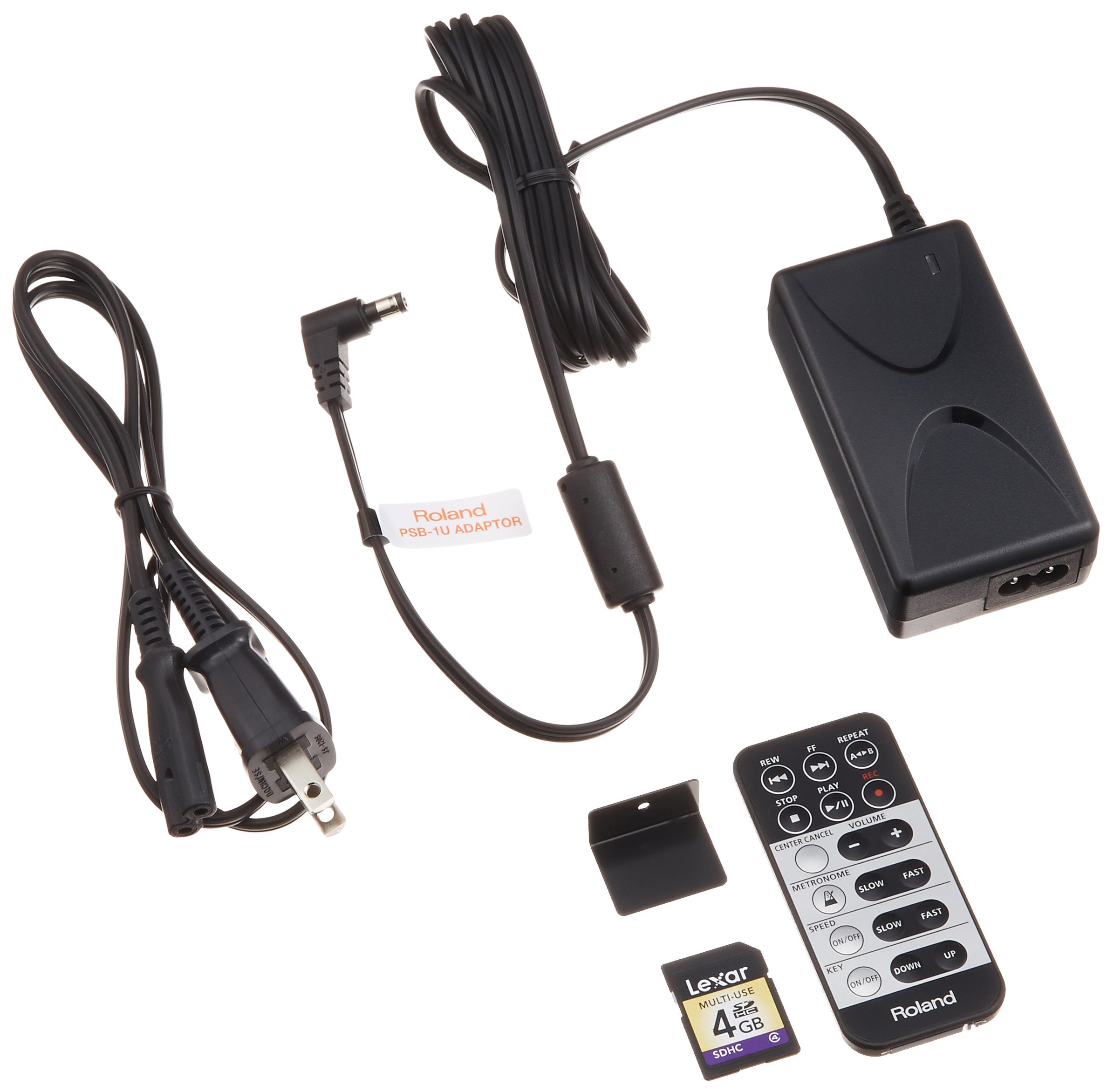

accessories

Instruction Manual, Quick Start, Remote Control (with battery, CR2025), AC Adapter, Power Cord, SD Memory Card, SD Card Protector, CD-R Disc (Blank), Japanese Sheet, Roland User Registration Card, Warranty Card

Optional items

Carrying case (CB - CD 2 E), stereo microphone (CS - 15 RS), stand (SS - PC 1)

External dimensions / mass

Width (W)

278 mm

Depth (D)

196 mm

Height (H)

55 mm

mass

1.4 kg

Features:

• Please enter model number Confirm this is compatible:
• High-quality sound recording / playback on SD card, CD-R etc. with easy operation
• Built-in high-quality stereo condenser microphone and stereo speaker
• Equipped with useful functions for practice and learning such as key and speed adjustment, center cancellation
• When SD card is used, it also supports battery drive.
• Light weight & compact body to carry easily

Product information:

Shipping Weight: 2671 g

Package Dimensions: 17.30 x 26.80 x 38.00 cm
