Product Description

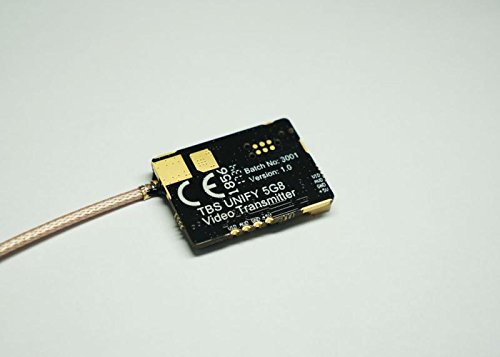

Team Blacksheep TBS UNIFY PRO 5G8 V3 (RP-SMA) Video Transmitter RX/TX

A video transmitter just for racers. 5g weight, 25 - 800mW output power (user adjustable). Cutting weight and flying far has never been this easy and affordable.Antenna Connector: RP-SMA Female Socket

The smallest and most powerful (800mW!) video transmitter the world has ever seen! It's race ready with PitMode, a super-clean and interference free power levels, and connectivity to flight controllers and other means of quickly changing channels. It runs off a filtered 5V power supply, so it's perfect when being connected to a TBS CORE PRO or TBS PowerCube (*)

NEW IN V3:
Improved Voltage spikes acceptance from 6.5Vmax. on V2 to 13Vmax. on V3

MAIN FEATURES
Smallest, lightest video transmitter on the market
Up to 800mW of output power
Ultra-clean transmission (up to 16 pilots at once!)
PitMode - power up your quad during a race
Easy OSD, FC and RC channel changes, with fallback button menu
Robust RF amplifier allows powering up without antenna for hours!
Clean powerup and video switching
CE certified

SPECIFICATIONS
Operating Voltage: 4.5 - 5.5V
Supply current: 600mA
Operating Temperature: watch for normal airflow
Audio carrier Frequency: 6.5 MHz
Video Input Impedance: 75 Ohm

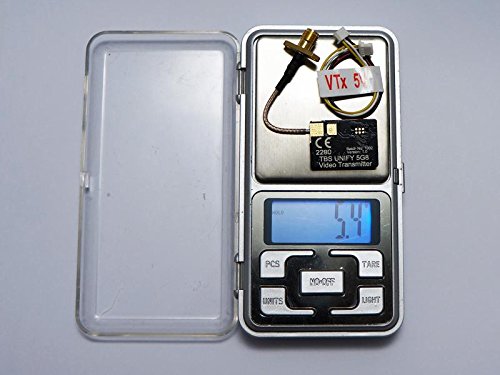

Weight: 5g (with SMA, without antenna)

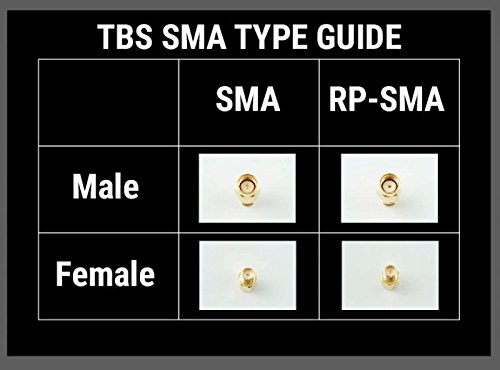

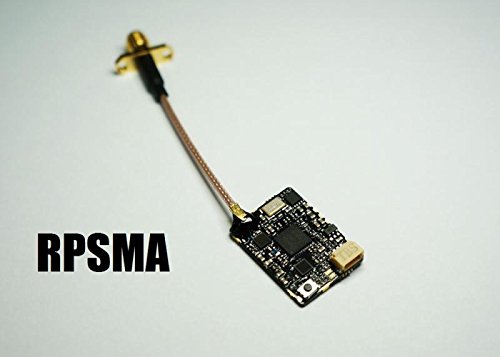

Antenna Connector: RP-SMA Female Socket with screw mounting holes
Video Format: NTSC/PAL
Output Power: 13dBm (25mW), 23dBm (200mW), 27dBm (500mW), 29dBm (800mW*)

INCLUDED
TBS UNIFY 5G8 Video transmitter
5V Video Transmitter pigtail cable
TBS UNIFY Pro Manual
CE Certification
Declaration of Conformity
