Specifications:

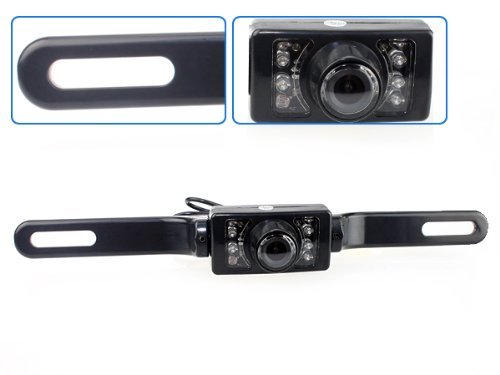

Car Rear View Camera:
- Image Device: 1/3 Inch Color CMOS
- Lens Angle: 135 degree
- Lens: 3.6mm
- TV System: NTSC
- Effective Pixels: NTSC: 510*496 pixels
- Horizontal Resolution: 420 TV lines - Electronic Shutter: 1/60-1/15,000 seconds - Minimum Illumination: 0.1-0.5Lux/F = 1.2 (0Lux with IR on)
- Power Requirement: DC12V 60mA (MAX 300mA with IR on)
- Operating Temperature: -10°C~ 50°C, RH95% Max
Transmitter:
- Size: 60mm x 30mm x 15mm
- Cable Length: 1.5m
- 2.4G wireless/color video
- Input: DC 10V-12V
- LED Power Display
Receiver:
- Size: 60mm x 30mm x 15mm
- Cable Length: 17cm
- 2.4G wireless/color video
- Input: DC 10V-12V
- LED Power Display
Notes:
- This camera has a mirror image.
- This camera only supports NTSC video system, so please make sure your monitor supports NTSC video system before you buy it.
- You can install the camera on your license plate. During installation, please connect the Transmitter's DC and AV jack with the backup camera's DC and AV socket, and then connect the thin wire end of the transmitter to the harness wires that connect to the backup light on the tail light assembly (Please note that the red wire end is positive, while the black one is negative). And connect the Receiver's RCA output end to the car monitor.
- The camera switch is controlled by the reverse gear shift.
- This is a pair of 2.4G wireless transmitter and receiver, and the signal is not compatible with the bluetooth signal, so that it may be disturbed by the latter.
- Please take care of the sealing to prevent water leakage when installation.
Package Included:
- 1 x Car Rear View Camera
- 1 x 2.4G Transmitter
- 1 x 2.4G Receiver
- 1 x User Manual

Feature

High-definition and 135 degree viewing angles;
7 infrared LED'S night vision;
2.4G Wireless Transmitter & Receiver with color video;
Can be easily and firmly installed on your licence plate;
Appliacable for all type of vehicles
Brand : BW
Item model num : BWE322WIRELESS
MPN(PartNumber) : BWE322WIRELESS
EAN : 6954309985060
