Item Descriptions:

Color:

1080P 2 million pixels D77W

Note: If you need to download software or detailed information, you can download it from the user manual link.

Characteristic:

* 1/3 "CMOS sensor, 1080P high definition, clear image.

* Supports WIFI and supports AP mode.

* 2.8 - 12 mm 4X optical zoom autofocus lens.

Auto focus, the camera can automatically focus on the main clear image, the user can use manual focus in special state.

* Supports wide viewing angle of pan tilt rotation, horizontal 0 ° to 350 °, vertical 0 ° to 90 °.

* Provides Android and IOS APP and multichannel CMS PC client software.

* Motion detection function.

When detecting that there is something movement, the camera is triggered for snapshot and recording.

* It is an infrared lamp of 22 pcs, the night visibility distance is maximum 20 m.

* Supports up to 64G TF card storage (not included).

* IR-CUT double filter.

It automatically switches between day and night, restoring clear truecolor.

* P2P cloud function, peer-to-peer connection, unnecessary port mapping

* H.264 video compression, high definition image, low bit rate.

* Onvif protocol standard.

It is compatible with various NVR brands.

specification:

Power supply: DC 12V

Image sensor: 1/3 "CMOS sensor

Horizontal resolution: 1920 * 1080 @ 30 ft

Lens: 2.8 - 12 mm 4 times optical zoom auto focus lens

Infrared lamp: 22 pcs lamp

Infrared distance: 20M

Viewing angle: 89.9 ° -26.2 °

Rotation angle: horizontal: 0 ° to 350 °, vertical: 0 ° to 90 °

Horizontal breeding speed: 10 ° to 30 ° / S

Vertical velocity: 8 ° to 25 ° / S

Preset: Supports 8 preset points

Minute.

Lighting: 0.05 Lux / 0 Lux (IR on)

Day & Night Mode: Automatic IR Cut Filer

Night vision distance: 20 m

Compression: H.264

Protocol: TCP / IP, HTTP, TCP, ICMP, UDP, ARP, IGMP, FTP, DHCP, DNS, DDNS, NTP, UPNP, RTSP etc.

Ethernet: Ethernet (10 / 100M Base-T), RJ-45 connector

Wireless standard: IEEE 802.11b / g / n

Mobile phone: iPhone / Android

Onvif: Support

Material texture: plastic

TF card slot: up to 64 G (not included)

Operating temperature: -20 ° C to + 50 ° C

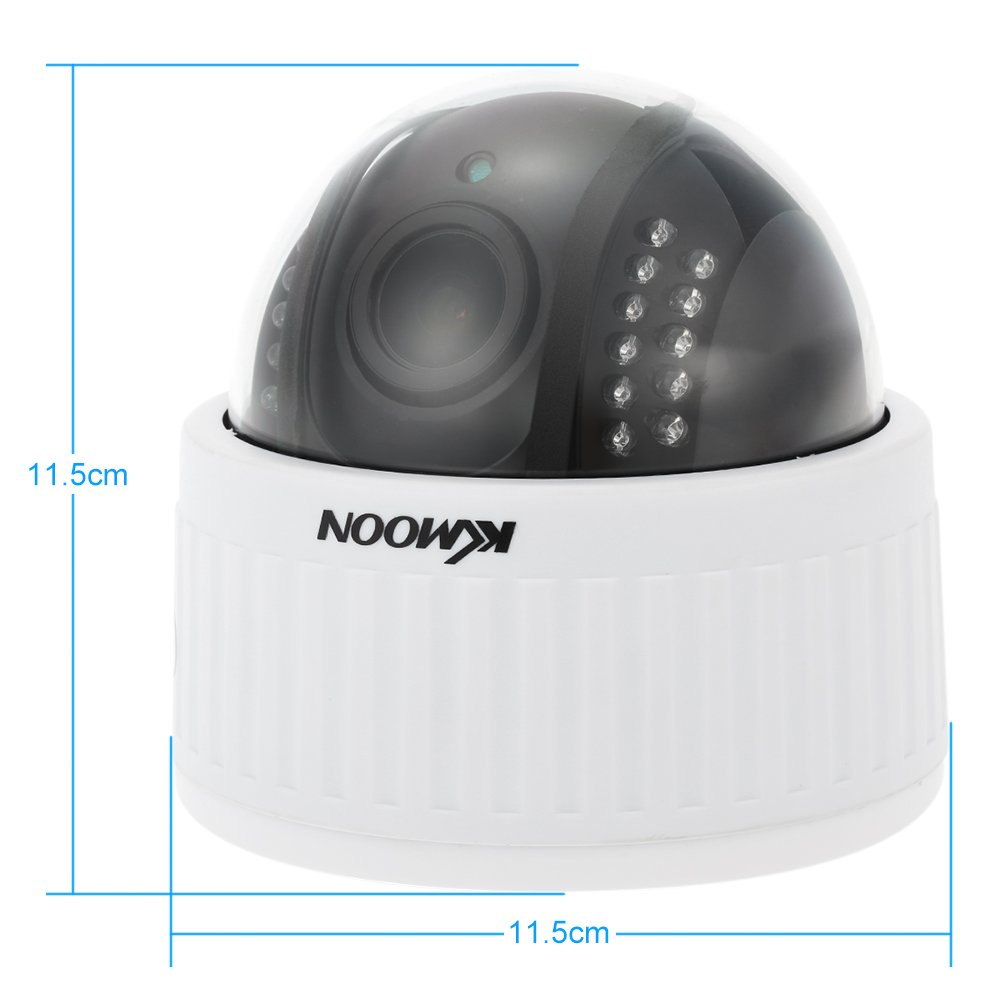

Camera size (without bracket): about 11.5 * 11.5 * 11.5 cm (L * W * H)

Package information:

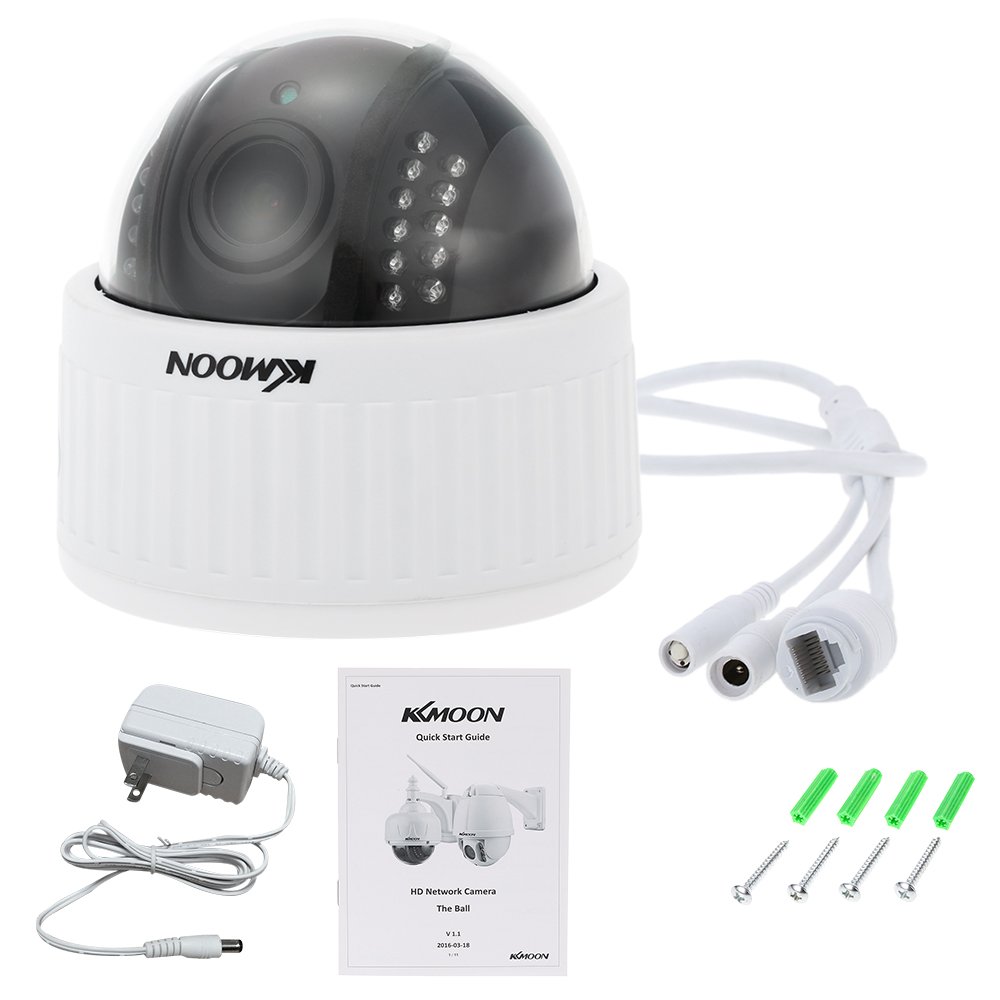

Package list:

1 * IP camera

1 * Screw bag

1 * US power adapter

1 * User manual (English)

Features:

• * 2.8 - 12 mm 4X optical zoom auto focus lens.
• Auto focus, the camera can automatically focus on the main clear image, the user can use manual focus in special state.
• * 1/3 "CMOS sensor, 1080P high definition, crisp image * Supports WIFI and supports AP mode.
• * Supports wide viewing angle of pan tilt rotation, horizontal 0 ° to 350 °, vertical 0 ° to 90 °.
• * Provides Android and IOS APP and multichannel CMS PC client software.
• * Motion detection function.
• When detecting that there is something movement, the camera is triggered for snapshot and recording.
• * It is an infrared lamp of 22 pcs, the night visibility distance is maximum 20 m.
• * Supports up to 64G TF card storage (not included).
• * IR-CUT double filter.
• It automatically switches between day and night, restoring clear truecolor.
• * P2P cloud function, peer-to-peer connection, unnecessary port mapping * H.264 video compression, high definition image, low bit rate.
• * Onvif protocol standard.
• It is compatible with various NVR brands.

Product information:

Shipping Weight: 648 g

Package Dimensions: 14.40 x 19.10 x 26.90 cm
