Product Description

Specifications:
Standard IEEE 802.11n,IEEE 802.11g,IEEE 802.11b
Frequency Band 2.4GHz-2.4835GHz
Radio type IEEE 802.11b: DSSS(CCK/DQPSK/DBPSK)
IEEE 802.11g: OFDM(64-QAM, 16-QAM, QPSK, BPSK)
IEEE 802.11n: OFDM(BPSK/QPSK/16-QAM/ 64-QAM)
Data Rate 11n: 150/135/121.5/108/81/54/40.5/27/13.5Mbps
130/117/104/78/52/39/26/13Mbps
65/58.5/52/39/26/19.5/13/6.5Mbps
11g: 54/48/36/24/18/12/9/6M(adaptive)
11b: 11/5.5/2/1M(adaptive)
Access Protocol CSMA/CA,CSMA/CD,TCP/IP,ICMP,NAT,PPPoE, DHCP , Wired static , Wifi Client , UDP, DDNS
, Wireless Mode Gateway,
Bridge,
Wireless ISP
Security 64/128bit WEP
WPA(AES,TKIP with IEEE 802.1x)
WPA2(AES,TKIPwith IEEE 802.1x)
WPS
RF Output Power(Typical) 802.11n: 25±2dBm for OFDM mode
802.11g: 27±2dBm for OFDM mode
802.11b: 30±2dBm fro CCK mode
Receive Sensitivity 11n : -72±2dBm@10% PER
11g : -75±2dBm@10% PER
11b : -92±2dBm@8% PER
Antenna 12dBi Panel Antenna
Dimension (mm) 225*80*71MM
Weight 0.2KGS
Operation Temperature 0°C ~ 40°C ambient temperature
Storage Temperature -20% ~ 70% ambient temperature
Humidity 10% ~ 90% (Non-condensing)
Connector One RJ-45 WAN port
One RJ-45 LAN port
Reset to default button/WPS button
Power requirement Output DC12V(POE 12V/24V), 1A;Input 110V/220V
LED Power,WiFi,WAN,LAN
Mounting upset
Enclosure shell
Radome Material antenna
Package contents: 1* POE Adapter
1* Metal strap
1* Quick Configuration Guide
1* cable 1*CPE

Feature

High-Power solution provides you larger wireless range and enhance mobility of usage
Standards: IEEE 802.11g, IEEE 802.11b Interface: 1x 10/100M Auto-Sensing RJ45 Port(Auto MDI/MDIX, PoE);

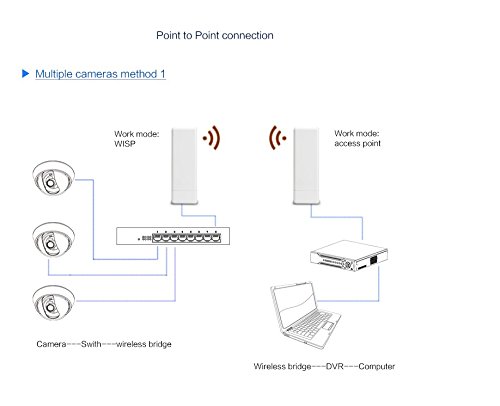

Wireless modes: Gateway,Bridge,Wireless ISP
High output transmission power and reception sensitivity optimized 12dBi directional antennas fit for various environments and boost your signal level
12dBi dual-polarized antenna to build long distance WiFi connection up to 15km High Power to boost your signal coverage and link speed
Brand : SunRise
Item model num : SR1105
EAN : 0531933347066
