产品名称：

mini pci-e PCIE mSATA SSD固态硬盘USB 3.0外接硬盘盒蓝色 SA-105

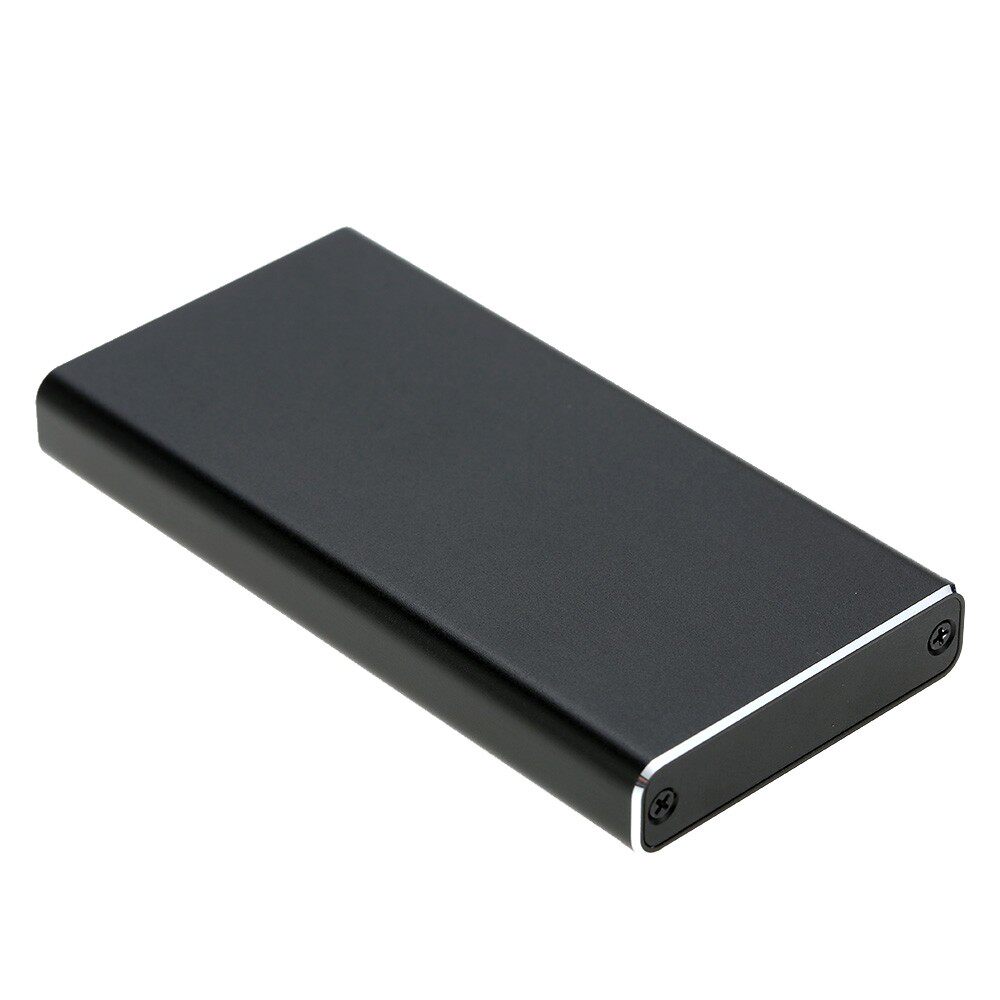

全铝蓝色外壳，坚固耐摔，比名片还小！超小体积（长65毫米宽41毫米厚11毫米），携带超级方便，高速USB3.0接口，数据传输又快又稳！

本款硬盘盒用东芝的THNSNS256GMCP固态硬盘在USB3.0接口上测试到的数据，读175兆，写209兆（平台：宏基B77主板，8G内存，I3-21120 CPU，主板南桥原生USB 3.0接口）。速度仅供参考，随固态硬盘不同，测试平台不同会有变化的，务必注意，如果您的USB 3.0接口是通过桥接芯片转接的，也会有影响。

USB 接口最大供电能力1A，如果你的固态硬盘耗电超过1A，USB接口那是带不动的，硬盘盒如果配这种大功耗的SSD，连接电脑工作是不正常的，移动硬盘盒不会发电，所有的电流由你电脑的USB接口提供，满足不了耗电要求，严重的不识别，轻的工作时断时续速度慢，请注意这一点！

mini pci-e除了长度有5厘米跟7厘米之外，引脚定义分三种，一种叫mSATA，多用于联想机器以及IBM机器，一种叫SATA mini pci-e，多用于华硕EPC上，还有一种叫PATA MINI PCI-E，用于戴尔mini9等机器，三种接口处外观完全一样，但是引脚定义不同，请务必区分清楚。

注意：本款商品仅支持5厘米长度的mSATA，SATA MINI PCI-E接口（跟华硕EPCS101 900 901A用的固态那种一样）以及PATA接口请不要购买！

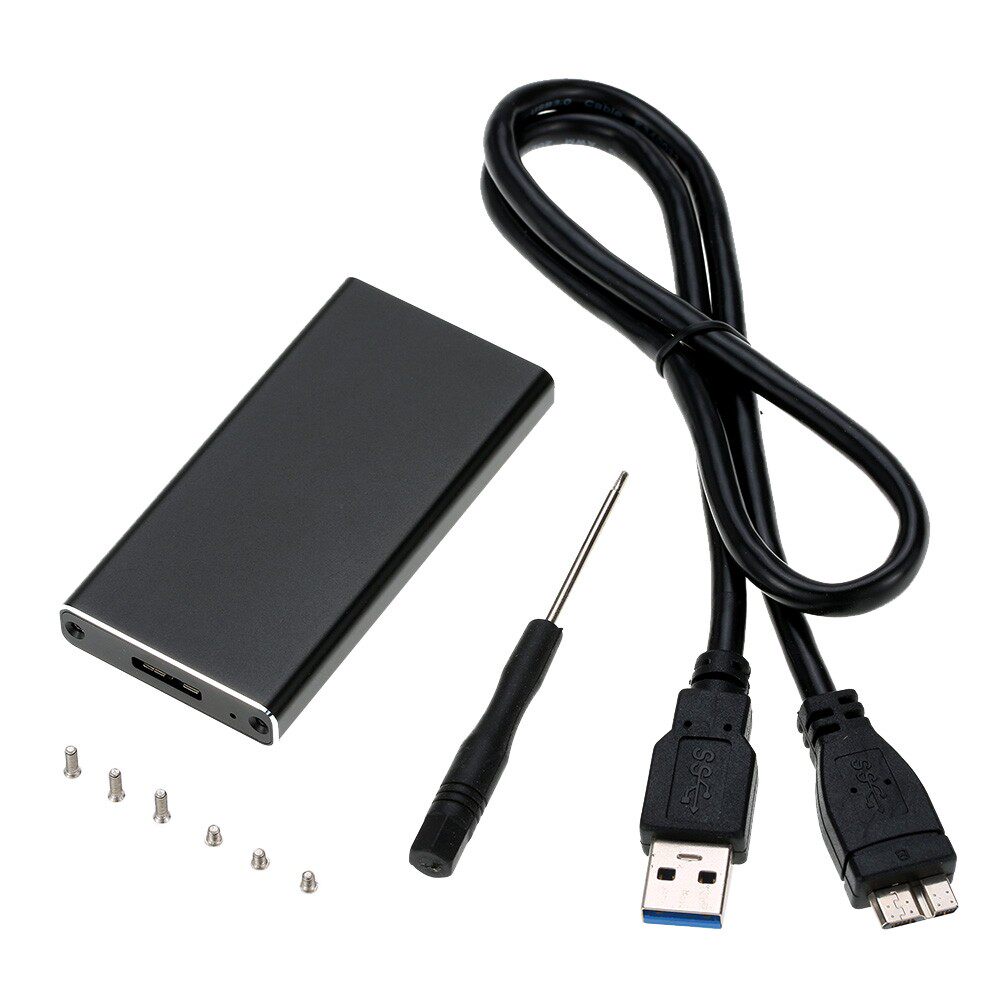

附件：数据线、保护套
product name:
   mini pci-e PCIE mSATA SSD Solid State Drive USB 3.0 External Hard Drive Box Blue SA-105

Aluminum blue shell, sturdy drop, smaller than the business card! Ultra-small size (length 65 mm wide and 41 mm thick 11 mm), carrying super easy, high-speed USB3.0 interface, fast and stable data transfer!

   This hard disk box with Toshiba's THNSNS256GMCP SSD test data on the USB3.0 interface, read 175 megabytes, write 209 megabytes (platform: Acer B77 motherboard, 8G memory, I3-21120 CPU, Southbridge motherboard native USB 3.0 interface ). The speed is for reference only. Different from the SSD, the test platform may vary. Be aware that if your USB 3.0 port is connected via a bridge chip, it will also be affected.

     USB interface, the maximum power supply capacity of 1A, if your solid state drive power consumption of more than 1A, USB interface that is fixed, hard disk box with such a large power SSD, connected to the computer is not working properly, removable hard disk box Will generate electricity, all the current provided by your computer's USB interface, can not meet the power requirements, serious does not recognize, light work intermittent slow, please note that!

    mini pci-e In addition to the length of 5 cm and 7 cm, the pin is divided into three types, one is called mSATA, and more for Lenovo machines and IBM machines, one called SATA mini pci-e, used in ASUS EPC, There is also called PATA MINI PCI-E, for Dell mini9 and other machines, the appearance of the three interfaces exactly the same, but the pin definitions are different, be sure to distinguish clearly.

Note: This product supports only 5cm length of mSATA, SATA MINI PCI-E interface (as with the ASUS EPCS101 900 901A for solid state) and PATA interface, please do not buy!

Accessories: data cable, protective cover
