-. Binding : Electronics
-. Brand : BaoFeng
-. Color : Black
-. EAN : 0707421020265
-. Feature : Baofeng FF-12P Black,Shortcut menu operation mode,Emergency Alarm,DTMF function, VOX function,Chinese and English voice prompt / VFO & Memory channels scan,Time-out Timer (TOT),PTT & ANI ID,High/Low TX power selectable / Wide/Narrow Band(25kHz/12.5kHz),Busy channel lock-out(BCLO),Busy lockout function,Frequency step / Scanning function,Monitor function,LCD display,Dual display,Battery voltage display function,Channel name display and editing functions / Signal strength indicator,Keypad lock function,Built-in Led torch,FM radio,Wire clone function,Low battery alarm,Tone end of transmission,PC software programmable
-. Label : Shenzhen BaoFeng Technology Co. Ltd
-. Manufacturer : Shenzhen BaoFeng Technology Co. Ltd
-. PackageQuantity : 1
-. ProductGroup : Car Audio or Theater
-. ProductTypeName : TWO_WAY_RADIO
-. Publisher : Shenzhen BaoFeng Technology Co. Ltd
-. Studio : Shenzhen BaoFeng Technology Co. Ltd
-. Title : Baofeng Walkie Talkie FF-12P VHF/UHF136-174/400-520MHz Dual Band Two Way Radio; Extensive Receive Frequency Coverage Transceiver ;128 Groups Channels; FM Receiver; Lcd Display; Led Light;1800mah Battery
-. UPC : 707421020265
Latest BAOFENG FF-12P VHF/UHF Dual Band Dual Watch 136-174/400-520MHz CTCSS DCS 5W VOX 128CH FM Ham Two Way Radio Transceiver Walkie Talkie Black
Type: Two Way Radio
Walkie Talkie Type: Portable
Storage Channel:128
Maximum Range:3km-5km
Is Display:Yes
Dimensions:120x58x25mm (Not Antenna )
Frequency Range:VHF+UHF136-174+400-520MHz
Model Number:Baofeng FF-12P
Model:Walkie Talkie Baofeng FF-12P
Color:Black Baofeng
Battery type: Li-ion battery
Battery capacity:1800mAh
Weight :180g (Not Antenna)
Basic Descriptions
Rated Voltage: 7.4V DC±10%
Output power: <=5W
Channel :128CH
Battery type :Li-ion battery
Battery capacity: 1800mAh
Working temperature: -20°C-+50 °C
Antenna Impedance: 50ohm
Weight: 180g (Not Antenna)
Dimension ( LxWxH ): 120x58x25mm (Not Antenna )
Specification
Frequency range :UHF:400-520MHz + VHF:136-174MHz
Frequency stability: ±2.5ppm
Carrier wave tolerance: 5ppm
Modulation :16k¢F3E / 11k¢F3E
Max frequency deviation: < 5kHz(Wide) < 2.5kHz(Narrow)
Modulation character: 6 dB per fold frequency patch
Emission :current < 1.6A(5W)
CTCSS / DCS :0.5±0.1kHz(Wide) 0.3±0.1kHz(Narrow)
Sensitivity :< 0.16 µV(12dB SINAD)
Silent sensitivity: < 0.2 µV
Intermediation Distortion: <10%
Inter modulation: 60dB
Audio output: 1000mW
Adjacent channel selectivity( wide/narrow): <-65dB(Wide) <-60dB(Narrow)
Package include :

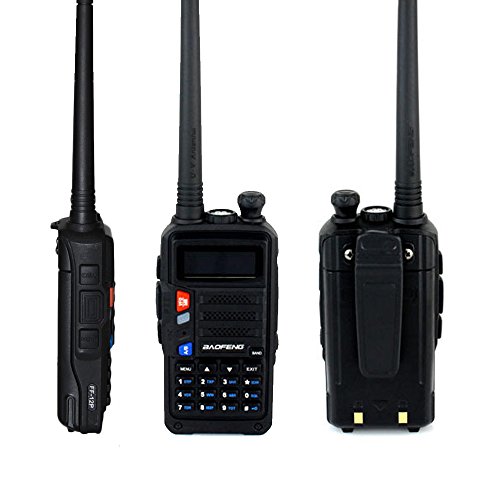

1 X Portable radio
1 X Antenna

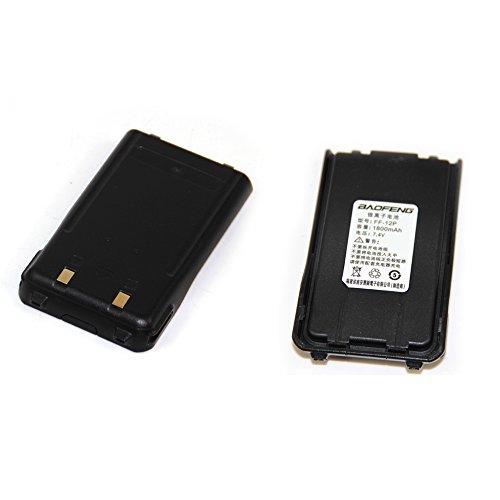

1 X Li-ion battery pack

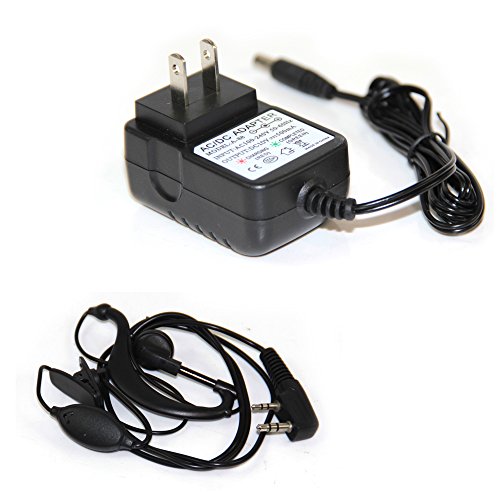

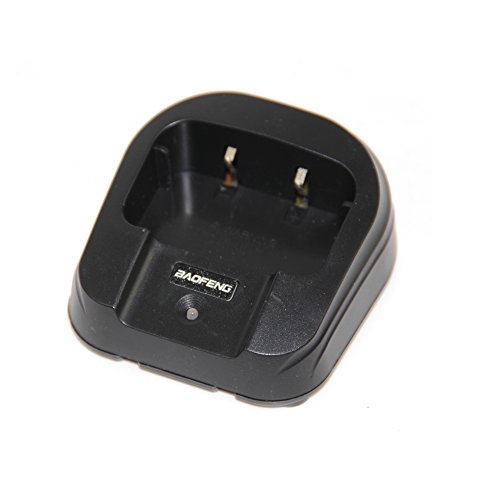

1 X LI-ion charger
1 X Belt clip
1 X Earpiece
1 X Sling 1 X User´s manual
