Product Description
1.Description

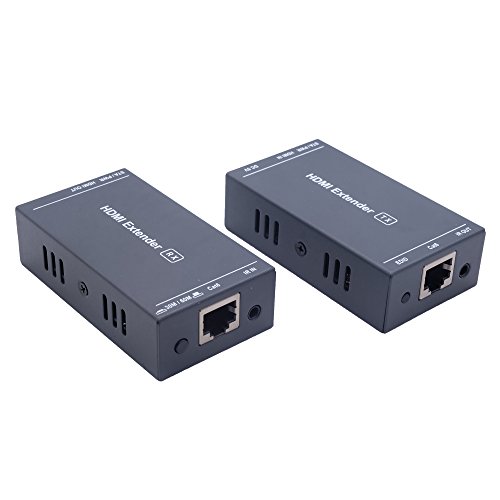

The HDMI extender provides extension of HDMI signals long distances over a single CAT6 cable, it supports high resolution up to 1080p, EDID copy function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

2.Features

Transmits HDMI video and audio signals up to 60M over a single Cat6 cable;
Support video resolution up to 1920*1080@60Hz, 3D signal;

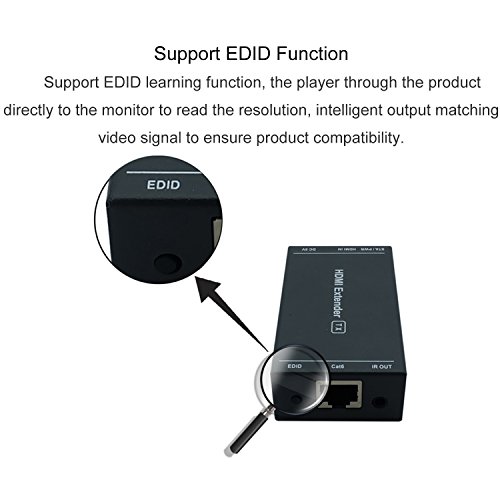

Support copy EDID, can match many kinds of display device;

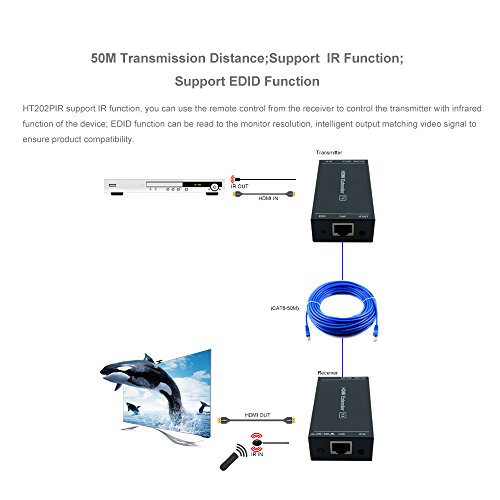

Support IR signal transmission;

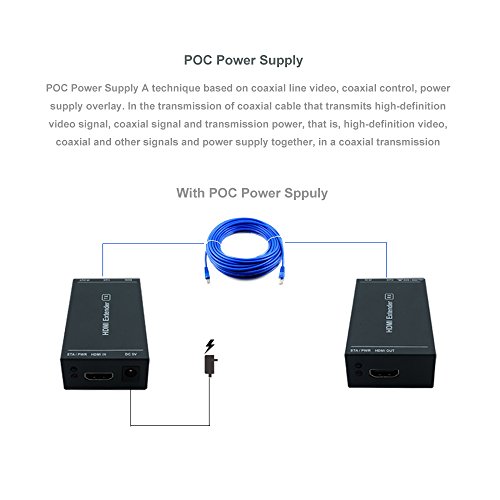

Support POC unilateral power supply
Compliance with HDMI 1.3 and HDCP 1.2 standard;
High compatibility, can auto-match source and display device;

3.Specifications

Video
Standards---------------HDMI 1.3; HDCP 1.2
Maximum pixel clock-----165MHz
Maximum data rate-------6.75Gbps
Resolution -------------1920X1080@60Hz, 3D

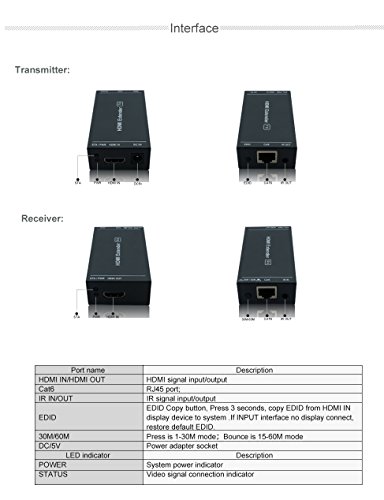

Connector---------------HDMI-A

IR
HDMI Cable Range-------<5M (Resolution: 1080P)
Impedance---------------100Ω
Interface---------------3.5mm earphone seat
Signal direction--------directional
Signal type-------------Digital
IR frequency------------38kHz

Ethernet
Interface---------------RJ45
Transmission distance---CAT6---60m

Other
Power supply------------The power adapter: DC 5V
Power dissipation-------MAX 3W
Temperature-------------Operating: -5℃ ~ 70℃
Humidity----------------Operating: 5% ~ 90%
Dimension---------------81*43*23mm
The warranty------------1 year free warranty

4.Package list

HDMI transmitter ................................ 1 pcs
HDMI receiver ...................................... 1 pcs
Power adapter ...................................... 1pcs
IR transmitter cable.............................. 1 pcs
IR receiver cable ................................... 1 pcs
User manual .......................................... 1 pcs
