Product Description

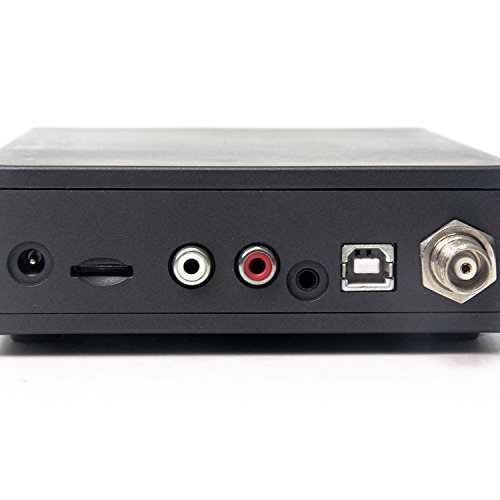

Functions of Transmitter:
No-signal automatic power off function: According to different needs, users can turn on/off this function or change the time of no signal automatic power off.
Intelligent power-saving: when using the battery, the LED panel will automatically reduce to the minimum brightness after 30 seconds to reach energy-saving purpose.
Intelligent storage: Transmitter will save the transmitting power and frequency of the last power-off.

Specifications:
Working Voltage: DC12V
Working Current: ≤0.4A (Maximum Power Mode)
Operating Temperature: -10℃~45℃
Frequency Range: 76~108MHz(Customizable)
Frequency Stepping: 100 KHz
RF Power Output: 0~1W (11 Level Adjustable)
Harmonics, Spurious Radiation: ≤ 60dBAudio
Distortion: ≤ 0.2%
Frequency Response: 50Hz~15000Hz
Stereo Separation: ≥40 dB
Input Level: 15 dBV
Frequency Modulation: ±75KHZ
SNR: ≥60 dB
Pre-emphasis: 50μs / 75μs (Adjustable)
Antenna Impedance: 50Ω

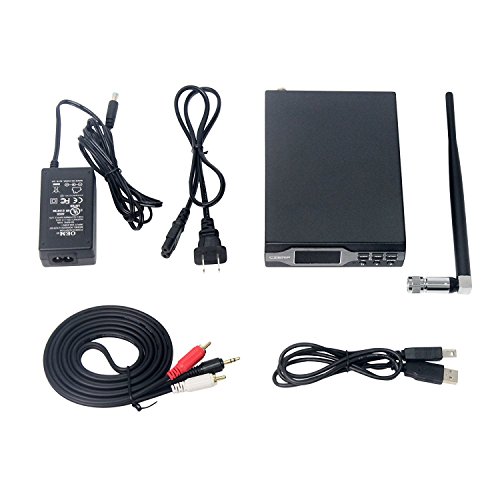

Package:
1 x FM Transmitter
1 x DC Power Adaptor
1 x Power Line: 67cm length
1 x Antenna
1 x Stereo Audio Interlink Cable
1 x User Manual
