main feature

The second generation of Kinect for Windows sensor gives developers more precision, responsiveness and intuitive ability, developers use these capabilities in the Windows desktop and Windows store development based on voice and gesture interactive applications. The second-generation Kinect for Windows sensor is used in conjunction with the Software Development Kit (SDK) 2.0. Second-generation Kinect for Windows sensor features include:

1080P HD video
A wider field of vision
Improvements to skeletal tracking

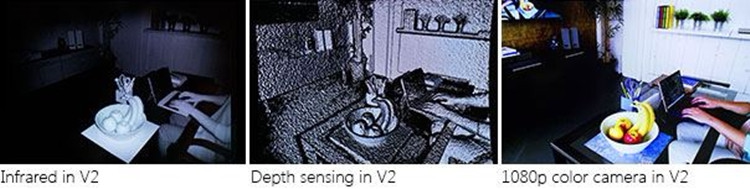

New Active Infrared Detection
Improved microphone (zero balance)
Identify 6 people, 25 skeletal points (25 skeletal joints per person)
Thumb tracking, finger end tracking, opening and contracting gestures
Why Buy

Run or develop interactive applications that recognize human natural movements, gestures, and voice instructions.
Use Kinect for Windows to explore the opportunities to change products, processes and business opportunities.
Using Kinect's skeletal tracking, sophisticated microphone arrays, depth data acquired by infrared depth sensors, facial recognition, and other sensor technologies.
Develop voice and gesture-based interactive applications on the Windows desktop and Windows stores.
Product List

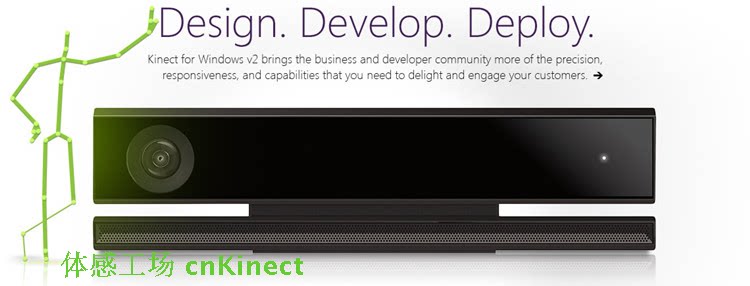

The second generation Kinect for Windows sensor
USB / power cords and hubs
Product Manual
Hardware requirements

64-bit (x64) processor
I7 2.5-GHz or faster processor
Built-in USB 3.0 bus (USB3.0 master chip as much as possible is Intel or Renesas chip)
4 GB RAM
DX11 graphics adapter
OS requirements
Windows 8, Windows 8.1
 for reference only:

1, the sensor:
1.1 color and depth of the sensor lens;
1.2 voice microphone array;
2, the visual range:
2.1 horizontal viewing angle: 70 degrees;
2.2 vertical viewing angle: 60 degrees;
3, the depth of sensing range: 0.5 m to 4.5 m;
4, depth sensor lens: 512 × 424,16 bit, 30 fps;
5, color sensor lens: 1920 × 1080, 32bit, 30 fps;
6, sound: 16bit @ 16 khz;
7, support Xbox LIVE group chat and game voice chat;
8, echo cancellation system to enhance the sound input quality;
9, multi-language speech recognition;
10, skeleton tracking system:
10.1 simultaneous identification of 6 people, including 2 people action tracking;
10.2 can track 25 points per person;
10.3 Allow Xbox LIVE Avatars virtual characters to sync with user actions.

Developer software resources

WwwKinect.com somatosensory game network (buy this product to send site gold coins 100)

Http://www.cnkinect.com/

More information http://www.cnkinect.com/Kinect2/

Kinect SDK video development tutorial

Http://channel9.msdn.com/Series/KinectSDKQuickstarts?sort=recent#tab_sortBy_recent

Kinect SDK official forum

Http://social.msdn.microsoft.com/Forums/en-US/kinectsdk/threads

Warranty

1-year Limited Hardware Warranty (This product is genuine country line, product number: 74Z-00009) repair the Web site: http://myservice.kinectforwindows.microsoft.com/

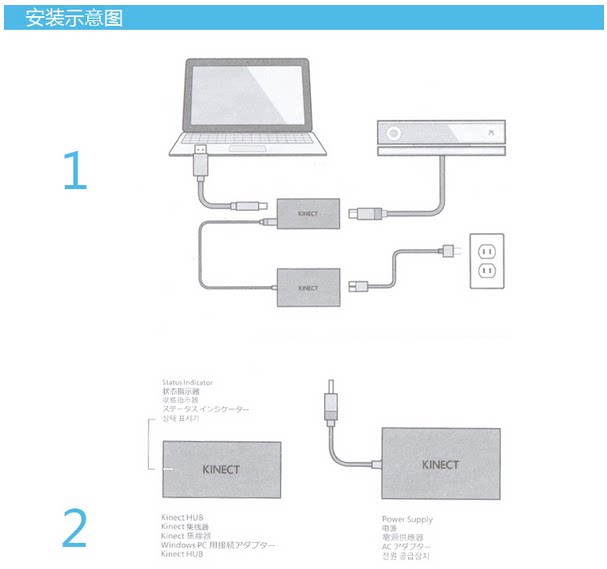

Kinect Adapter for Windows

In this case,

Kinect Adapter for Windows, XboxOne Kinect2 for Windows adapter

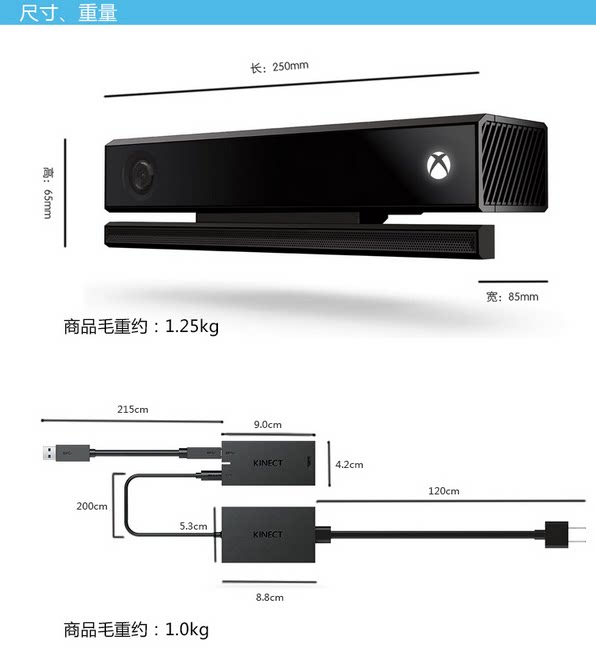

Packaging specifications: 348mm x 160mm x 78mm
In this case,
Develop the interactive application on Windows 8 with the precise features of the Xbox One Kinect2 sensor. Take advantage of improved sensor performance, including: bone tracking, enhanced noise isolation, a wider field of view, 1080p HD camera, accurate

Gesture recognition and weak light recognition. With Kinect, you can create a more natural and engaging private experience. Using this opportunity to improve education, health care, retail and other fields. The Kinect adapter for Windows is connected to the computer via USB 3.0

, Develop customizable solutions and experiences to power your business, or publish your applications on the Windows Store. At the same time, can also be used as second-generation Kinect for Windows sensor backup adapter.
In this case,
* Requires a separately-sold Gen 2 Kinect for Windows Sensor V2 (Blank) sensor or Xbox One Kinect 2 sensor that can not be used with the normal version of the Xbox One somatosensory game console.

Product List
• Kinect2 adapter for Windows + USB3 cable + USB3 hub
• Power and power cords
• Product Manual

In this case,

Kinect Adapter for Windows System Requirements
• Requires use with 2nd generation Kinect for Windows Sensor V2 (Blank) or Xbox One Kinect2 sensor
• Use with a computer that meets the following requirements
• 64-bit (x64) processor
• 3.01-GHz dual-core processors (each with two logical cores) or higher performance processors
• Built-in USB 3.0 bus
• 4GB RAM • DX11 graphics adapter

【Customized adapter adapter map】





相关问题:

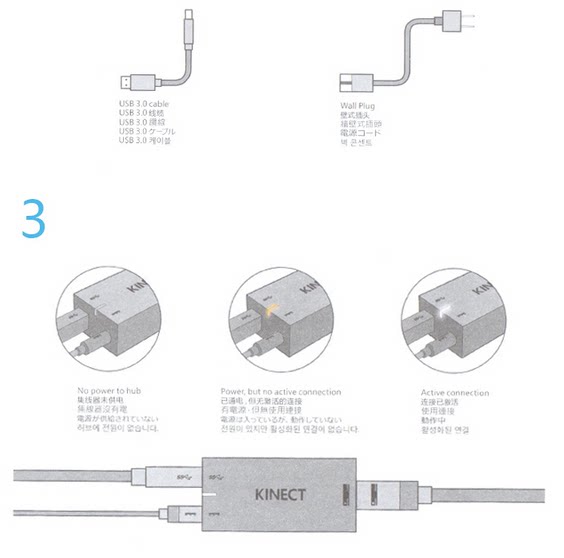

1、白色的灯亮说明电源是没有问题的;

2、风扇只有在正常工作时,温度很高时才会开启;没有开启应用程序且温度不高时不开启。

3、应用没有开启Kinect上的各种灯也不会灯的。

4、kinect 2.0可以用之前的SDK V1.5、V1.7开发吗?
不能。只能用Kinect for Windows SDK 2.0以后版本。
5、Kinect for Windows V2深度图像、彩色图像的分辨率最大是多大?
512*424是深度图像(Depth)的分辨率;1080p(1920*1080)是彩色(RGB)摄像头的分辨率。

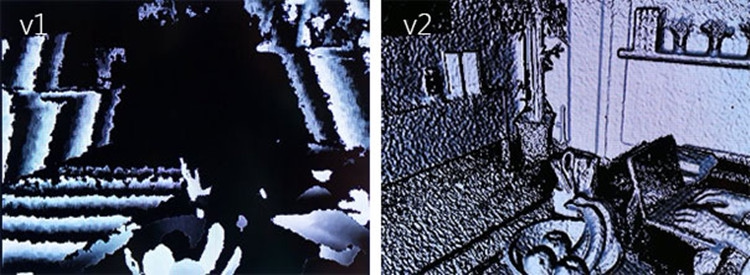

6、Kinect fo Windows V1.0、V2.0在成像原理上有什么区别吗?
成像区别是 Kinect fo Windows V1.0是结构光的,Kinect fo Windows V2.0是TOF的,不过对应用层的人来说无所谓。
(不定期更新中,敬请期待... ...)
