Item Descriptions:

color:

1.DVR-Q2 regular version 8GB memory included

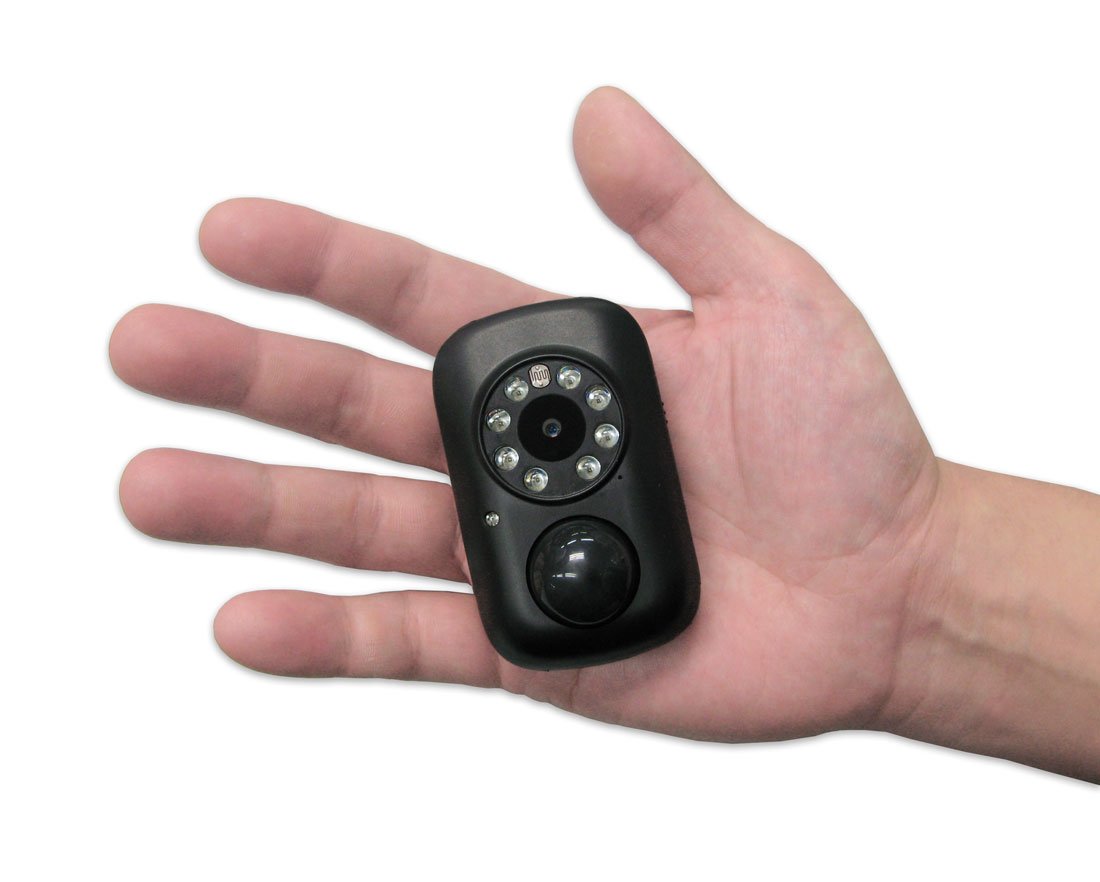

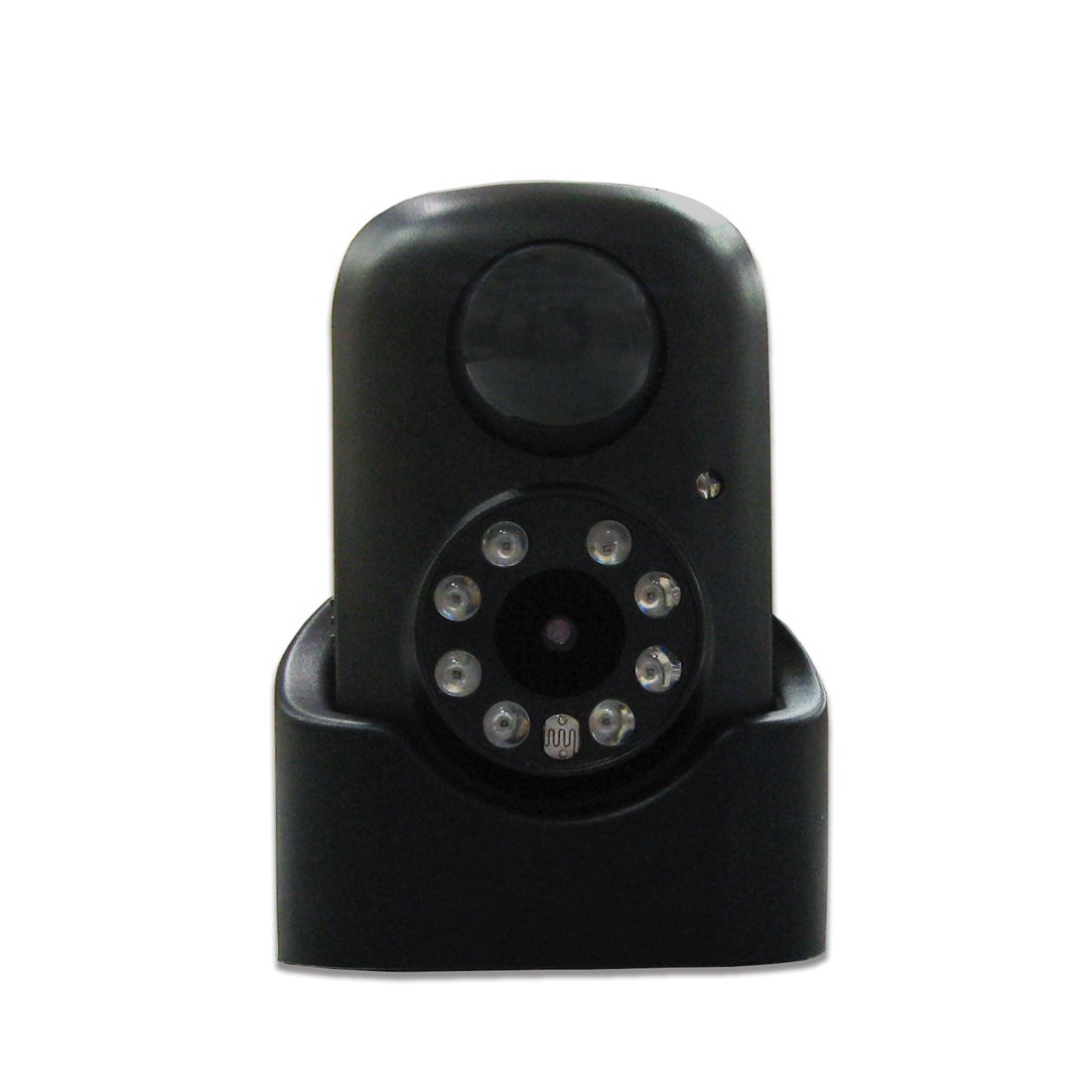

Hanwha DVR-Q2 Small Auto Video Recorder with Infrared & Human Detection Sensor

DVR-Q2 is a security camera that detects the fluctuation of heat emitted from the human body and automatically records it.

Besides color recording in bright places, monochrome recording (infrared LED automatic lighting) can be performed under zero lux, such as in dark places.

【You can use it for this purpose】

There is evidence that someone entered the room when going out!

What?

Photo taken by a girlfriend naughty mischief in a garage

Observation of pet movements and confirmation of safety

Built-in battery, it does not require any other device, and automatically records on microSD card with only DVR-Q2.

The data to be recorded corresponds to loop recording which overwrites the old video file when the capacity of the microSD becomes full.

The power supply corresponds to 2WAY power supply that can be selected according to the installation location.

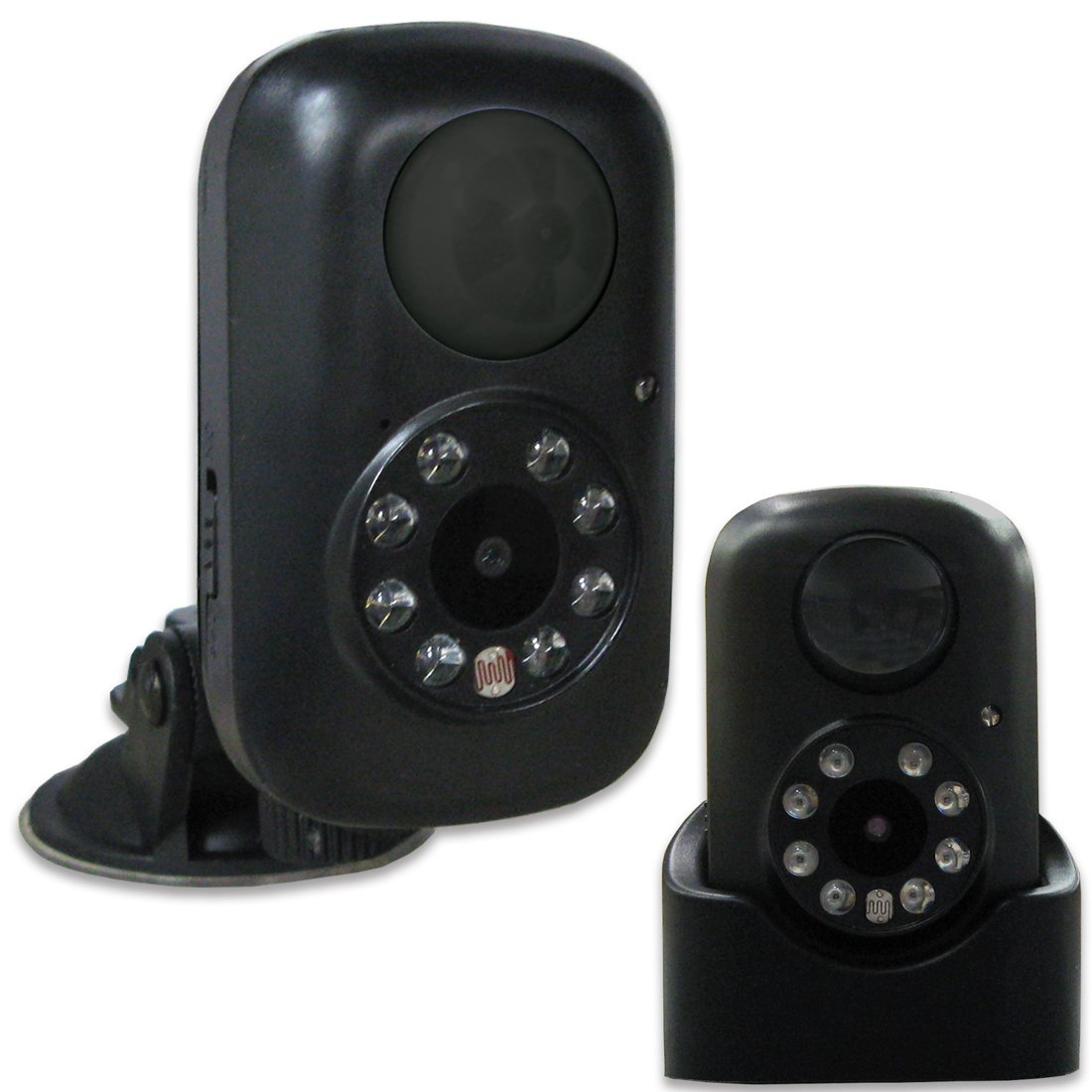

Installation corresponds to the attached pedestal, suction cup stand, and tripod for camera.

Without making any special settings,

The infrared LED will automatically light up even in a pitch dark place,

You can do.

Automatic recording ON / OFF function installed!

When it is unmanned, it will not be recorded.

Not always recording,

Automatically record only when sensor (PIR) detects temperature + moving object

To do.

Since useless shooting is not done, it saves power consumption, saves standby time and recording time, and makes it easy to check recorded data.

PIR sensor for detecting temperature + moving object

In general motion detection, even if the curtain shakes it will react, but DVR-Q2's

The PIR sensor also detects the temperature, so it reacts only with humans and animals

To do.

【Product Specifications】

Product model number: DVR-Q2

Product JAN Code: 4543183515627

Image sensor: 300,000 pixel CMOS sensor

Lens viewing angle: horizontal about 70 °, vertical about 70 °

Video size: 640 × 480/320 × 240

Frame rate: 10/15/30 frame

Video Specifications: AVI (Motion Jpeg)

Recording time: 30/60/180 seconds (Recording seconds per file)

Voice recording: correspondence

Thermal sensor: PIR sensor / Longest detection distance approx. 10 m, Detection angle: Horizontal about 68 °, vertical about 68 °

※ The PIR sensor does not react through glass.

Please be careful.

Infrared LED: 8 lights / maximum reachable distance of about 6 m / lighting automatically by illuminance sensor

Calendar function: Automatically synthesized year / month / day / hour / minute / second in video

Recording medium: 8 GB microSDHC card included (corresponding to 2 to 32 GB micro SD / SDHC card)

Body size / weight: about 47 (W) × 35 (D) × 78 (H) mm / about 72 g

Built-in battery: Charging time Approx. 2.5 hours (Charging with supplied AC adapter)

Battery operating time: continuous standby up to 720 hours / recording maximum 5 hours * It depends on the use environment.

Power supply specifications: DC 5 V 500 mA / internal battery 1,020 mA

Supported OS: Windows XP / Vista / 7/8/10 * Both video playback and setting tool

Product warranty: 6 months from date of purchase

Product structure: Body, flatbed sucker stand, pedestal,

8GB microSDHC card

(Already installed in the main body), USB cable, AC adapter, Velcro for installation, Japanese instruction manual made by Hanwha

※ The shooting of the security camera varies depending on the installation environment.

※ All of the numerical values ​​of this machine are notation with maximum value.

* Please be aware that the function may fall below the numerical value depending on the installation environment.

※ Sucker stand is for flat placement only.

It can not respond to the installation of walls and ceilings.

* Playing recorded videos requires an environment that can play AVI files such as Windows Media Player.

* When connecting to a personal computer, the tool for setting DVR - Q2 (in microSD) may be deleted due to false detection of security software being used.

If the setting tool is deleted, please save the setting tool again in the procedure of the instruction manual.

Features:

• Please enter model number Confirm this is compatible:
• The latest model currently on sale has 8 GB included microSD card, 1,020 mA internal battery.
• The thermal sensor detects thermal fluctuation emitted from the human body and automatically records it on the microSD card.
• Besides color shooting in bright places, monochrome recording (infrared LED automatic lit) can be performed under zero lux, such as in dark places.
• The built-in battery's driving time is up to 720 hours for continuous standby and up to 5 hours for recording.
• (* It varies depending on the environment of use.) You can use it without worrying about the battery capacity by connecting to the included AC adapter.
• Product warranty Safe support by email and telephone for 6 months.

Product information:

Shipping Weight: 181 g

Package Dimensions: 4.57 x 11.18 x 17.78 cm
