Item Descriptions:

Style name:

Body

Product introduction

● Birth and bodily temperature study born, 1 second temperature test

1. Turn on the power,

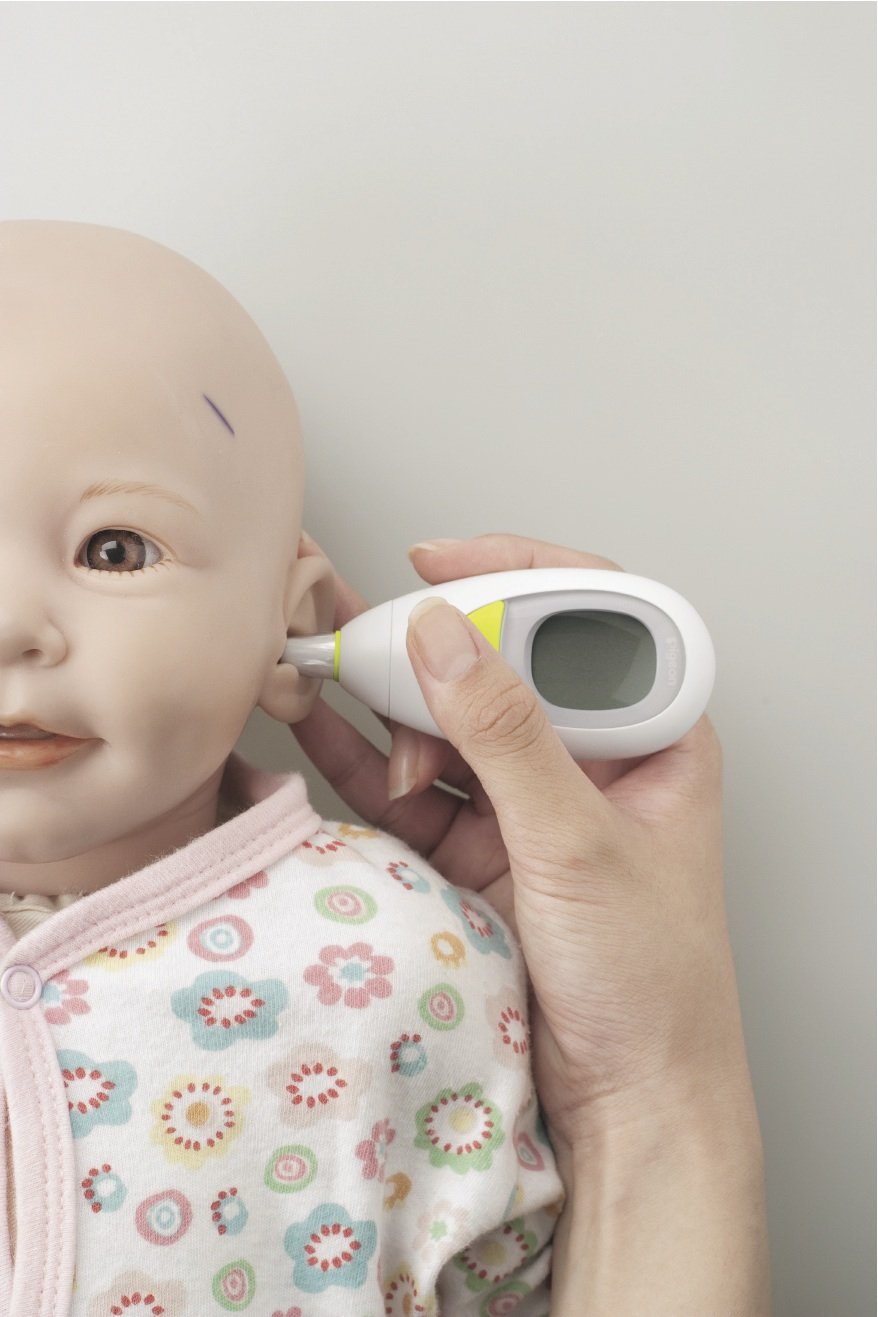

2. Hitting on the ear of the baby in the correct posture,

3. Just press switch.

● LCD screen with backlight, easy to see even in dimly lit rooms

● Previous value memory

When you turn on the power supply, the measurement result that was measured last time is displayed.

● Auto power off design

After the measurement is completed, the power turns off automatically in about 30 seconds.

● Battery life about 5000 times

Since the supplied battery is for monitoring, there may be cases where the number of times of use is less than 5000 times.

I will let you know by display when the battery level becomes low.

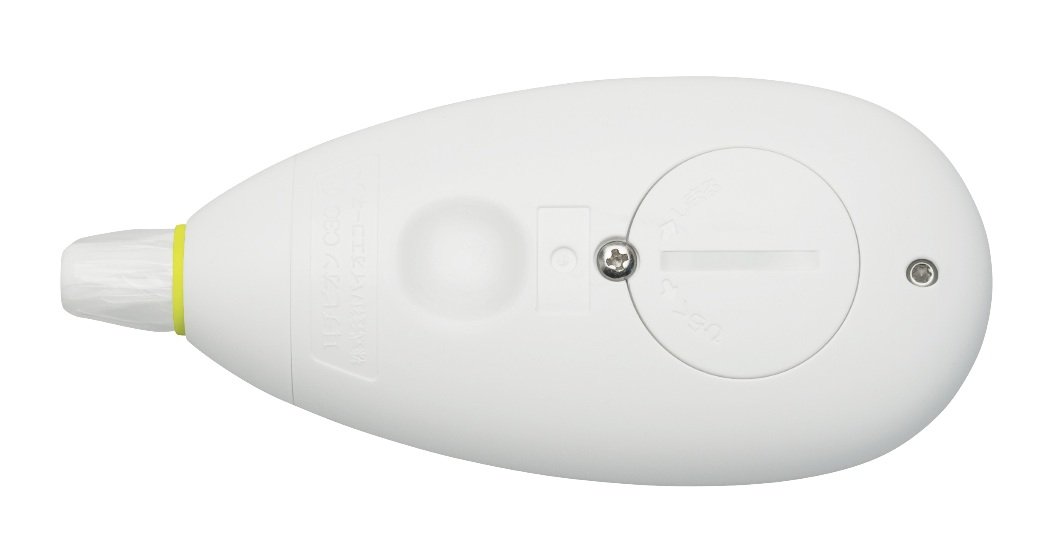

(Battery replaceable)

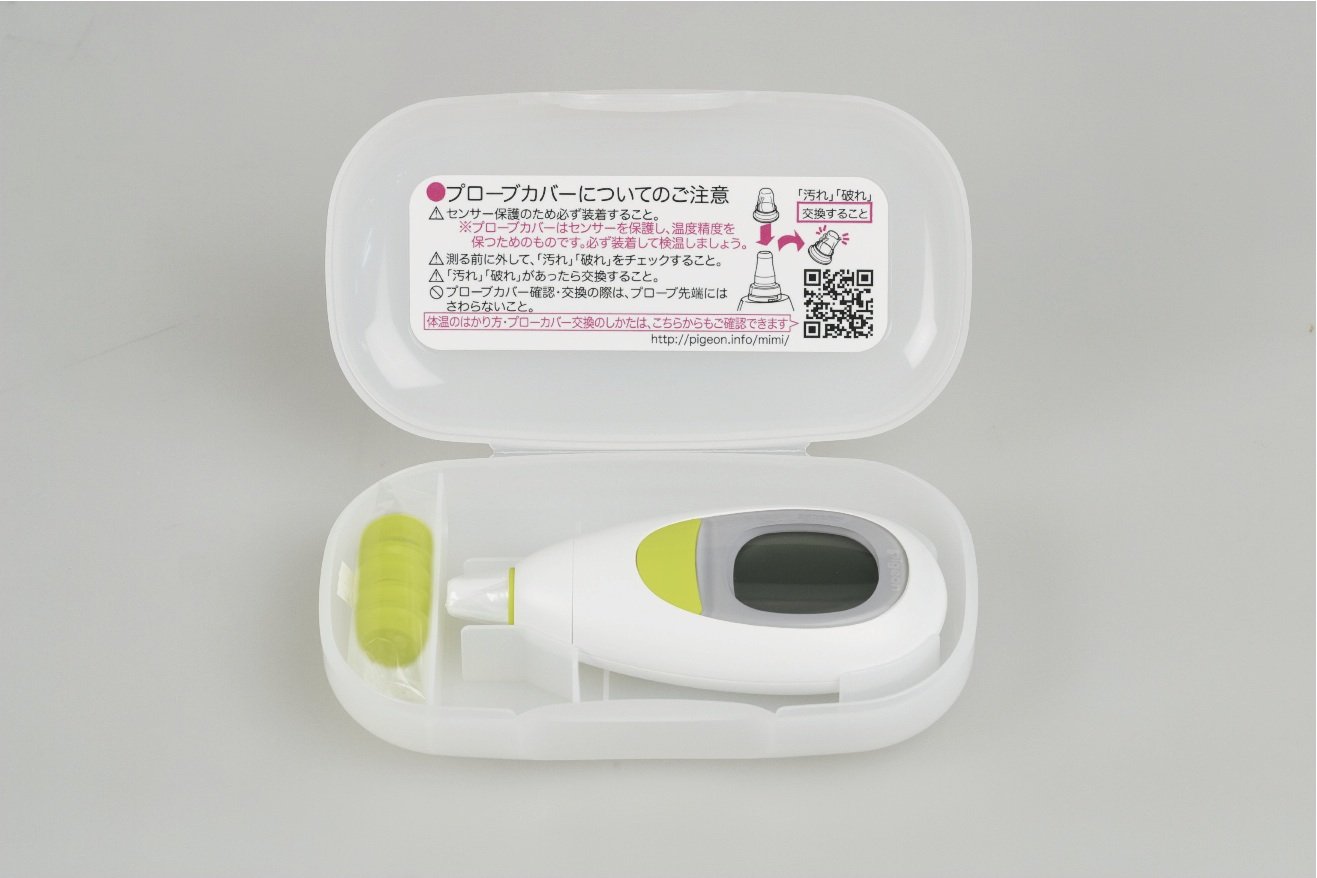

● With a special case convenient for storage and carrying

● Generic name

Ear infrared thermometer

● Contraindication / Prohibition

【warning】

· Do not use for purposes other than ear temperature detection.

[There is a danger of injury.

· Do not use it for people with a disorder in the ear.

[There is a danger of getting worse.

· Do not pull hard on your ear or push it hard into your ear.

[There is a danger of injury.

· Do not use damaged objects.

Especially since the probe part is inserted directly into the ear, use of the probe part which breakage such as scratches, cracks etc. is recognized should be discontinued.

[There is a danger of injury.

· To measure a different person, replace the probe cover with a new one.

[There is a possibility of unexpected infection.

· Do not use this product near a high frequency source.

[There are cases where an error occurs in the indicated value.

[Contraindication / Prohibition]

· Do not leave accessories and detachable parts removed, put them out of reach of young children.

[There is danger of accidental ingestion or injury.

· Make sure to attach one exclusive thing to the probe cover.

[Thermometer value abnormality, cause of failure.

· Do not use probes with broken or dirty covers.

[The temperature detection value is abnormal.

● Item specifications

Model: C30

Temperature sensing site: Eardrum and its peripheral parts

Inspection method: infrared type

Display temperature system: Actual temperature

Display temperature range: 32.0 ℃ ~ 42.0 ℃ Minimum display unit: 0.1 ℃

Temperature accuracy: ± 0.1 ° C (35.0 ° C to 39.0 ° C)

± 0.2 ° C (in the display temperature range other than the above)

(* For blackbody furnace, at standard room temperature 23 ° C ± 2 ° C)

Display method: Digital three digit indication by liquid crystal display (minimum display unit 0.1 ℃)

Operating condition: + 5 ° C to + 40 ° C, 15% RH to 95% RH (without condensation)

● Usage Notes

· Do not disassemble, repair, remodel or adjust.

[Failure to do so.

· Do not use batteries other than lithium battery CR 2032.

[Failure to do so.

· Do not use metals when removing batteries.

[Failure to do so.

· Insert batteries carefully in the + and - direction.

[Failure to do so.

· Do not touch probe tip, do not give impact.

[This may cause malfunction or malfunction of the temperature measurement value.

· Do not place heavy objects on top of each other, sandwich between heavy objects, and do not give a strong impact such as falling from a high place.

[Failure to do so.

· Do not attach the body to a liquid such as water, do not wash it, or wash it.

[It is not a waterproof structure and it causes breakdown.

· When cleaning the main unit, do not use thinner · benzine · abrasive.

Make use of a cloth etc. which contains a neutral detergent and squeezed well.

[Failure to do so.

· Keep away from strong static electricity and electromagnetic waves such as TV, microwave oven and mobile phone.

[This may cause malfunction or malfunction.

· If there is smoke or abnormal odor or noise, discontinue use immediately as it is broken.

Remove the battery and ask for inspection.

· When disposing of the probe cover and battery or thermometer main body that have been exchanged, discard it according to the waste disposal method of each municipality.

Information on Manufacturers and Manufacturers (Inquiries on Products)

Manufacturing selling agency: Bio Echo Net Co., Ltd.

Address: 〒 064-0804 Sapporo City Hokkaido Chuo-ku 4-chome west 7 - chome 6

Phone number: 011-511-5543

Manufacturer: V-EIKOU CO.LTD

Country: Socialist Republic of Viet Nam

Publisher: Pigeon Corporation

4-4 Higashimatsucho Nihonbashi Chuo-ku, Tokyo 103-8480

(Customer consultation room) TEL 03-5645-1188

Reception hours 9 am - 5 pm (except Saturdays, Sundays, and holidays)

Pigeon website http://pigeon.info/

● Electrical rating

Power supply: 1 lithium battery (CR 2032)

Power supply voltage: DC 3.0 V

Consumption current: about 4.5 mA (maximum time)

● Lithium battery

Usage notes

Please refer to the instruction manual always.

Features:

• Specific management medical equipment Medical equipment certification (approval) number: 228 AKBZX00035000
• [Body size] Body: length 94.4 × width 42.0 × thickness 24.4 (mm), storage case: length 124 × width 70.5 × thickness 30 (mm)
• Optional item: 10 probe covers dedicated to ears
• The probe cover is a consumable item.
• If there is "dirty" "tear", please exchange immediately.
• Specifications are subject to change without notice for improvement.
• To correct baby's temperature
• [Country of manufacture] Vietnam
• [Set Contents / Accessories] Six probe covers (one attached to the main body), lithium battery (CR 2032 1 piece / already attached to the main body), storage case, instruction manual (warranty included), attached document
• [Target] 0 months -

Product information:

Shipping Weight: 122 g

Package Dimensions: 4.50 x 7.49 x 16.00 cm
