Item Descriptions:

This product is aimed at crime prevention and personal security for protecting important families and property.

It is a practical tool required at the home in areas such as safety and living.

【Product function】

Movie shooting · Motion detection function · Infrared light · External power source correspondence · Repeat recording function · Date setting function · Lamp off during recording · Charger function

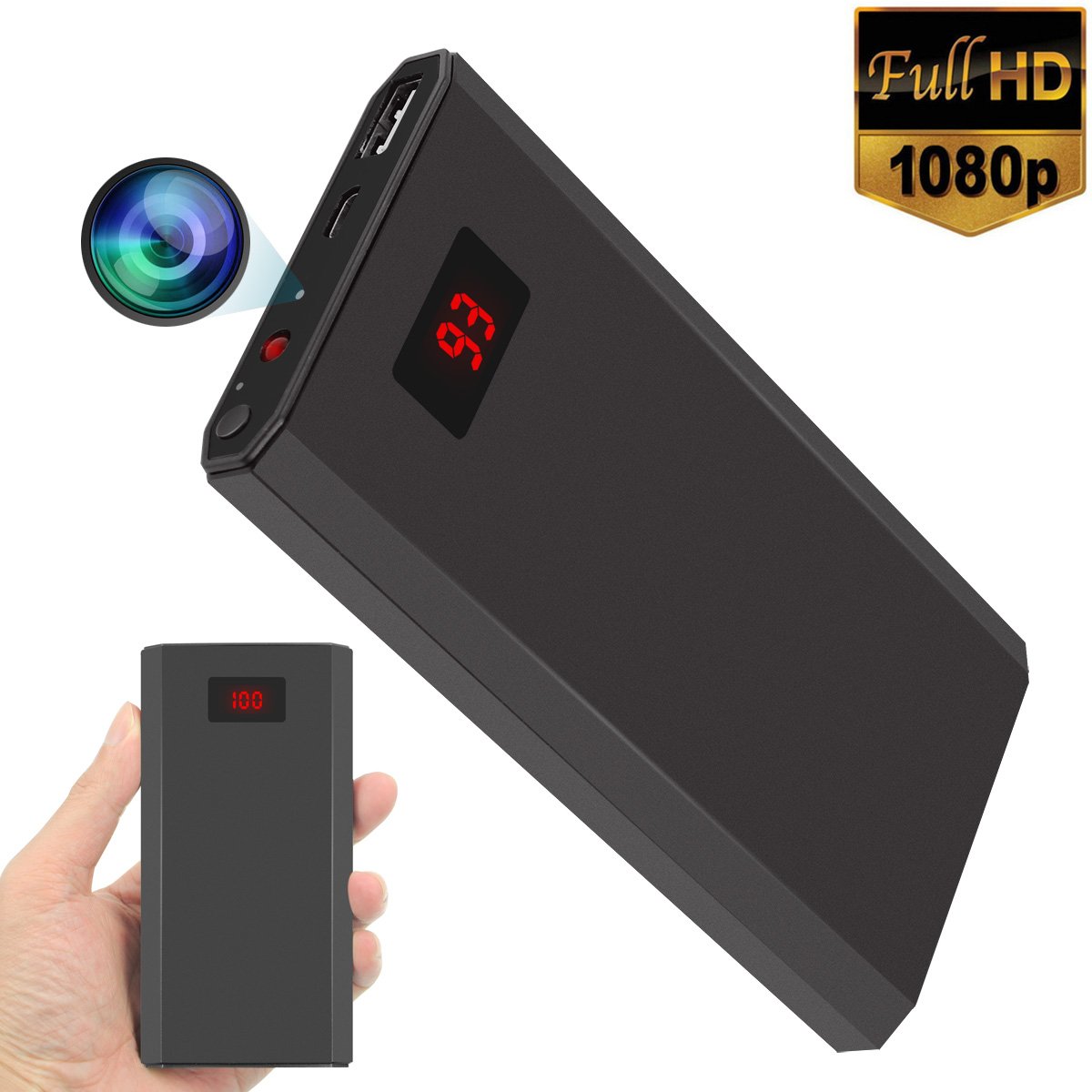

● Luxurious design of smartphone overflows, the material of the outer cover is pig iron used.

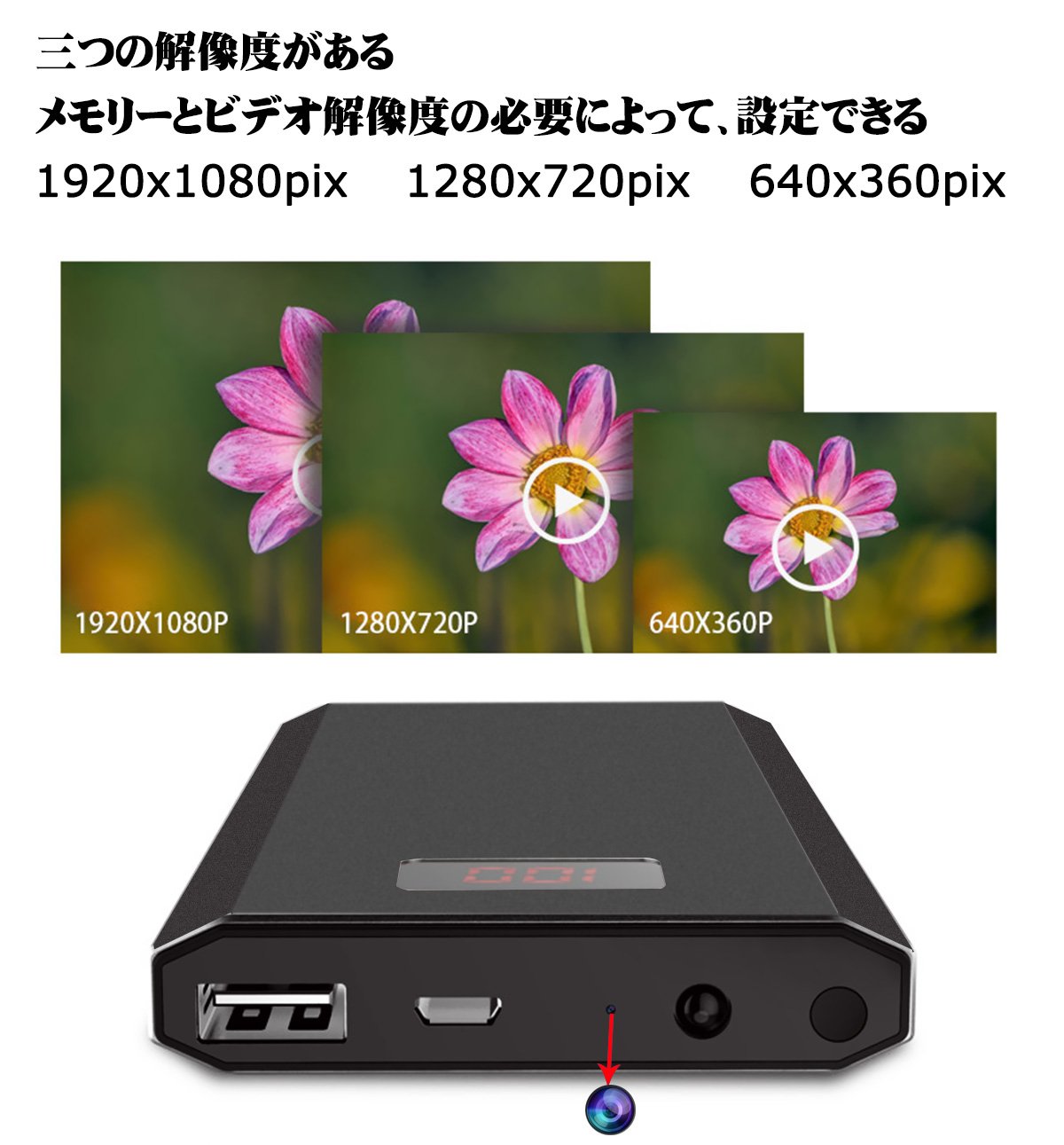

● Movie size can be selected from 3 different sizes, realize high quality video recording of full high definition 1080P.

- A large capacity battery of 10000 mAh is installed, data can be saved for a long time with a large operation time about 24 hours, 32GB correspondence.

● Convenient powerful useful in the darkness Shooting brightly with a strong infrared light, you can illuminate at any time with a manual lighting formula.

● Supports crime prevention and surveillance with external power supply + moving object detection + repeat recording support.

● Collect evidence to protect yourself in daily life such as stalkers, suspicious people, DV damage etc.

In case

● You can protect important people such as nursing care facilities and babysitter suspected abuse.

● Rechargeable for iPhone and smartphone, you can use it as a charger with your cable.

【First time use】

Before using, please format microSD card on PC, when formatting, be sure to select 32 KB or more in "Allocated cell size", otherwise if the microSD card shooting rate is not enough,

Recording shooting may not be done smoothly.

Please confirm the existence of the battery remaining amount before using, When you connect to the electricity output USB output port of the machine and iPhone or smartphone, you can see the electricity quantity instruction.

Remarks:

Please charge after every 5% battery power remaining.

Because it is a large battery capacity (10000 mAh), we will charge it in the foreground, this is a normal phenomenon.

It can charge to full about 15 hours.

When 100% charging is completed, please continue to charge as much as possible for 30 minutes, please use after completion of charging.

Product specification

Video format

: AVI / H.264

Video code

: M-JPEG

Video Resolution

: 1920 x 1080 P / 1280 x 720 P / 640 x 360 P

Video frame rate

: 15 to 30 fps

Image proportion

: 4: 3

Built-in microphone

: New high performance microphone

Charging voltage

: DC-5 V

Motion detection function:

Light Sensing Method

Motion detection range:

Approximately 3 m (change in brightness)

Battery capacity:

10000 mAh

Interface type

: USB 2.0

Supported memory

MicroSD recommended by Class 10 or better

Supports up to 32 GB

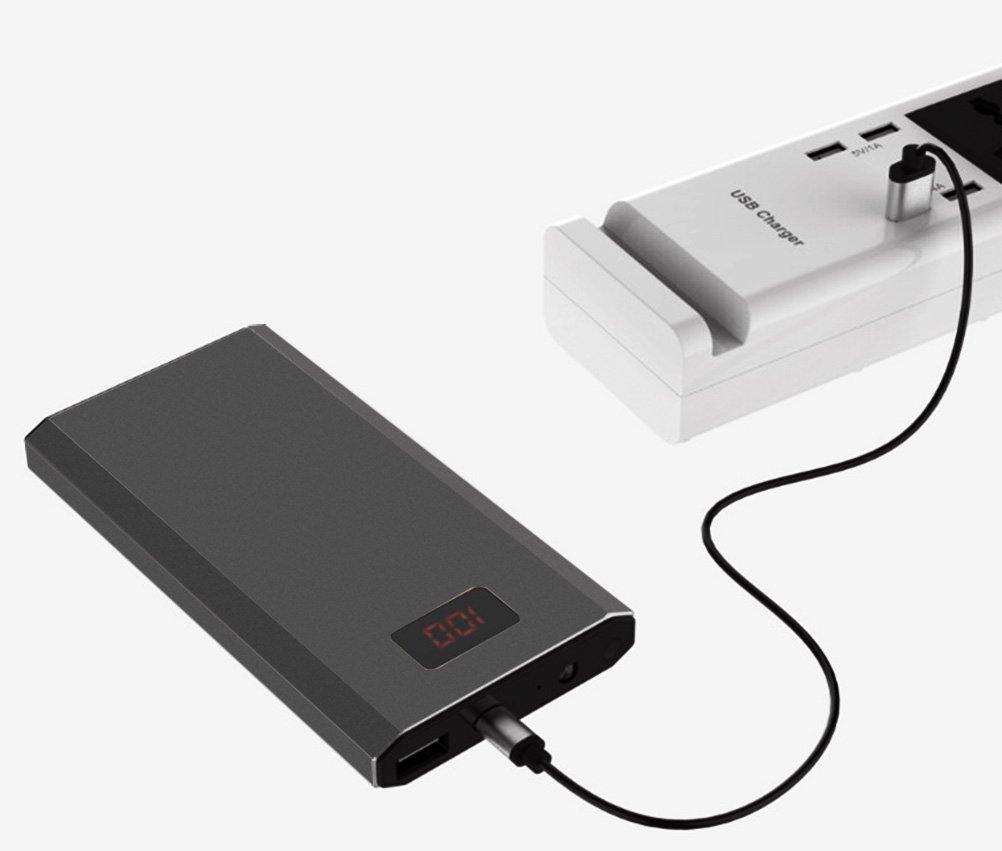

Charging method:

USB bus power / AC adapter

Battery type:

High capacity polymer lithium battery

Media Player

: Operating system included, or mainstream audio / video media player

Supported OS

: Windows me / 2000 / xp / 2003 / vista; Mac OS; Linux

About reproduction

Switch off, when connected to a PC, it can be used as a U disk.

Copy files, cut and paste, delete, U disk initialization, etc. can be operated freely.

Attention, memory card reader writer

We recommend that you read and play video files directly.

When directly reproducing the video file stored in the internal memory of this recording device by USB connection, there is a possibility that the data quantity is excessive, the transmission speed is slow, and the reproduction can not be performed smoothly.

Movie resolution installation:

Switch off, when connected to a PC, it can be used as a U disk.

Please open the "TIME" folder, for example: 2016-04-12, 23: 59: 59 A1

Please be sure to change [A1] by content.

[A1] ----- Movie resolution [1920 * 1080pix]

[A 2] ----- Movie resolution [1280 * 720 pix]

[A3] ----- Movie resolution [640 * 360 pix]

Motion Detection Recording Resolution Install:

Please open the "TIME" folder, for example: 2016-04-12, 23: 59: 59 A1

Please be sure to change [A1] by content.

[B1] ----- Motion Detection Recording Resolution [1920 * 1080pix]

[B2] ----- Motion detection Recording resolution [1280 * 720pix]

[B3] ----- Motion detection Recording resolution [640 * 360 pix]

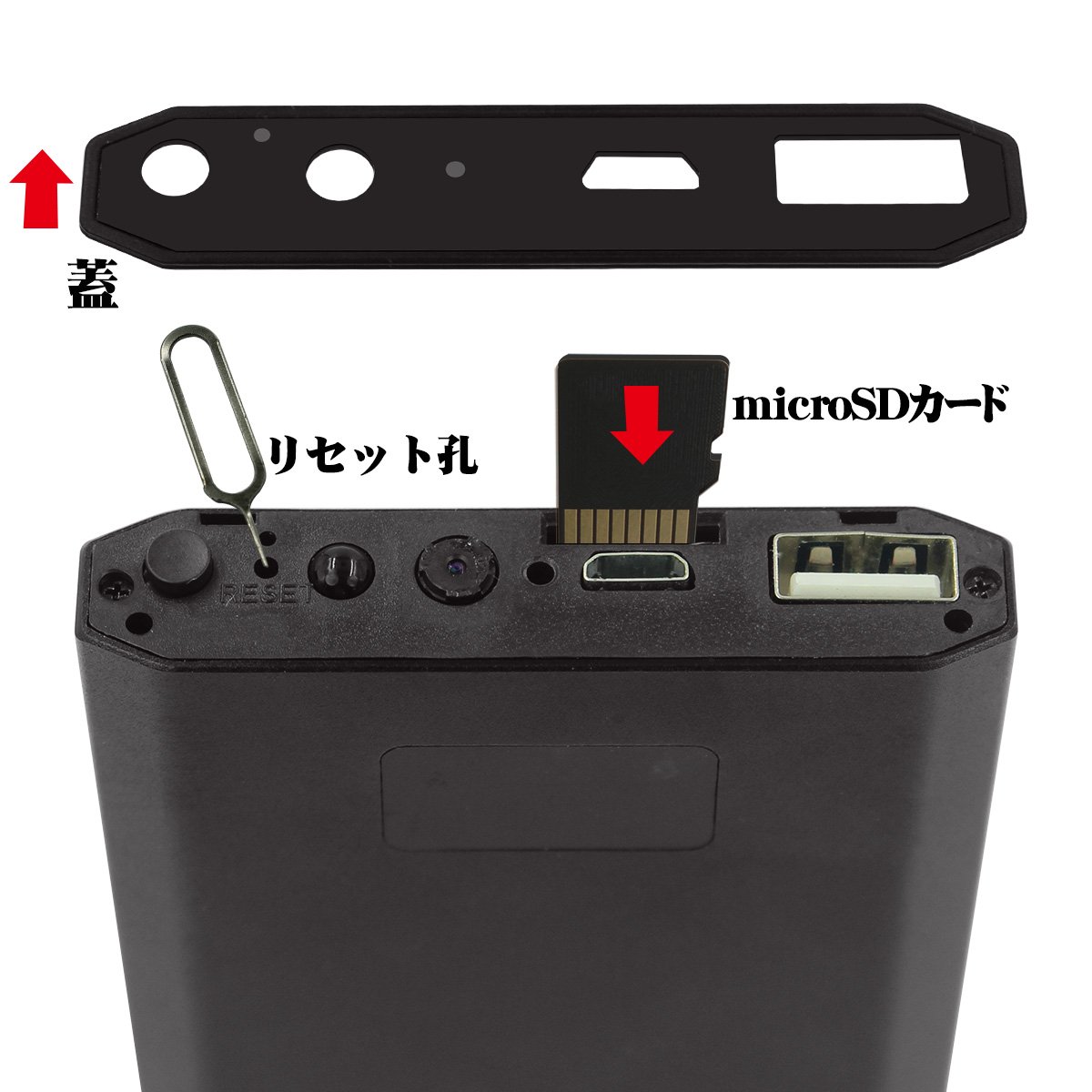

About inserting microSD card

After opening the lid, please insert the microSD card into the microSD card slot, please push it once again when you remove it.

reset:

This device can be reset to this device if it becomes freeze, button invalid, it can not be used normally, and so on.

Please insert it in the reset hole with a kind of pin, reset it if the indication lamp is annihilated.

After resetting, it can be used normally.

The infrared light opened by using the camera shooting function of the smartphone will be visible.

Infrared start off:

When recording, when the power button is short pressed, the red lamp lights up and the blue lamp flashes twice, the infrared start up.

If the power button is pressed again for a while, the red lamp lights up and the blue lamp flashes with 4 times, the infrared ray turns off.

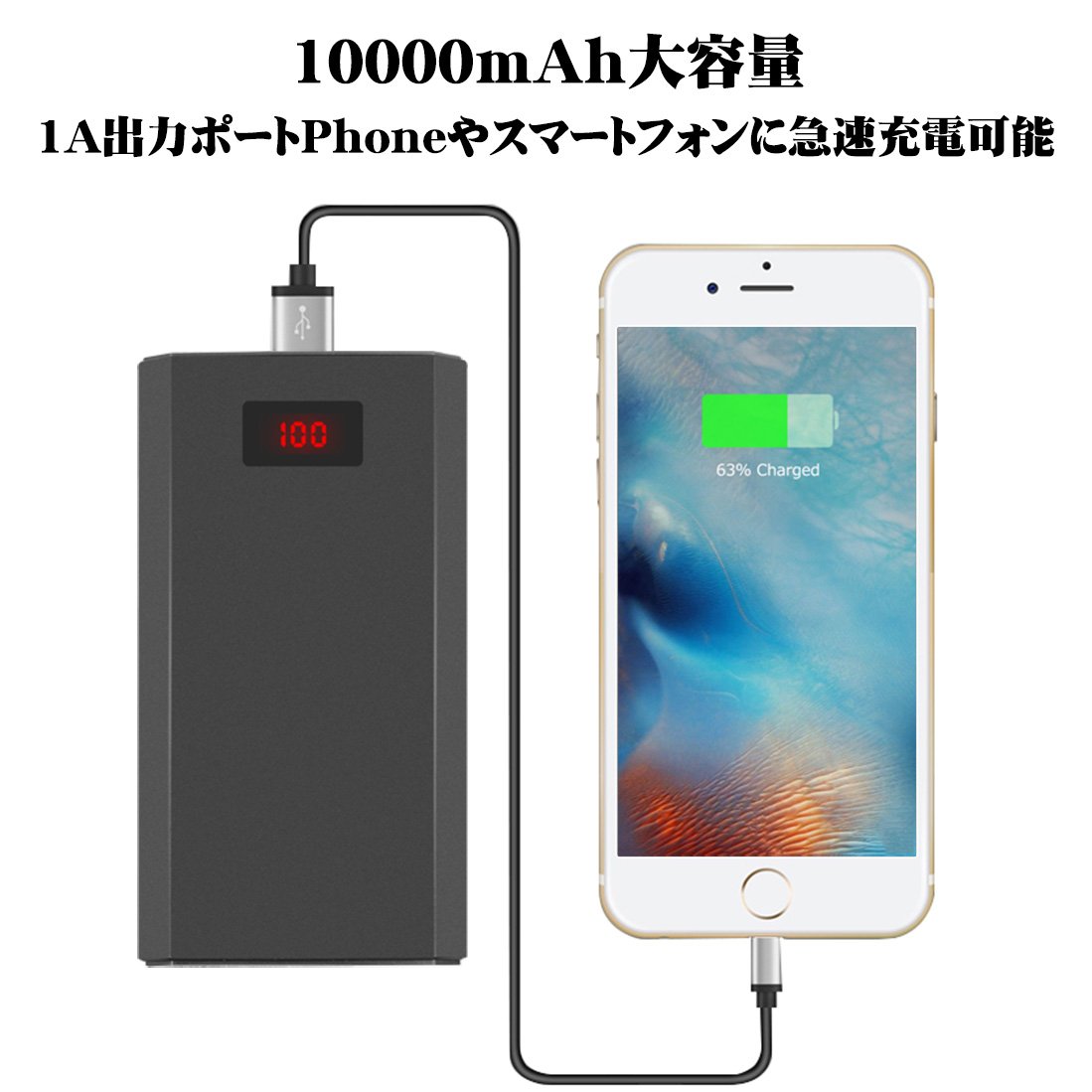

Charging function for iPhone and smartphone

With the USB cable for charging the iPhone or smartphone When you connect to the USB output port and the iPhone or smartphone, you can immediately charge the iPhone or smartphone and you can see the remaining amount of electricity.

【set content】

Body · USB connection cable · Lid (for spare)

Reset pin · Japanese instruction manual · Service card

【security】

SeiTang manufacturer's warranty is attached to this product.

We will exchange new items only in case of trouble based on correct use from purchase.

If you have any questions on the product please do not hesitate to contact us.

In the unlikely event of initial failure, please do not hesitate to contact us.

Features:

• Please enter model number Confirm this is compatible:

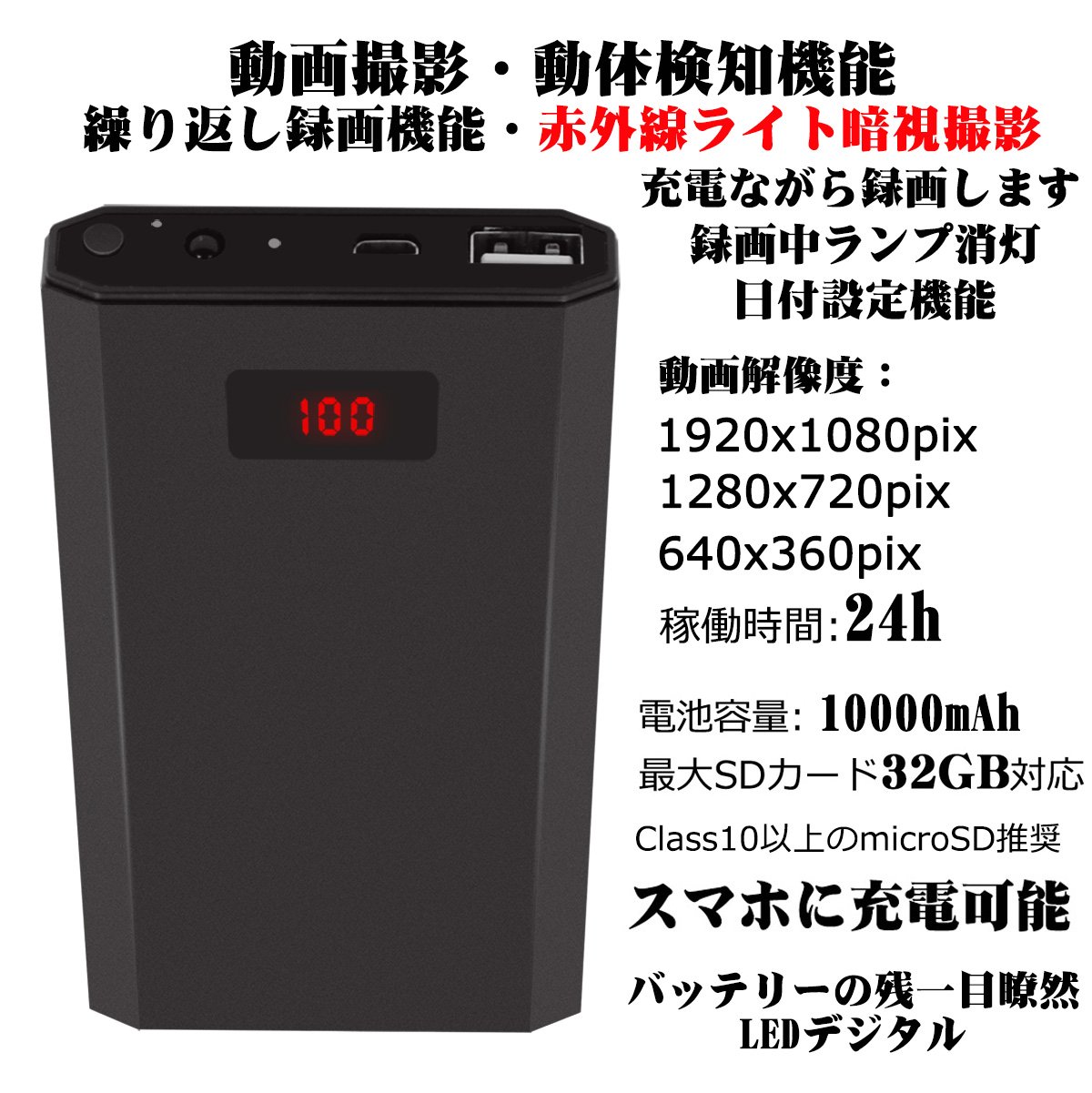

• 【New model】 Mobile battery type video camera, movie shooting · motion detection function · infrared light night vision function · repeated recording function · external power supply compliant · date setting function · 1A output port Fast charge to Phone and smartphone.
• 【High Quality / High Resolution】 Selectable from 3 different sizes, sharp images can be shot up to the detail of full high vision of 1920 × 1080pix, others 1280x720pix, 640x360pix are available.
• [Motion Detection Function] Equipped with a motion detection function that automatically starts and stops recording in response to the surrounding movement, it reduces unnecessary recording in dynamic detection recording, and it has become possible to use for a long time.
• [Night vision shooting function] With invisible type infrared light shooting with confidence in the dark, lighting the infrared light, it is possible to shoot within the illumination range even in perfect darkness, because one light is invisible so that it is invisible to security records
• You can use it.
• 【Long-time shooting】 Built-in mobile battery with large capacity 10000 mAh Maximum operating time Approximately 24 hours, shooting is finally realized while charging, repeated recording function + maximum microSD 32 G correspondence, long time shooting without worrying about battery
• It became possible.
• [Actual chargeable] Actually able to charge iPhone or smartphone, you can use it as a charger with your cable.
• 【Caution】 Before using, format microSD card on PC, when formatting, be sure to select 32 KB or more in "Allocated cell size", otherwise the microSD card shooting rate will be
• If it is not enough, the picture recording may not be done smoothly.

Product information:

Shipping Weight: 322 g

Package Dimensions: 3.00 x 9.19 x 16.99 cm
