Drones Accessories Type:
Video Downlink
Size:
123x80x14.5mm
Frequency:
5.8Ghz,32CH
Working time:
2 hours
Build in battery:
2200mAh
Display:
4.3 inch
Resolution:
480*272P
Brightness:
500cd/m2
Ratio:
16:9
Audio Bandwidth:
6.5Mhz

Free Shipping!4.3" TFT LCD Screen Monitor Displayer Built-in 5.8G 32CH Receiver for FPV Multicopter F408 with Battery 2200mAh

C0149Black
Features:
1,4.3" LCD Wireless receiver monitor
2,32ch,4bands Frequency
3,CNC aluminium bracket,and easy installation to remote control
4,Hight brightness
5,Auto search frequency
6,Built-in battery design
7,Work status OSD display: Battery indication and Channel indication
8,Multi-language operation: Support Russian,English,Chinese,Gremany,Spain
C0149Black (1)C0149Black (2)
Note pls!Listing doesn\'t include any remote control!

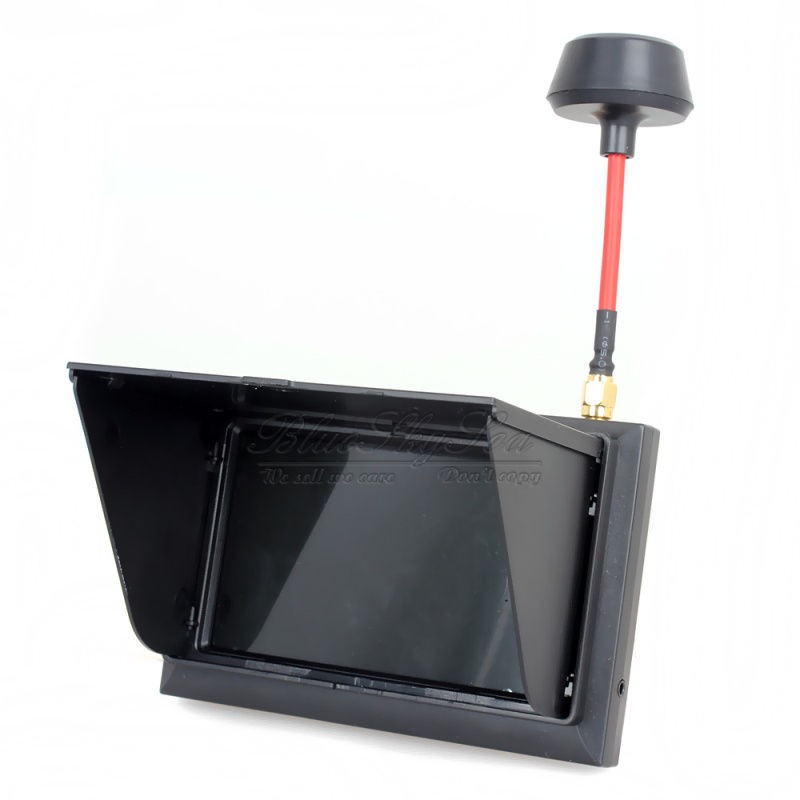

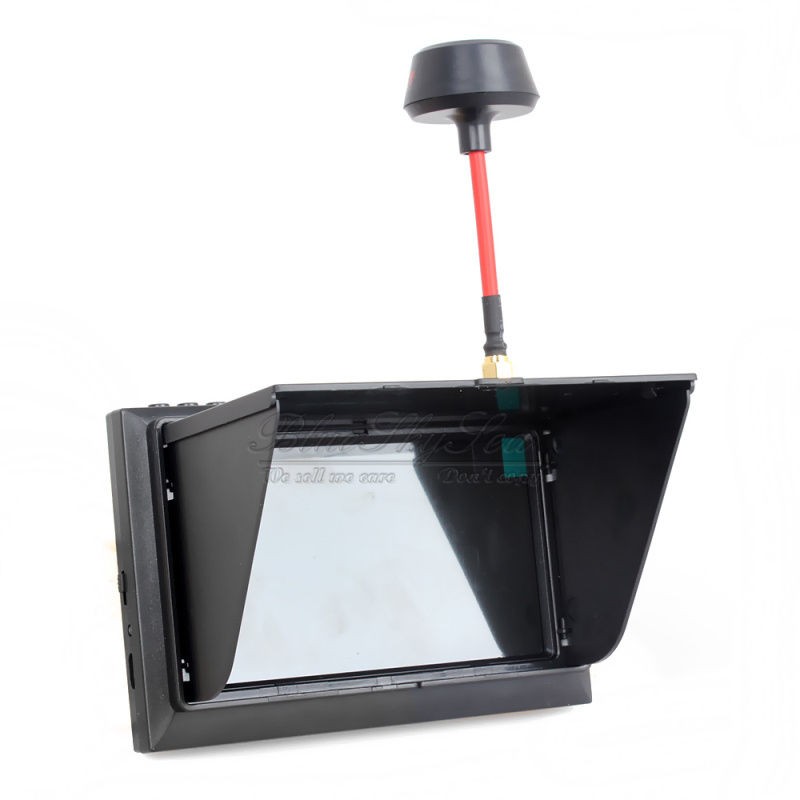

This F408 FPV monitor is a small sized 4.3" screen with a super bright LCD and 5.8GHz 32CH diversity receiver,and built-in rechargeable battery.Excellent choice for your FPV monitor,or as a secondary backup screen for your friends to watch.

The 500cdm² is plenty bright for outdoor applications where you need a bright screen,and the included sunshade will help keep unwanted light off the screen,reducing glare.

The integrated rechargeable battery keeps your FPV ground station compact and easy to use.

The F408 features with 4 bandsand 32 channel swith easy to use push buttons and an auto search feature.

This monitor will not go to ablue or black screen when video signal is lost or static.Perfect FPV application where you don\'t want your screen to go blank when the video signal is weak.
Note pls!listing doesn\'t include any drone or camera.
C0149Black (7)C0149Black (8)C0149Black (9)C0149Black (10)C0149Black (11)

Specifications:
Screen Size :4.3 inch
Screen Type :TFTLCD screen long life
Resolution:  480x272pixels
Aspect Ratio 16:9
Brightness: 500cd/m2
Video Format NTSC/PAL
Input Signal AV
Working Voltage 5V
Power Consumption 500mA
Working Status OSD display :Battery indication,Channel inaction
Built-In Rechargeable Battery 2200mAH
WorkingTime 2hours
Dimension 122.7 x 80 x14.5 mm
Sensitivity: -90dBm
Frequency Range: 5645MHz-5945MHz
Channel 32channels
One-Key-Search Frequency---Yes,button control instead of  switch
Audio 6.0MHz-6.5MHz
C0149Black (12)C0149Black (13)C0149Black (14)C0149Black (15)C0149Black (16)
How to install on remote controller? (Remote controller NOT includes in package)

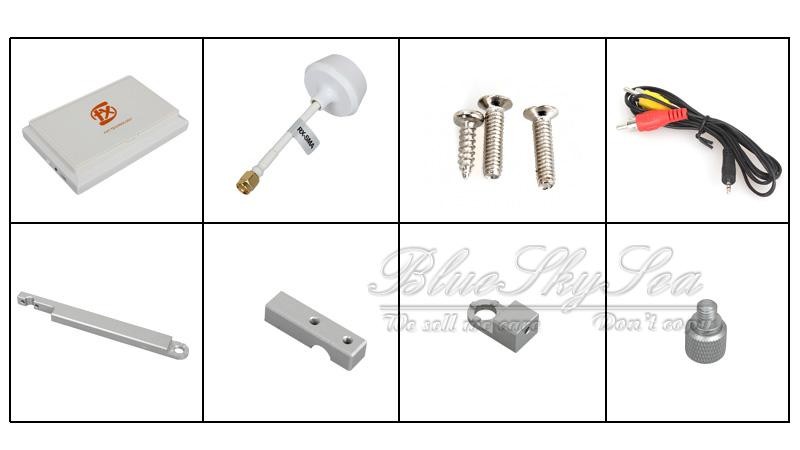

Packing List:
1 x F408 Monitor W/5.8GHz 32CH (Raceband) diversity receiver -Black color
1x Built-in rechargeable battery (2200mAh LiPo )
1 x 5.8GHz Circular Polarized Antenna
1 x Aluminium bracket
C0149Black (5)C0149Black (18)
';
Unit Type:
piece
Package Weight:
0.350kg (0.77lb.)
Package Size:
15cm x 12cm x 8cm (5.91in x 4.72in x 3.15in)
