Product Description

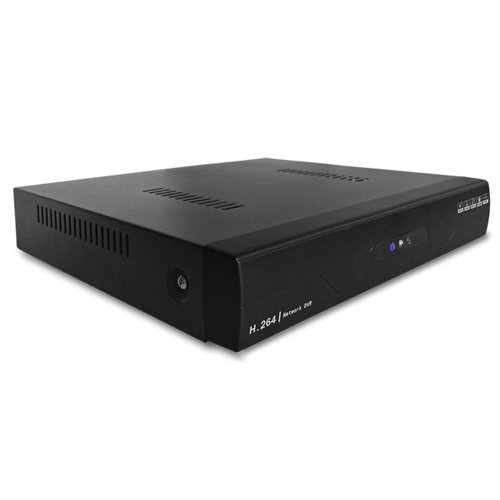

Video Compression: H.264

Video System: NTSC/PAL

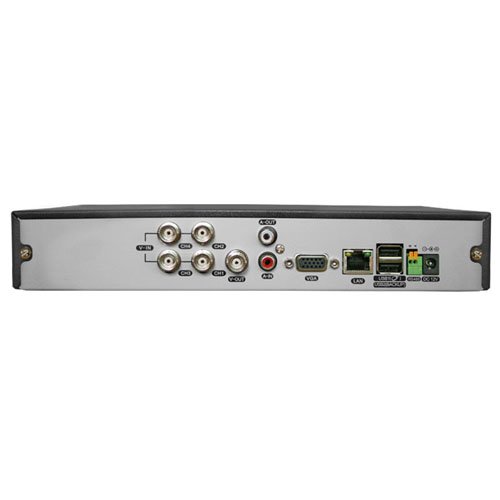

Video Input/Output Interface: BNC

Video Input: 4 Channel

Video Output: 1 Channel

Other Video Output: VGA

Net Protocol: DHCP and TCP/UDP

Remote Access: Remote Client Software and IE Browser

PTZ Control: RS-485

HDD Interface: SATA, Support between 250GB and 2TB

HDD Port: 1

Built-in HDD: No

Playback Mode: Frame by Frame, Fast Rewind, Fast Forward, Normal Play

Synchronous Playback (Channel): 4

USB: USB Backup/USB 2.0

Power Supply: 12V DC

Dimensions (LxWxH): 260 x 230 x 45

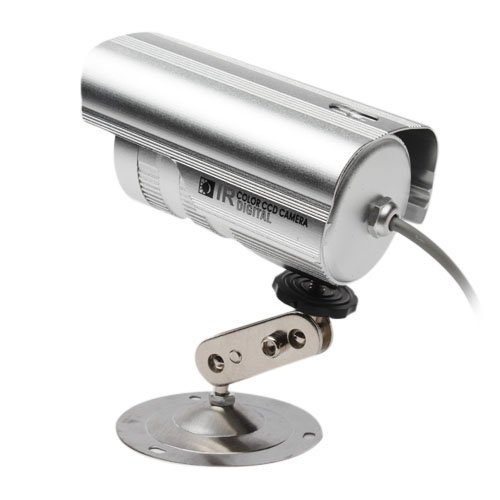

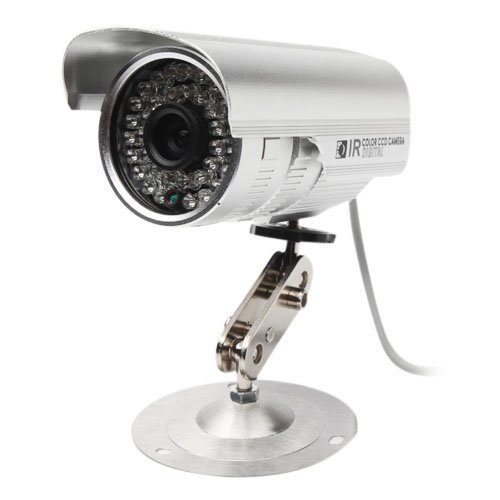

Bullet Camera Image Sensor: 1/4" Color CMOS

TV System: PAL/NTSC

Effective Pixels: NTSC: 768 (H) x 494 (V)/PAL: 752 (H) x 582 (V)

Lens (mm): 6

Maximum IR Distance (m): 20~25

Features: Waterproof, Auto White Balance

Minimum Illumination: 0.0 Lux

S/N Ratio: ≧ 50dB

Video Output: 1.0Vp-p, 75ohms

Operating Temperature: -25°F~122°F / -32°C ~50°C

Power: 12V DC

Dimensions (LxWxH): 150 x 60 x 60

Gross Weight: 0.73 lbs

Material: Metal Shell

Feature

Video Input:4 Channel; Audio Input / Output:RCA 1-Channel Input / RCA 1-Channel Output
Display Frame Rate:NTSC: 120 fps @D1 / PAL: 100 fps @D1; Display Resolution:NTSC: D1(704 x 480)/ PAL: D1(704 x 576)
Recording Frame Rate:NTSC: 120fps @CIF / PAL: 100 fps @CIF; Bullet Camera Image Sensor:1/4" Color CMOS
Effective Pixels:NTSC: 768 (H) x 494 (V)/PAL: 752 (H) x 582 (V); Lens (mm):6

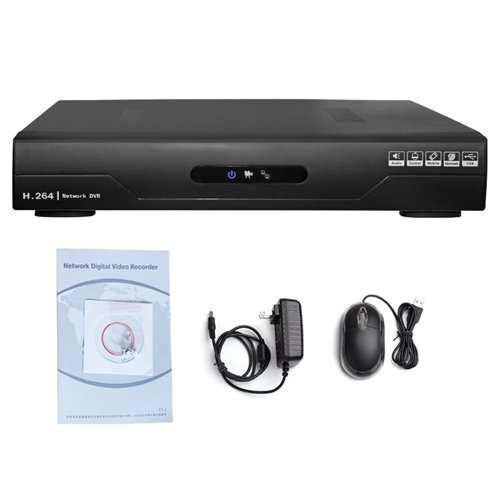

What's in the box 12V Power Supply × 2, 66ft Cable × 4, Bullet Camera × 4, 1 To 4 DC Line × 1, User Manual - English × 1, Software CD × 1, Mouse × 1, DVR × 1
Brand : LightInTheBox
MPN(PartNumber) : 00782719
