Item Descriptions:

color:

R50 SEEKER-blue PVD

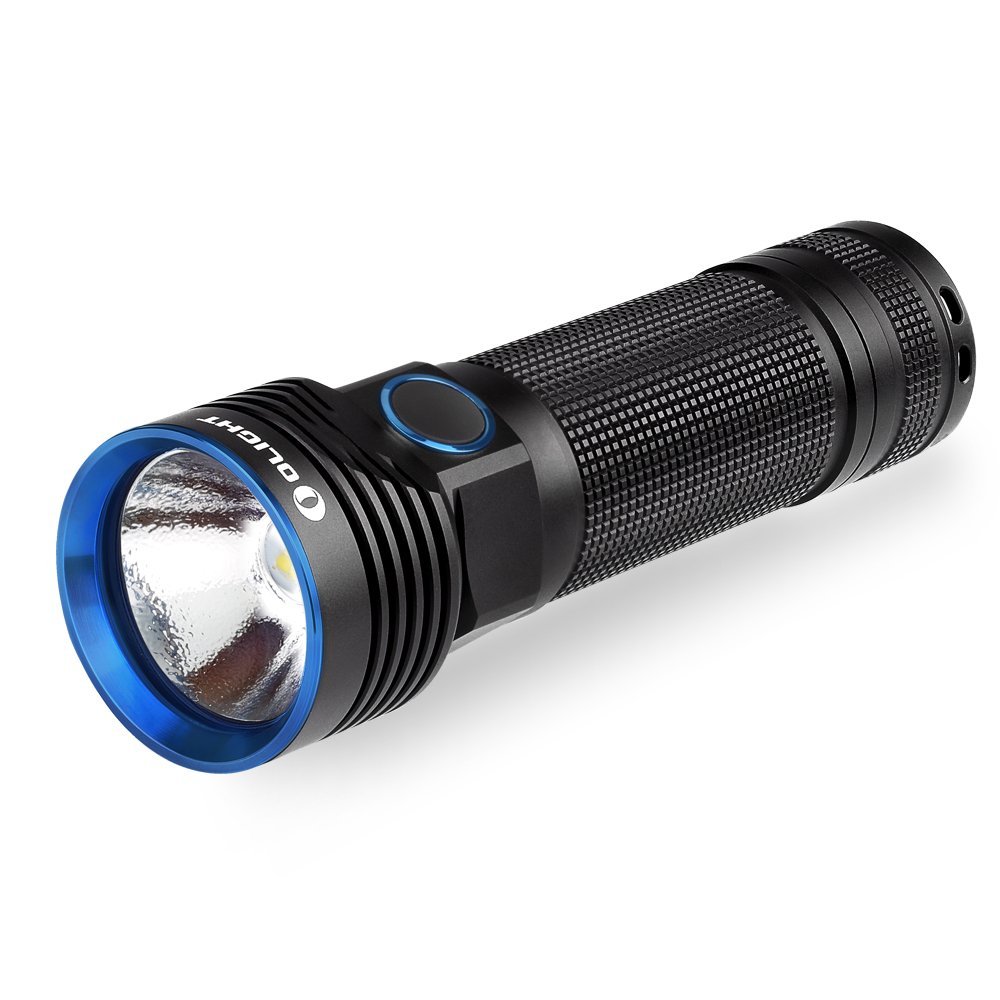

OLIGHT New R50 SEEKER, small size high performance LED flashlight!

Ultra high power LED of CREE

Cree XLamp XHP 50

Equipped with MAX 2500 lumen brightness high power LED flashlight!

4 steps brightness switching function + strobe mounted!

It comes with a dedicated charger, Olight 26650 Lithium rechargeable battery with a large capacity type of 4500 mA, you can charge it immediately, use a small charger with a USB port plug in the outlet before using.

very convenient!

Specification:

LENS: PMMA TIR lens

Material: Aircraft aluminum alloy

LED light: Cree XLamp XHP 50 LED loaded

MAX 2500 lumen

There are 4 kinds of brightness

+++ Mode 1: (2500 lumens (2 minutes) - 800 lumens, 150 minutes)

+++ Mode 2 (1200 lumens, 12 minutes, - 800 lumens, 130 minutes)

+++ Mode 3: Mode 3 (300 lumens, 6 hours)

+++ Mode 4: Mode 4 (50 lumens, 50 hours)

Waterproof rating: IPX 8

battery:

4500 mAh 26650 Battery

With

Light irradiation intensity: 22000 CD

Irradiation distance: approx. 297 meters (MAX)

Total length: about 133 mm

Diameter: about 42 mm

Weight: Approximately 255 g (including batteries)

Warranty period: 5 years

IPX8 also has waterproof performance, so we will recommend it for disaster prevention, work site etc!

Surface treatment on the main body of the product is HA - Ⅲ, O - ring at the tip is a phosphorescent specification (GITD).

In the image, the condition of light emission looks conservative, but it is noticeable if it is a dark place.

Switch boots are silicone rubber materials.

The appearance is pure black, but it is actually translucent, and when it is lit it will look red.

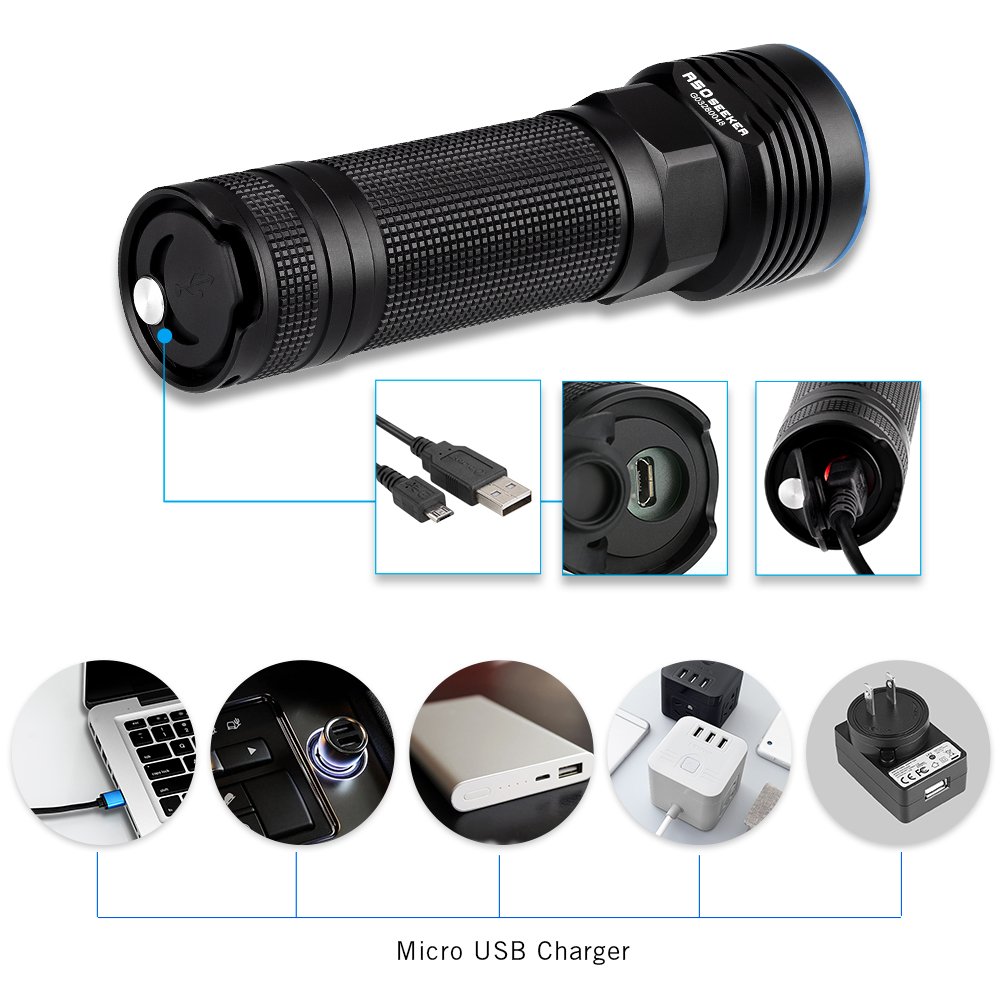

The charging port (micro-USB) is covered with a rubber cap.

It digests firmly into the port and the cover itself is also fixed with screws, so it will not unexpectedly open or fall off.

Charging:

Insert the battery from the [+] pole.

The attached battery is 26650 type · 3.7 v / 4500 mAh.

When charging the [-] pole of the battery, the center is [-] and the periphery is [+], and the rear cap is also provided with two electrodes in accordance with this charging polarity

Please operate R50 only with the included 26650 rechargeable battery.

With low voltage warning function, the switch lights red when the battery capacity decreases.

For charging, attach a US plug attachment to the included adapter,

Charging adapter,

Blue LED lights up when energized without connecting USB cable

To do.

If the blue LED does not turn on even if you insert the charging adapter into an outlet, discontinue use immediately as there is a high probability that the plug / attachment is improperly installed or broken.

When connecting the charging adapter and the R50 main unit with the USB cable, the port on the R50 glows red.

When charging is completed, the port changes from red to green.

Method of operation:

ON / OFF: Please tightly tighten the tail cap before use.

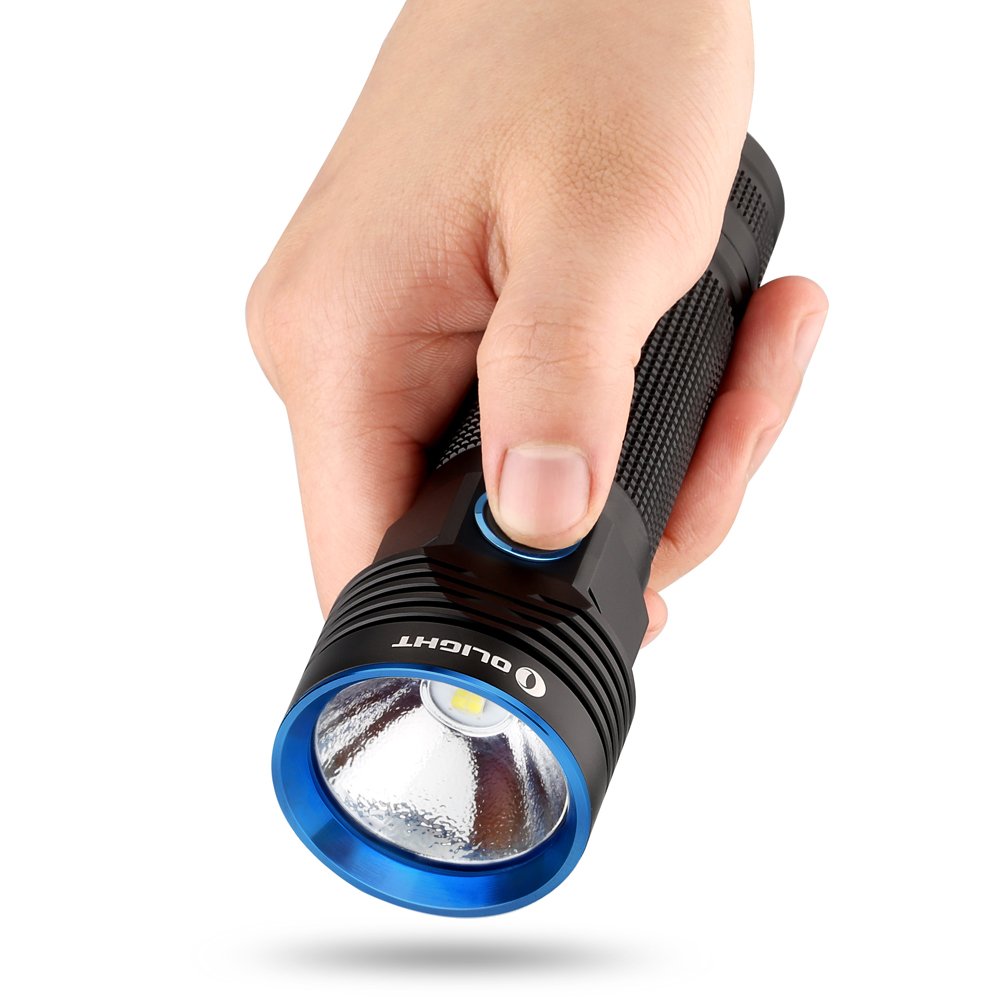

When you click the side switch, the light turns on.

When you click again while lit, it goes out.

Switching the brightness mode: While the light is on, you can change the brightness mode by holding down the side switch for a long time.

The brightness changes in the order of LOW (medium) → MEDIUM (middle) → HIGH (strong), and circulates.

It will be confirmed if you release your finger at the time of your favorite mode.

Turbo Mode & Strobe Mode: Double clicking on the side switch quickly makes the turbo mode more powerful than HIGH mode.

Likewise, if you triple-click quickly, it will be in flash mode.

Memory function (AUTO): R50 automatically memorizes the last used brightness, once it goes out and lights up again, it will be in the brightness mode used last time. For the HIGH (strong) mode

, It is remembered as HIGH (strong) mode for 10 minutes after turning off, but after 10 minutes or more it is stored as MEDIUM (medium) mode.

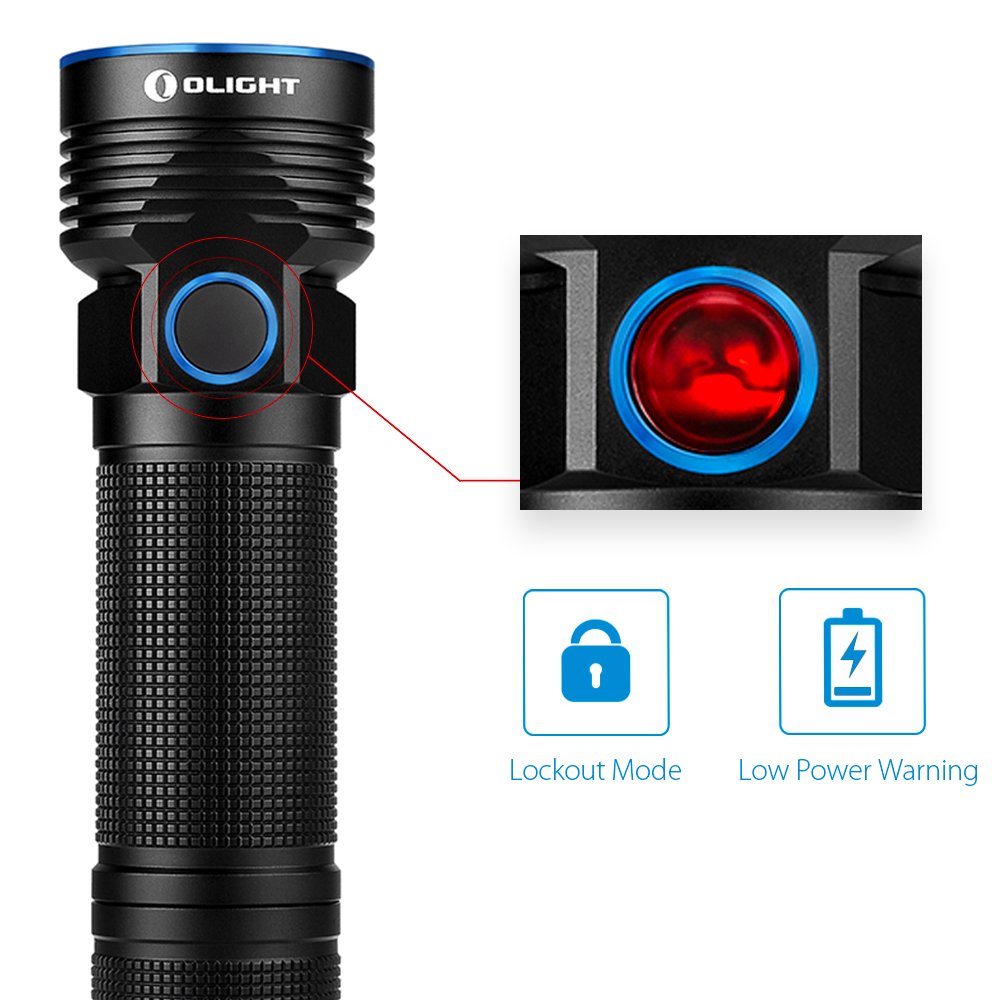

Lockout function:

R50 has

Lockout function to prevent erroneous lighting is installed

It has been.

If you press and hold the switch for 2 seconds when it is off, it goes out after lighting with [Low] for a short time.

When you release your finger from the switch at this point, the switch operation of R50 is invalidated and the lockout state is entered.

When trying to operate the switch with the lockout status, the indicator lights in red, indicating that it is locked out.

To release lockout, press and hold the switch again for 2 seconds or more

When it is pressed for a long time, it lights with [Low]

When lockout is released, if you hold down the switch as it is, it shifts to the next mode

To do.

(* Lockout will be canceled when lighting with [Low])

In case

The R50 is a product of a considerably wide angle, flood type (diffusion system), zodon and thick spot light, the ambient light is also uniform and spread in the center.

It has a high texture of the main body such as a phosphorescent ring at the tip of the head, the indicator of charging port (RED → GREEN), low voltage warning, 26650 lithium ion rechargeable battery, charger & cable, all necessary items are provided

The LED chip is equipped with a US CREE model, XHP 50 cool white, Max: even at 2,500 lumens because it is a diffused light distribution, it is not suitable for use to illuminate distant but high power flashlight that can be taken outdoors easily is wrong

Absent.

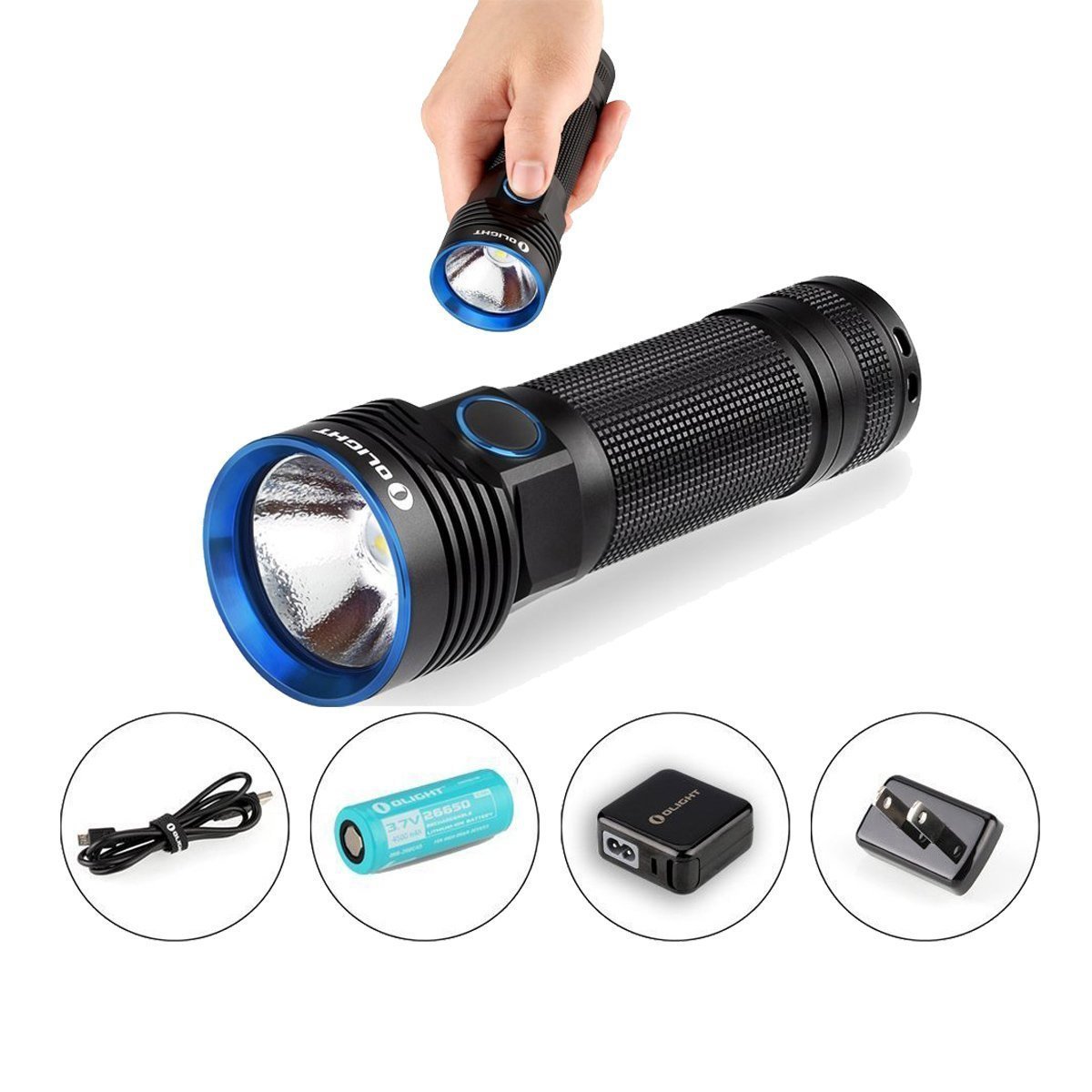

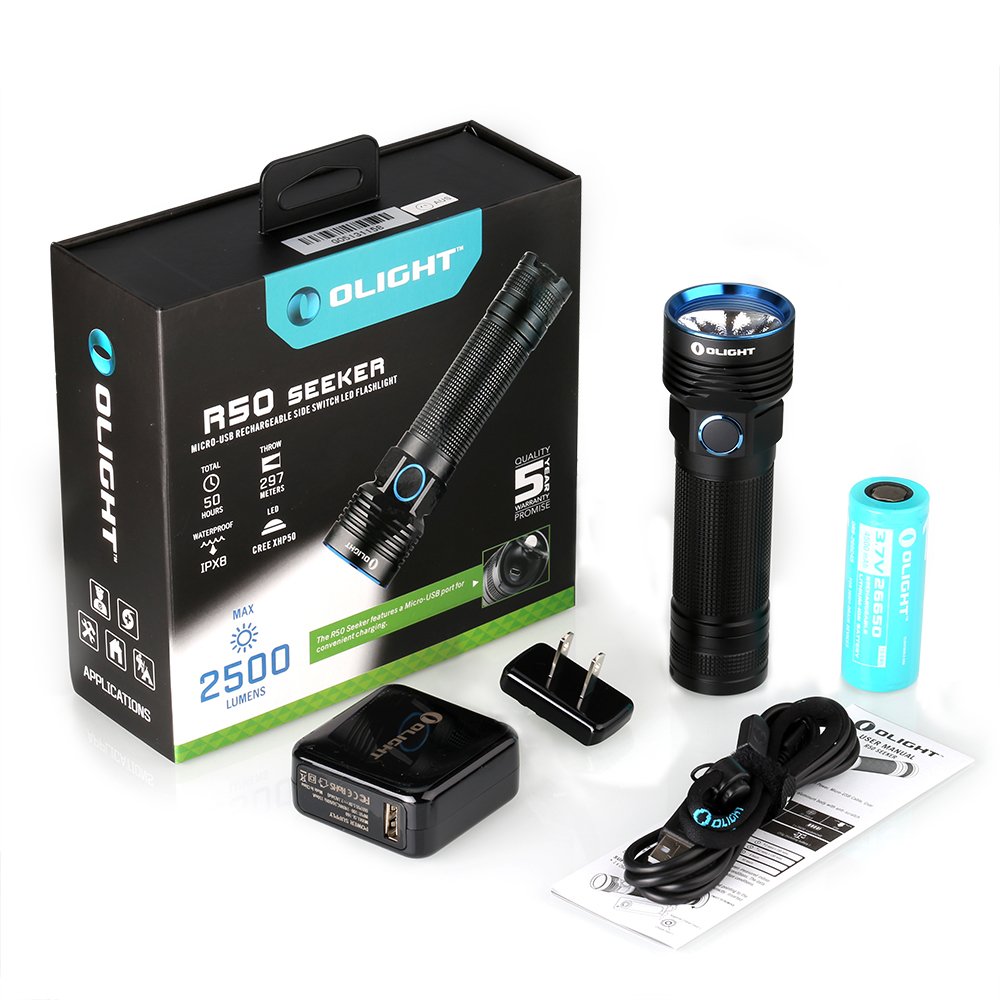

Package list:

R50 SEEKER main unit

Micro USB cable (1 meter)

User manual (with Japanese manual)

4500 mAh 26650 battery

strap

Charger

Features:

• With CREE's latest ultra-high power LED Cree XLamp XHP50, MAX 2500 lumens brightness high power LED flashlight!
• 4 steps brightness switching function + strobe mounted!
• LED powerful flashlight!
• It comes with a dedicated charger, Olight 26650 Lithium rechargeable battery with a large capacity type of 4500 mA, you can charge it immediately, use a small charger with a USB port plug in the outlet before using.
• very convenient!
• Waterproof performance is excellent waterproofness of IPX 8 weatherproof specification, so it is safe as it has an instruction manual in Japanese notation!
• It is safe because it has an instruction manual in Japanese notation!
• Olight has absolute confidence in our products.
• For that reason, we offer 5 year warranty and high quality customer support for all products.
• ※ Note: Please note that Olight products only Olight® Direct JP is an authorized dealer!

Product information:

Shipping Weight: 625 g

Package Dimensions: 6.20 x 16.89 x 18.29 cm
