Wifi Range Extender, ELEGIANT AC750 Mbps 2.4/5GHz Dual Band Wireless WiFi Repeater Signal Amplifier Booster Supports Repeater/ Access Point/ Router Mode with Network Interface Black












150Mbps

Product Description

Noted:
1. When you connect the WIFI signal of the router, enter 192.168.10.1, then you can set the router connection.
2. Why the WiFi extender could not boosts the WiFi speed?
A:Please note that this extender only extends the WiFi coverage, could not BOOST the speed of your original router or hold the same speed of the original router.
Features:
1.1 10/100Mbps Ethernet port can be used for the relevant extension;
2. Meet IEEE802.11b / g / n standards;

Product parameters:
Hardware Specifications: RTL8196EU + RTL8192ER chip solution
Antenna Specifications: 2 * 5dBi external omni-directional high-gain antenna (not removable)
Wireless Standard: Support IEEE802.11b / g / n standards;
Wireless transmission rate: 11b: 1/2 / 5.5 / 11Mbps
11g: 6/9/12/18/24/36/48 / 54Mbps
11n: 300Mbps
RF parameters:
Maximum transmit power: 50mW (17dBm)
Maximum receiver sensitivity: -96dBm
Operating frequency: 2.4 - 2.4835GHz

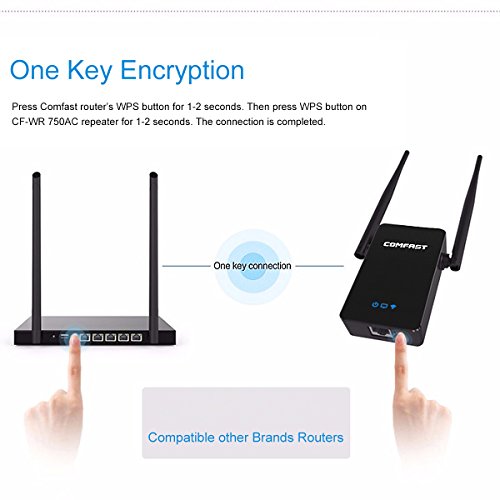

Button: a WPS / RST button
Physical interface: a 10 / 100Mbps LAN / WAN RJ45 Ethernet port
LED: power status, network interface status, WiFi Status
Power supply: 100 - 240V, 50 / 60Hz
Channel bandwidth: 20/40 MHz Auto
Security features: WPA-PSK / WPA2-PSK
WPA / WPA2
Operating modes: relay mode (PC side: AP / repeater / router)
Other: a key settings, scan code set (mobile terminal, PC terminal double WEB interface)
Shell: imported ABS material, plastic shell

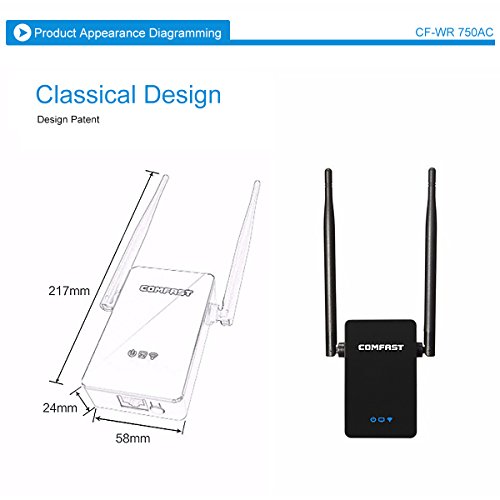

Physical Characteristics: Dimensions: 8.5 * 2.3 * 1 Inches(217 * 58 * 24mm)
Environment: Operating Temperature: 0 ? - 40 ?
Storage temperature: -40 ? - 70 ?
Humidity: 10% - 90% RH non-condensing
Storage humidity: 5% - 90% RH non-condensing

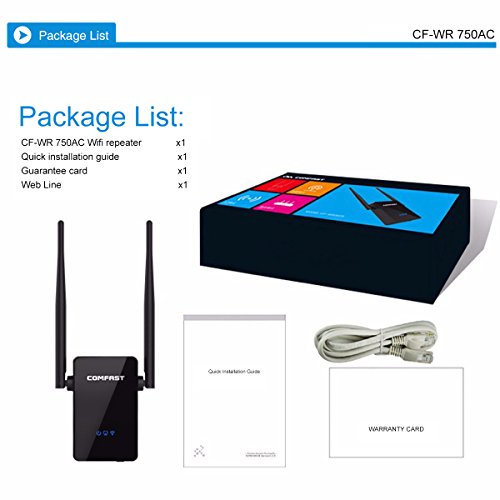

Package includes:
1 x Wi-Fi Repeater
1 x RJ45 Cable
1 x Manual

Feature

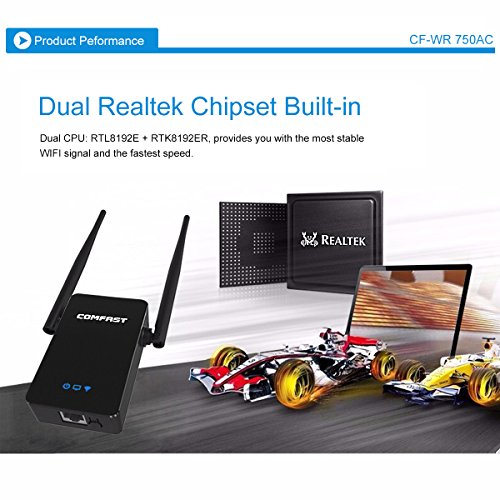

【Dual Band Technology】: Built-in Dual Realtek Chipset (RTL8196EU+8192ER), doual band, reliable 2.4GHz/5.8GHz wireless network speed up to 750Mbps , which ensure strong signal from the CPU. It can be going through very well and extend WiFi coverage to long distance.
【3 in 1 Function】: Router mode, repeater mode, access point mode. Intelligent roaming, automatically connect the strongest signal source.
【Network Interface】: The Network Interface can connect any wired device such as a smart TV, multimedia player, game console or PC to your wifi network, work as a media bridge.

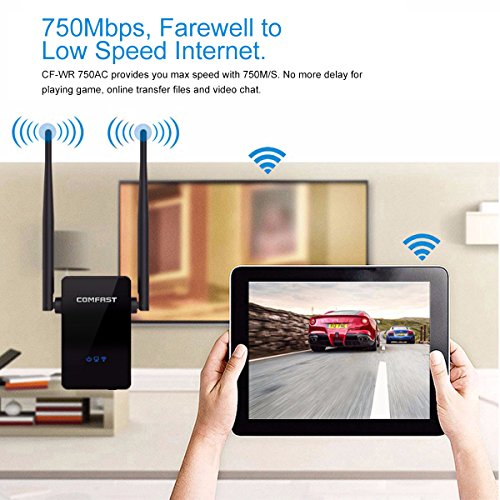

【Running Speed】: 750Mbps, farewell to low speed internet, provides you max speed with 750m/s, no more delay for playing game, online transfer files and video chat.

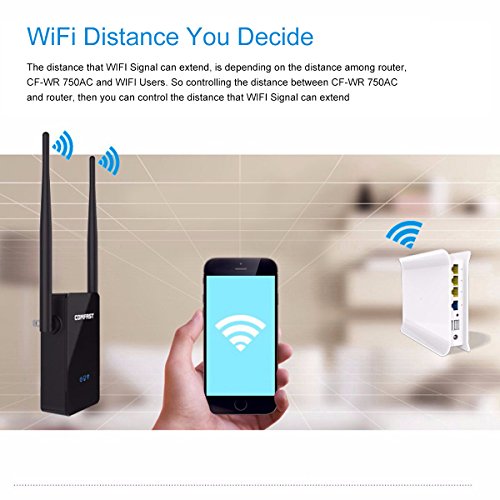

【Coverage Area】: AC750 wireless wifi repeater, dual realtek chipset built-in, wall-througn wifi extender, 360 degree wifi coverage. Its main function is boost the range of your existing WiFi and create a stronger signal in hard-to-reach areas. Reduce 3G/4G mobile data charges by connecting to wifi at home.
Brand : ELEGIANT
Item model num : ELEGIANTFurmores4504
MPN(PartNumber) : ELEGIANTFurmores4504
Product Dimensions(LxWxH) : 7x5x18cm ; 236 g
Package Dimensions(LxWxH) : 19x10x7cm ; 236 g
