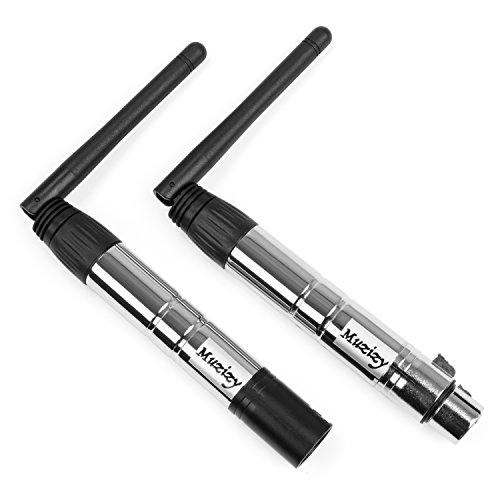

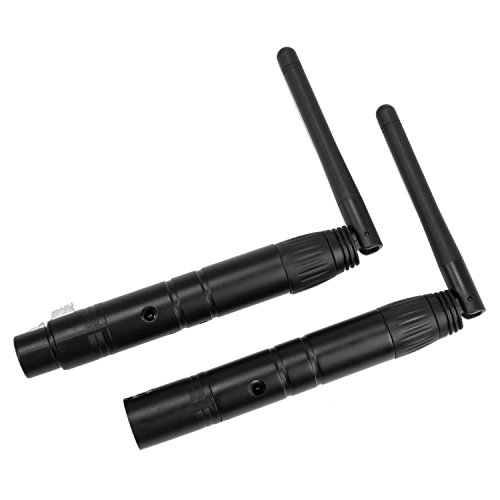

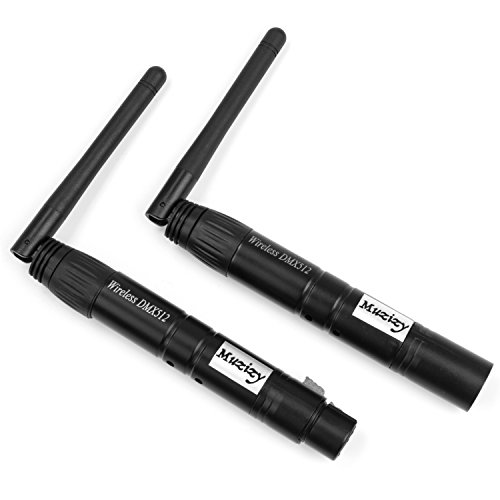

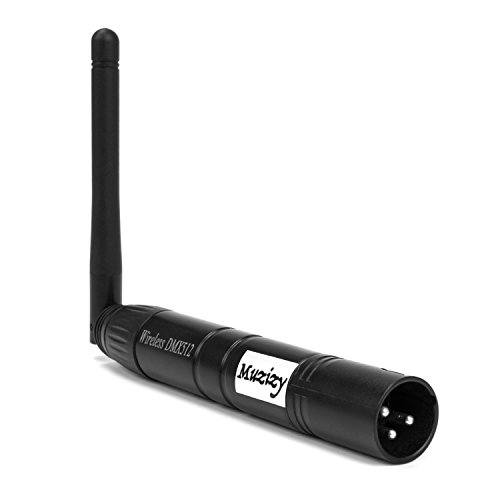

Muzizy 2pcs DMX512 DMX Dfi DJ 2.4G Wireless Receiver & Transmitter Stage Lighting Controller, Black Metal
Product Description
Production Description:
Wireless DMX512 transceiver transmits standard DMX512 console data, but also can transmit between lights' and lamps' online data. The item completely solves wireless transmission between the lights console and lights, lights and lights, fully removed twisted-pair cables.
Specification:
1. 2.4G wireless DMX512 R/T
2. 126 channels jumping frequency automatically, high anti-jamming ability to ensure works reliability
3. 7 groups ID code settable, User can use 7 groups individual wireless net without any interfere.
4. Each other in the same place (Tricolor LED displaying Indicators)
5. Input voltage: 5VDC 500mA MIN
6. Communication distance: 400M (visible distance)
7. Work frequency section: 2.4G ISM, 126 channels, frequency section
8. Max transmitting power rate: 20dBm
9. Modulation: GFSK
10. Power Consumption: ≤ 5W
11. CPU: 32-bit ARM Core
12. Operating temperature: -20 ~ 55 °C
13. DMX signal interface: 3PIN plug
Note : When using it , please pull up and down the antenna ,don't move the antenna heavily .

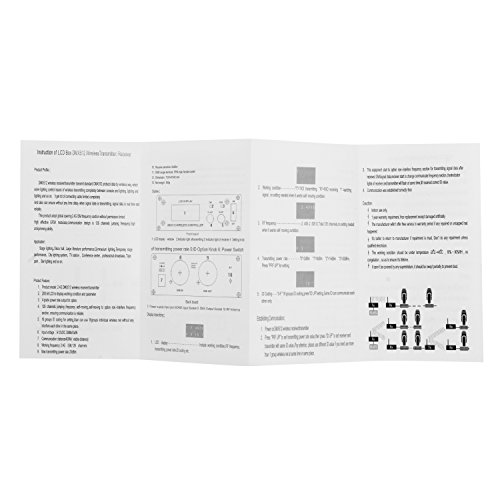

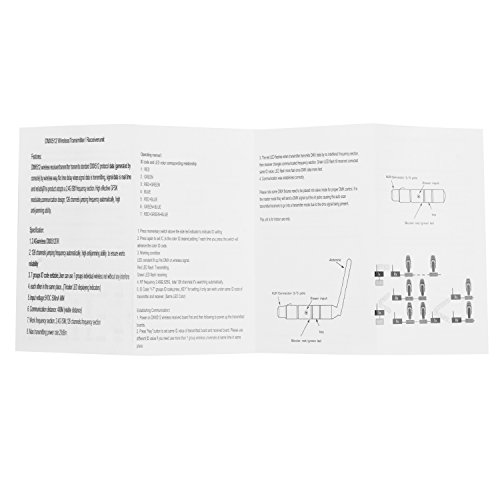

Operating manual
1. Press momentary switch above the side led indicator to indicate ID setting
2. Press again to set IC, to the color ID desired, adding 1 each time you press the switch will advance the color ID code.
3. Working condition:
LED constant lit up:No DMX or wireless signal
Red LED flash:Transmitting
Green LED flash:receiving
4. RF frequency 2.400-2.525G,total 126 channels, it's searching automatically,
5. ID Code "1-7" groups ID code, press 'KEY' for setting, it only can work under same ID code of transmitter and receiver. (Same LED Color)

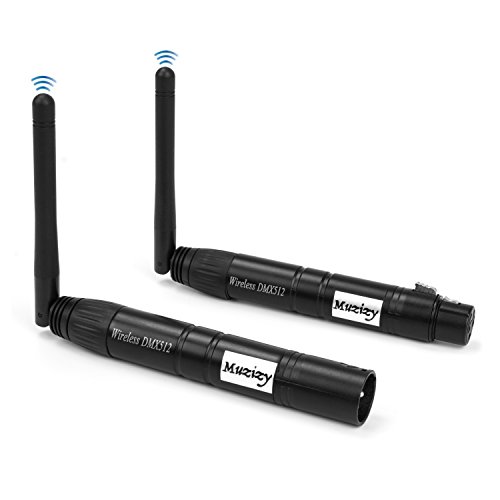

Package included:
1 x Black DMX512 Wireless Transmitter (US Plug)
1 x Black DMX512 Wireless Receiver (US Plug)
2 x Power adapter
Feature
Metal Black Shell. DMX512 2.4G wireless receiver / transmitter transmits standard DMX512 protocol data (generated by console) by wireless way. Without time delay when signal data is transmitting, real-time data and reliable!
