Household check: 80-300V ~ 100A
Note: If you want to measure ABC / three-phase voltage and current at the same time, you must buy 3 instruments, 3-phase 4-wire check 80-300V / 3-phase 3-wire check 200-450V

Note: This instrument with instructions in English, convenient export dealers!

Main Specifications

1. Measurement accuracy: 1% plus or minus 2 words (0.5 and)

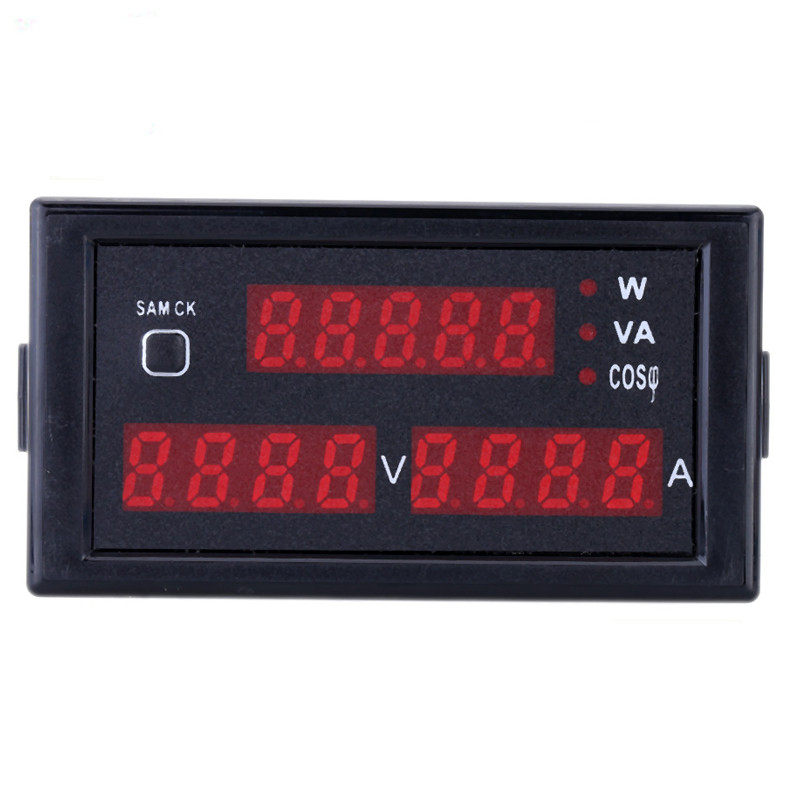

2. Monitor: voltage and current display 4-digit red 0.31-inch LED digital tube, active power, apparent power and power factor 5 red 0.31-inch LED digital tube.

3. Measuring range: AC voltage: AC80-300V 200-450V (according to the device to choose their own measurement range) Home check 80-300V 100.0A

4.Measurement range: AC voltage: AC80-300V (single phase) 200-450V (three-phase) AC current: AC0-100.0A, the current display resolution is 0.01A when the measurement current is less than 100A, the resolution is displayed when the measurement current is greater than 100A Rate of 0.1A, range automatic conversion (automatic decimal point shift) True RMS measurement

5. Active power: (measuring voltage AC80-300V) 0-30000W (AC200-450V: 45000W)

6. Apparent power: (measuring voltage AC80-300V) 0-30000W (AC200-450V: 45000W) Power Factor: 1.000-0.000

7. Measurement speed: about 2 times per second

8. Overall dimensions: 79 (L) * 43 (L / H) * 42mm (Thick)

9. According to size: 76 * 39mm (embedded installation)

10. The instrument is only suitable for pure AC 50-60HZ mains power supply, can not be used for square wave, inverter output and sine wave circuit to correct sine wave measurement, or the instrument will be permanently damaged!

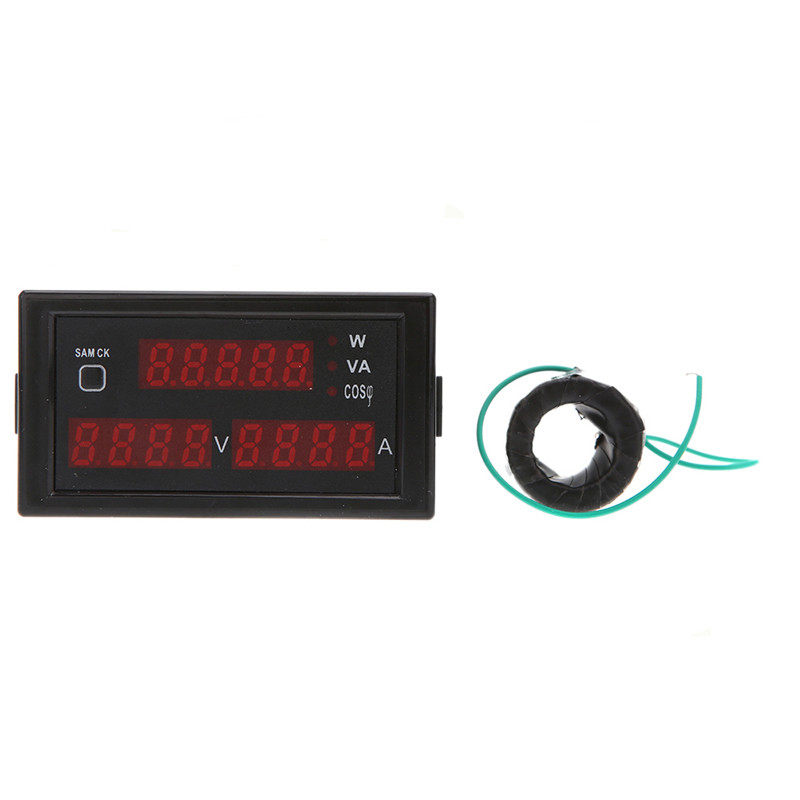

11. Description: Transformer and instrument separation, the transformer can be measured according to the actual location of installed. (That is to say the lead can be extended to the ideal location of the device installed) See baby description of the main map

12. (Transformer hole diameter 15.5mm) to meet the national standard 21-25 square (mm) standard copper through.

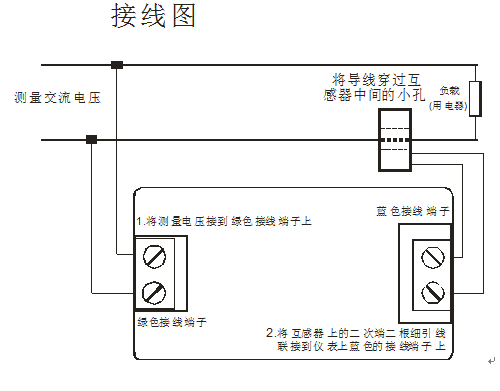

★: According to the installation operation see the following instrument wiring diagram
