Item Descriptions:

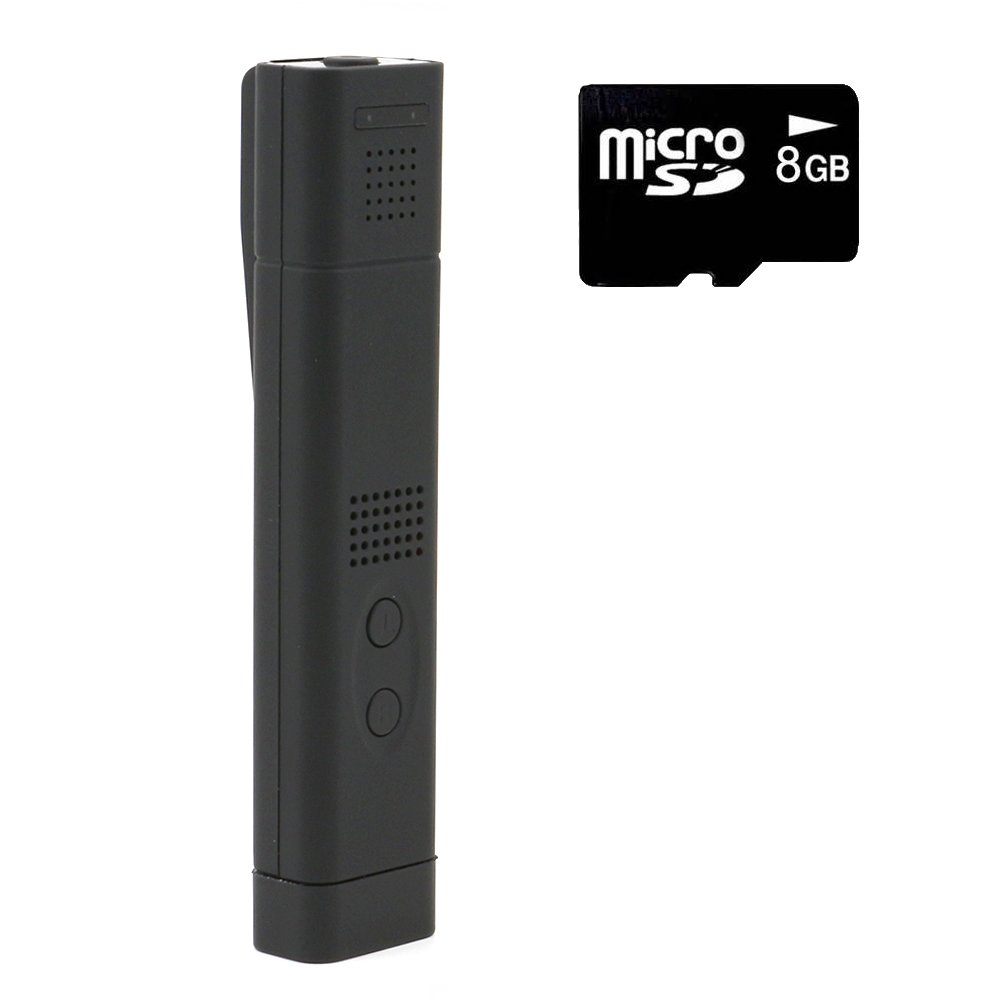

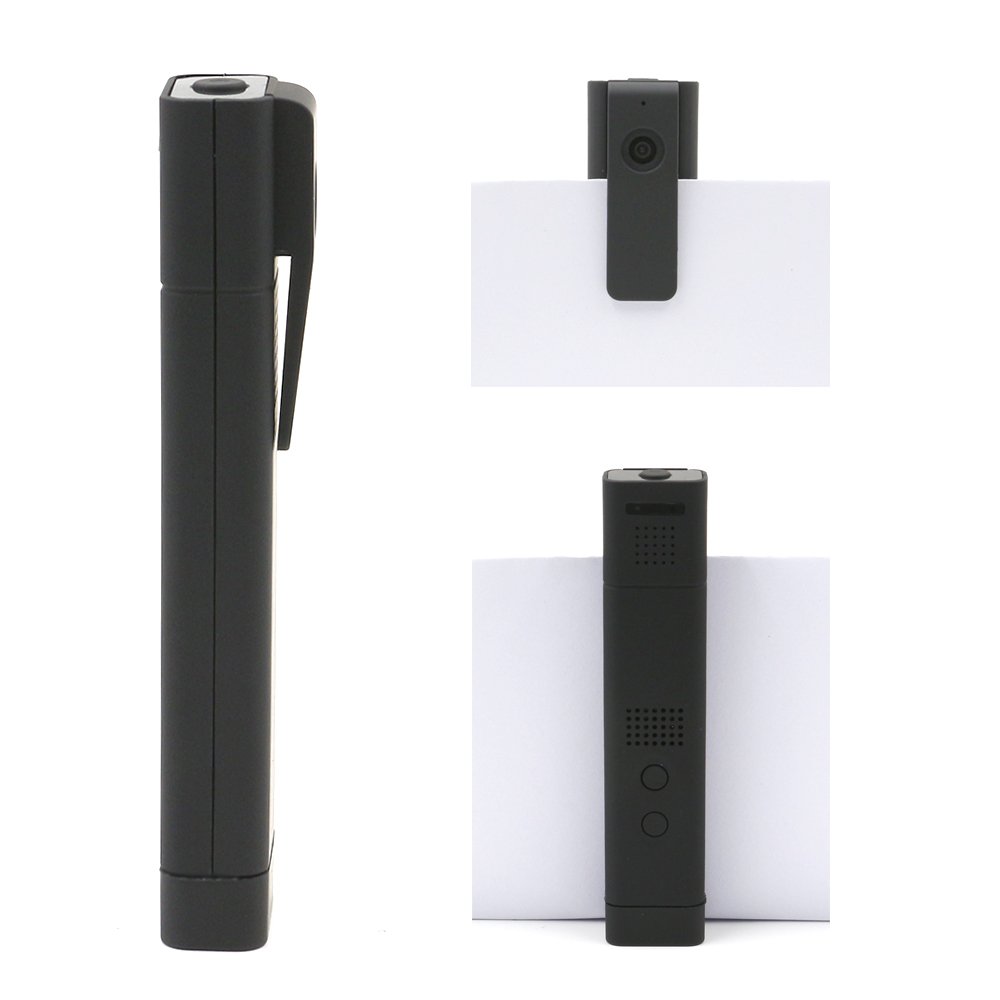

SUPERS Pen clip type size, convenient to carry

Application location: moving picture for diary · photography · security cameras · sudden meetings, records of negotiations · accidents, crime records · sports · lessons and lectures

charging:

The product has a built-in lithium battery, please charge first if you use this machine for the first time.

1) Connect the computer and charge it

2) Blue light turns on during charging, yellow and blue light will light after electricity is filled.

(About 3 hours charging time)

If the item has problems, please contact us

☆ We offer free exchange service

Please pay attention to illegal sellers!

Please purchase the regular product of the brand "SUPERS".

If you purchase from "TEBAK CAM" store other than the store, TEBAK CAM can not be judged as a regular item, it will be out of the scope of TEBAK CAM security assurance.

Please be careful.

"TEBAK CAM" store

Products purchased from,

We offer free exchange service

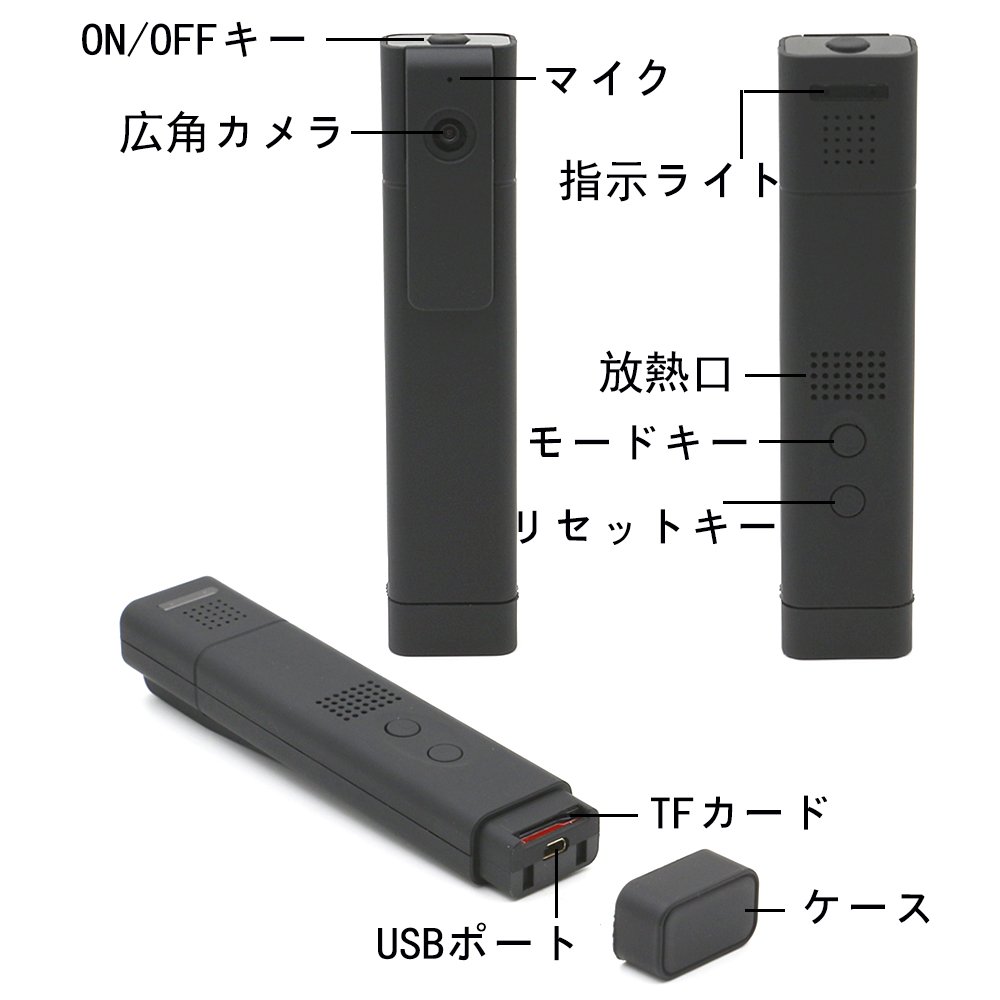

1. ON / OFF key

2. Wide angle camera

3. Microphone

4. Instruction light

5. Heat dissipation port

6. Mode key

7. Reset key

8.TF card

9. USB port

10.Key

Caution:

1. When battery is running out, yellow and blue light flashes and shuts down directly after 5 seconds.

2: When the TF card is full, the yellow and blue light flashes and it shuts down directly after 8 seconds.

3: There is no SD card, yellow and blue light will flash and will shut down directly after 5 seconds.

4: There is no model, turn off automatically after 1 minute.

Correlation parameter

Video format: AVI

Video code: H.264

Video frame rate: 1280 X 720 P 1920 X 1080 P

Video frame rate: 30 fps

Playback software: The operating system has its own mainstream AV broadcasting software

Still image format: JPG

Video Proportion: 4: 3

Support system: Windows me / 2000 / xp / 2003 / vista; Mac OS; Linux;

Battery capacity: 950 mAh

Working time: about 100 minutes

Charging voltage: DC-5V

Interface type: Mini 8Pin USB

Storage support: TF card

Battery type: High capacity polymer lithium battery

1080

There is no flash when playing video

In the standby mode, press the key of the switch once, the yellow lamp flashes, entering 1080 P video three times, clicking the switch button once again, the video stops (when the blue light is on all the time

Standby mode)

take a picture(

1200

A million

In Standby mode, pressing the L button once flashed the yellow lamp once, taking pictures of 12 million images.

Format cards:

In the standby mode, the blue and yellow lamp blink about 3 seconds after pressing the L button, and all the materials are formatted.

reset

If it can not be used, you can use it normally after resetting by pressing the R button once.

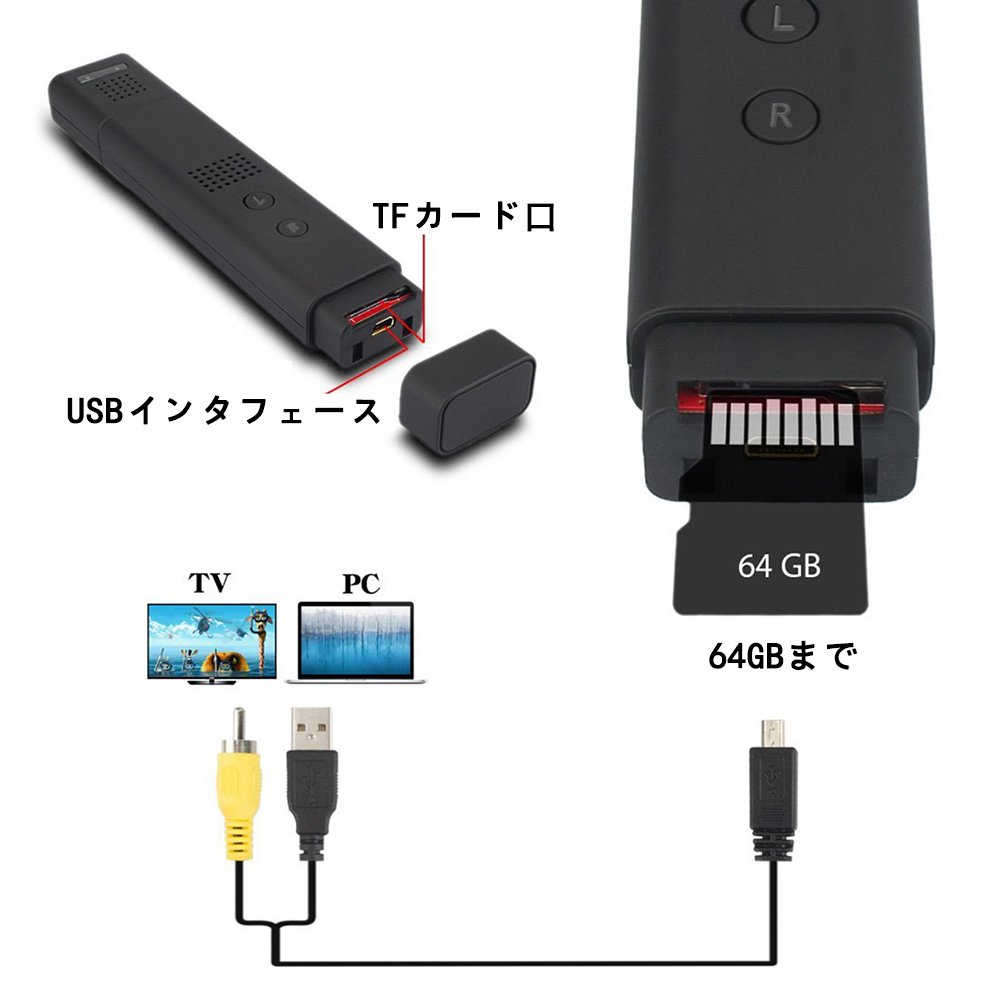

TV OUT

mode

You can connect the TV and you can watch the video on the TV screen.

Video while charging

Insert the TF card and connect the data cable Mobile power supply and 5 V USB power supply, the product enters 1080 P imaging mode.

(If you do not do a manual stop, you can stop the video by hand until there are a lot of recorded cards or no electricity. Switch to any model)

Shut off:

After pressing the switch button for about 2 seconds, all the lamps are turned off, and the product enters the off mode.

Time set

Please set the text file "time.set" in memory.

Please set in the text "20151008182568Y" with this format and save it.

After completing the set, remove the product from the USB and start again, it is OK.

20151008182568 N (It disappears if you enter space + N after the date and time)

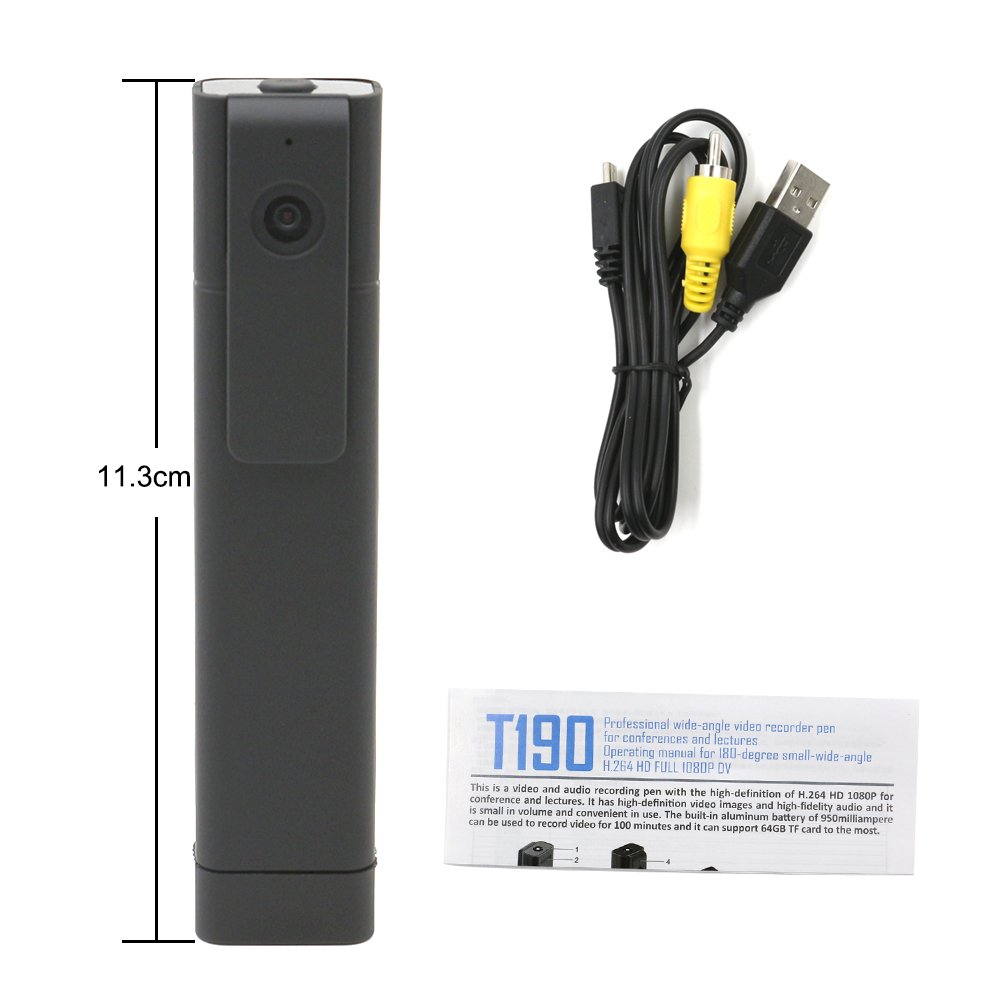

Package included:

1 * body

1 * USB cable

1 * Japanese instructions

1 * 8GB TF card

Notes:

a) Location of use: Please use strictly observing the relevant laws of the country.

We shall not use this product for any non-legal use.

If you use it in violation of the law, you will bear the later results yourself

b) Battery: As the time of use becomes longer, the working time of the battery is shortened.

If you have any problems, please contact us

[email protected]

Features:

• Please enter model number Confirm this is compatible:
• The size is small, with built-in battery of 950 mAh, continuous recording 100 minutes
• 8GB Micro SD card is included (up to 64GB)

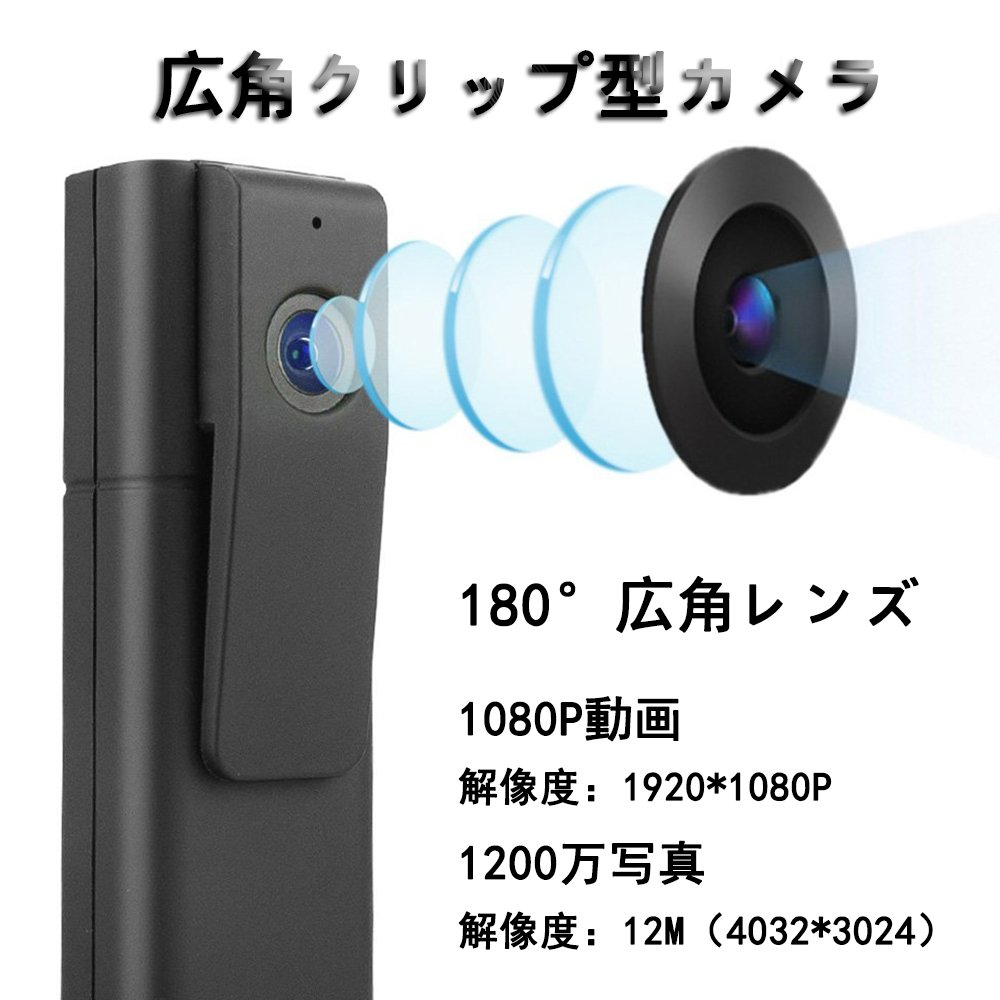

• 1080P movie shooting · 12 million photography · 90 ° wide angle lens · shooting while charging etc.
• High definition video image and voice are united, high image quality of 0 FPS is recorded with smooth image, still image size is 4032 x 3024 px high image quality shooting of 12 million pixel storage.
• Image quality is certainly wonderful!
• It is certainly a wide-angle lens, you can shoot even the face of people sitting in front with you placed directly on the table in the conference room (About Japanese instruction manual our company will translate easily, something problem
• If you have any, please feel free to contact us)

Product information:

Shipping Weight: 95 g

Package Dimensions: 3.91 x 5.79 x 14.81 cm
