Item Descriptions:

Product operation procedure

1. Please insert this product firmly into the cigar socket of the car.

This product turns on automatically after energization.

Also, it will automatically enter Bluetooth pairing standby state.

2. Change the car stereo to FM, and select the frequency that is away from the frequency of the radio being broadcast as far as possible.

It may cause noise.

Adjust the FM transmitter to the same FM frequency.

Press and hold "M" button of this product for LED discress to display frequency.

You can adjust the frequency by pressing ▶ ▶ button and ◀ ◀ button.

3. Open the setting screen of your iphone etc. equipment.

Then turn on Bluetooth and select "BT - T66" displayed.

If pairing is successful, "Pippo" sounds.

This completes pairing setup.

If you need a passcode, please input "0000".

The setting is only the first one.

And you can play music in the equipment such as your iphone.

4. Hands-free calling is possible with built-in microphone.

Because it is hands-free, you can safely make calls while driving.

1. Press the multifunction button once to answer the phone.

2. Press the MULTI-FUNCTION button twice during a call to end the call.

3. You can call back the last phone by pressing the multi-function button twice for a short time.

USB memory mode and

SD

card

Play with

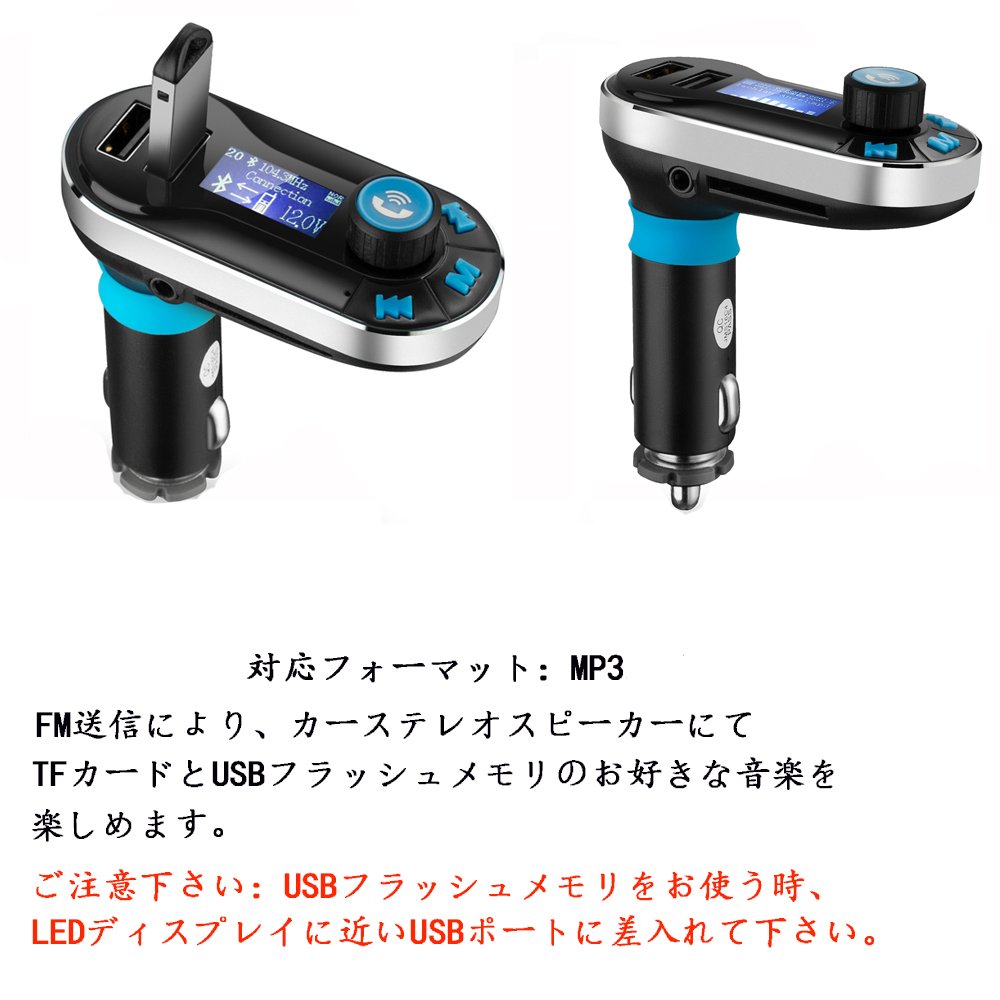

1. USB memory mode and SD card can be played back automatically with this product.

Continuous with AUX cable

1. This product and car are continuous with AUX cable, music can be played from car speaker without adjusting FM frequency.

CAUTION: When Bluetooth is connected with another device while the AUX terminal or USB terminal of this product is connected, Bluetooth takes precedence.

two

USB

port

1. Two (2.1 A 5 V)) With USB boat, you can charge mobile phones and tablets with cars.

You can listen to music while charging, so there is no worry about battery disconnection.

2. Both USB ports can be charged (up to 5 V / 2.1 A).

Both of the two USB ports will be output up to 5 V / 2.1 A.

You can charge your phone with another USB port while broadcasting the music saved in flash memory.

Product specification

· Bluetooth specification: Version 2.0 + EDR

· FM transmission frequency: 87.5 - 108 MHz

· Supported protocol: A2DP

· Bluetooth call distance: Approx 5M

· USB port: 5 V / 2.1 A

· Car cigar socket power supply: DC 12V

· Correspondence: It corresponds to the car of 12V-24V

Notes: 1. This product can not be used for medium size (truck 24V).

2. The size may not match with some foreign vehicles.

3. When tuning, please select the frequencies apart from the frequency of the radio being broadcast as far as possible.

It may cause noise.

4. The manual is in English, but the inquiries are in Japanese.

Customer, I am indebted to you.

Thank you very much.

We do strict quality inspection before exhibiting this product, but there is not necessarily that there are individual differences.

In the unlikely event that there is a problem of initial failure such as the main body crack, it is very troublesome, but by all means we will respond to new retransmission, so (within the account service, contact the seller)

Please contact us as soon as possible.

Features:

• ☞ [Bluetooth · High quality sound] Built-in microphone, Bluetooth connection and hands-free call correspondence, you can phone safely while driving.
• If you match the FM frequency of the in-vehicle audio with the FM frequency of the main body more than that, please enjoy higher-quality music and calls.
• ☞ 【SD card compatible】 Music can be broadcasted with automatic memory function, flash memory and SD card.
• The MP3 player music can also be played with the AUX cable.
• ☞ 【Two USB ports】 Two USB ports can supply power to two devices, powering smartphone and tablet at the same time!
• You can listen to music while charging, so there is no worry about battery disconnection.
• ☞ 【LED display】 Voltage LED display, battery voltage of real time car can be confirmed, prevention of power shortage!

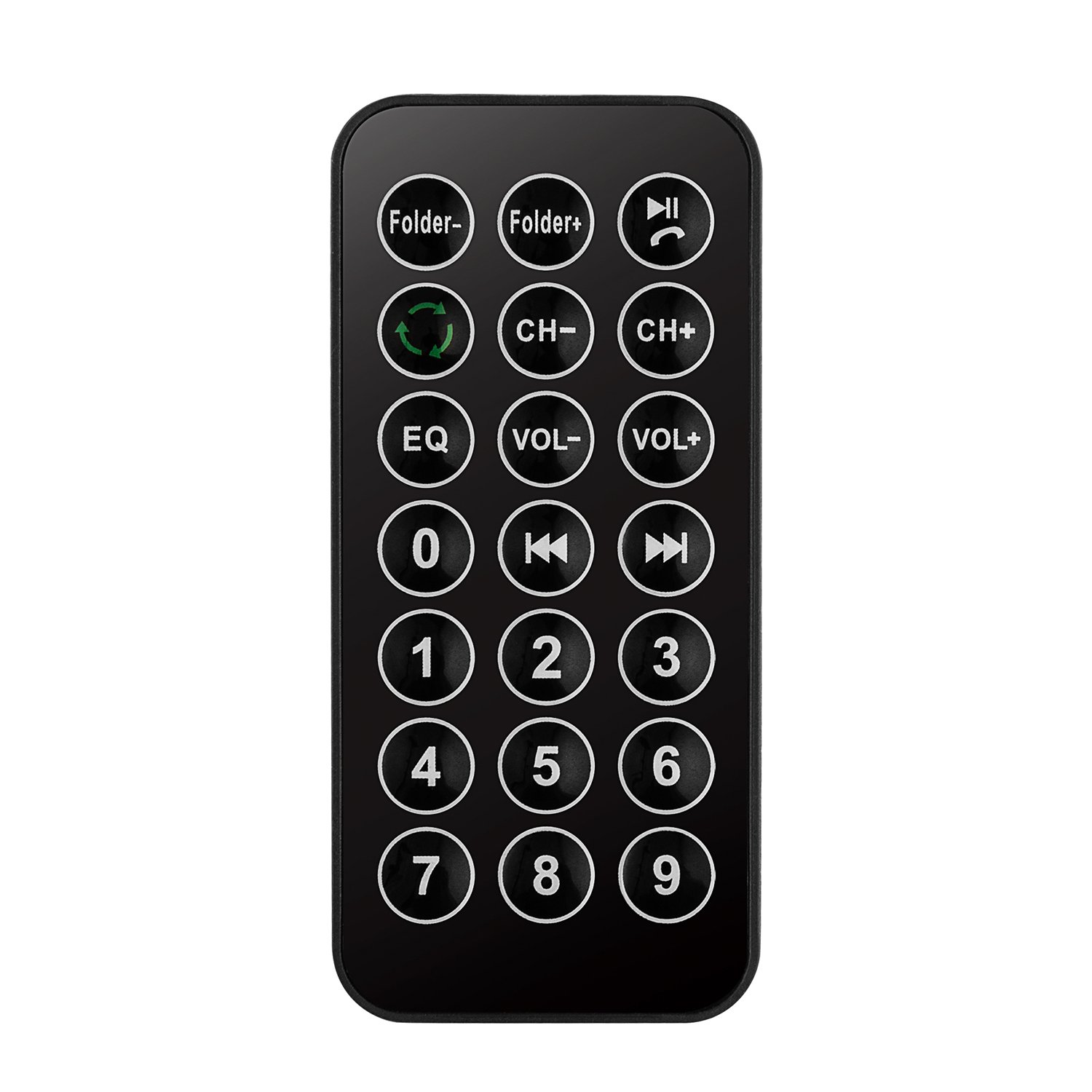

• ☞ [With remote control] Easy operation with full function remote control.
• Operation is also possible from the rear seat of the car.
• 【12-24v for car ※ Product warranty period: one year】

Product information:

Shipping Weight: 99 g

Package Dimensions: 4.50 x 12.19 x 17.20 cm
