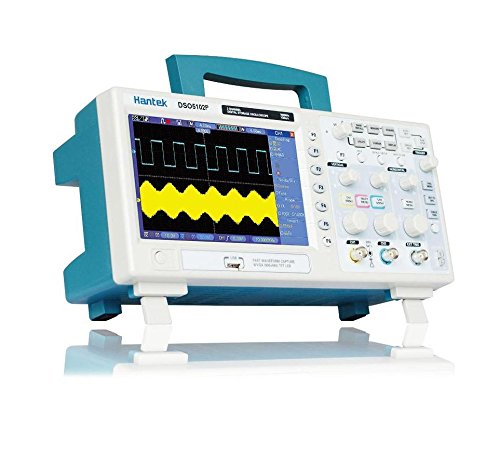

Product Description

General Description: Built-in Video Help,Built-in 4GB flash memory card; Bandwidth:60MHz,1GSa/s Real Time sample rate; Large (7.0-inch) color display,WVGA(800x480); Record length up to 2M; With video help function, built-in 2GB flash memory card. Detailed Description: Bandwidth:60MHz •Channel:2 •Real-Time Sample Rate:1GSa/s •Equivalent Sample Rate:25GSa/s •Memory Depth:2M •Rise Time:1.7ns/3.5ns/5.8ns •Time Base Accuracy:±50ppm •Time Base Range:2ns/div-40s/div •Video Help:Yes •SD Card:Yes •Input Impendance:1MΩ •VOLTS/DIV Range:2mV/div～5V/div •A/D Converter:8 bit •Position Range:±50V(5V/div),±40V(2V/div～500mV/div), ±2V(200mV/div～50mV/div),±400mV(20mV/div～2mV/div) •DC Gain Accuracy: ±3% for Normal or Average acquisition mode,5V/div to 10mV/div; ±4% for Normal or Average acquisition mode, 5mV/div to 2mV/div •Bandwidth Limit:20MHz •Trigger Types:Edge,Video,Pulse, Slope,Over time,Alternative •Trigger Source:CH1,CH2,EXT,EXT/5, AC Line •Math:+,-,x,÷,FFT •Cursor Measurement: Voltage difference between cursors: △V; Time difference between cursors: △T; Reciprocal of △T in Hertz (1/ΔT) •Auto Measuerment:Frequency,Period, Mean,Pk-Pk,Cycli RMS,Minimum, Maximum,Rise time,Fall Time,+Pulse Width,-Pulse Width, Delay1-2Rise, Delay1-2Fall,+Duty,-Duty,Vbase,Vtop, Vmid,Vamp,Overshoot, Preshoot,Preiod Mean,Preiod RMS,FOVShoot, RPREShoot, BWIDTH,FRF •Display:7"TFT 16K Color LCD,800*480 dots

Feature

2 Channels Oscilloscope
Bandwidth 60MHz
Real-Time Sample 1GSa/s
Multiple automatic measurements
2M Record Length
Brand : Hantek
Item model num : DSO 5062BMV
MPN(PartNumber) : DSO 5062BMV
Product Dimensions(LxWxH) : 32x11x15cm ; 3502 g
Package Dimensions(LxWxH) : 41x27x22cm ; 3502 g
