Item Descriptions:

Plugable USB 3.0 Type-C 3 port aluminum hub - with pass-through charging function

-------------------------------------------------------------------

-------

Notes on the Mac 2016/2017 system:

2016 · You can not use this hub with MacBook Pro / MacBook / iMac in 2017.

If you have already purchased it, please be informed of our support though very sorry to trouble you.

MacBook 2015 can be used without problems.

Notes on using with Nintendo Switch:

Please connect this hub to the USB Type-C port of the Nintendo Switch's main body.

Nintendo Switch dock AC adapter connection terminal

It will not function properly when connected to.

For details, please refer to the product information page and related blog post ("Compatibility of Nintendo Switch and Plugable products").

--------------------------------------------------------------------

------

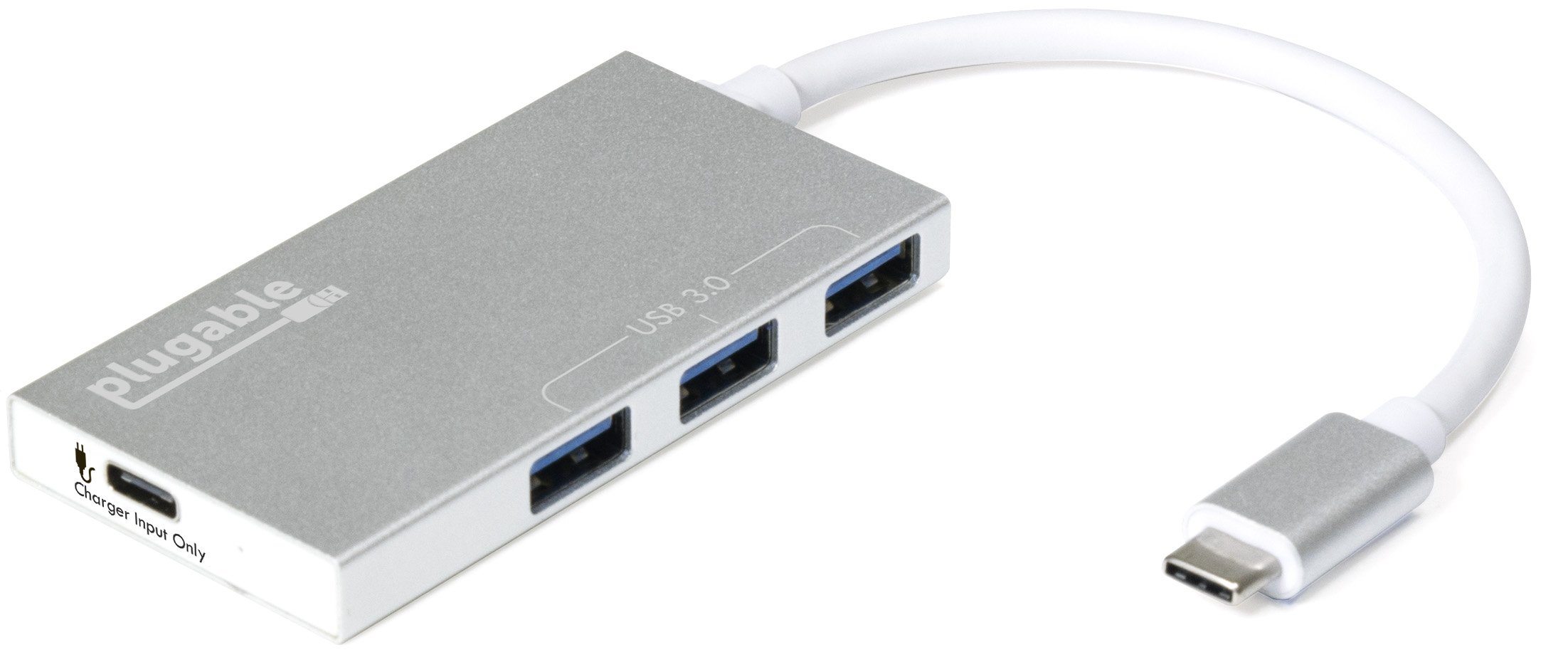

This Plugable USB Type-C 3 Port USB 3.0 Aluminum Hub (USBC-HUB3P) is a USB 3.0 3 port hub that can be directly connected to a system with a USB Type-C port.

In addition to being able to simultaneously connect up to three USB 1.1 / 2.0 / 3.0 USB devices with standard Type-A connectors, it can be used as a hub, while supporting Type - C USB PD for host type compatible with USB Type - C

You can also connect the power adapter to this hub and simultaneously charge the host system (laptop, tablet, etc.).

(For details on charging, please refer to the "Pass-through charge" column below.)

It can be used as a bus power hub without using the power adapter, or it can be used as a self power hub using the power adapter.

(However, this product does not have a power adapter.)

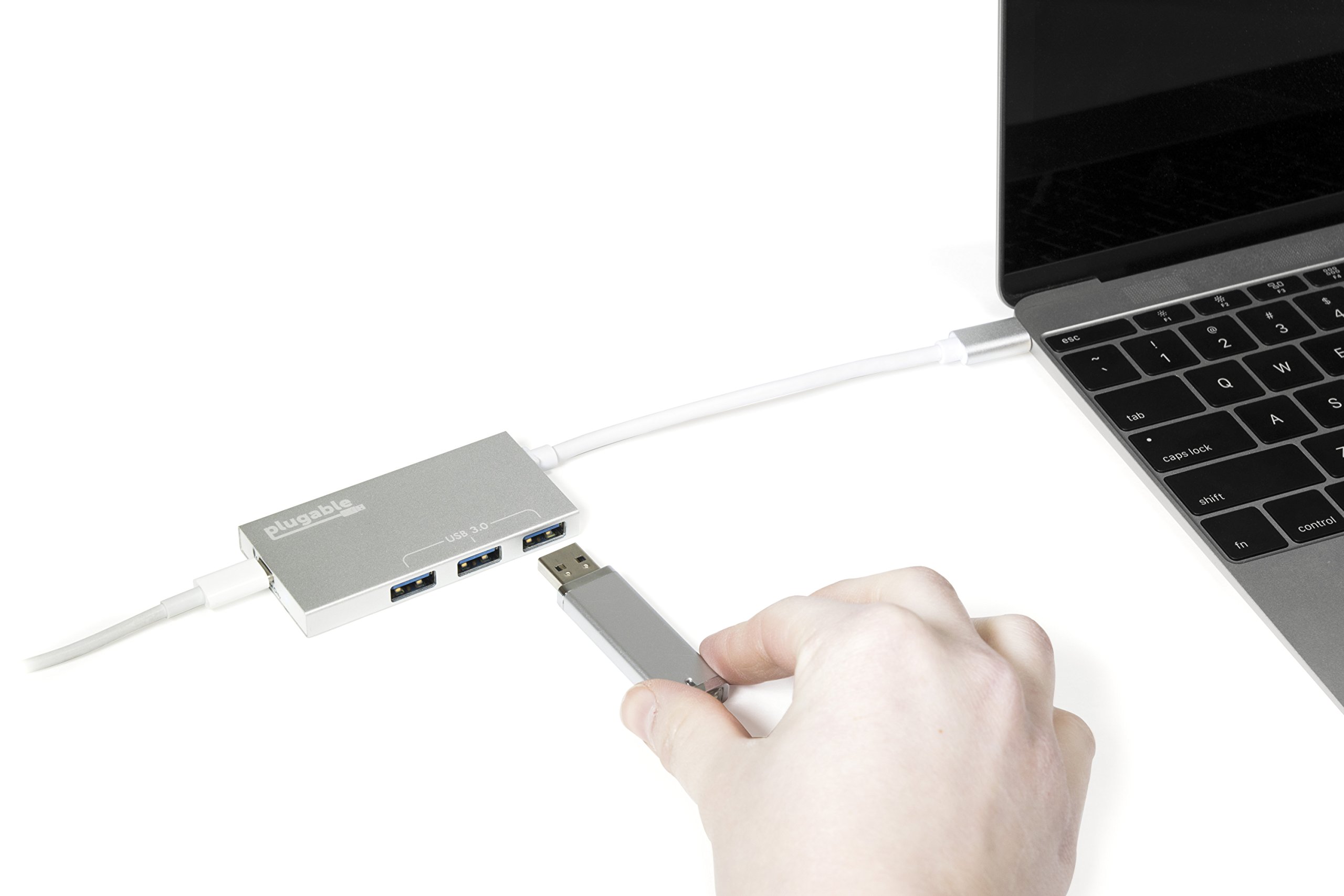

Easy add USB port

Plugable HUB 3P hub is a beautiful aluminum finish.

It is thin and lightweight size ideal for carrying around for travel and business, with cables attached directly to avoid loss.

It has a USB Type-C port and is suitable for use with MacBook Retina 2015 which supports PD.

It is known that it can be used when connected to the USB Type-C port of the Nintendo Switch's main body.

I do not want to carry the Nintendo Switch's dock on the go, but you can use this hub, for example when you want to connect to a wired LAN while charging the Switch.

(In this case, a wired LAN adapter is required separately.)

Pass-through charge:

This USB C-HUB 3P hub can be used as a bus power hub by power supply from the USB Type-C port without a power adapter.

In addition, it can be used as a self-powered hub with a PD compatible power adapter connected.

(The power adapter is not attached to this hub itself.)

If you want to use it as a self-powered hub and at the same time you want to charge the computer at the same time, connect the "USB-IF PD compliant power adapter" attached to the computer side with USB Type-C port to the USB

Please connect to Type - C port and pass through.

"Power adapter conforming to the USB-IF PD standard" is attached to MacBook Retina 2015 and Google Chromebook Pixel 2015, and it has been confirmed that it is charged correctly via this hub.

Plugable company confirms that this USBC - HUB 3P hub works properly (it charges the host system simultaneously while transferring data) in the following system.

Apple 12 "MacBook Retina 2015

Google Chromebook Pixel 2015

Google Pixel C

Nokia Lumia 950/950 XL

Note: Not all systems charged via the USB Type-C port conform to USB-IF PD standard.

For systems and adapters not compliant with the USB - IF PD standard, and USB Type - C ports, you can not charge using this hub 's pass - through function.

Many smart phones with USB Type-C port currently on sale are not compliant with USB-IF PD standard.

As of August 2017, I know that this hub can not be used on MacBook 2016/2017.

For example, the USB Type-C port of the Dell XPS 13 9350 is PD compliant, but "PD compatible USB Type-C adapter" does not come with it.

As mentioned above, there are various variations of compatibility at the present time, so please refer to the product introduction page for details.

Points to note when using the power adapter:

When using the hub with the host system power adapter connected (self-powered), the power for the hub itself to operate is also supplied from the power adapter for the connected host system.

With this specification, plugging and unplugging the adapter will reset the hub once.

This is because the hub internally switches between bus power (power supply from PC's USB Type-C port) and self power (power supply from power adapter).

This behavior is correct behavior conforming to the specification of USB-IF PD standard R2 V1.0, but in this point the USB devices connected to the hub will temporarily stop until the power switch is completed

Please be careful.

When a hard disk or the like is connected, data transfer is interrupted instantaneously, which may result in destruction of data or inconsistency.

When plugging in and pulling out the power adapter, please confirm that the USB device connected to the hub is not in use.

performance:

This 3 port hub is compatible with USB 3.0 (USB 3.1 Gen 1) and can transfer data up to 5 Gbps (640 Mbps).

It can be used without problems for connecting hard disks, flash drives, USB graphics, adapters, etc. that transmit large amounts of data.

Technical specifications and compatibility

This USBC - HUB 3P hub adopts two types of VIA Lab chipset.

The first is a VL813 USB 3.0 Hub Chipset (Firmware 9001) with excellent forward and backward compatibility, it can correspond widely to USB 3.1 / 3.0 / 2.0 / 1.1 host system and peripherals.

The second one is VIA Lab's VL-100 USB-C alternative mode and PD controller.

This chipset manages PD profile negotiation between Type-C power supply (source) and system side PD (sink), allowing pass-through charging.

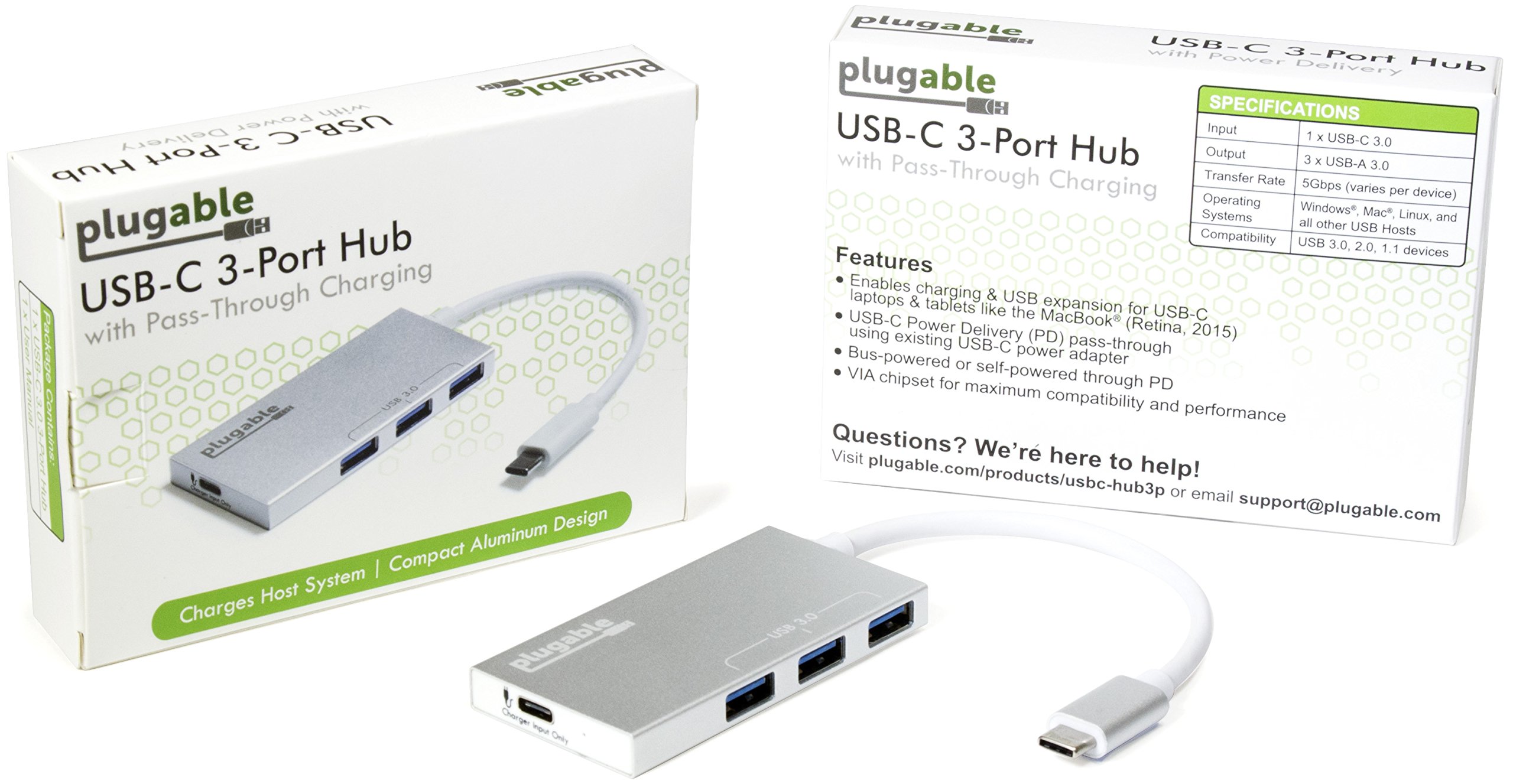

Included items

USBC-HUB 3P 3 port aluminum hub

Quick Start Guide

Compatibility with USB 3.0

There is no need to introduce a special driver for this hub.

It can be used with Windows 7, 8.1, 10, Mac OS X, Linux kernel 3.0 or higher.

Compatibility with Chrome OS and Android systems depends on the system side.

For Windows systems, apply the latest update to the USB 3.0 / 3.1 host controller.

This hub itself is not a stand-alone charging device.

There is no special function to charge the equipment connected to the port of the hub.

The power supplied from the hub port is up to 900 mA of USB 3.0.

Because Apple SuperDrive requires special signals, it is incompatible with this hub (or a non-Apple hub).

Wireless equipment at 2.4 GHz frequency may not function correctly due to radio interference with USB 3.0 equipment.

In that case please connect the receiver via USB 2.0 port or cable.

Features:

• Please enter model number Confirm this is compatible:
• It is a USB 3.0 3 port hub that can be connected directly to the USB Type-C port.
• Either in bus power mode without power adapter or in self power mode with power adapter connected, it can be used.
• If your system supports USB-C PD (Power Delivery) such as MacBook Retina 2015, Chromebook Pixel 2015, you can also charge the host system with pass-through while connecting this USB Type-C 3 port hub.
• (It can not be used with the new MacBook Pro of MacBook 2016 and 2016.) PD pass-through charging is a method of connecting the USB Type-C charging adapter that came with the host system via this hub.
• However, please be aware that not all systems with USB Type-C currently on sale are compatible with this PD pass-through function.
• The latest v9001 firmware is applied to the reliable VIA Lab VL 813 USB 3.0 hub chipset.
• This will provide compatibility and high performance not only with existing USB 3.0 but also with the latest USB 3.1 compliant system.
• The transfer speed is up to 5 Gbps (640 Mbps) of USB 3.0 (USB 3.1 Gen 1).
• Please be aware that the actual transfer rate will depend on the performance of the USB controller of the host system and the USB device to be connected.
• For the USB PD function, we use the VIA VL100 chipset.
• USB 2.0 and USB 1.1 devices are also backwards compatible (maximum transfer rates are up to 480 Mbps and 12 / 1.5 Mbps, respectively).
• Although it is forward compatible with USB 3.1 Gen 2 compatible devices, the transfer rate is limited to 5 Gbps of USB 3.0 (USB 3.0 Gen 1).
• Note on Apple products: Equipment that requires Apple's proprietary signals, such as Apple SuperDrive, is not compatible with any USB hub.
• Also, this 3 port hub can not be used on iPad or iPhone.
• Plugable offers 1 year quality assurance and email support.
• If you have any questions about this product, please do not hesitate to contact our support in Japanese.

Product information:

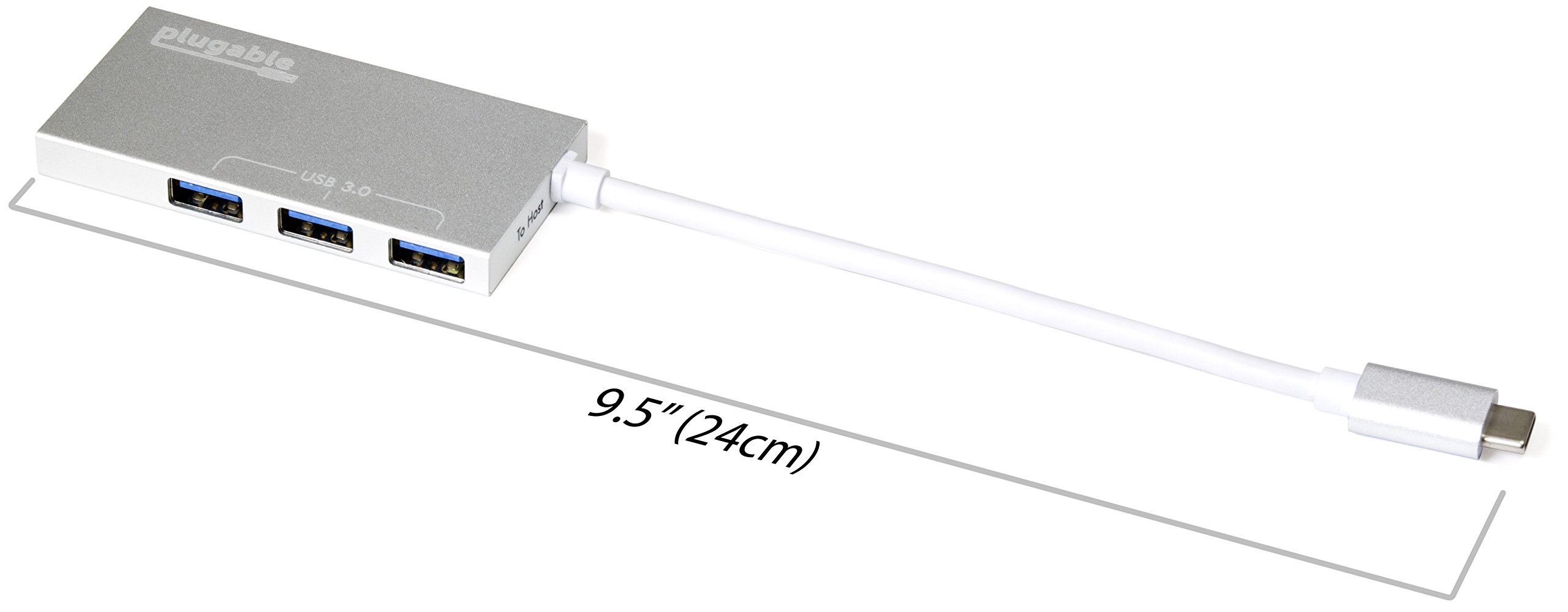

Shipping Weight: 58 g

Package Dimensions: 2.59 x 8.99 x 12.39 cm
