Product Description
Tendak Mini DisplayPort to Composite Video and S-Video Converter allows high resolution device with DisplayPort interface to be displayed on CRT/LCD TV. It supports high-quality video up to DVD level and above. It is widely used for business presentations, multimedia and computer games etc. It is Plug-and- play, and no software is needed. Zoom Function: Adjust the aspect ratio if the image is too large or too small on the TV.

Specification:

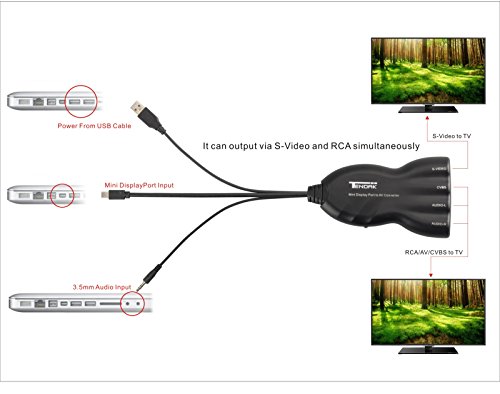

Input: 1 x Mini DisplayPort, 1 x USB , 1 x 3.5mm Audio
Output: 1 x Composite Video, 1 x S-Video
DisplayPort resolution: 640x480(60Hz); 800x600(60Hz); 1024x768(60Hz); 1024x768(60Hz); 1280x720 (60Hz); 1280x1024(60Hz)
Support TV system: NTSC
Output level: CVBS (1.0Vpp);S-Video(Y: 1.0Vpp, C: 0.3Vpp);
Output Resistance: 75 Om;
Power Supplier: DC5V;

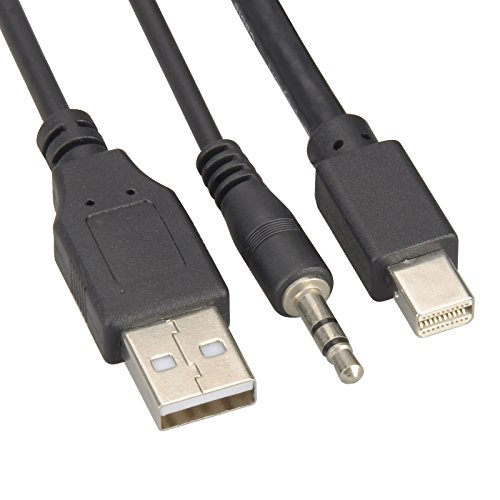

Size: 40cm Mini DisplayPort cable; 41cm USB cable; 42cm audio cable
Product Dimension: 130x75x27mm (L x W x H)

Package Contents:

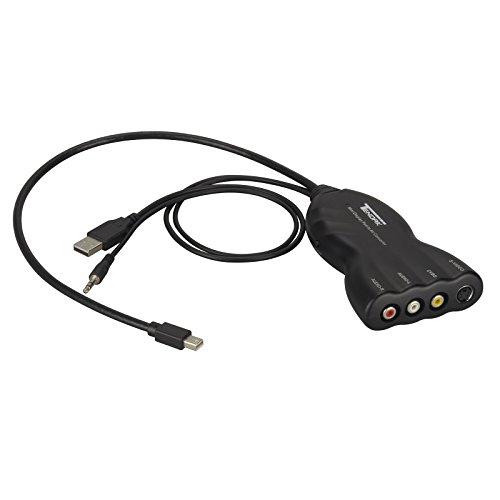

1 x Mini DisplayPort to AV Converter
1 x 1.5m AV Cable
1 x 1.5m S-Video Cable
Note: It does not output in the opposite direction.

Warranty:
1 Year Limited Warranty by Tendak
