Product Description

Feather is the new development board from Adafruit, and like its namesake it is thin, light, and lets you fly! We designed Feather to be a new standard for portable microcontroller cores.

This is the Feather 32u4 Basic Proto, it has a bunch of prototyping space built right in We have other boards in the Feather family, check'em out here!

At the Feather 32u4's heart is at ATmega32u4 clocked at 8 MHz and at 3.3V logic, a chip setup we've had tons of experience with as it's the same as the Flora. It can also act like a mouse, keyboard, USB MIDI device, etc. This chip is well supported in the Arduino IDE and can run just about every sensor/library out there.

To make it easy to use for portable projects, we added a connector for any of our 3.7V Lithium polymer batteries and built in battery charging. You don't need a battery, it will run just fine straight from the micro USB connector. But, if you do have a battery, you can take it on the go, then plug in the USB to recharge. The Feather will automatically switch over to USB power when its available. We also tied the battery thru a divider to an analog pin, so you can measure and monitor the battery voltage to detect when you need a recharge.

Here's some handy specs!
ATmega32u4 @ 8MHz with 3.3V logic/power
3.3V regulator with 500mA peak current output
USB native support, comes with USB bootloader and serial port debugging
You also get tons of pins - 20 GPIO pins
Hardware Serial, hardware I2C, hardware SPI support
8 x PWM pins
10 x analog inputs (one is used to measure the battery voltage)
Pin #13 red LED for general purpose blinking
Power/enable pin
4 mounting holes
Reset button

The Feather 32u4 Basic Proto has some extra space left over, so we give you a tiny little prototyping area. If you just need to attach a button or sensor, you may be able to skip out on a breadboard and wire it directly on there.

Feature

ATmega32u4 clocked at 8 MHz and at 3.3V logic. 32K flash and 2K RAM
Built-in USB (USB to serial) for programming
Connector for 3.7V Lithium Polymer battery (battery not included). Built in 100mA lipoly charger with charging status indicator LED
Measures 2.0" x 0.9" x 0.28" (51mm x 23mm x 8mm) without headers soldered in Light as a (large?) feather - 4.8 grams

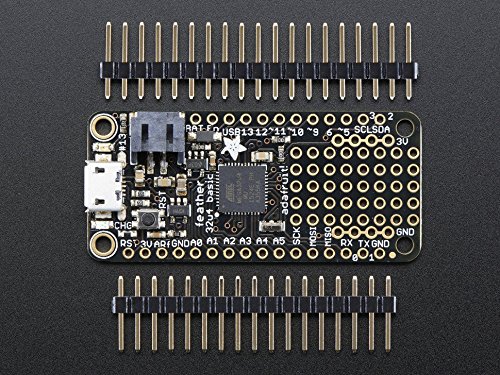

Comes fully assembled and tested, with a USB bootloader that lets you quickly use it with the Arduino IDE. We also toss in some header so you can solder it in and plug into a solderless breadboard. Lipoly battery and USB cable not included (but we do have lots of options in the shop if you'd like!)
Brand : Adafruit
EAN : 0717520031284
Product Dimensions(LxWxH) : 8x6x3cm ; 86 g
Package Dimensions(LxWxH) : 8x6x3cm ; 86 g
