Sonnet Echo Express III-D Thunderbolt 3 Edition - 3-Slot PCIe Card Expansion System



Product Description

For pros working in the creative fields, a computer's processing power alone is not enough to get the job done. A prime example is the latest MacBook Pro, which, while offering great performance, lacks the PCIe expansion slots necessary to support specialty cards that connect pro video and audio inputs, transcode data, and connect to high-speed storage and networks. Instead of slots, these computers include ultra high-performance Thunderbolt 3 ports to support peripherals. Sonnet's Echo Express III-D - Thunderbolt 3 Edition leverages the Thunderbolt 3 ports' PCIe data to connect PCIe expansion slots outside of a computer. This desktop Thunderbolt-to-PCIe card expansion system enables you to connect three professional PCIe cards-including video capture, audio interface, SAS or SATA HBA, 16Gb or 8Gb Fibre Channel, 10 Gigabit Ethernet, and RAID controllers-at the same time to any Mac with a Thunderbolt 3 port. The Echo Express III-D - Thunderbolt 3 Edition features a 40Gbps Thunderbolt 3 interface, which offers double the PCIe bandwidth and connectivity of Thunderbolt 2, and yields up to 2750 MB/s of bandwidth, enabling it to support 4K video capture and processing cards at high frame rates, and 16Gb FC cards and dual-port 10GbE cards at full performance. With the ability to handle multiple demanding, high performance PCIe cards, support for connecting two 4K displays @ 60Hz or one 5K display @ 60Hz, and support for a vast array of Thunderbolt and USB devices, Thunderbolt 3 is a leap forward in every way.

Feature

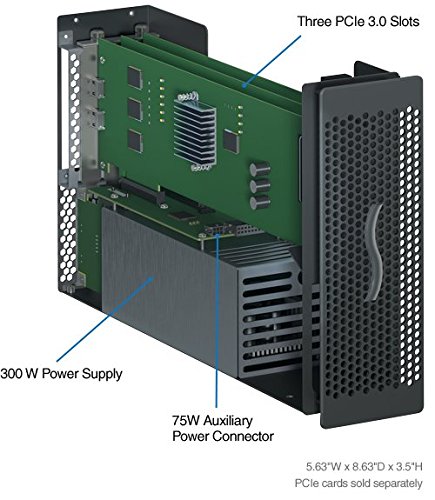

Connects Three Full-Length PCIe Cards to any Mac With Thunderbolt 3 Ports-Use multiple high-performance PCIe cards at the same time
Three PCIe 3.0 Slots-Supports three full-height, single-width cards, or one double-width card plus one single-width card
40Gbps Thunderbolt 3 Interface-Offers 2750 MB/s of PCIe bandwidth, doubling the performance of Thunderbolt 2
Two Thunderbolt 3 (USB-C) Ports-One port used to connect to the computer; second port supports daisy-chaining of up to five additional Thunderbolt peripheral devices to your computer, attaching a single USB peripheral device, or connecting up to two 4K displays or one 5K display
Built-in Universal Power Supply-Integrated 300W power supply with 75W auxiliary power connector
Brand : Sonnet Technologies
Item model num : ECHO-EXP3FD-TB3
MPN(PartNumber) : ECHO-EXP3FD-TB3
EAN : 0732311012280
Product Dimensions(LxWxH) : 44x28x14cm ; 4649 g
Package Dimensions(LxWxH) : 53x35x17cm ; 4649 g
