Item Descriptions:

size:

Large size 63 cm

How to use a ratchet type pipe cutter

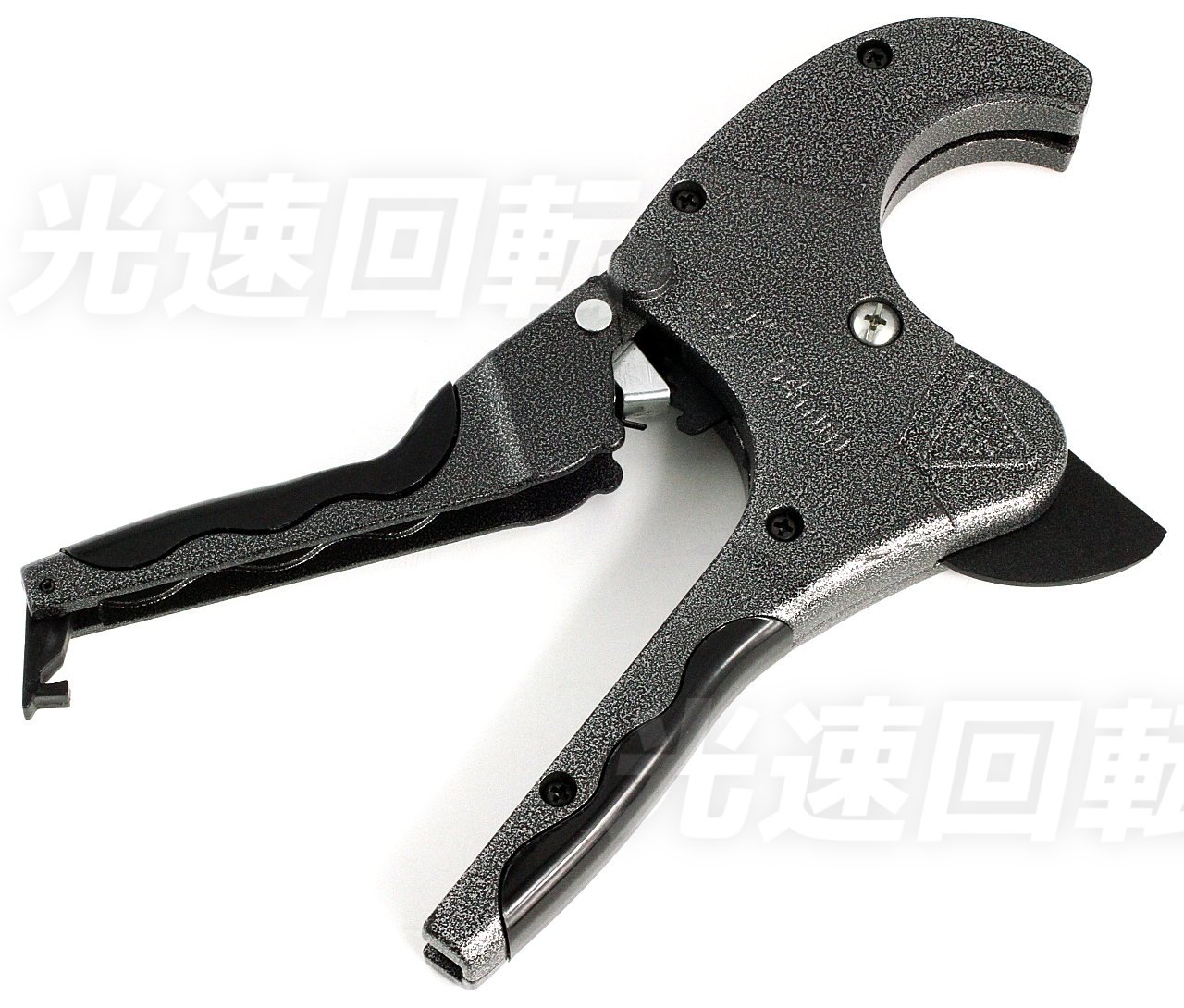

● Open grip to the full

When releasing the lock, this product opens automatically with a spring.

Ratchet is reset when it is fully opened, and the blade is released like the image.

● Put the material in the C shape and grasp the grip several times to align the position of the blade.

● Cut the grip repeatedly.

Just grab the grip repeatedly until you can cut it!

It is structured to cut a certain amount every time a handful is made.

As with ordinary scissors, you do not need to open a large grip according to the target, and cut with a series of short, strong cuts.

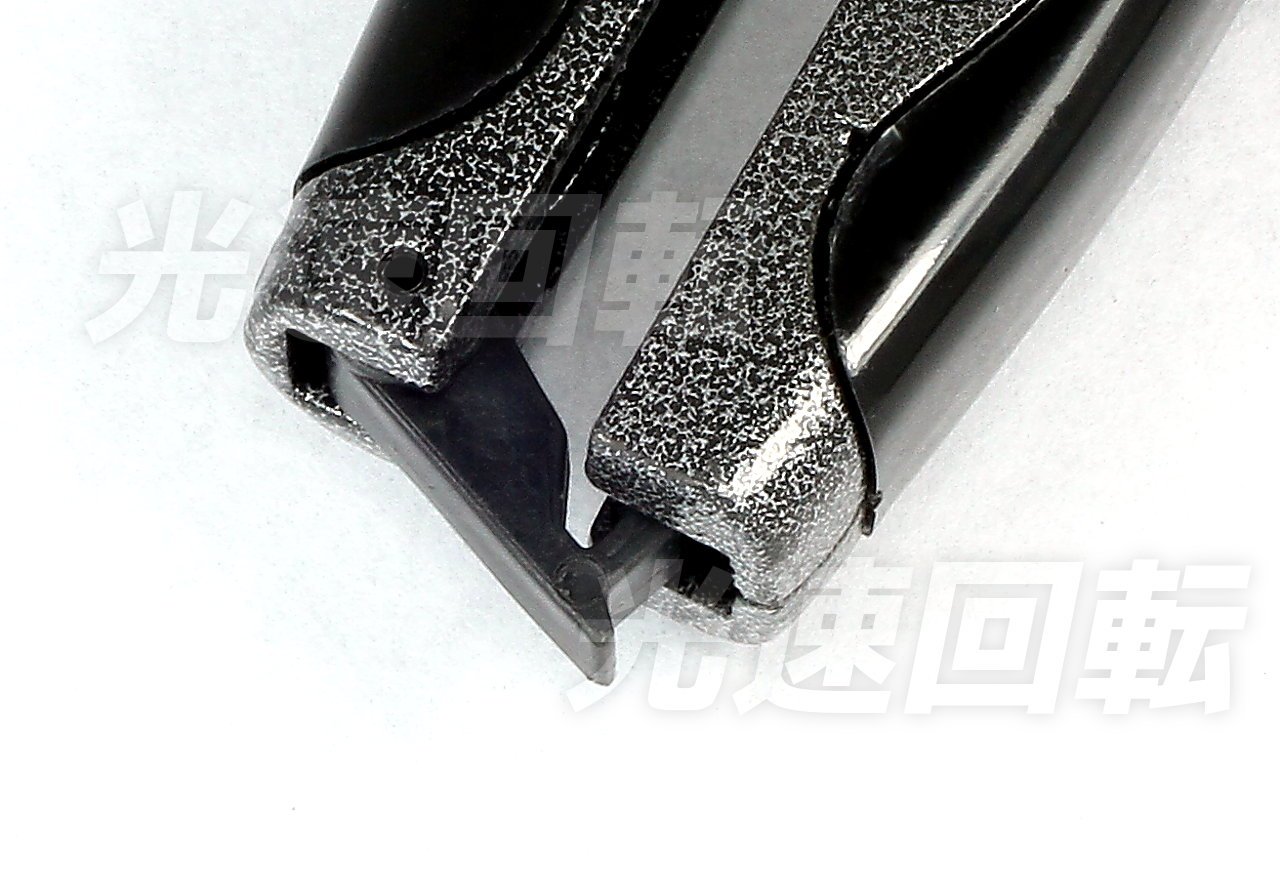

Unlocking is easy!

When not using this product, I think that it will be locked at all times by closing the blade to prevent injury and protect the tool.

And just unlock that grip will grasp the grip!

If you hold it gently with one hand the lock will come off.

Design that does not open the blade until it is used, you can start working with one hand when you want to use!

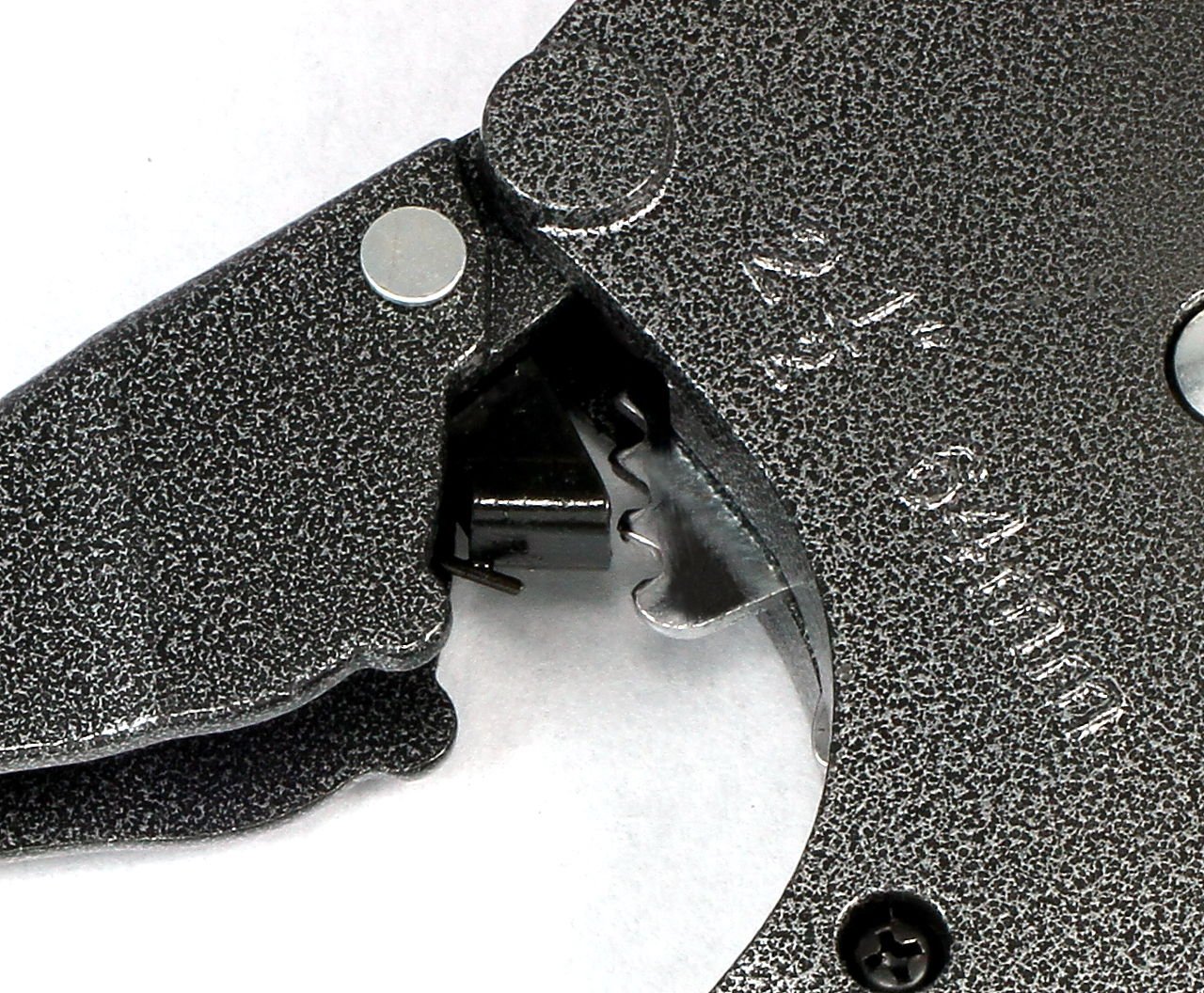

Ratchet is 16 steps

Ratchet is 16 steps from the open state of the blade to the cutting.

The feed amount of the blade is about 4 mm.

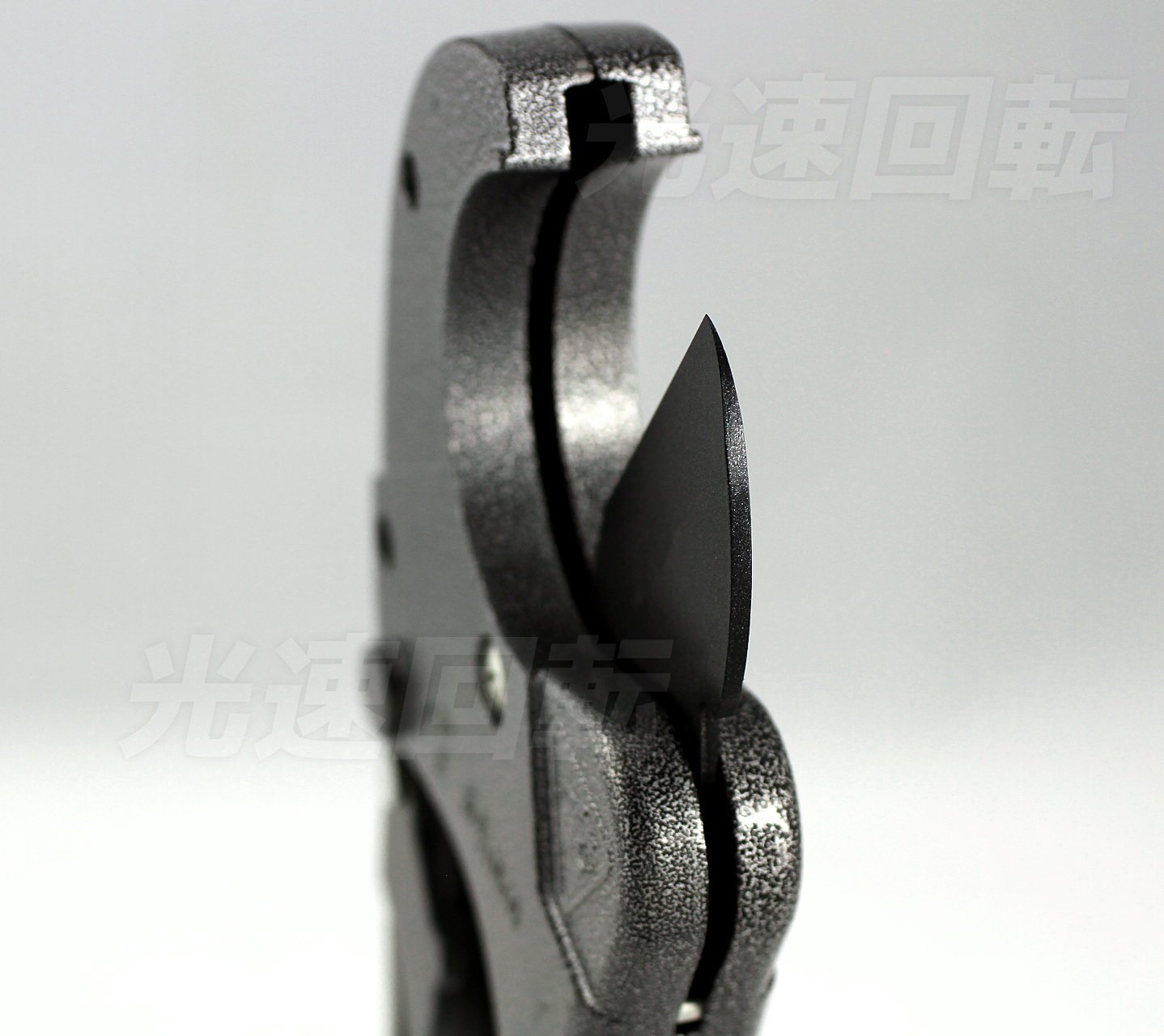

Strong blade

● Thickness of the blade is 3 mm

A thick carbon steel sticks to a lightweight aluminum body.

Adopted high manganese ore excellent in impact resistance and abrasion resistance even for carbon steel blades, long dating can be expected with durable material!

Ratchet type pipe cutter does not produce chips like saw, the work site is clean.

And because it can be handled with one hand, it is also possible to handle high altitude work.

It is a dish that I want you to have as a tool for piping work, a large pipe cutter that can cut up to Φ 63 mm.

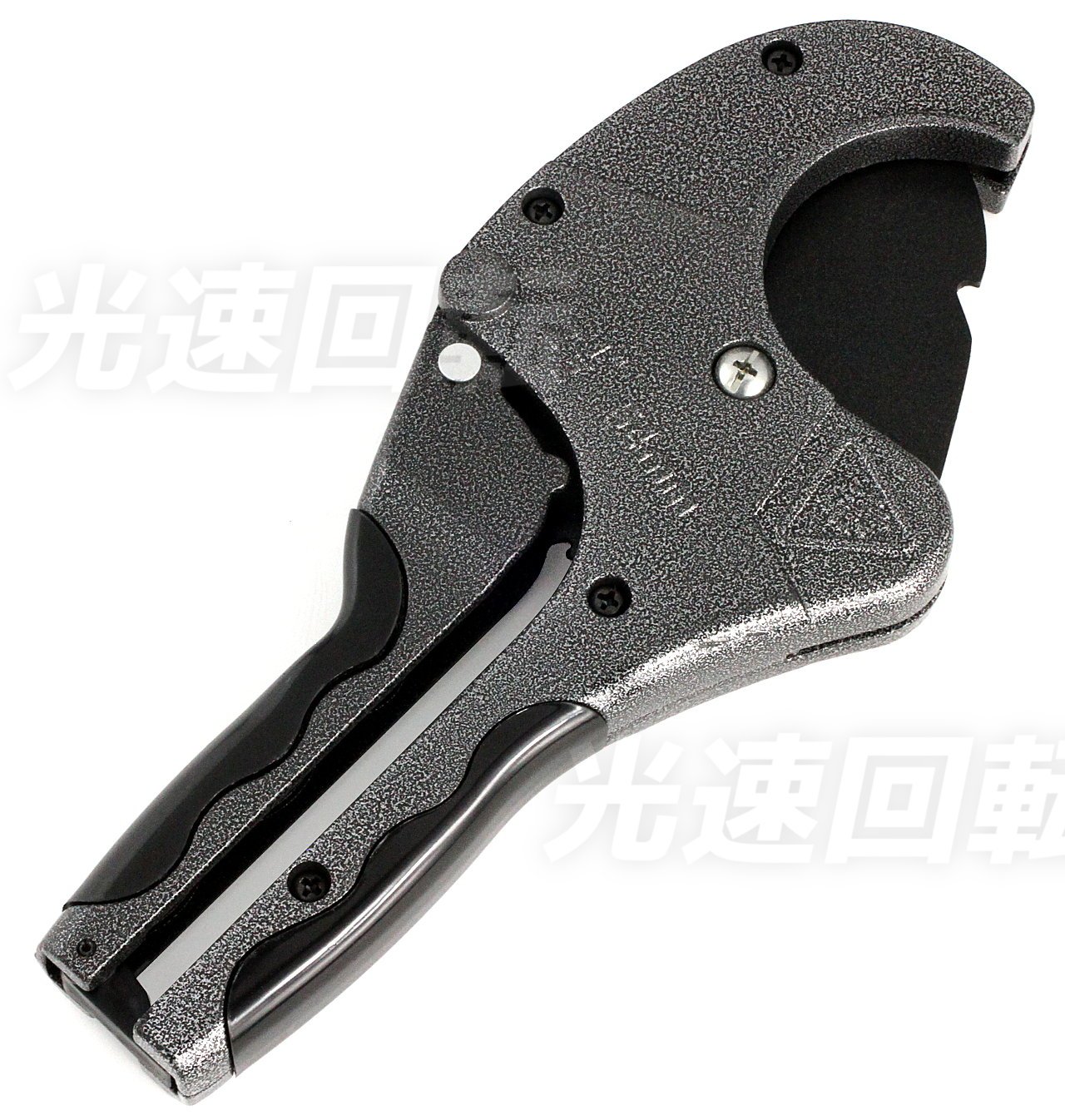

Features:

• Easy to cut with one hand, ratchet type pipe cutter
• The main body is aluminum die-casting of high-temperature press-in casting.
• The size is 255 mm × 112 mm × 27 mm, and the weight is 526 g.
• Application: 20 to 63 mm PVC pipe, PVC · PE etc, cutting of resin pipe (excluding some soft pipe)
• The blade is strong with high manganese ore, it can cut to a pipe with a large diameter of 60 mm.
• When locking mechanism adoption is not used, you can close and secure the blade, so storage and carrying are safe.
• ※: Please be careful when working at low temperatures as pipes may break.
• Also, due to the nature of the cutter, pipes of insufficient strength such as PE 10 or VU pipe which does not exceed 2 mm in thickness will be "bent", "broken", "cracked" and so on and can not be disconnected.

Product information:

Shipping Weight: 530 g

Package Dimensions: 3.71 x 14.81 x 28.80 cm
